Manfrotto 163-38 28mm Male Adapter 1 1/8 and 3/8 Thread

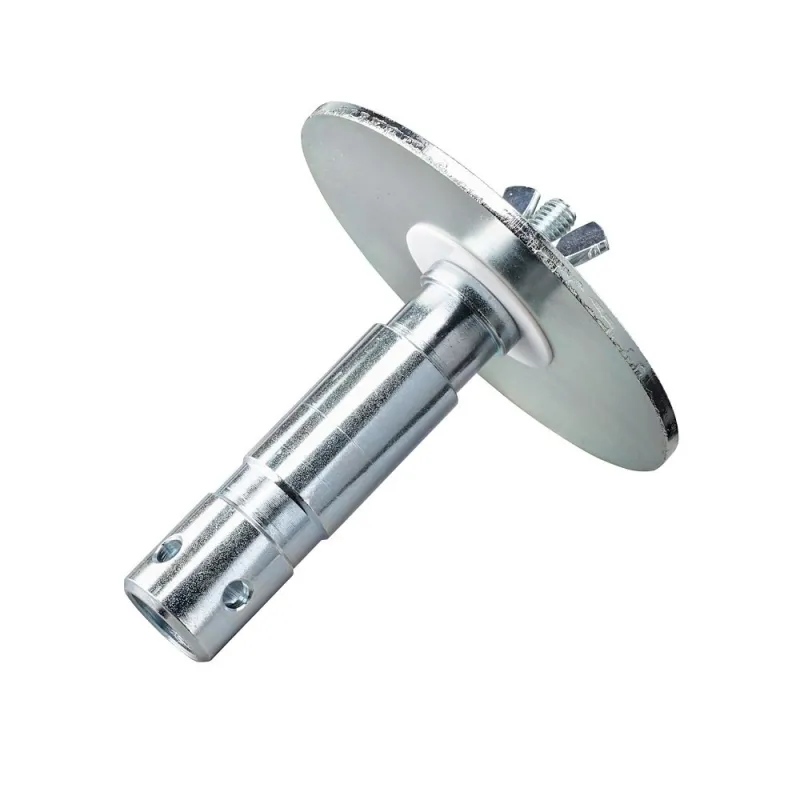

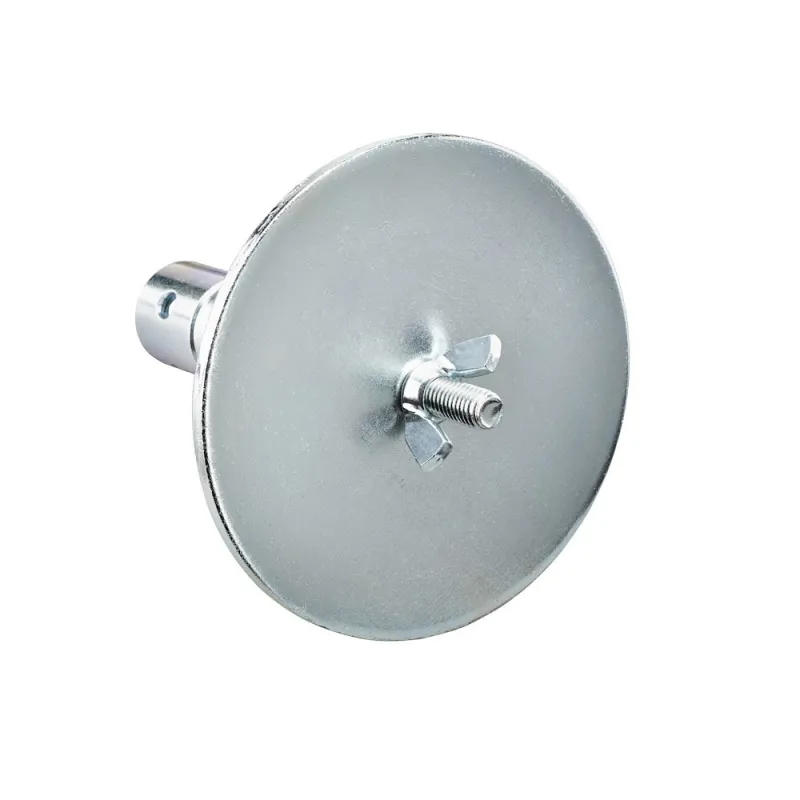

The Manfrotto 163-38 is a heavy-duty 28 mm (1-1/8) Junior male spigot with a 3/8-16 female thread on the bottom, machined from solid zinc-plated steel. At 13.5 cm tall and 750 g, it is the classic Junior-to-3/8 adapter that allows you to mount any 28 mm Junior receiver light (ARRI, Mole, large HMI fresnels, etc.) directly onto a 3/8 stud on a tripod head, Magic Arm, Super Clamp, or grip arm.

The Manfrotto 163-38 adapter is the industry-standard solution when you need to drop a big Junior-receiver fixture onto a smaller 3/8 mount. The full-size 28 mm Baby/Junior pin is 100 mm long (standard length), while the base has a deep 3/8-16 female thread and wide flange for rock-solid attachment without wobble.

Key Features

• 28 mm (1-1/8) Junior male stud (100 mm long)
• 3/8-16 female thread on bottom
• Heavy zinc-plated steel built for professional use
• Perfect for mounting large lights on Super Clamps, Magic Arms, C-stands, or 3/8 tripod studs
• Industry-standard Junior pin with 3/8 base

• 1 Manfrotto 163-38 28 mm Junior to 3/8 Adapter

• Model Manfrotto 163-38
• Top Attachment 28 mm (1-1/8) Junior male stud
• Bottom Attachment 3/8-16 female thread
• Length 135 mm
• Material Zinc-plated steel
• Weight 0.75 kg
