Libec RSP-750PD(B) Pedestal System with RHP75 Fluid Head

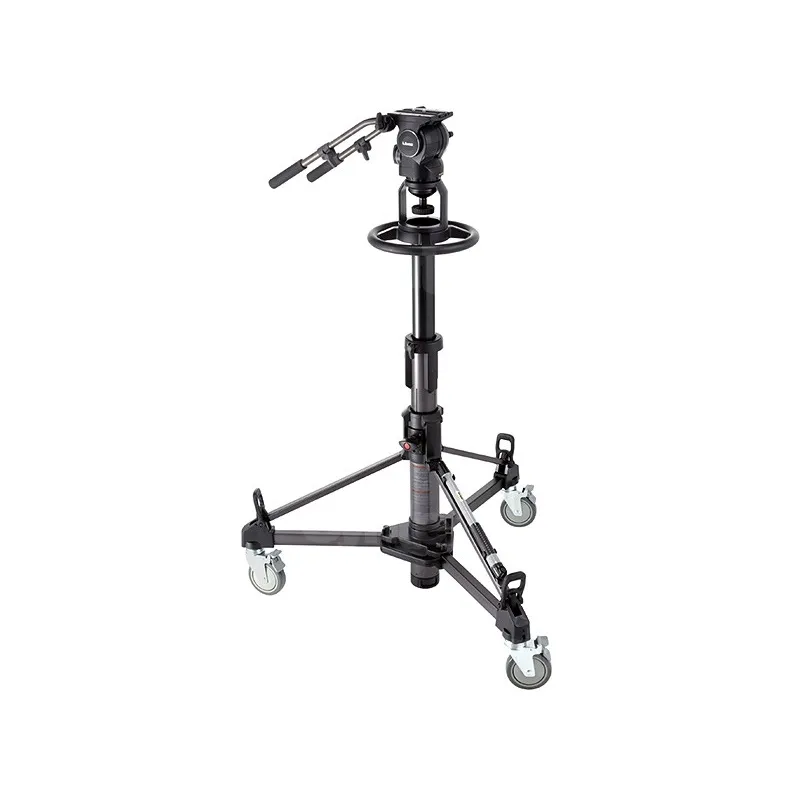

Libec RSP-750PD(B) Pedestal System

The Libec RSP-750PD(B) Pedestal System is designed for broadcasting applications and includes the RHP75 Fluid Head, PH-8B Pan Head, and P110(B) pneumatic pedestal with DL-8RB Broadcast Dolly for outdoor use. This system is compact, easy to set up, and supports a maximum load capacity of 17 kg (37.5 lb), accommodating a wide range of studio cameras.

The pedestal system features an air pump for weight adjustments and incorporates a double-bearing system to prevent wobbling and ensure smooth, stable movements.

Libec RHP75 Fluid Head with PH-8B Extendable Pan Handles

The RHP75 Fluid Head includes fully adjustable Continuous Counterbalance technology for optimal counterbalance and a Balance Stabilizer Mechanism that eliminates image wobble while providing smooth balancing. It offers a 7-step pan and tilt torque switch covering a wide torque range.

The fluid head features a one-touch camera plate attachment and release mechanism for quick setup. The included PH-8B Pan Handle has a rubber grip and allows precise stopping at any tilt angle. The fluid head operates reliably at temperatures as low as -40°C and has a 100 mm diameter ball head, making it ideal for ENG (Electronic News Gathering) cameras capturing fast-moving subjects. It supports payloads up to 17 kg (37.5 lb).

• Fully adjustable Continuous Counterbalance technology
• Balance Stabilizer Mechanism prevents image wobble
• Smooth balancing system
• 7-step pan and tilt torque switch
• One-touch camera plate attachment and release
• Operates down to -40°C
• Extendable pan handle with rubber grip
• 100 mm diameter ball head
• Designed for ENG cameras capturing fast-moving objects

Libec PH-8B Extendable Pan Bar Handle

The PH-8B Pan Bar Handle is compatible with Libec RHP75, RHP85, and LX10 video heads. It attaches securely to either side of the head with a clamp and bolt, supporting right or left-handed operation. The rubberized handle provides comfortable control over the telescoping aluminum-alloy shaft, adjustable from 40 to 56 cm (16 to 22 inches).

The angled pan bar handle can rotate within its clamp, allowing downward-pointing orientation for either hand. It is shipped configured for right-handed use but can be adjusted accordingly.

Libec P110(B) Pneumatic Pedestal with P110 Column and DL-8RB Dolly

The P110(B) Pneumatic Pedestal features a unique compressed air design through the central column, providing maximum stability and smooth motion during shots. It has a two-stage pneumatic system enabling smooth camera elevation for rigs up to 30 kg (66 lb). The pedestal includes a 100 mm bowl and the DL-8RB dolly equipped with large 125 mm (4.9 inch) wheels for smooth movement on location.

High Payload Pneumatic Column

The pedestal combines a lower locking mechanical column for secure camera positioning with an upper pneumatic column for smooth adjustable elevation. It supports medium-weight camera systems up to 30 kg (66 lb).

Variable Air Pressurized Design

Air pressure can be adjusted in the pneumatic column without removing camera equipment, allowing quick and efficient setup changes.

Air Pressure Safety Valve

An integrated safety valve prevents over-pressurization of the pneumatic column.

Large 125 mm Wheels

The large 125 mm (4.9 inch) casters enable quick and smooth movement on outdoor surfaces.
