VariZoom VZMICRO-ARM-K Magic Arm

VariZoom VZMICRO-ARM-K Magic Arm

The VariZoom VZMICRO-ARM-K is a compact, versatile articulated magic arm featuring a clamp, reversible 1/4-20 mount, and mounting stud. It is designed for flexible positioning and secure support of cameras, monitors, lights, or accessories weighing up to 2.7 kg (6 lbs) in a miniature, lightweight form factor.

Constructed from durable aluminum and steel, this magic arm combines strength with portability, making it ideal for professional video and DSLR setups.

It includes a reversible 1/4-20 mount, a universal clamp, and threaded stud options, providing unmatched flexibility. The arm folds compactly for easy transport or storage and extends to allow precise adjustment and positioning of mounted equipment.

The maximum clamping range is 3.8 cm (1.5"), with a minimum of 1.3 cm (0.5"). It supports a load capacity of 1.8 kg (4 lbs) when extended and up to 2.7 kg (6 lbs) when folded over center, ensuring reliable support without sacrificing maneuverability. Threaded mounts include 1/4-20 and 3/8-16, compatible with a wide variety of accessories and rigs.

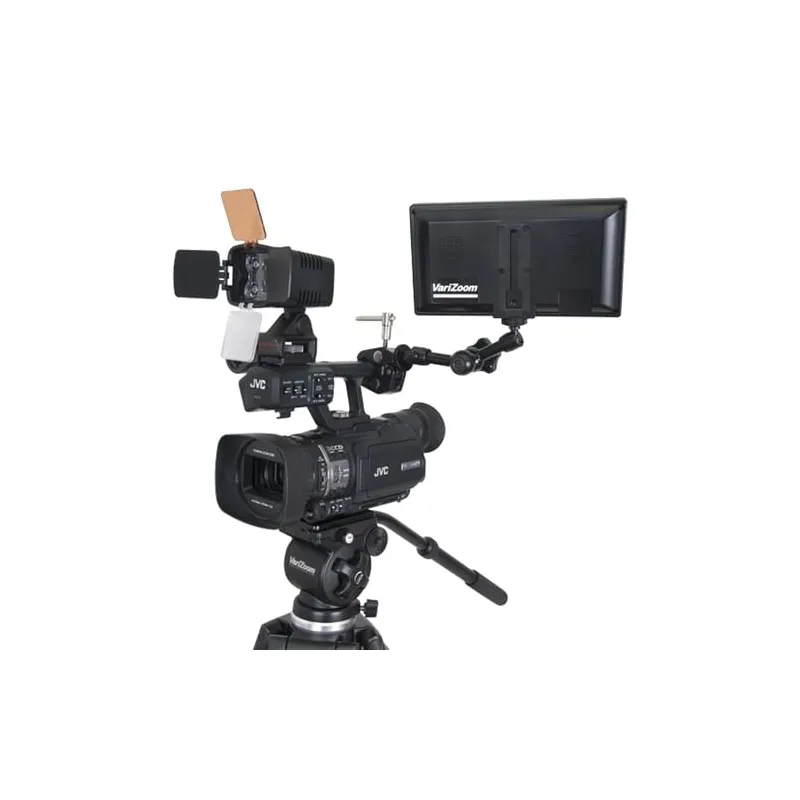

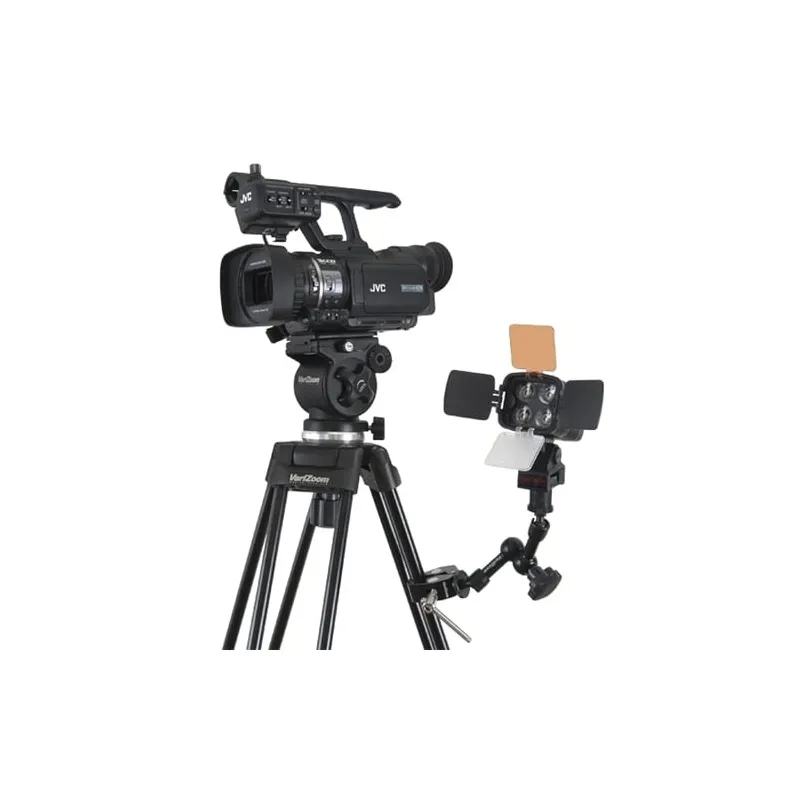

Whether mounting a small monitor to a camera cage, attaching a microphone to a rig, or positioning LED lights, the VZMICRO-ARM-K's flexibility and robust construction make it a dependable tool for professional filmmakers, photographers, and content creators.

Key Features

• Miniature articulated magic arm with clamp and reversible 1/4-20 mount
• Threaded mounts: 1/4-20 and 3/8-16 universal clamp, 1/4-20 stud mount, 1/4-20 to 3/8-16 post
• Maximum clamping range: 3.8 cm (1.5"); Minimum clamping range: 1.3 cm (0.5")
• Load capacity: 1.8 kg (4 lbs) extended, 2.7 kg (6 lbs) folded over center
• Arm extended dimensions: 15.2 cm x 6.1 cm x 2.8 cm (6" x 2.4" x 1.1")
• Arm folded dimensions: 10.2 cm x 6.1 cm x 2.8 cm (4" x 2.4" x 1.1")
• Lightweight and durable aluminum and steel construction
• Compact design for portability and easy storage
• Versatile use for monitors, lights, cameras, microphones, and other accessories

Specifications

• Weight: 283.5 g (10 oz)
• Construction: Aluminum and Steel
• Threaded Mounts: 1/4-20 and 3/8-16
• Arm Extended Dimensions: 15.2 cm x 6.1 cm x 2.8 cm (6" x 2.4" x 1.1")
• Arm Folded Dimensions: 10.2 cm x 6.1 cm x 2.8 cm (4" x 2.4" x 1.1")
• Max/Min Clamp Range: 3.8 cm / 1.3 cm (1.5" / 0.5")
• Load Capacity: 1.8 kg (4 lbs) extended, 2.7 kg (6 lbs) folded over center
