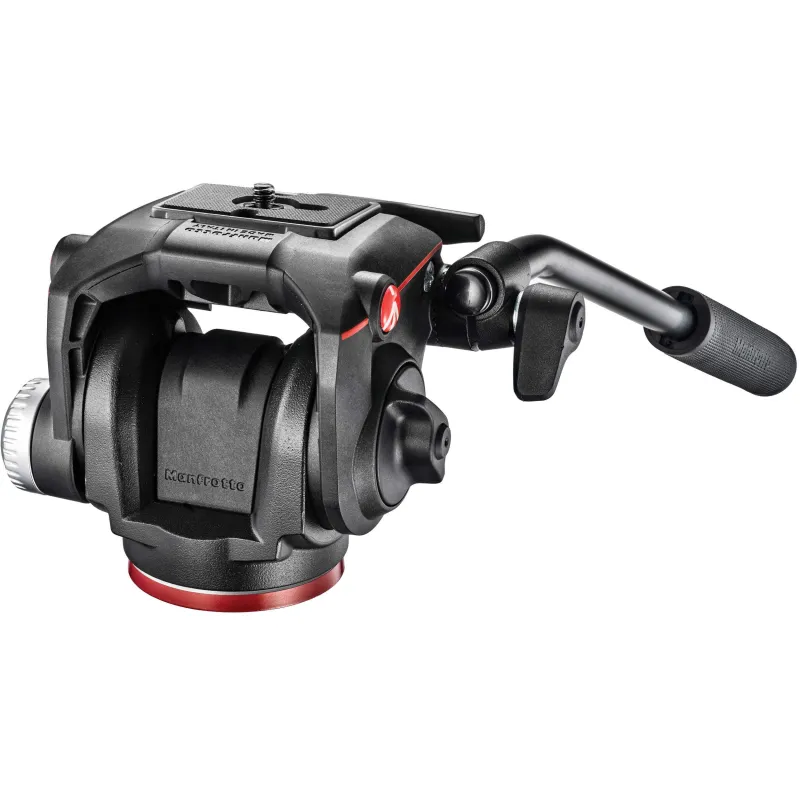

Manfrotto MHXPro-2W Pan-and-Tilt Head

Load Capacity and Mounting

The Manfrotto MHXPro 2-Way Pan-and-Tilt Head supports a maximum load capacity of 5 kg (11 lb) and is designed to attach to tripods or other support systems featuring a 3/8"-16 mount.

Quick Release System

This head includes an integrated RC2 quick release cam lock and comes with a 200PL-14 Quick Release Plate. Compatible with RC2 quick release plates, the cam lock features a spring-loaded lever for easy removal and reattachment of the plate. A safety catch prevents accidental disconnection of the plate during use.

Camera Compatibility

Cameras, sport optics, or camcorders with a 1/4"-20 mount can be attached to the quick release plate before securing it to the pan-and-tilt head.

Movement and Control

• Tilt range: +90° forward and -60° backward
• Pan range: 360° continuous rotation
• Two levels of tilt drag for precise control
• Pan bar with rubber grip, interchangeable to either side of the head
• Independent locks for both pan and tilt movements
• Integrated bubble level for accurate alignment

Construction

The head is constructed from durable and lightweight polymer and fiberglass materials, ensuring strength and portability.

200PL-14 Quick Release Plate Specifications

• Compatible with Manfrotto RC2 quick release cam lock
• Dimensions: 43 x 53 x 10 mm (1.7 x 2.1 x 0.4 inches)
• Rubberized, non-slip surface for secure camera mounting
• 1/4"-20 mounting screw
• Durable aluminum-alloy construction
