MITOYA OWL-K1 1/4 Photographic Head with 16mm Mount

..:: 50 MONTHS WARRANTY ::..

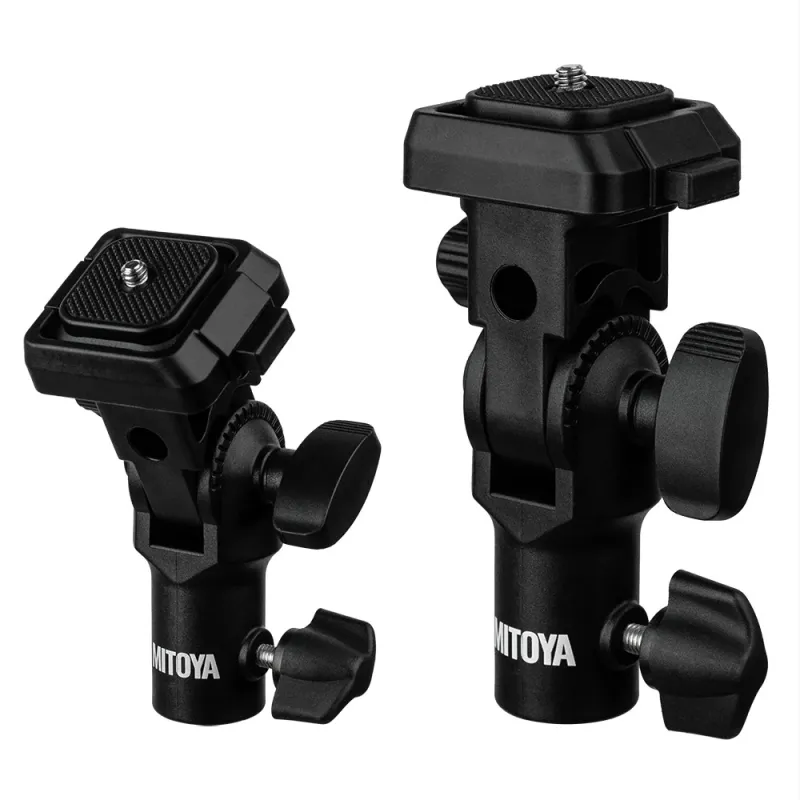

MITOYA OWL-K1 is an innovative tripod head designed for mounting cameras, smartphone holders, portable LED pocket lamps, and a wide range of video accessories on lighting tripods with the popular 16 mm stem.

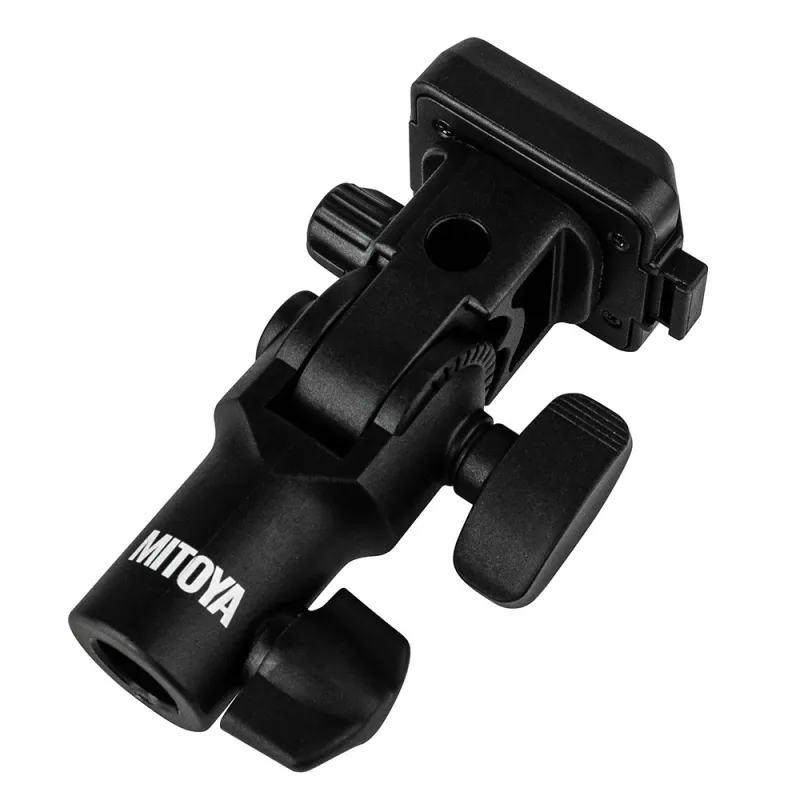

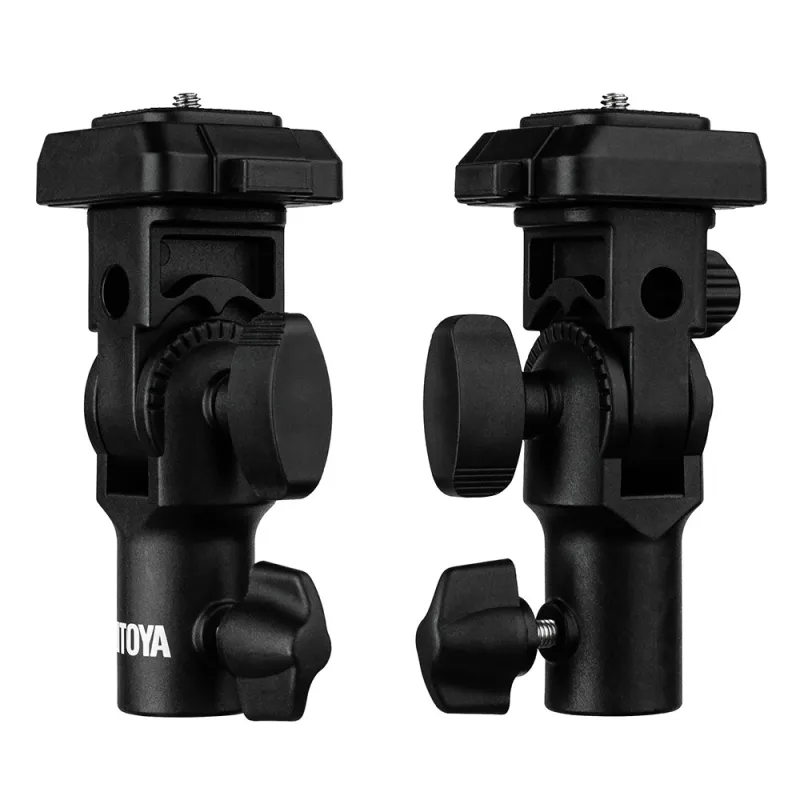

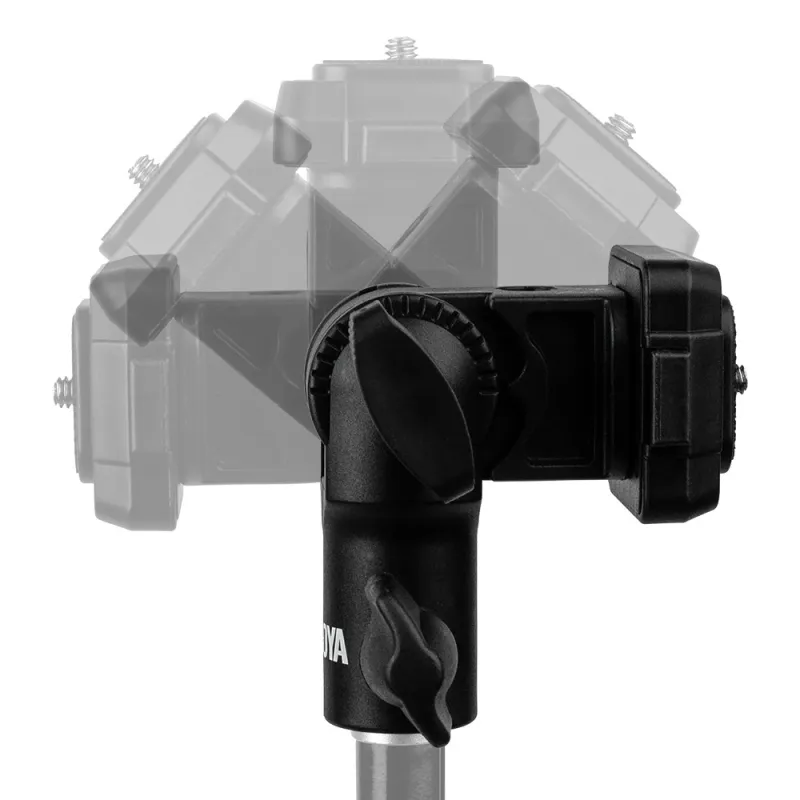

Unlike traditional ball heads, the OWL-K1 uses an articulated adjustment with a serrated lock. This design guarantees stability and secure support of the equipment, as well as precise control of the tilt angle within a 180° range front and back. The head is constructed from ABS plastic and supports a load capacity of up to 2 kg, making it suitable for panel lamps, smaller cameras, or camcorders. This allows mounting on tripods that offer much higher working heights than traditional photo tripods.

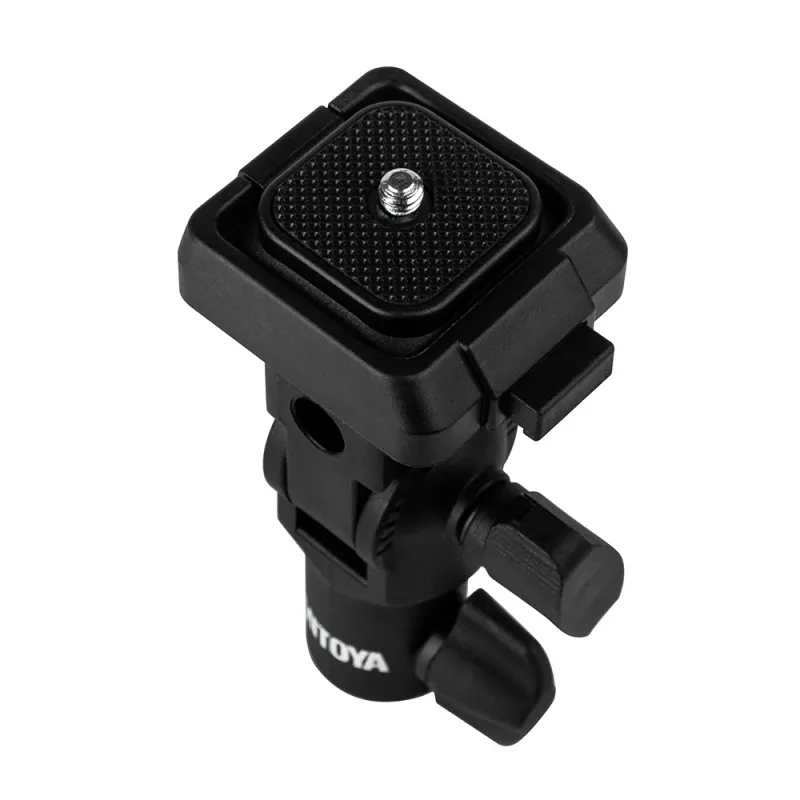

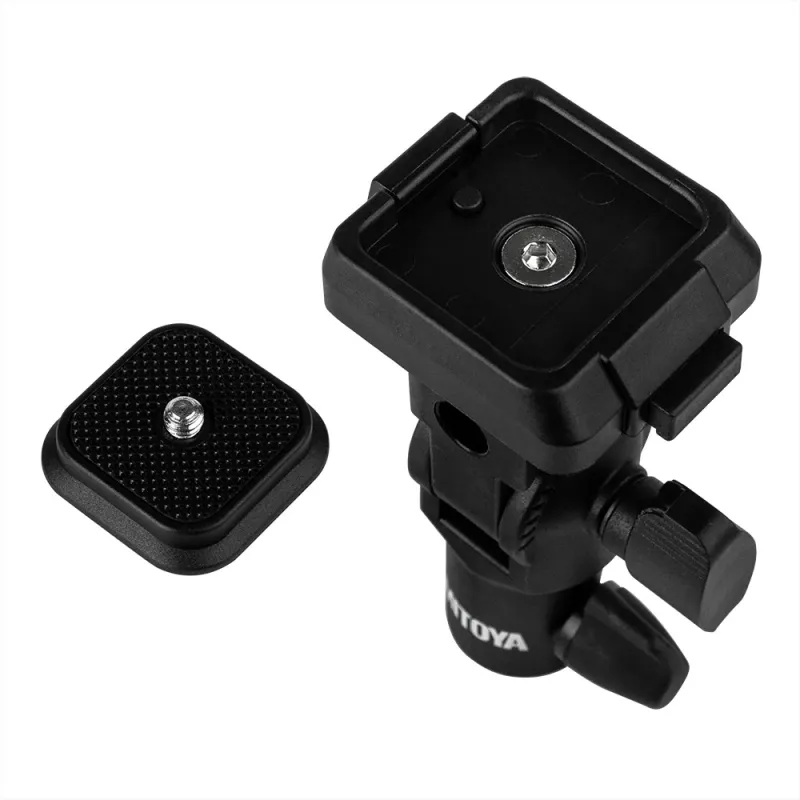

The MITOYA OWL-K1 photographic head features a convenient quick connector with a universal 1/4" thread. The quick release includes a non-slip rubber pad that protects the base of the mounted device from scratches and improves grip pressure. Quick assembly and disassembly are facilitated by a small locking lever with protection.

An additional advantage of the OWL-K1 head is the universal hole for a photo umbrella, making it a functional base for creating a mobile portrait photography kit using reporter flashes. Lightweight, easy to use, and compact, it fits easily into any camera bag, providing essential support on any set.

Features

• Joint head with step gear lock
• Quick coupling with lock
• 1/4" thread
• Tilt Forward/Backward: -90° / +90°
• 16 mm tripod mount
• Umbrella hole
• Material: ABS plastic
• Weight: 200 g
• Allowable Load Capacity: 2 kg
• Head dimensions: 12 × 5 cm
• Quick coupling dimensions: 38 × 38 mm

Attention! The manufacturer does not guarantee compatibility of the quick connector with mounting systems of other brands.

Application

The MITOYA OWL-K1 studio head is an indispensable tool for creators seeking maximum flexibility, speed, and safety both in the studio and outdoors. Its compact size and 16 mm mounting allow easy attachment of cameras, lamps, action cameras, phone holders, or lightweight LED panels on lighting tripods, which typically provide a much higher working height than classic photo tripods. The built-in umbrella holder combined with the gear lock enables stable and secure use of light modifiers, opening new creative possibilities for photographers working with flash and continuous light.

Technical Specifications

• Material: ABS plastic
• Colour: Black
• Head type: 2D articulated
• Thread size: 1/4"
• Mount: 16 mm mandrel
