CHASING-INNOVATION CHASING CERULEAN OMNISCAN 450 FS SONAR 100M FOR M2 PRO MAX 40.30.700.0095
Condition: New product
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Underwater camera |
| Compatible | DJI Osmo Action 4/5 Pro |
| Wifi | Without |
| Underwater gear | Acessories |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease

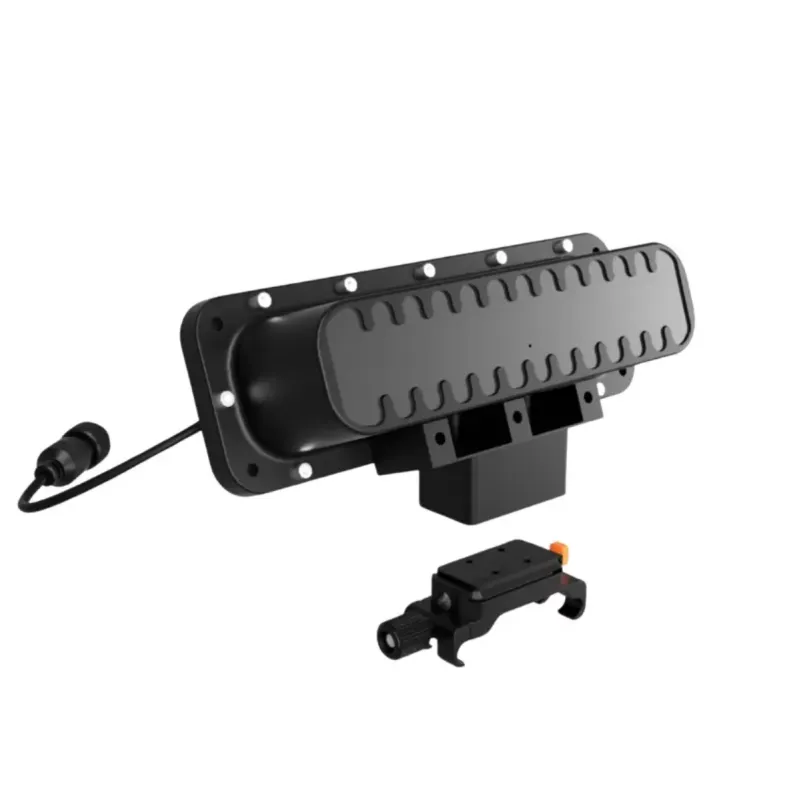

Overview of the Omniscan 450 FS
As the ROV or surface vessel moves, the Omniscan 450 FS is ideally suited for forward-looking ROV applications. The transducer and electronics are housed in a single enclosure with an Ethernet + power interface. Two enclosure options are available for 100m or 300m depth rating. SonarView paints the image of the scanned area of the sea floor, providing excellent situational awareness in the murkiest conditions.
Scanning Capabilities
In the case of a surface vessel with GPS or an ROV with DVL, scanning is both translational and rotational. For underwater vehicles without positioning information, Omniscans Doppler Position Tracking can be used for translational information in the direction of the beam. By using a pair of Omniscan 450 FS unitsone forward and one positioned 90 degrees to either sidefull 2D motion tracking is available. This setup also enables position hold mode.
Mounting Requirements
To mount the sonar to the M2 Pro Max, you will also need the quick mounting bracket, article 128907.
