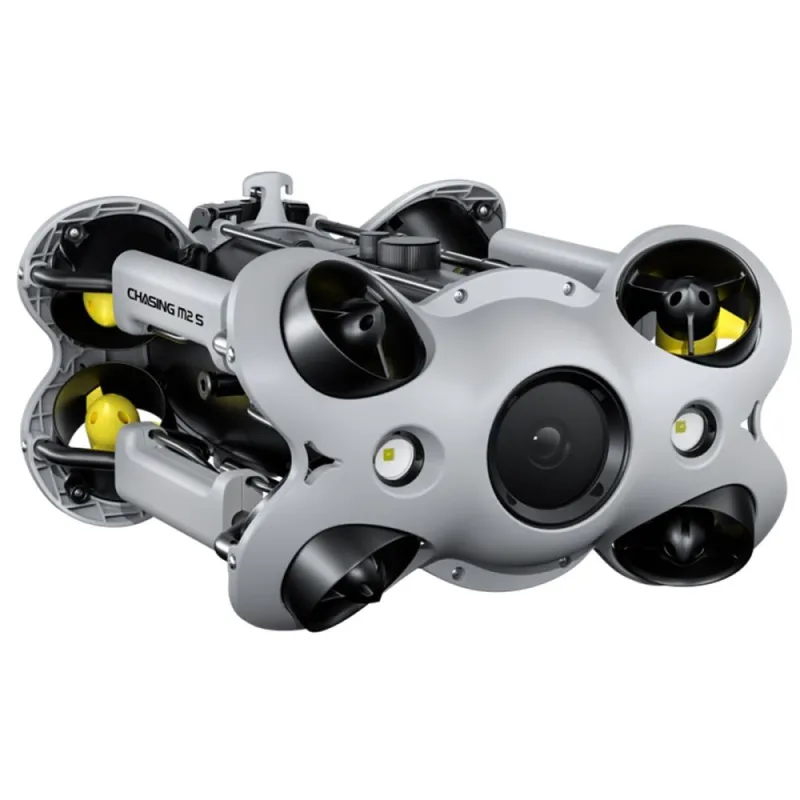

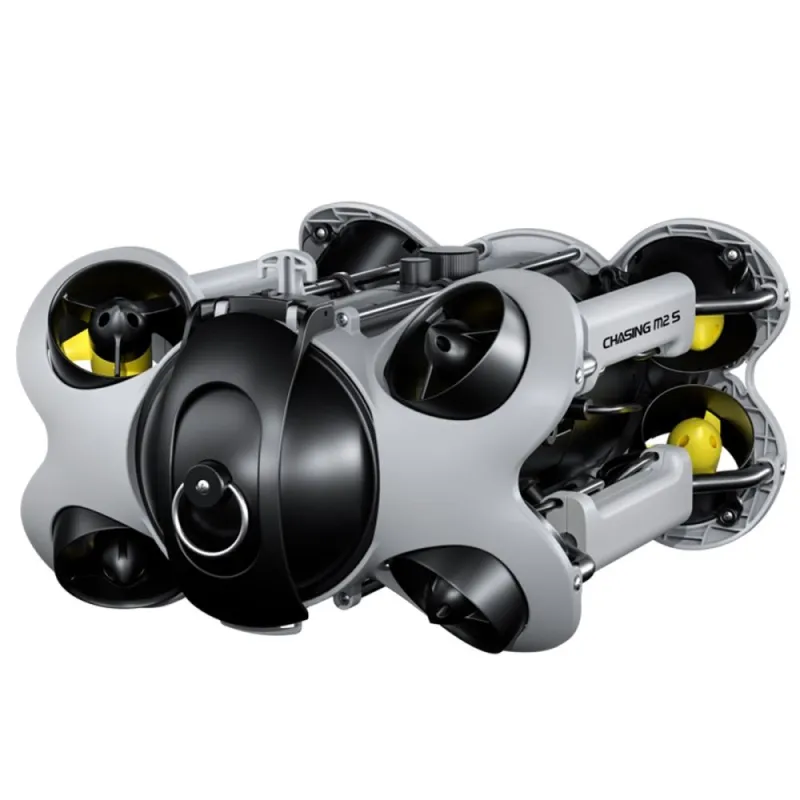

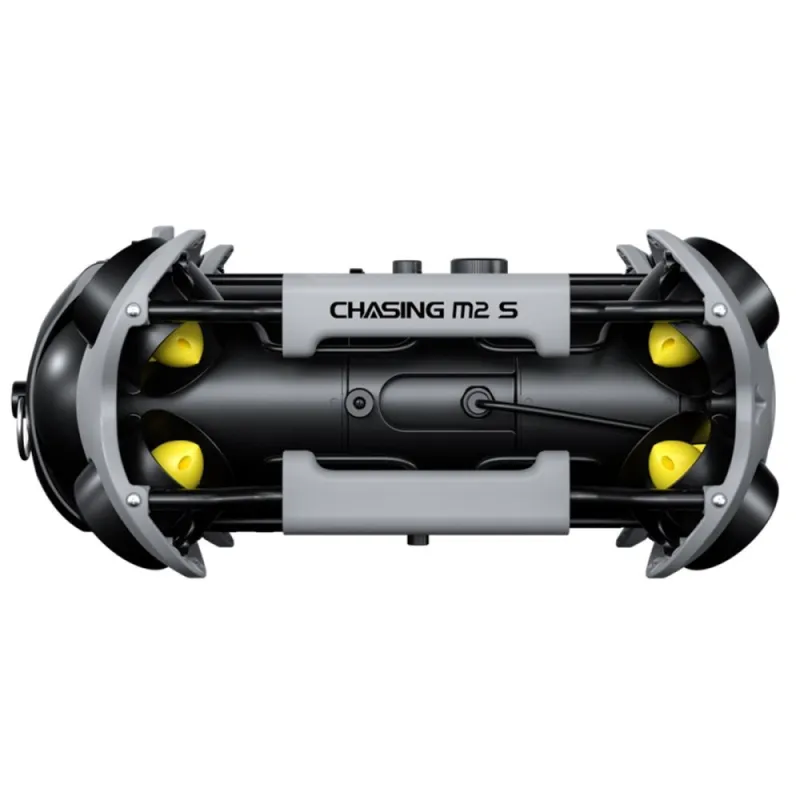

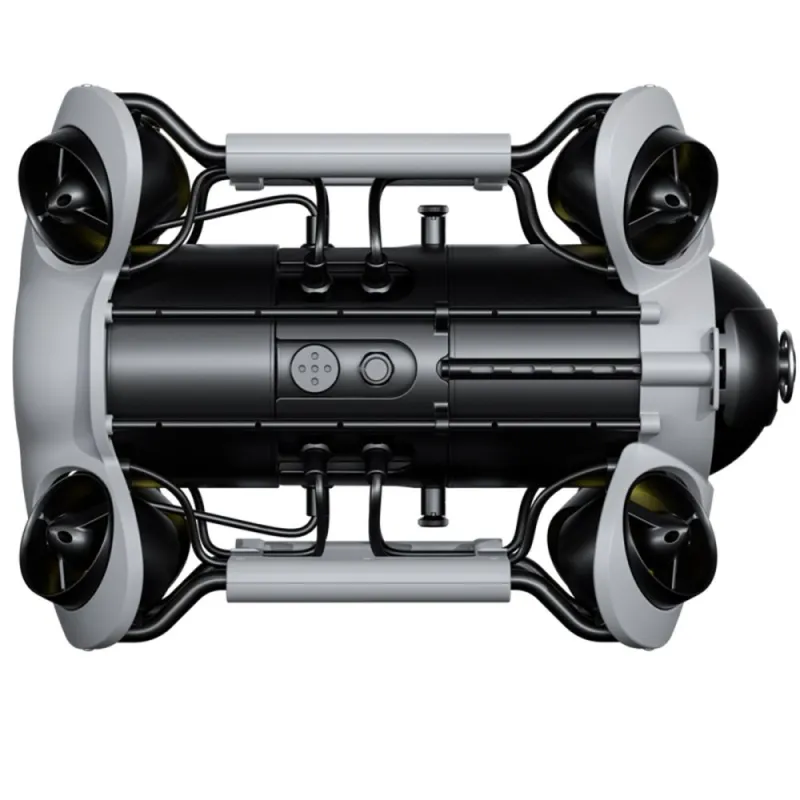

Chasing M2 S Underwater ROV Advanced Set
Overview
The Chasing M2 S is a compact, lightweight underwater remotely operated vehicle (ROV) designed for efficient inspection tasks across various underwater scenarios and industries. It features eight symmetric vectored thrusters powered by anti-stuck C-Motor 3.0 technology, ensuring stable propulsion and reliable operation. The flagship sealed structure guarantees excellent underwater performance, while its portability and single-person operation capability allow for quick deployment and effective use in diverse environments.
Key Mechanisms
- C-Sense Control System: Provides flexible and stable maneuvering.
- All-Scenario Efficient Operation System: Optimizes performance across different underwater conditions.
- HD Visual Image Transmission System: Delivers high-definition video and image data for clear underwater observation.
Thruster and Control System
The ROV employs a symmetrical vector layout of eight thrusters, enabling independent translation and rotation for 360-degree omnidirectional movement. The NeptuneX intelligent flight control system, an exclusive CHASING navigation algorithm, allows precise operation and maintains movement direction even under external force interference or challenging conditions.
Motor Technology
The third-generation Apex Anti-stuck C-Motor 3.0 incorporates a unique anti-stuck solution and magnet protection technology. This design ensures continuous power supply while significantly reducing electrochemical corrosion and rust caused by motor wear, enhancing reliability and anti-stuck performance.
Design and Performance
- Dimensions: 380 × 267 × 165 mm
- Weight: 4.5 kg
- Waterproof Structure: Innovative sealed main cabin and lighting system improve underwater stability.
- Streamlined Butterfly Wing Design: Enhances recognition and protects propellers.
- Maximum Depth: 100 meters
- Operating Radius: 200 meters (extendable to 400 meters)
- Battery: 97.68 Wh standard battery providing up to 4 hours of operation; optional 200 Wh backup battery available for extended missions.
Imaging and Visual System
The color restoration algorithm is optimized based on underwater light conditions, physical light paths, and environmental factors. Combined with a visual identification and tracking system, it significantly enhances image transparency, clarity, color layering, and reduces noise for superior underwater imaging.

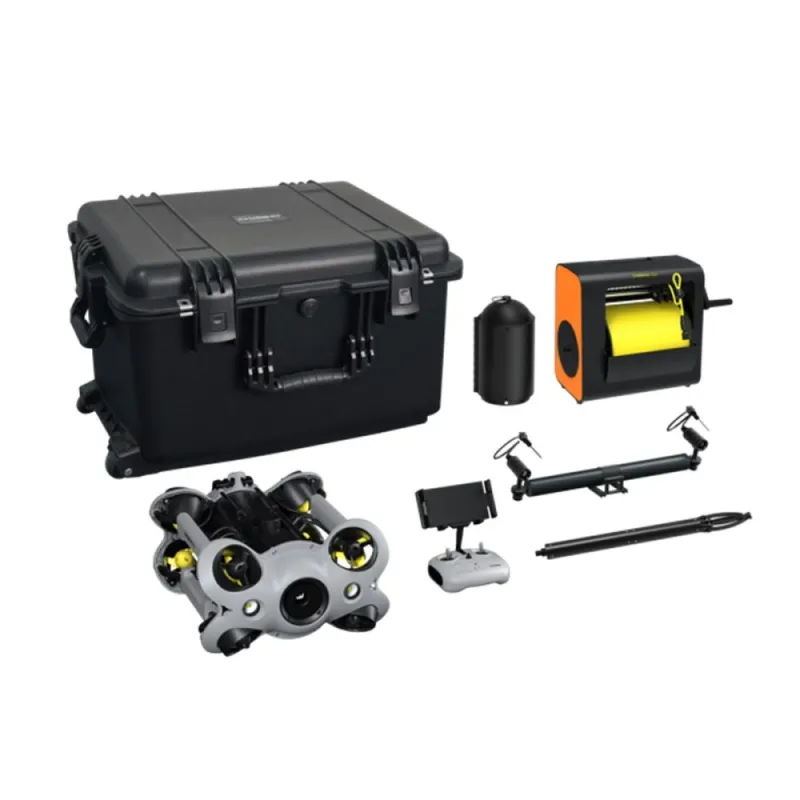

Included Accessories
- ROV unit
- Remote control
- Manual reel with 200-meter tether
- Two spare motors
- Two floodlights
- Grabber claw A
- 200 Wh battery
- Carrying case
Technical Specifications
ROV
- Size: 380 × 267 × 165 mm
- Weight: 4.5 kg
- Maximum Depth: 100 m
- Runtime: 4 hours
- Battery Capacity: 97.68 Wh
- Operating Temperature Range: -10°C to 45°C
Remote Controller
- Size: 160 × 155 × 125 mm
- Weight: 685 g
- Battery: 2500 mAh
- Runtime: ≥ 6 hours (depending on environment)
- Wireless Connectivity: Wi-Fi supported
- HDMI Output: Supported
- Handle Spring: Supports devices up to 10 inches
Camera
- Sensor: 1/2.3" CMOS
- Lens Aperture: F2.8
- Focus Length: 3.2 mm
- ISO Range: 100 – 6400
- Field of View: 150°
- Maximum Resolution: 12 Megapixels
- Photo Formats: JPEG / DNG
- Video UHD: 3840 × 2160 (4K) at 30 fps
- Video FHD: 1920 × 1080 (1080p) at 30/60/120 fps
- Slow Motion: 720p 8x (240 fps), 1080p 4x (120 fps)
- Time Lapse: Supported in 4K / 1080p
- Video Stream: 60 Mbps
- Video Format: MP4
- SD Card Capacity: 64 GB
LED Lighting
- Brightness: 2 × 2000 lumens
- Color Temperature: 5000K – 5500K
- Color Rendering Index (CRI): 85
- Dimming: Three levels
Sensors
- IMU: Axis Gyro, Accelerometer, Compass
- Depth Sensor Accuracy: ±0.25 m
- Temperature Sensor Accuracy: ±2°C
Charging
- Power: 2.9A / 25.2V
- ROV Charging Time: 2.5 hours
- Remote Controller Charging Time: 2 hours
