Chasing M2 S 2.0 Distance Lock Sonar
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Drone accessories |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Note: This feature works only with the M2 S 2.0 version.

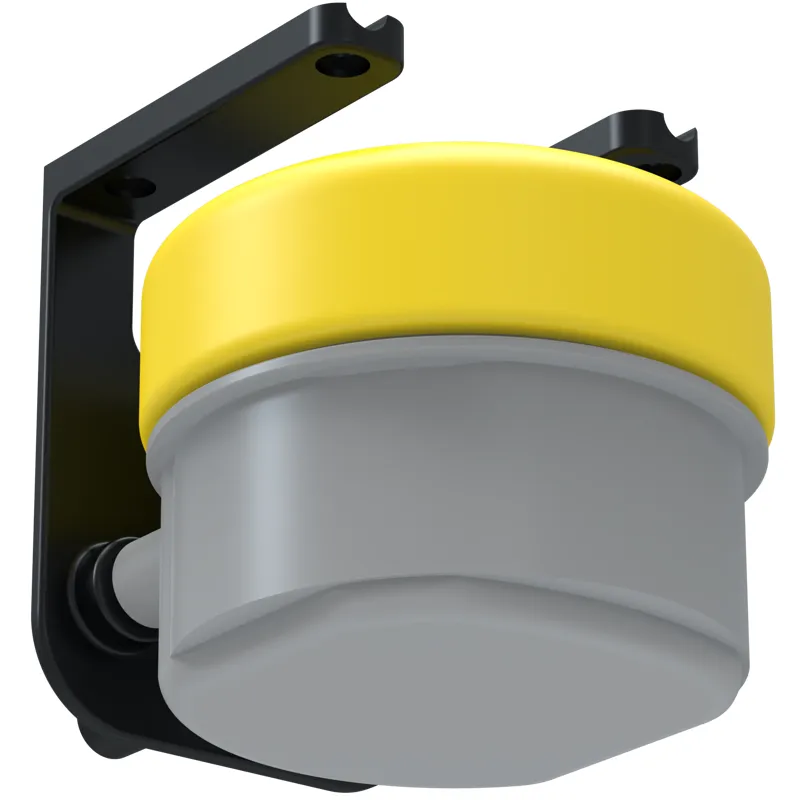

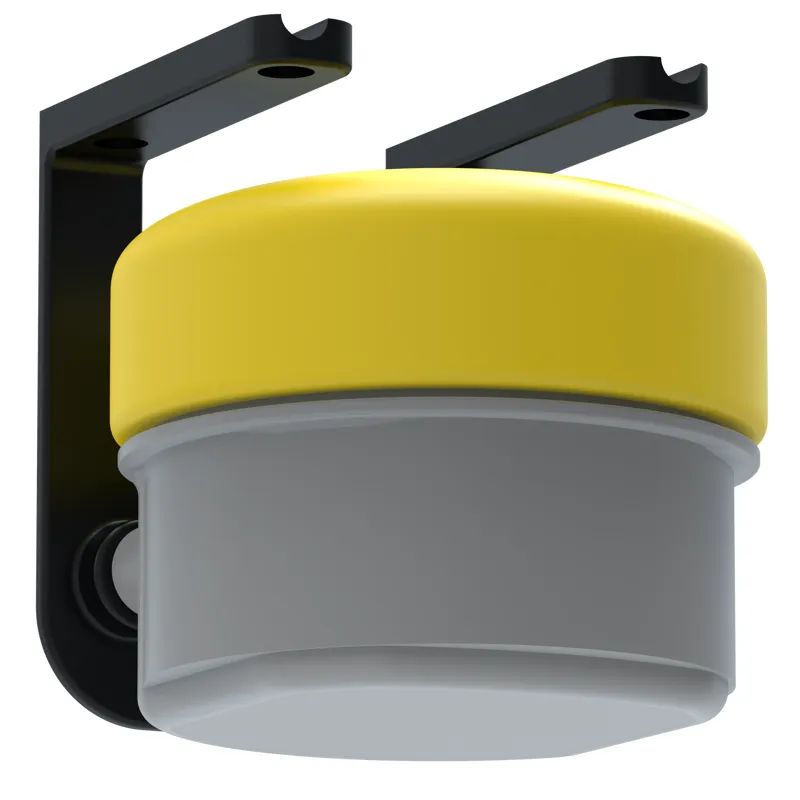

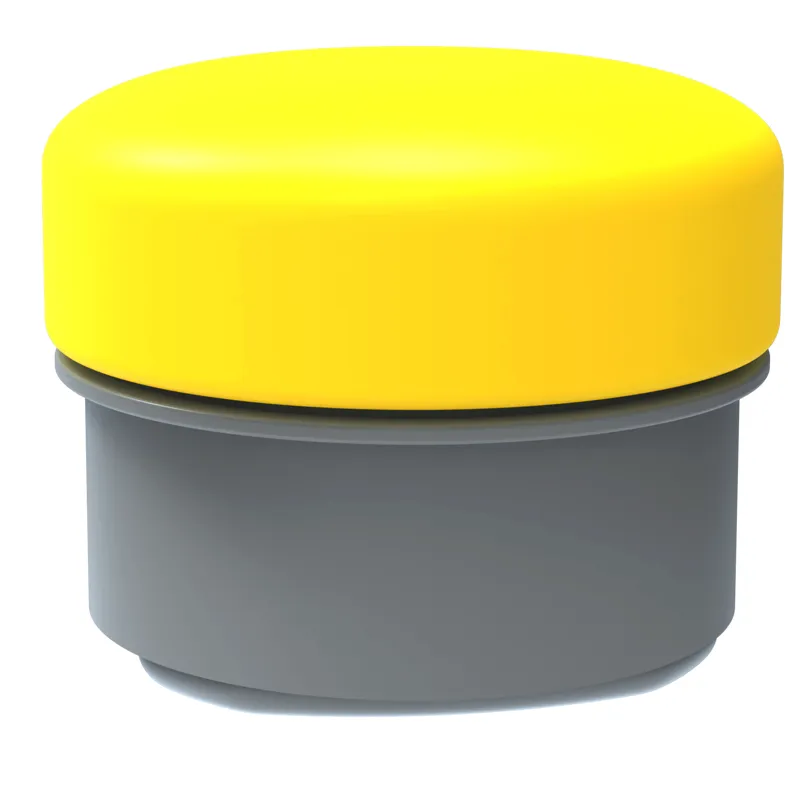

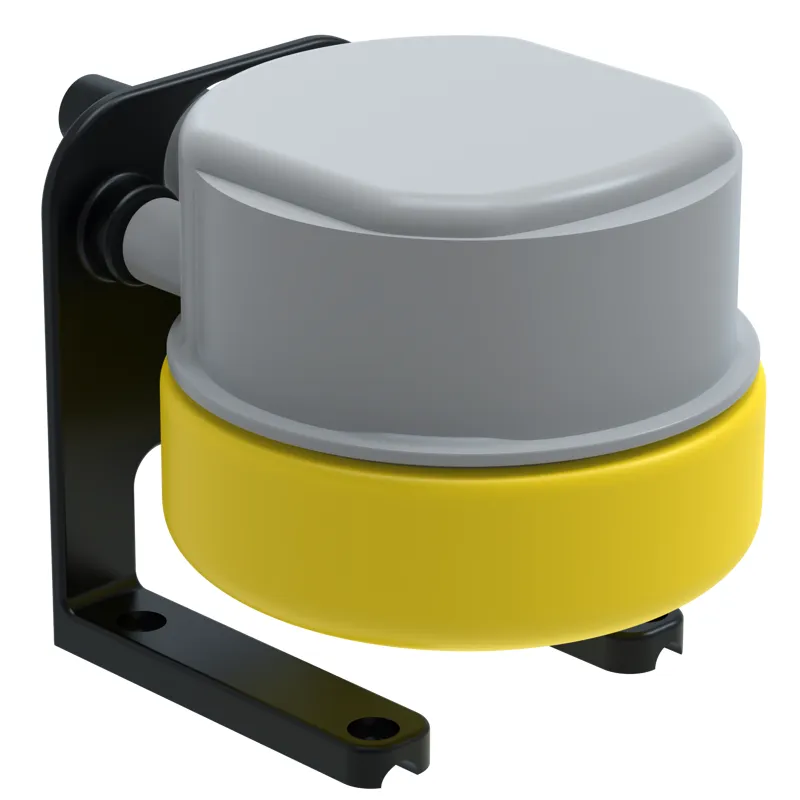

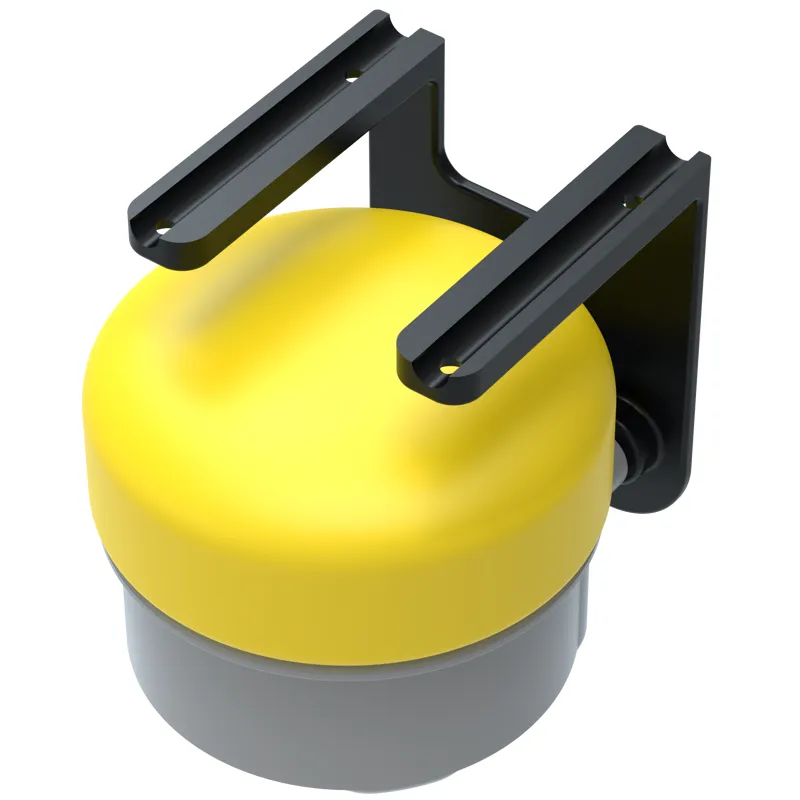

The Chasing M2 S 2.0 Distance Lock Sonar is a multibeam ultrasonic distance-measuring accessory for inspections where an ROV needs to maintain a controlled distance from nearby objects. It measures in four directions and supports both fixed-distance operation and collision avoidance, making it useful around walls, nets, pillars, hulls and other structures.

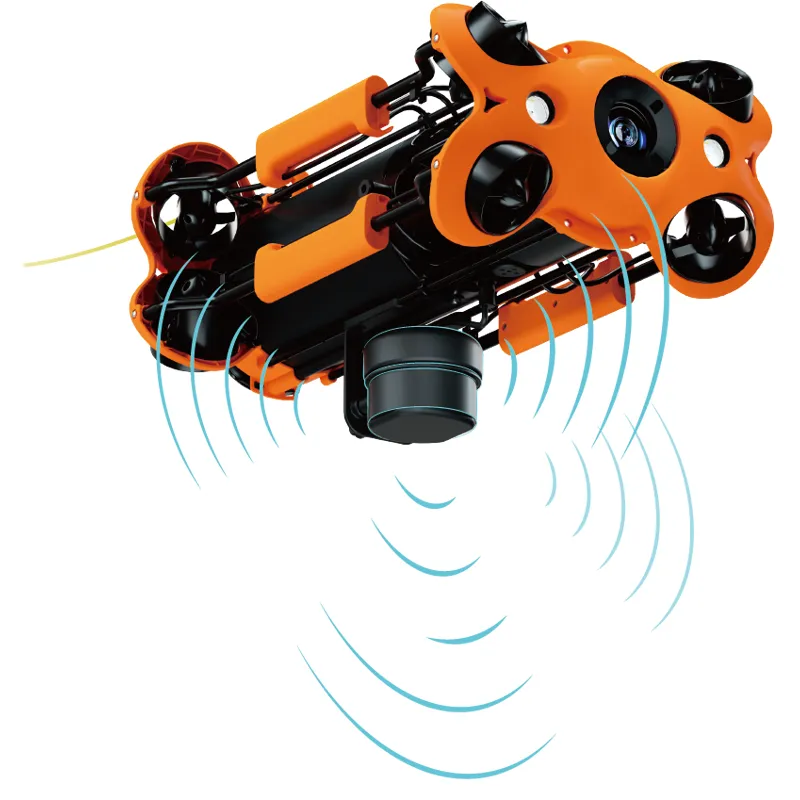

Four-direction distance measurement
The sonar measures distance forwards, to the left, to the right and below the ROV. Its operating range is approximately 0.25–5 m, with an accuracy of ±25 mm and a resolution of 1 mm. The blind zone is less than 20 cm. This provides proximity information at short range in areas where visual assessment alone may be difficult.
Fixed-distance inspection and collision avoidance
When enabled through the ROV control system, the Distance Lock Sonar can help maintain a selected distance from a structure during inspection or provide automatic collision-avoidance assistance when an obstacle is detected. Maintaining a more consistent distance can be useful when following a hull, wall, net or similar surface for a systematic visual inspection.
Compact sensor for underwater integration
The sonar has an IP68 protection rating and is designed for operation at depths of up to 150 m. The main unit weighs approximately 286 g. The top cover measures approximately 81.3 × 30 mm, and the body measures approximately 79.3 × 55.9 mm. Communication uses TTL. The included mounting bracket and connection cable allow the sensor to be integrated with a compatible ROV.
Key features
- Multibeam distance sonar for Chasing M2 S 2.0
- Measures forwards, left, right and downwards
- Supports fixed-distance operation and collision avoidance
- Measurement range: approximately 0.25–5 m
- Measurement accuracy: ±25 mm
- Resolution: 1 mm
- Blind zone: less than 20 cm
- IP68 protection rating
- Rated operating depth: 150 m
- Sensor weight: approximately 286 g
In the box
- Chasing M2 S 2.0 Distance Lock Sonar
- Replaceable mounting bracket
- Dual-ended connection cable
- 8 × M3 × 8 mm screws
- 4 × M6 × 16 mm screws
