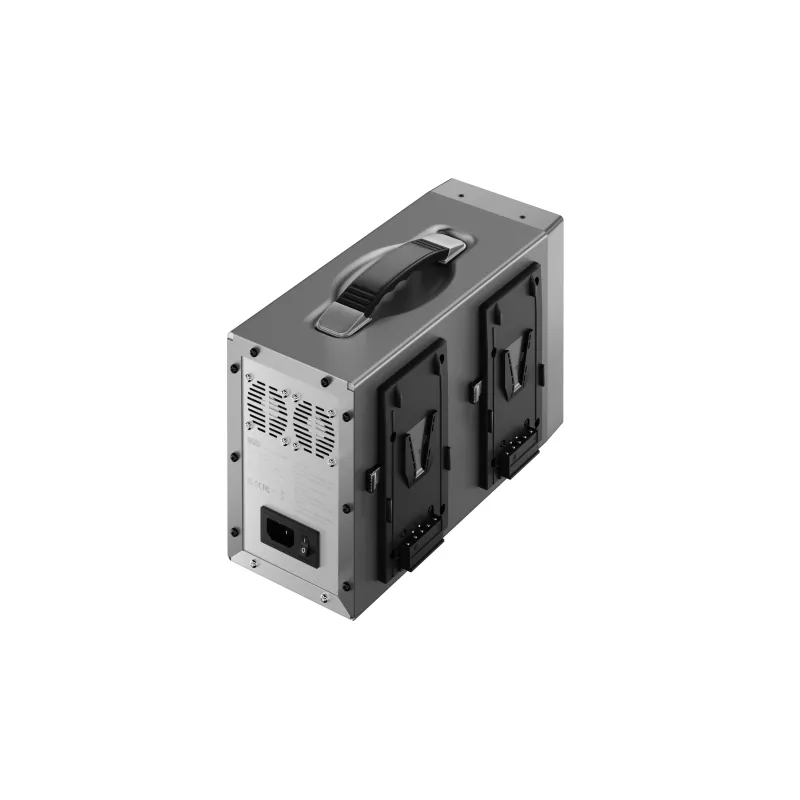

Newell BP-4CHT four-channel charger for V-mount batteries

Newell BP-4CHT Quad-Channel Charger

The Newell BP-4CHT quad-channel charger is a professional device that allows you to charge up to 4 V-mount batteries simultaneously. This standard is increasingly popular in the film and photography industry, not only among professionals. The device features a state-of-the-art MCU (Micro Controller Unit) that regulates the optimum parameters of the charging process, protects the cells, and ensures maximum service life. Powerful locks allow for comfortable placement of the batteries in the charger. The Newell BP-4CHT also allows 2 different devices to be powered directly from the charging station (XLR socket) into which the V-Mount cells are plugged. The charger is equipped with an ergonomic handle and LEDs indicating the operating status.

Main Product Features

• Power station that allows you to charge 4 V-mount batteries simultaneously
• Save time and conveniently top up power in several batteries at once
• Solid interlocks for easy installation of batteries in sockets
• 2 XLR outputs for powering devices with batteries placed in the charger
• A state-of-the-art MCU (Micro Controller Unit) regulating the charging process
• Diodes indicating correct battery connection
• Modern MCU controller regulating the charging process
• Diodes indicating the discharging process when using devices connected to the station with XLR cables
• Codes indicating the status of charging
• Diodes indicating that the charger is connected to a mains socket
• Effective cooling system
• Carrying handle for easy transport
• Footrests for stability during transport
• Feet to ensure distance between charger and ground

4 Channels of Charging

The Newell BP-4CHT charger is equipped with 4 V-mount sockets with special locks, allowing you to charge your batteries comfortably. Thanks to advanced MCU controllers, the device provides maximum life for your cells. The manufacturer has also included appropriate protection systems to safeguard against overcharging and overheating, ensuring safety for both your equipment and the environment.

Direct Device Power

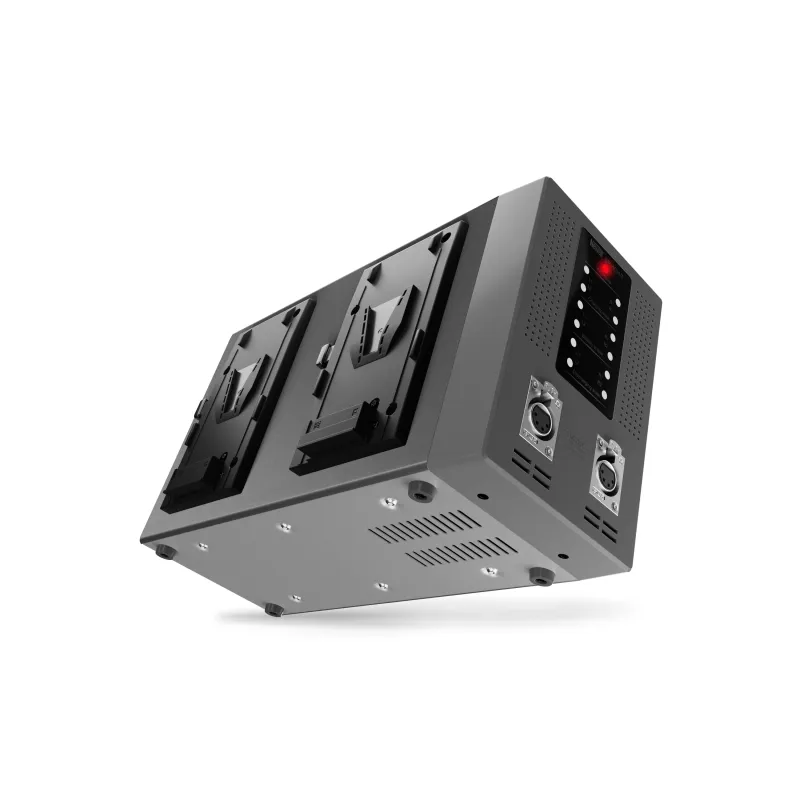

If you work in a location where access to a power source is difficult or need to extend the running time of your film equipment, the Newell BP-4CHT charger is equipped with two DC OUT outputs. Combined with V-Mount batteries, these outputs allow you to power your equipment via 4-pin XLR cables, one of which is included in the kit. This is ideal for discerning creatives who do not always need one fully charged V-mount battery.

V-mount batteries are not part of the kit.

Readable Indicators

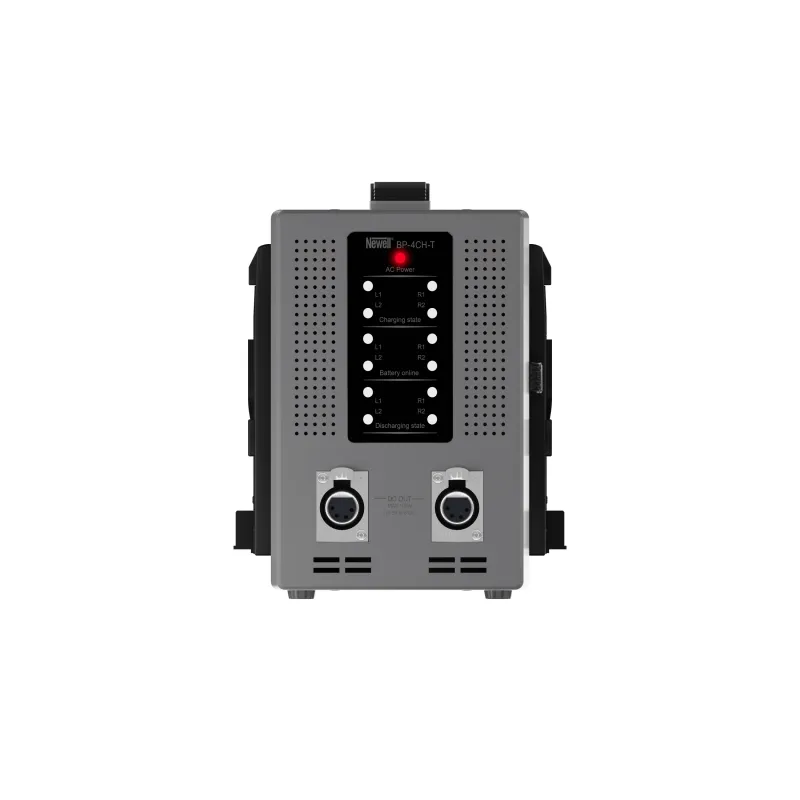

The charger features easy-to-read illuminated LED indicators that inform you about the status of the batteries. The corresponding LEDs will indicate correct detection of the cell in the charger, the charging process, and the discharging process.

Ergonomic Handle

The special handle allows you to easily grab the charger and move it to any location. This is especially appreciated when up to 4 V-mount batteries are clipped into the Newell BP-4CHT. Although the set may be heavy, carrying the charger by the handle with the weight evenly distributed makes it manageable.

40 Months Warranty

Newell is known for its hundreds of thousands of satisfied customers worldwide who have praised the brand's batteries and chargers for years. With these customers in mind, the service guarantee on all products has been extended to 40 months. By choosing a Newell charger, you can be confident that the device will support your film and photography projects for at least 3 years!

Specification

• Model: Newell BP-4CHT
• Colour: Graphite
• Power supply: AC 100-240 V; 50/60 Hz; 3 A (max)
• DC output: 16.5 V; 6 A
• Charging current: 16.8 V; 3A x 1-4
• Ambient temperature: 0°C - 40°C
• Ambient humidity: 0 - 35
• Dimensions: 290 mm x 156.1 mm x 191.6 mm
• Weight: 3280 g

Kit Contents

• Newell BP-4CHT four-channel charger for V-mount batteries
• XLR cable (4-pin)
• Power cable
