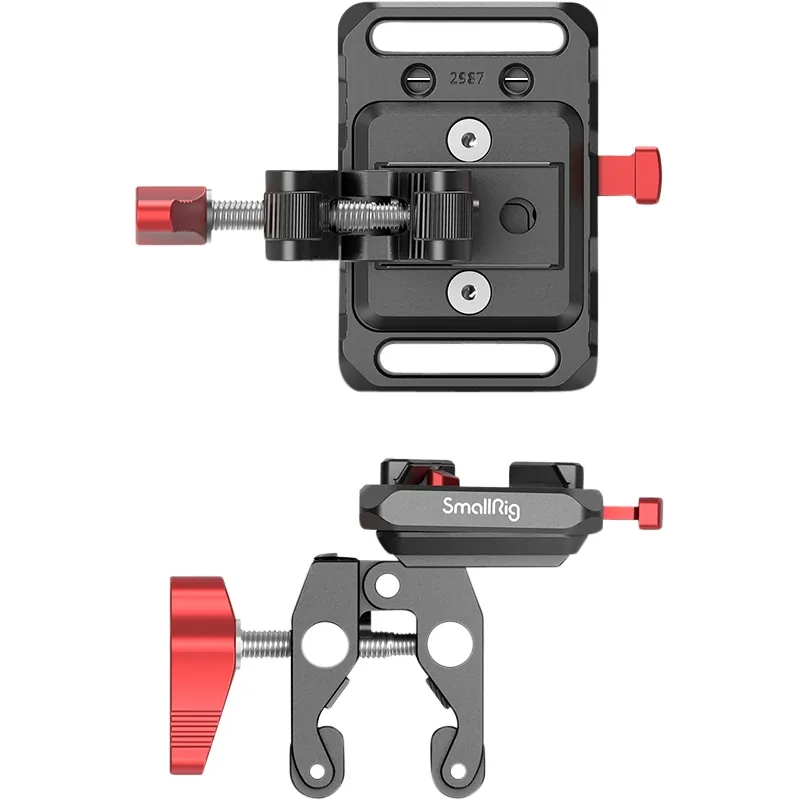

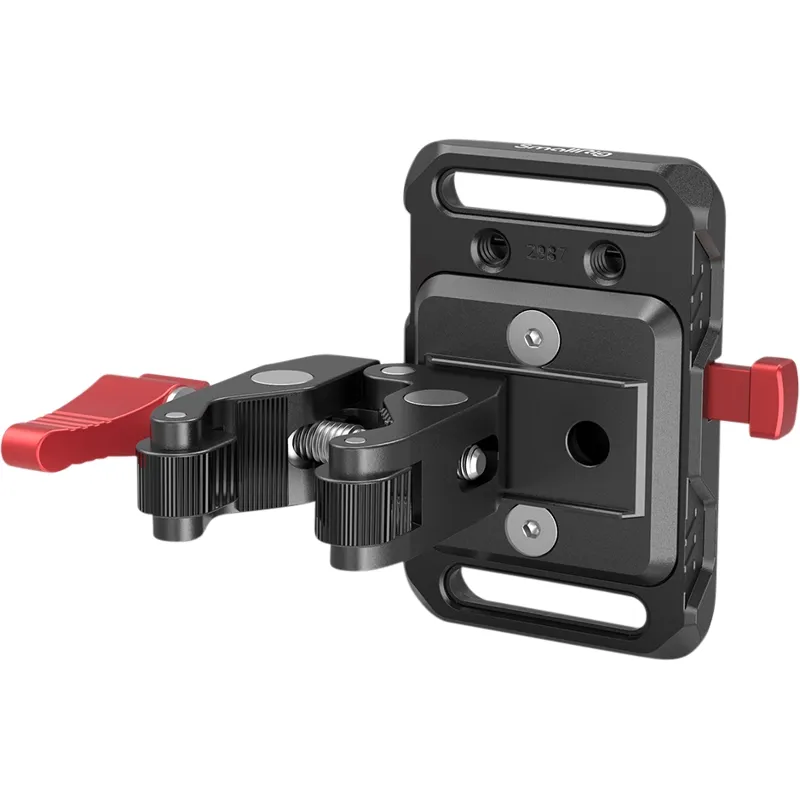

SmallRig 2989 Mini V Mount Battery Plate with Crab Shaped Clamp

Compatibility and Design

• Utilizes a standard V mount compatible with most V mount batteries, excluding PAGlink series and Patona Premium BP-190WS batteries.
• Mini shape design for lightweight and portability.
• Compatible with Blackmagic URSA Mini cameras.

Crab Shaped Clamp

• Fits rod diameters from 15mm to 30mm.

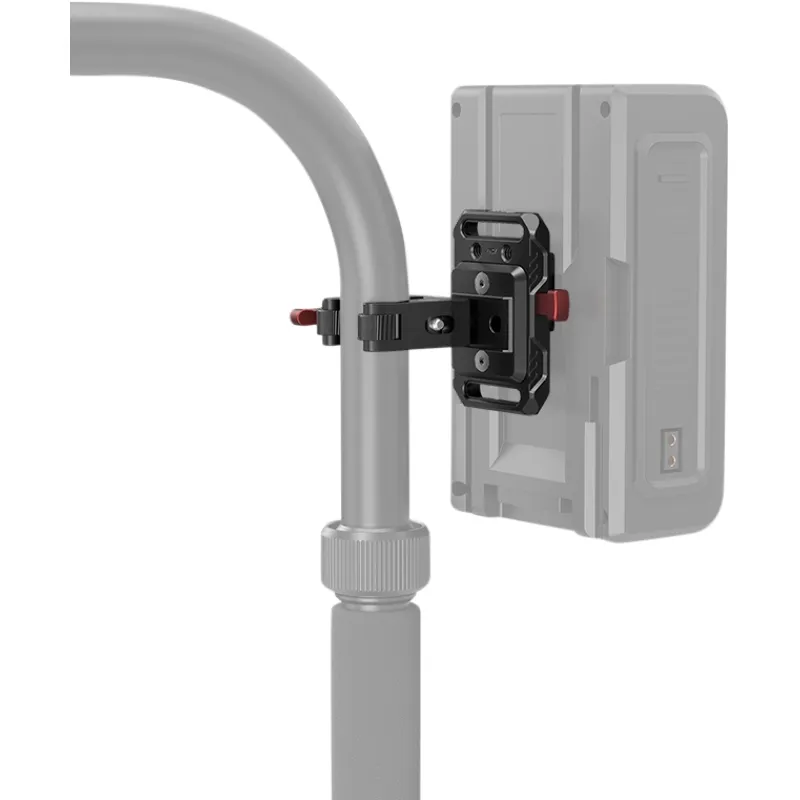

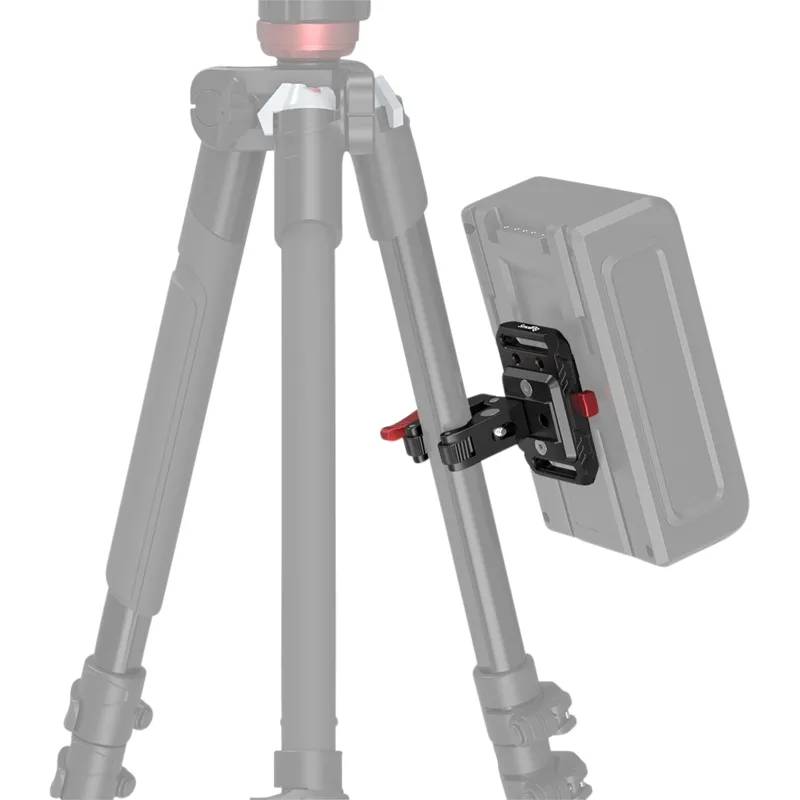

• Enables mounting the V mount battery to tripods, light stands, or handheld rings for gimbals.
• Note: For optimal compatibility, avoid installing the crab clamp at the plate's center.

Mounting Features

• Plate includes multiple mounting points:
  • Two 1/4-20 countersinks
  • Two 1/4-20 threaded holes
  • Four M4 threaded holes
  • Additional M3 countersinks and ARRI 3/8"-16 threaded hole
• Allows attachment of dual rod clamps, magic arms, or other accessories.
• Two stoppers prevent battery twisting when mounted.

Material and Weight

• Constructed from durable aluminium.
• Weighs approximately 150 grams.

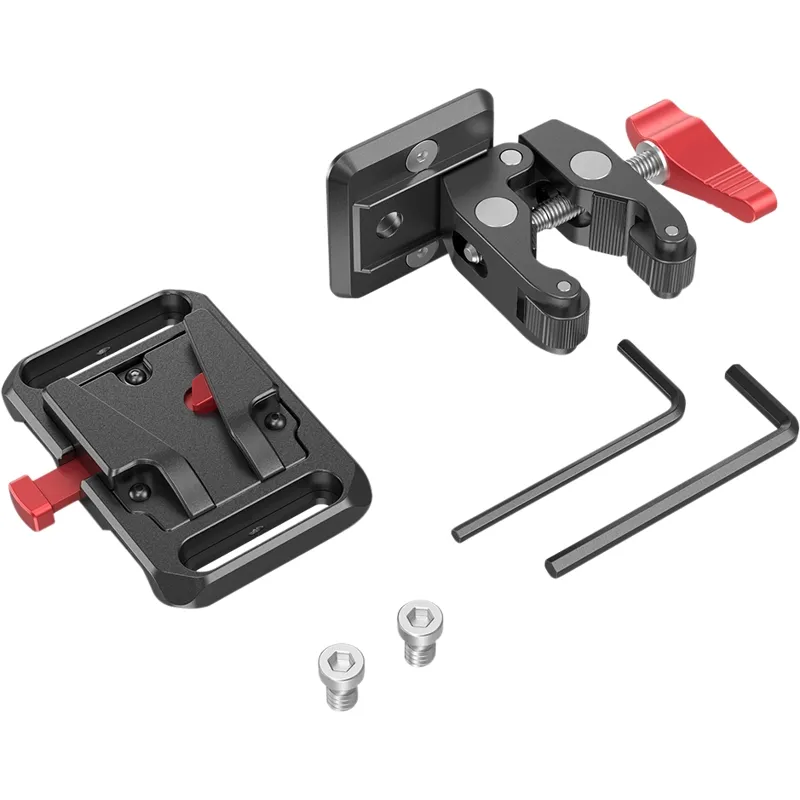

Package Contents

• 1 x Mini V Mount Battery Plate
• 1 x Crab Shaped Clamp
• 2 x Allen Wrenches
• 2 x 1/4-20 Screws

Additional Notes

• The plate does not include a V-Lock male part.
• This product is solely a V-mount battery mounting solution and does not provide power output ports.
• Comes with a 2-year warranty.
