SmallRig 5109 Power Bank Charger Case Kit for Sony NP-FZ100 Camera Batteries

SmallRig 5109 Power Bank Charger Case Kit for Sony NP-FZ100 Camera Batteries

Integrated Power Bank

• Features a built-in 13,600mAh power bank (7.27V / 6800mAh / 49.436Wh rated capacity) allowing battery charging without external power sources.
• Can power other devices such as smartphones via USB-C port or built-in cable, providing versatile outdoor power solutions.

Dual-Channel Charging

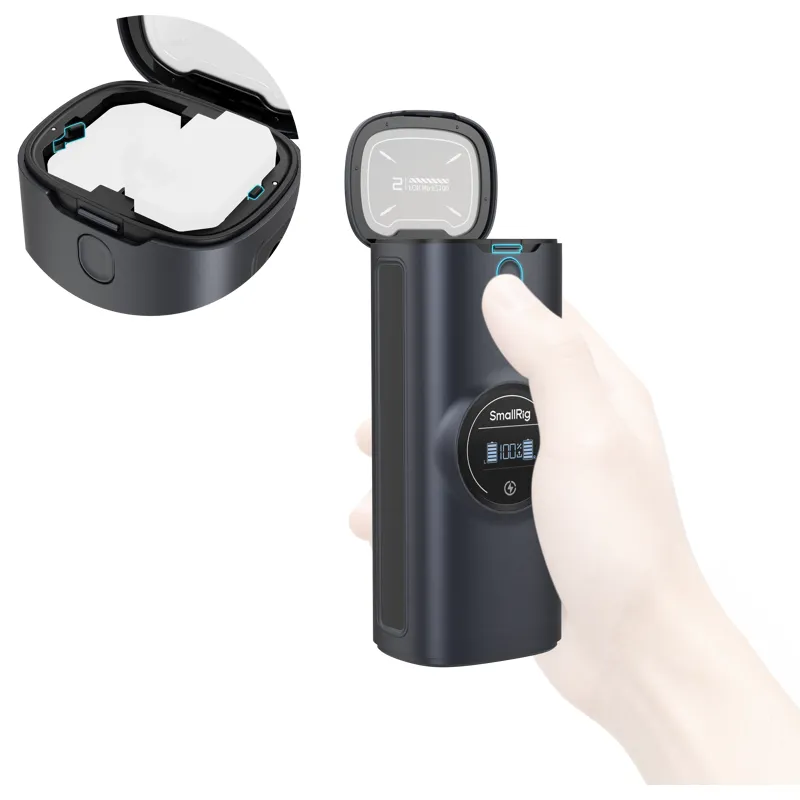

• Supports simultaneous charging of two Sony NP-FZ100 batteries or single-battery charging.
• Fully charges two batteries in approximately 2.5 hours, enhancing efficiency.

Display and Monitoring

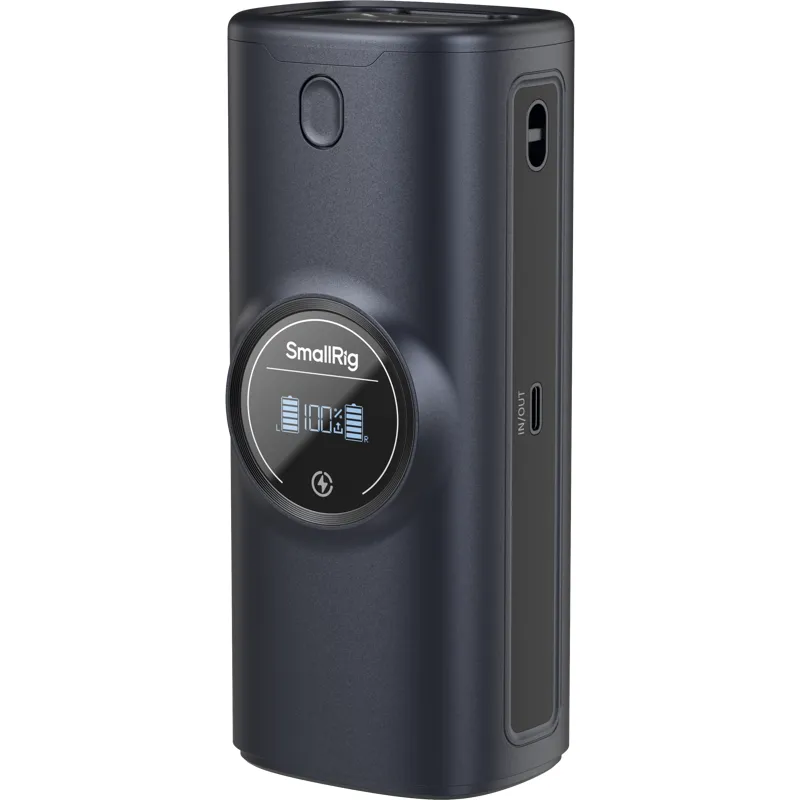

• High-definition display shows battery levels for both battery slots and internal power bank, even when disconnected from power.
• Battery icon flashes when levels are critically low to alert users during shoots.

Fast Charging and Recharging

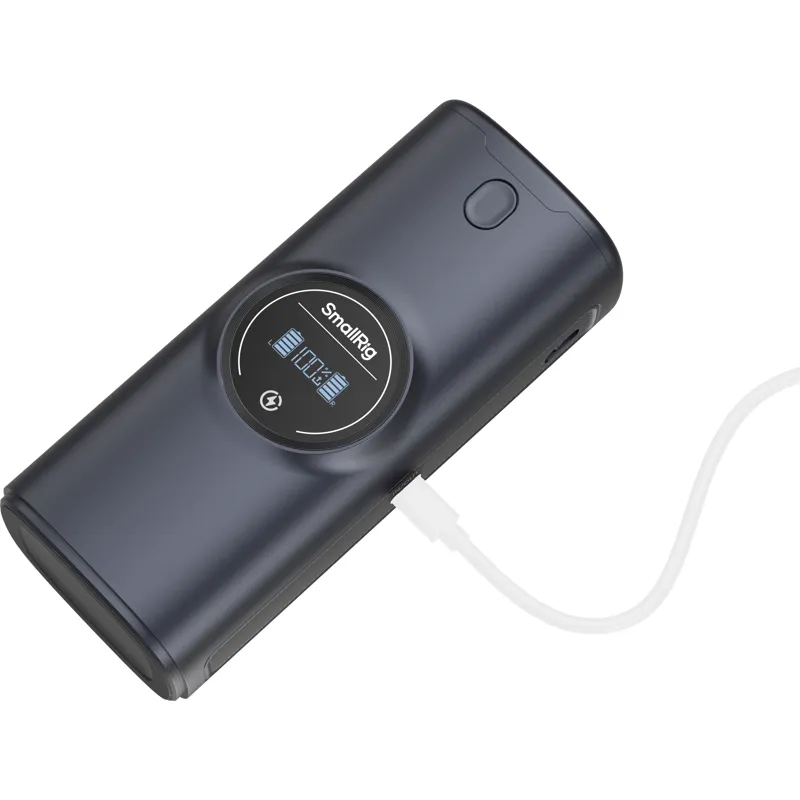

• Includes a 36W USB-C port and built-in cable supporting both input and output.
• Full recharge of two camera batteries and internal power bank takes about 3.5 hours.
• Rechargeable via wall adapter, car charger, or external power bank for convenient top-ups anywhere.

Safety Features

• Internal circuitry provides over-temperature and over-voltage protection, automatically slowing charging during overheating and cutting off power in case of overvoltage.
• Employs trickle charging near full capacity to preserve battery health and ensure safe operation.

Certifications

• FCC, CE, RoHS, ISED, PSE, KC, RCM certified.

Technical Specifications

• Product Weight: 429 g
• Materials: PC + ABS
• Power Bank Rated Capacity: 7.27V / 6800mAh / 49.436Wh

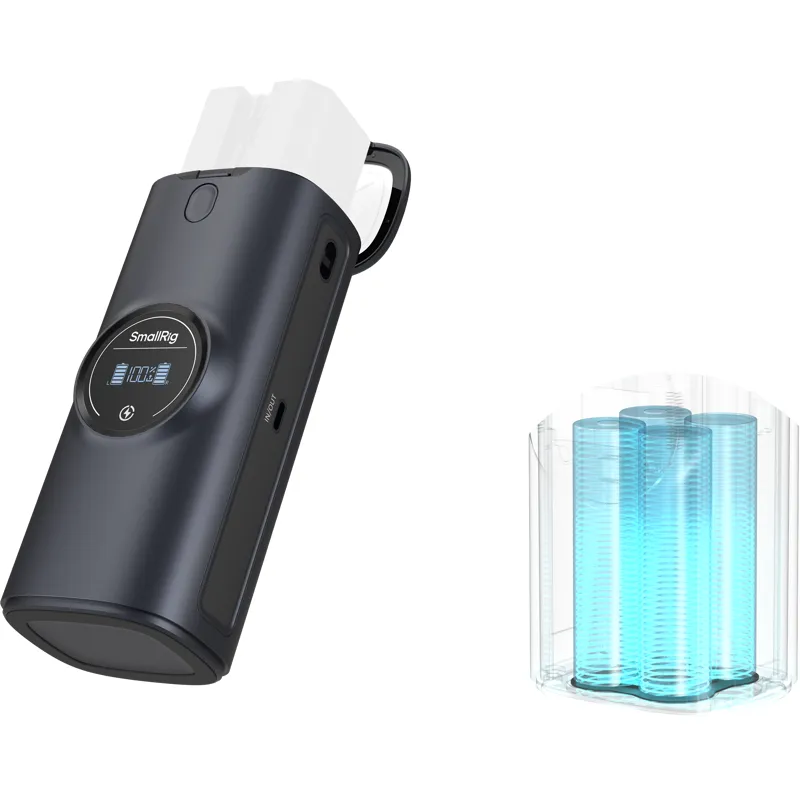

• Total Cell Capacity: 13,600mAh (3400mAh x 4)
• USB-C1 Port Input/Output: 5V⎓3A, 9V⎓3A, 12V⎓3A; 36W max
• USB-C2 Cable Input/Output: 5V⎓3A, 9V⎓3A, 12V⎓3A; 36W max
• C1 + C2 Output: 5V⎓3A; 15W max
• C1 Input + C2 Output: C1 Input: 5V⎓4A; 20W max; C2 Output: 5V⎓1A; 5W max
• C1 Output + C2 Input: C1 Output: 5V⎓1A; 5W max; C2 Input: 5V⎓4A; 20W max
• USB-C Protocols Supported: PD3.0, QC2.0
• Battery Bay Rated Output (Per Channel): 8.4V⎓1A; 8.4W
• Charging Temperature Range: 0°C to 45°C
• Discharging Temperature Range: -18°C to 60°C

Compatibility

• Compatible with Sony NP-FZ100 batteries, supporting both OEM and third-party batteries.

Packaging Includes

• Power Bank Charger Case Kit for Sony NP-FZ100
