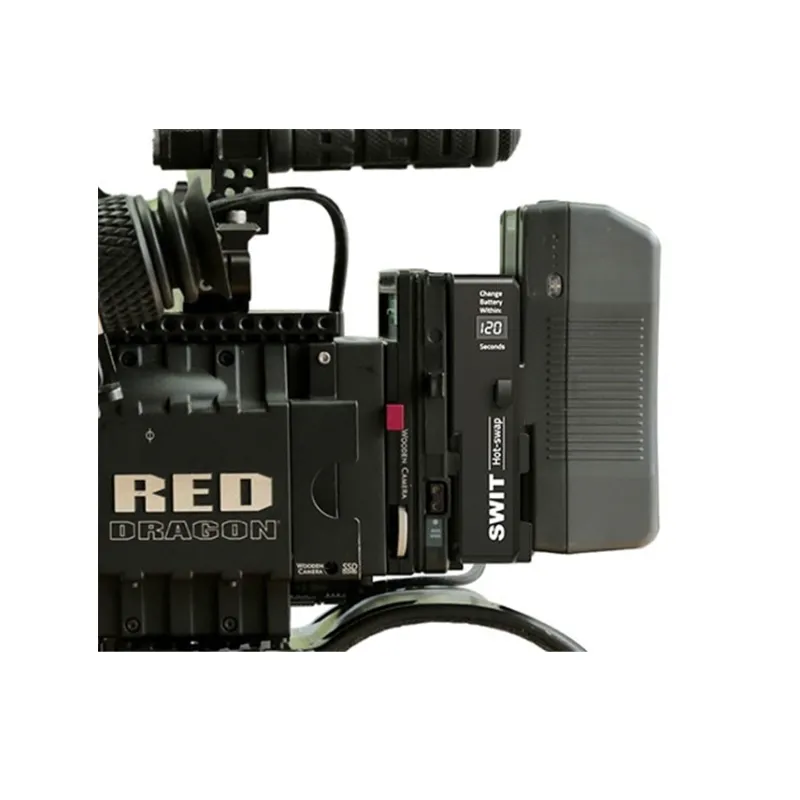

SWIT KA-S30S V-mount Hotswap Plate
The SWIT KA-S30S V-mount Hotswap Plate is a high-performance battery hot-swap solution that allows continuous power delivery to cameras or devices while changing V-mount batteries, ensuring uninterrupted operation during production.
The SWIT KA-S30S is a V-mount extended plate with an internal battery pack designed for professional camera workflows. When swapping V-mount batteries, the plate seamlessly takes over the power supply, eliminating the need to switch off the camera or interrupt filming. This makes it ideal for broadcast, cinema, and live production environments where downtime is not acceptable.
The internal battery operates at 14.4V nominal (1216.8V) with a capacity of 43Wh/3Ah, capable of delivering 200W/16A continuous load. The KA-S30S features versatile outputs: two D-tap ports (1216.8V, 125W/10A each, 200W/16A total), a 2-pin LEMO output (1216.8V, 38W/3A), and a USB-A output (5V, 10W/2A), allowing simultaneous powering of multiple devices. It also includes an 8-pin LEMO input (1216.8V) for direct power connection.
Compact, reliable, and designed for high-load applications, the KA-S30S ensures professional crews can maintain uninterrupted operation even during demanding shoots.
Key Features
- V-mount hot-swap plate with internal 43Wh/3Ah battery
- Maintains continuous power while changing V-mount batteries
- Inner battery voltage 14.4V nominal (1216.8V)
- Power load 200W / 16A continuous
- D-tap output x2 1216.8V, 125W/10A each (200W/16A total)
- 2-pin LEMO output 1216.8V, 38W/3A
- USB-A output 5V, 10W/2A
- 8-pin LEMO input 1216.8V
- Ideal for professional film, broadcast, and live production
- 1 SWIT KA-S30S V-mount Hotswap Plate
- Model KA-S30S
- Internal Battery Capacity 43Wh / 3Ah
- Nominal Voltage 14.4V (range 1216.8V)
- Continuous Load 200W / 16A
- Outputs 2 D-tap, 1 2-pin LEMO, 1 USB-A
- Input 8-pin LEMO, 1216.8V
- Mount Type V-mount
