Swit MATRIX-B8 8ch 6A Fast Charger
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Charging accessories and cables |
| Type of Product | AC Adapter |
| Battery type | B-Mount (28V) |
| Barošana | no tīkla |
| Connections | D-tap and DC male |
| Battery Capacity, mAh | 160Wh |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease

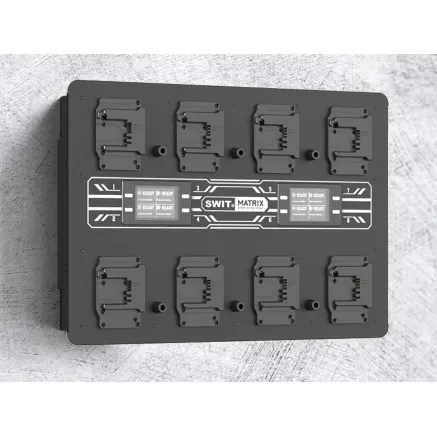

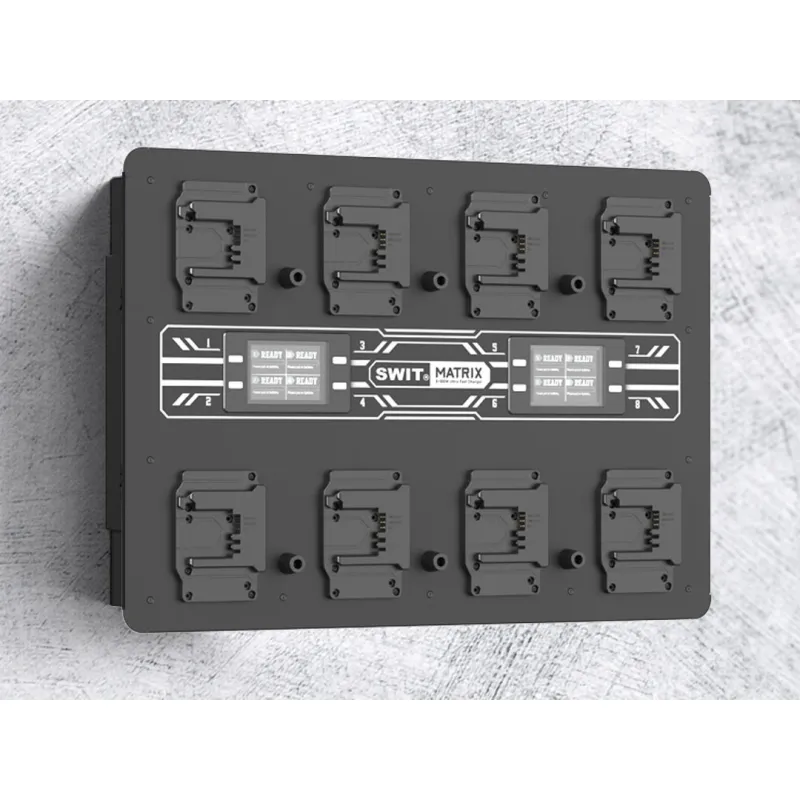

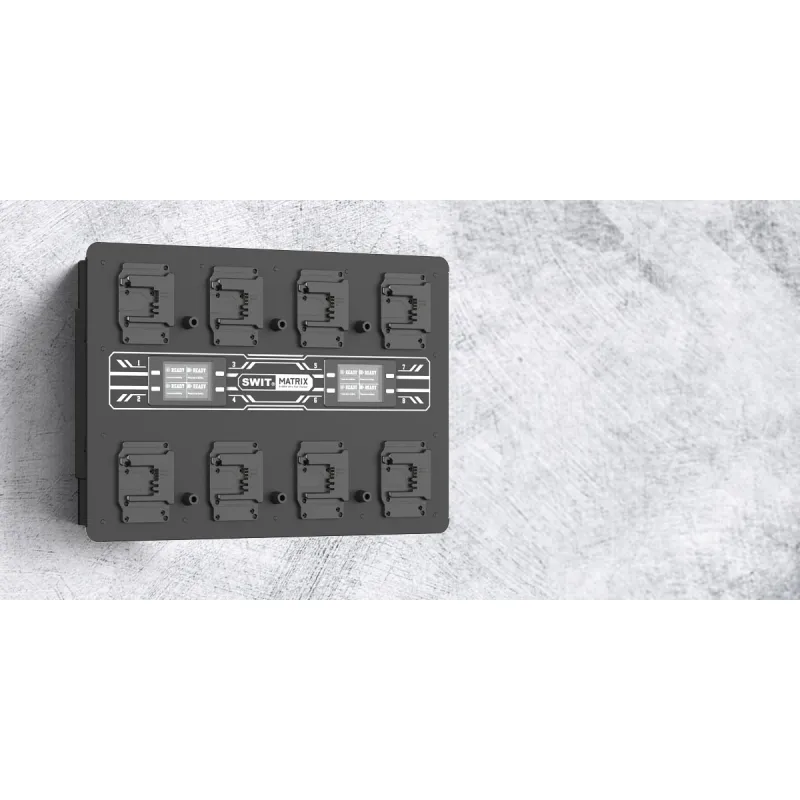

Technical Description of SWIT MATRIX-B8 Wall Charger
The SWIT MATRIX-B8 is a highly advanced 8-channel simultaneous charger designed specifically for B-mount batteries. It delivers ultra-fast charging capabilities with a maximum power output of 100 watts per channel. The charger supports a wide range of input voltages, accepting AC power from 100V to 240V at a frequency of 50/60Hz, making it suitable for global use.
Each channel provides a DC output of 33.6 volts with a maximum current of up to 3 amps when charging high-capacity batteries rated at 160 watt-hours or greater. For lower capacity batteries under 160 watt-hours, the charger automatically adjusts the output to 1.5 amps per channel to ensure optimal charging. This dual output current design balances fast charging and battery safety.

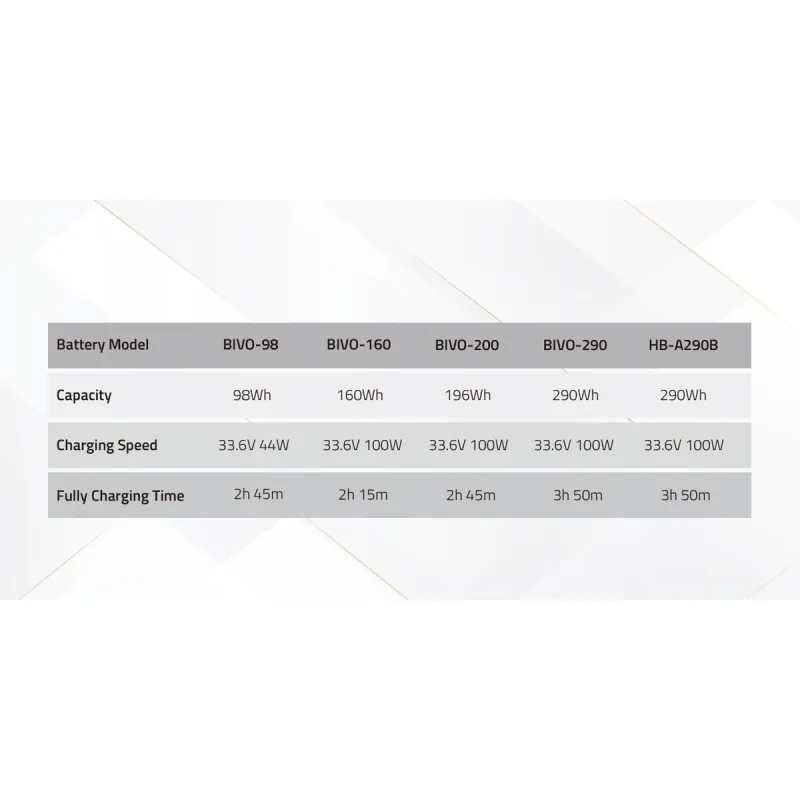

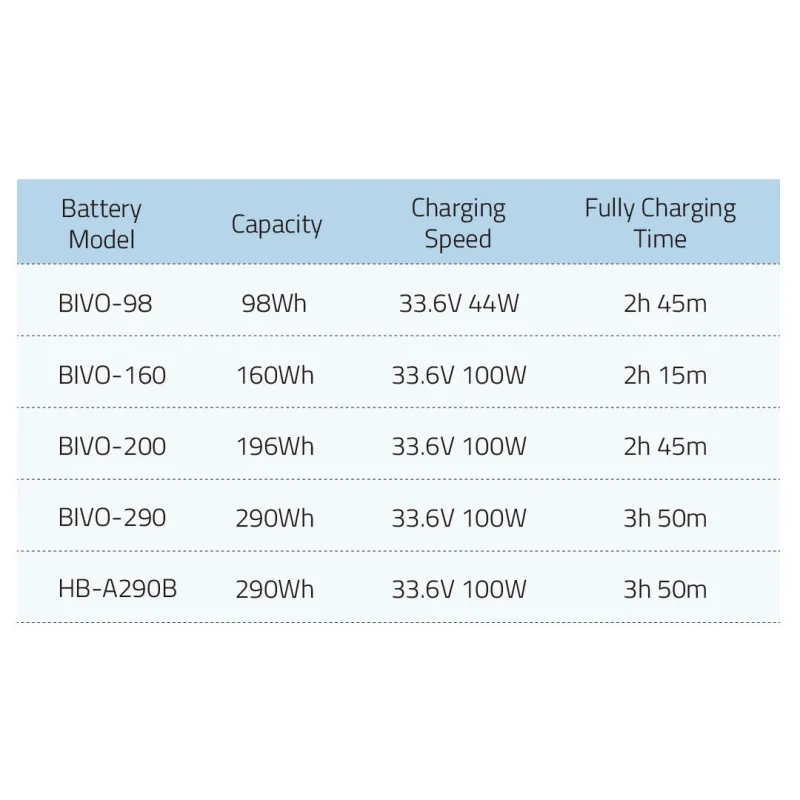

The MATRIX-B8 supports fast simultaneous charging for up to eight B-mount batteries, such as those from the SWIT HB-A290B series and BIVO series, enabling efficient workflow and minimizing downtime in professional video production environments. Its charging technology is engineered to provide stable voltage and current output to maximize battery lifespan while delivering top charging speed.
Comprehensive Technical Specifications
- Model Type B-mount charger.
- Input Voltage AC 100V to 240V, 50/60Hz.
- Maximum Power Consumption 900 watts.
- Output Voltage DC 33.6 volts.
- Output Current Up to 3 amps (100 watts) per channel for batteries 160Wh, 1.3 to 1.5 amps (44 to 50 watts) for batteries under 160Wh.
- Number of Charging Channels 8 simultaneous channels.
- Compatible Batteries B-mount, including high-capacity SWIT HB and BIVO series.
- Charging Mode Ultra-fast charging with built-in smart power management.
- Mounting Options Wall mount plate provided; compatible with standard 19-inch rack mounting.
- Cooling System Internal intelligent cooling to maintain temperature during high power operation.

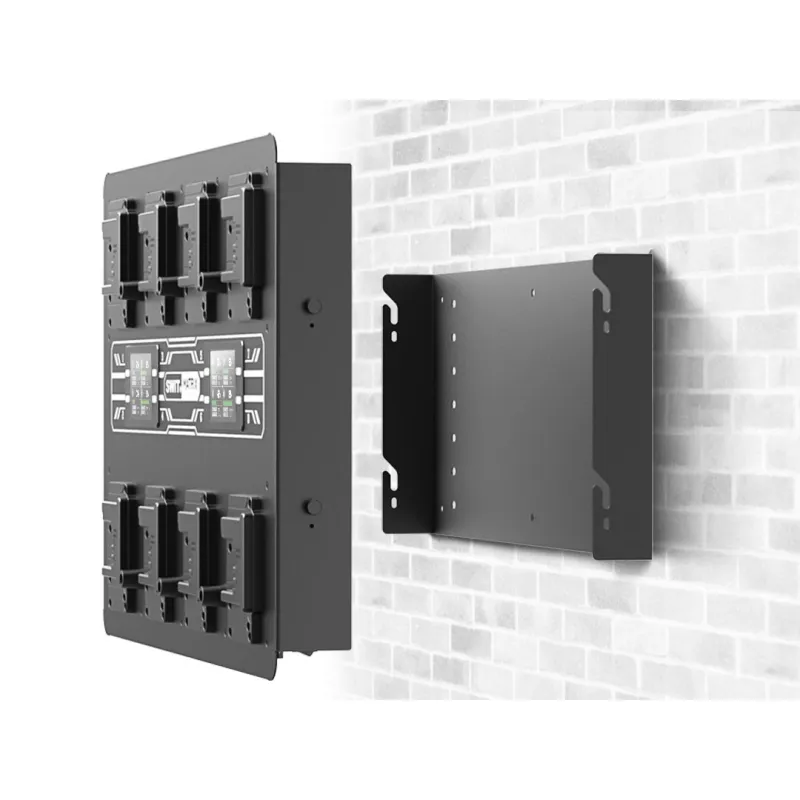

The chargers design emphasizes both performance and practical installation. It comes equipped with a wall mounting plate for secure attachment to a vertical surface, as well as compatibility with 19-inch rack brackets, enabling flexible integration into broadcast or production setups.
Protection features include automatic voltage regulation, temperature monitoring, and current limiting to prevent overcharging and potential damage to batteries. Its sturdy construction ensures reliability in demanding environments, making it a robust solution for professional video crews requiring bulk charging of high-capacity B-mount batteries.
Overall, the MATRIX-B8 combines high charging efficiency, multi-battery simultaneous capability, and flexible installation options, positioning it as an essential tool for managing large quantities of professional battery packs with top fast charging performance.
