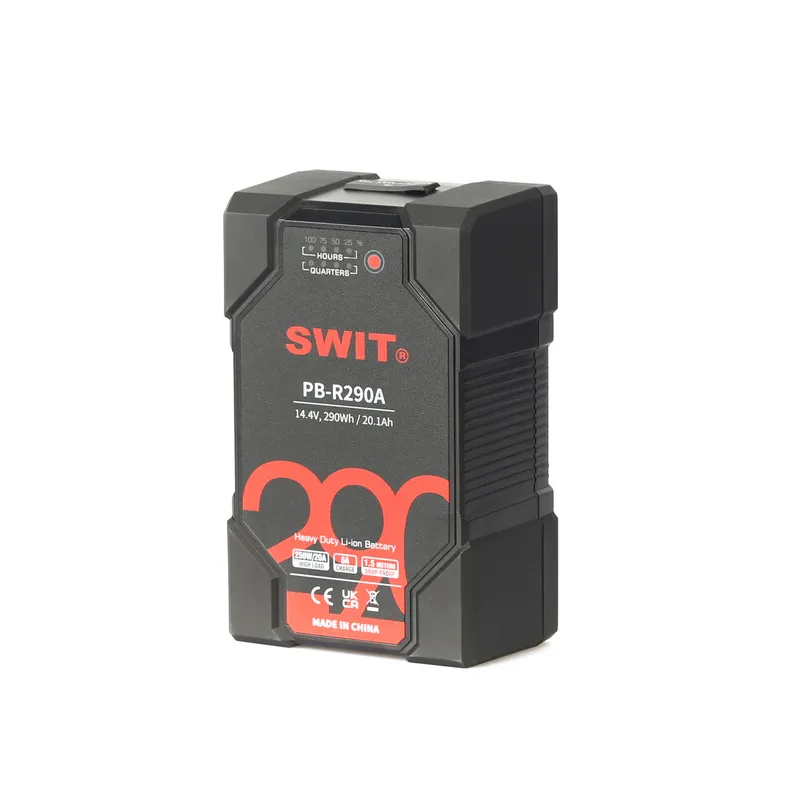

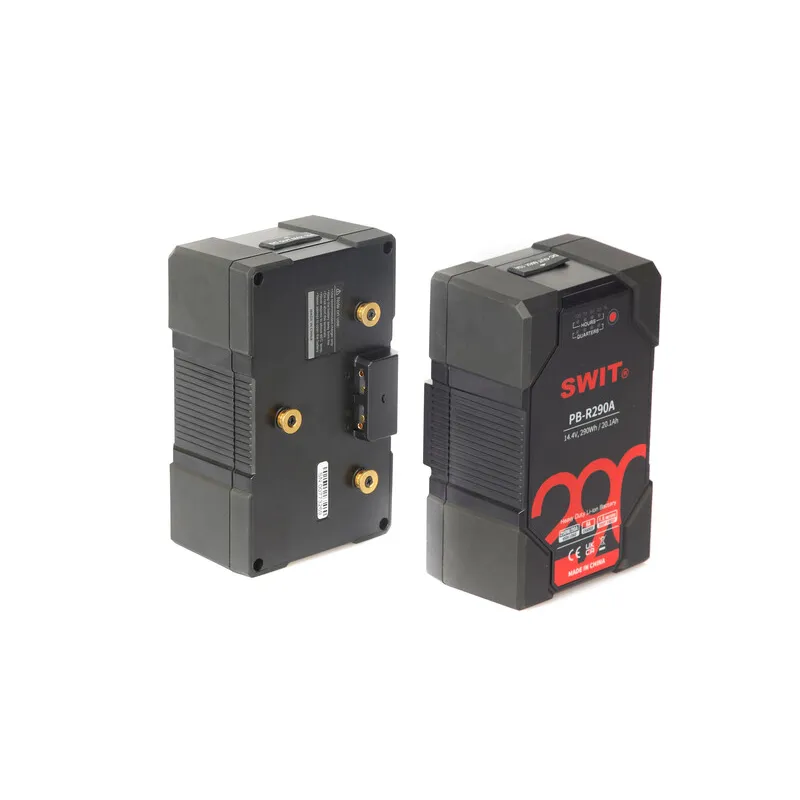

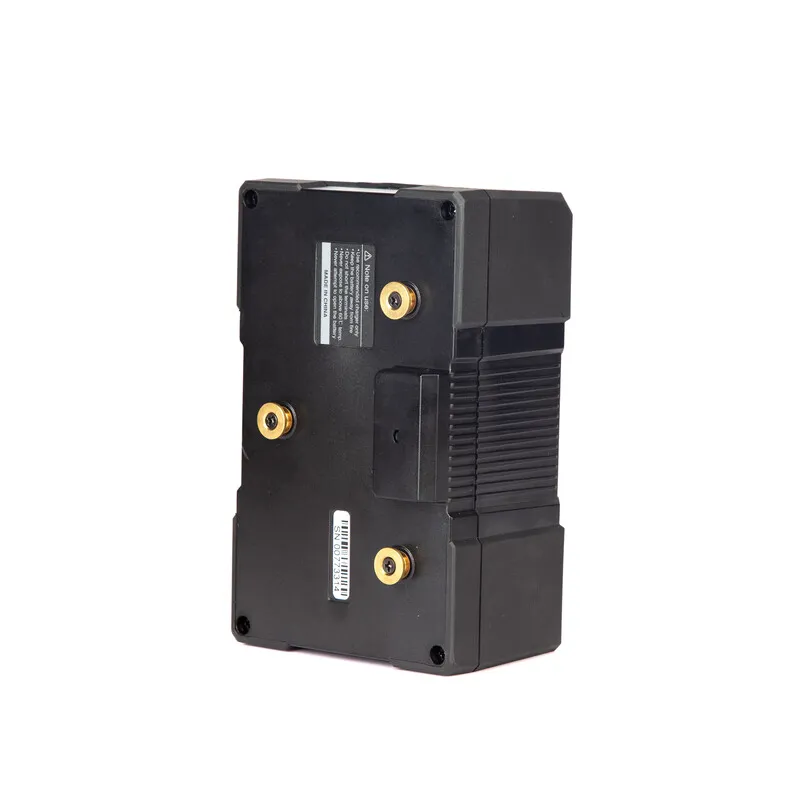

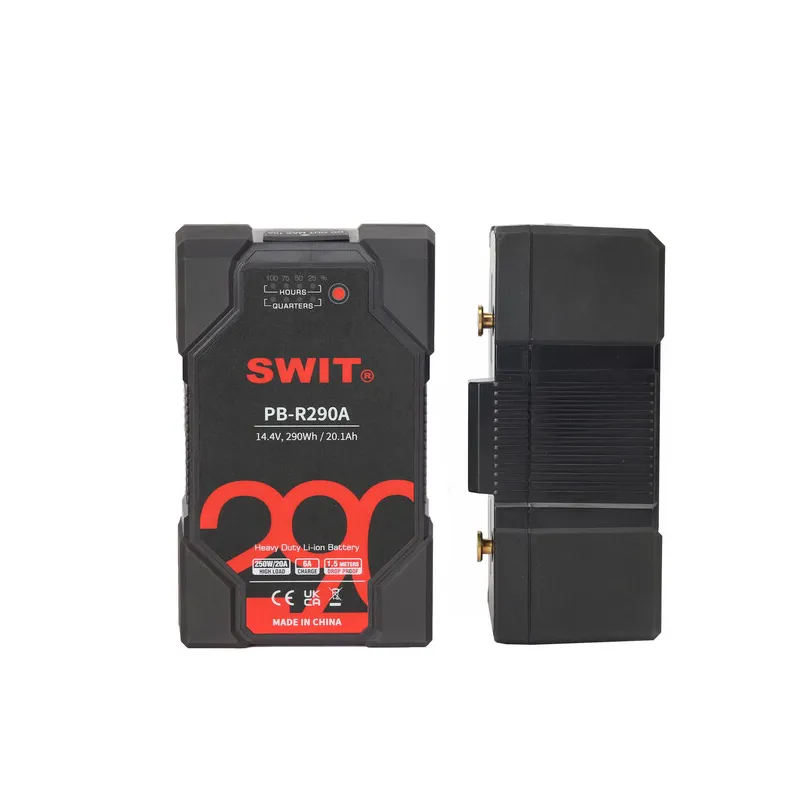

SWIT PB-R290A Overview
The SWIT PB-R290A is a 290Wh heavy-duty Gold Mount battery designed for ENG and cine cameras, delivering a 250W / 20A constant load, long runtime, fast charging, and rugged drop-resistant construction for professional production environments.
Performance
The PB-R290A can power ENG cameras for up to 11 hours or an ARRI ALEXA cine camera for approximately 3.5 hours, making it ideal for long shooting days.
Power Delivery
Supports a 250W / 20A constant high load, ensuring stable power delivery to power-hungry cameras and accessories. A D-Tap output provides up to 120W / 10A for powering monitors and other devices.
Charging and Durability
An 8-stage LED power gauge displays remaining battery capacity, while 6A fast charging allows the battery to recharge to 80% in just 2.5 hours and fully in 3.8 hours with compatible chargers. The dual housing structure with a rubber cover provides drop protection from up to 4.9 feet (1.5 m).
Key Features
- 290Wh lithium-ion Gold Mount battery
- 14.4V output with 250W / 20A constant load
- Powers ENG cameras up to 11 hours
- Powers ARRI ALEXA cine cameras up to 3.5 hours
- D-Tap output for powering accessories
- 8-LED power gauge for battery status
- 6A fast charging support
- Charges 80% in 2.5 hours, full in 3.8 hours
- Dual housing with rubber cover for drop protection
Specifications
- Model: PB-R290A
- Mount Type: Gold Mount
- Battery Chemistry: Lithium-Ion
- Capacity: 290 Wh
- Output Voltage: 14.4 V DC
- Maximum Load: 250 W / 20 A
- Accessory Output: 1 D-Tap (P-Tap)
- D-Tap Max Load: 120 W / 10 A
- Charging Temperature: 0 to 40°C (32 to 104°F)
- Discharging Temperature: -20 to 50°C (-4 to 122°F)
- Dimensions (W x H x D): 162 x 101 x 75 mm (6.4 x 4 x 3 in)
- Weight: 1.51 kg (3.33 lb)
