SmallRig Swivel and Tilt Monitor Mount BSE2294

SmallRig Swivel and Tilt Monitor Mount BSE2294

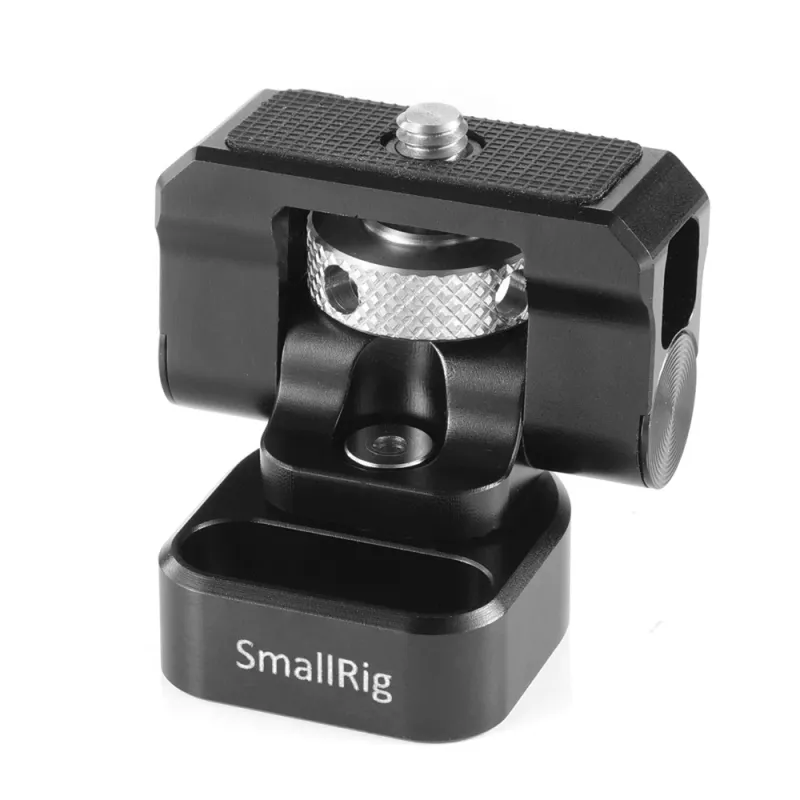

Designed to hold your monitor onto a camera cage, handle, or other mounting system via two 1/4”-20 screws, the SmallRig Swivel and Tilt Monitor Mount BSE2294 is a robust solution for videographers. The sturdy aluminum mount allows for 360° swivel and 150° tilt without the need for tools. Weighing only 68g, it can support 5” and 7” monitors up to 1.2kg. Rubber pads on the top prevent scratching, while the thumbscrew features hex spanner holes for secure tightening. The mount conveniently folds away for storage when not in use.

Key Features:

• Supports 5” and 7” monitors up to 1.2kg.

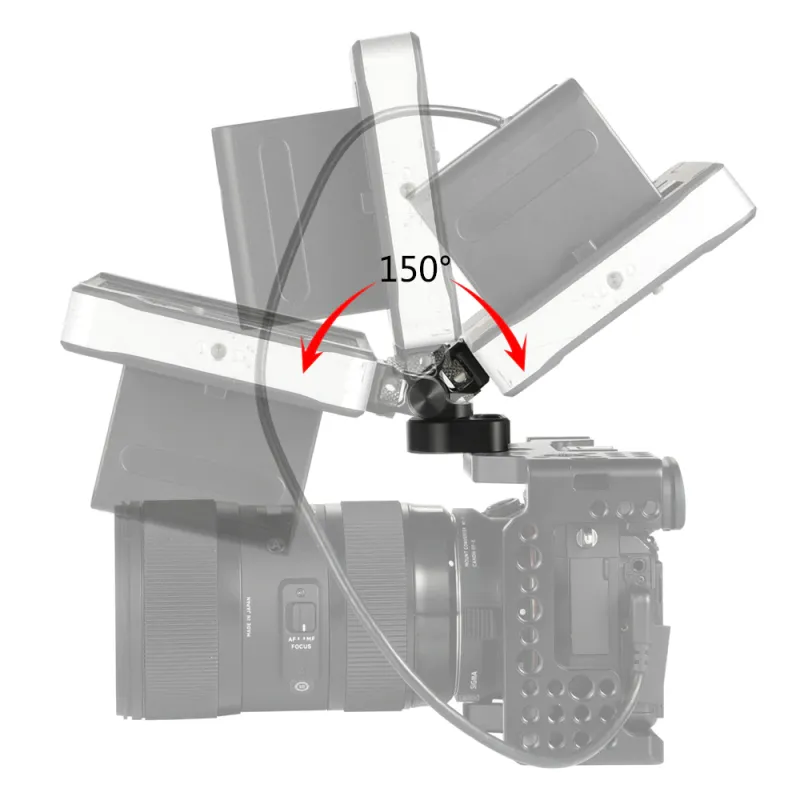

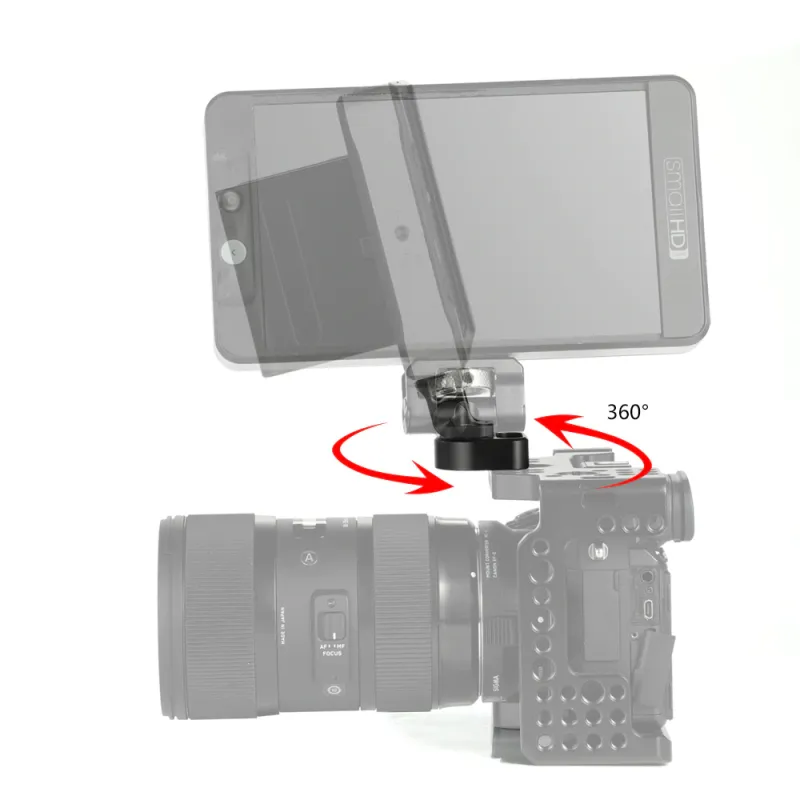

• Swivel 360° and tilt 150° allows free-stop in any position.
• Hex spanner holes for re-tightening the screw to ensure safety.
• Rubber pads on the top to prevent scratching your monitor.
• Weighs only 68g, easy for storage.

Notes:

• Maximum payload: 1.2kg
• Please use the hex spanner to re-tighten the thumbscrew for safety.
• Do not adjust the monitor mount without attaching any monitor or light.

Compatibility:

• SmallHD Focus Series
• SmallHD Focus OLED Series
• SmallHD UltraBright Series
• SmallHD 500 Series, 700 Series
• Atomos Ninja Series
• Atomos Shogun Flame
• Blackmagic Video Assist 5”

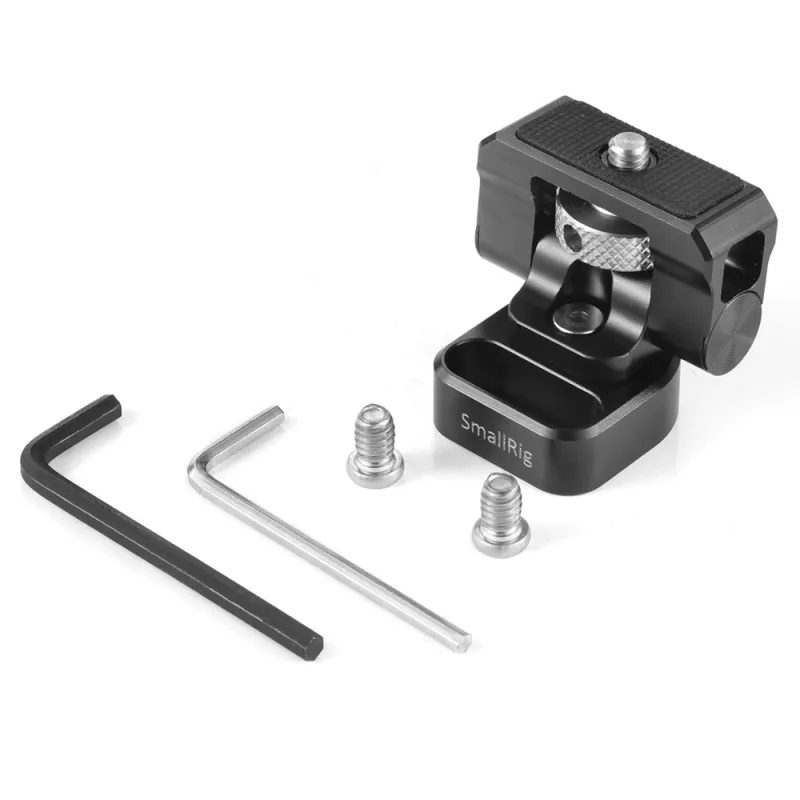

Package Includes:

• 1 x Monitor Mount
• 2 x Hex Spanner
• 2 x 1/4”-20 Screw

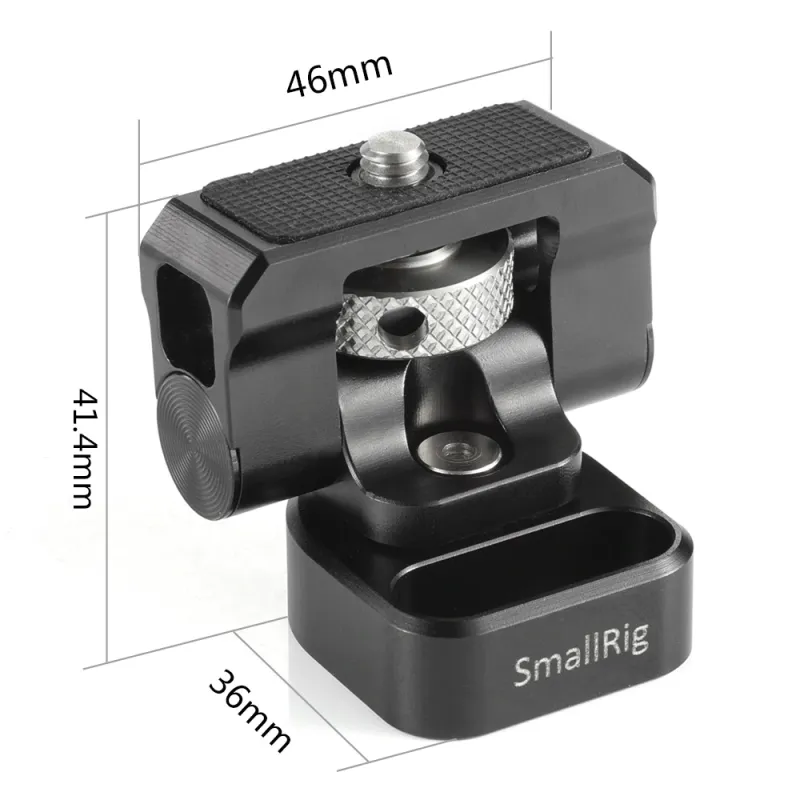

Product Dimensions: 46 x 41.4 x 38mm

Package Dimensions: 76 x 63 x 40mm

Net Weight: 68g

Package Weight: 105g

Material(s): Aluminum Alloy
