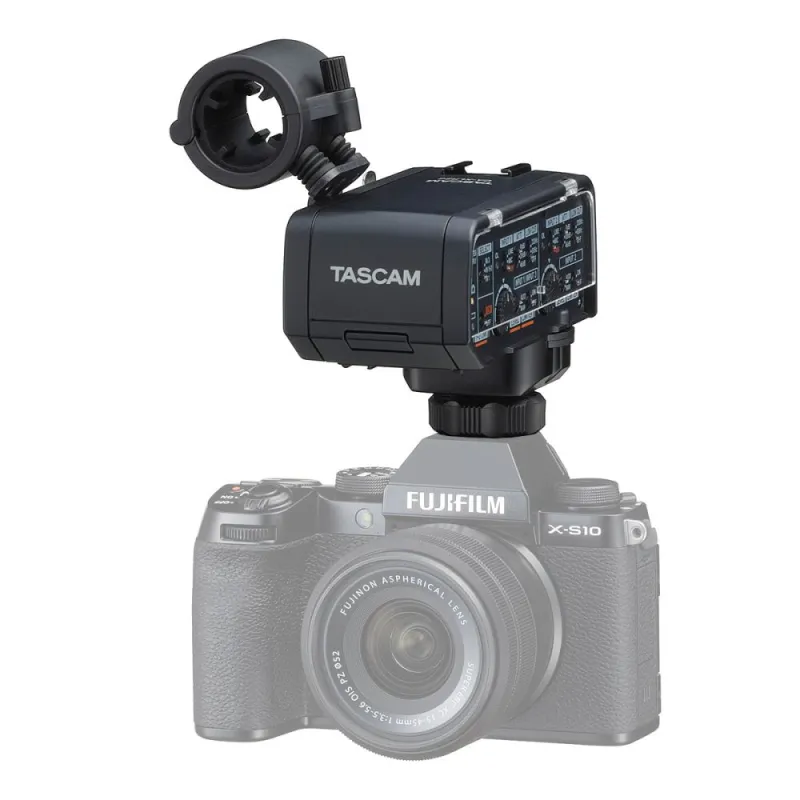

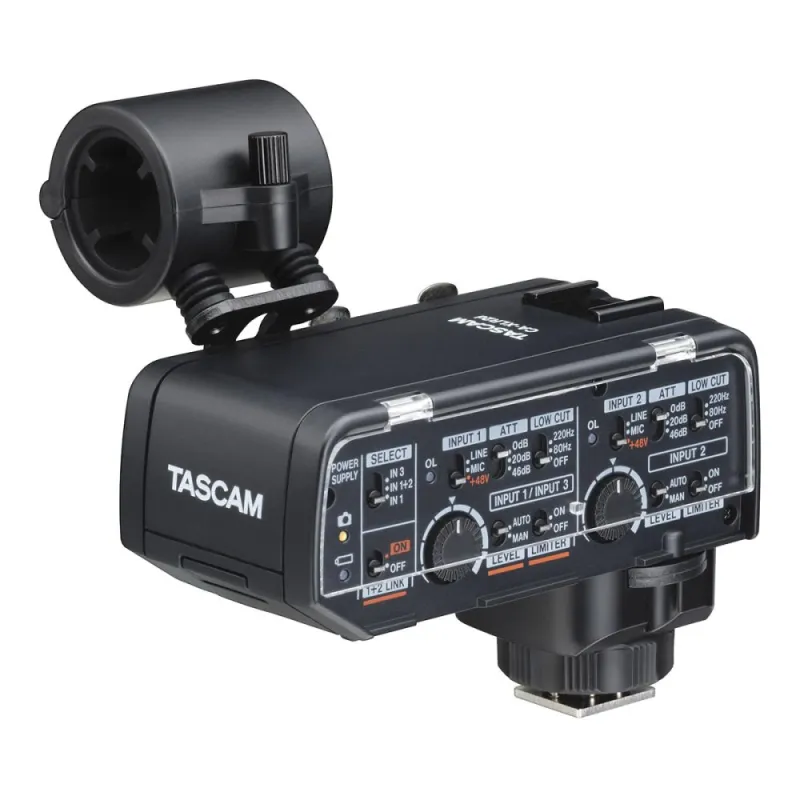

Tascam XLR Microphone Adapter Fujifilm Kit for Mirrorless Cameras (CA-XLR2D-F)

Professional Two-Channel Microphone Adapter for Mirrorless Cameras

The Tascam CA-XLR2d is a versatile two-channel microphone adapter and preamplifier designed to enable high-quality professional stereo audio recording with mirrorless and other cameras. It supports both digital and analogue audio transfer directly to the camera, synchronizing audio with video to reduce post-production effort.

Key Features

• Two XLR/TRS combo inputs for flexible microphone selection based on shooting environment
• High-performance A/D converter transmits pristine digital audio via the accessory shoe (compatible with Canon and Fujifilm cameras)
• Powered directly from the camera's accessory shoe, eliminating the need for external power supplies
• Tascam HDDA mic preamplifier ensures low noise, wide dynamic range, and high sound quality with switchable mic/line level and 48V phantom power
• Additional 3.5-mm stereo mini jack input supports lavalier or plug-in power microphones
• Compatible with virtually all cameras having analogue audio input using included battery box, cold shoe mount adapter, detachable shock mount mic holder, and analogue audio cable
• Top cold shoe mount for attaching additional accessories or microphones
• Analogue audio output with two modes: Camera mode (transmit audio to camera mic input) and Headphone mode (direct headphone monitoring)
• Replaceable shoe connection adapters (CA-AK1-C for Canon, CA-AK1-F for Fujifilm) allow use with multiple camera brands
• Switchable input attenuation levels: 0 dB, 20 dB, 46 dB
• Low-cut filter options: Off, 80 Hz, 220 Hz
• Limiter and auto-level functions for optimal recording control
• Overload indicators for each input channel
• Stereo linking of input level, auto/manual setting, and limiter for inputs 1 and 2
• Transparent protective cover to prevent accidental setting changes
• Convenient cable holder included

Flexible Microphone Compatibility

Choose from a wide range of microphones including shotgun, dynamic, condenser, and lavalier types to suit interviews, stereo imaging, or line-level inputs from mixers. The CA-XLR2d adapts to your recording needs for any filming scenario.

High-Quality Audio Conversion

Utilizing Tascam's expertise and premium A/D converters, the CA-XLR2d delivers clean, noise-free digital audio directly to the camera, avoiding additional conversion noise and simplifying post-production synchronization.

Power and Connectivity

The unit is powered via the camera's hot shoe (Canon and Fujifilm compatible), keeping your setup compact without extra power supplies. For cameras without compatible hot shoes, the included battery box and analogue output cable enable use with virtually any camera featuring an analogue audio input.

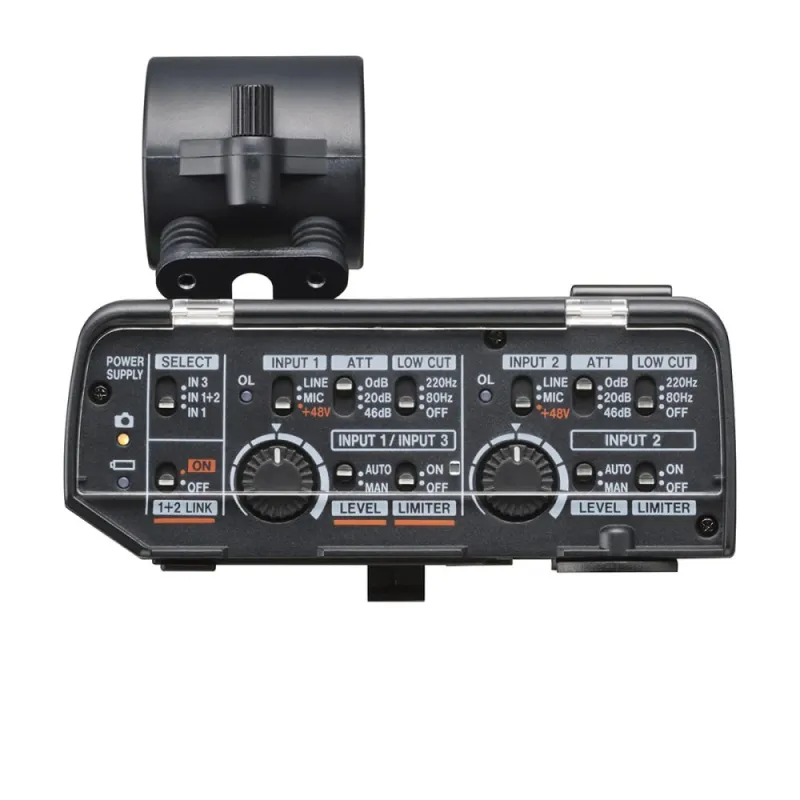

Built-In Audio Processing

Access audio processing features such as auto-level, low-cut filter, and limiter through easy-to-use switches. Stereo linking allows simultaneous control of both input channels for consistent stereo recording. The device supports 16-bit/24-bit resolution and sampling rates of 48 kHz or 96 kHz for premium sound quality.

Included in the Package

• CA-XLR2d unit with CA-AK1-F accessory shoe mount adapter attached
• CA-AK1-AN cold shoe mount adapter
• Battery holder for two AA batteries
• Detachable microphone holder with shock mount
• 3.5-mm stereo mini jack cable
• Quick Guide including warranty information

Technical Specifications

A/D Conversion

• Sampling frequencies: 48 kHz, 96 kHz
• Bit depth: 16 bit, 24 bit (synchronized with camera settings)
• Channels: 2

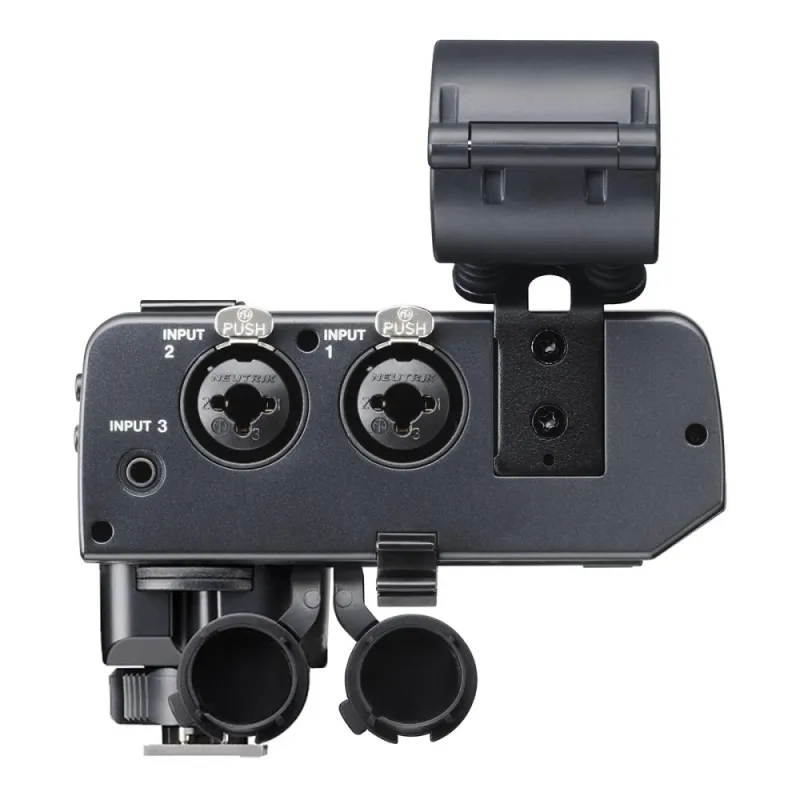

Analogue Audio Inputs

• Mic inputs 1 & 2: Balanced XLR-3-31 (phantom power available), input impedance ≥2 kΩ, max input +6 dBu (46 dB attenuation), gain range 66 dB
• Line inputs 1 & 2: Balanced 6.3-mm TRS jacks, input impedance ≥10 kΩ, max input +24 dBu, rated input +4 dBu, gain range 66 dB
• Mic input 3: Unbalanced 3.5-mm mini jack with plug-in power (2.7 V), input impedance ≥2 kΩ, max input +6 dBV (46 dB attenuation), gain range 66 dB

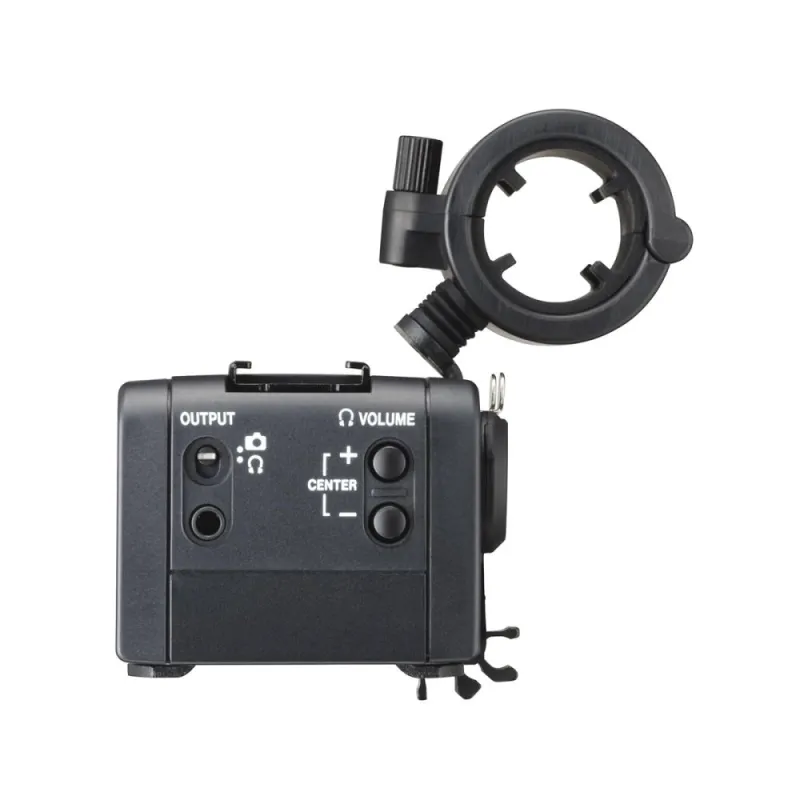

Analogue Audio Outputs

• 3.5-mm stereo mini jack for headphones or camera input
• Output voltage: 0.29 Vrms (headphone mode fixed), 0.5 Vrms max (camera mode)
• Headphone impedance: 16–250 Ω

Audio Performance

• Equivalent input noise (EIN): ≤–120 dBu (150 Ω, max gain, A-weighted)
• Dynamic range: ≥95 dB (22-kHz LPF, A-weighted)
• Frequency response (XLR to digital): 20 Hz–20 kHz ±0.5 dB / –1 dB at 48 kHz sampling, 20 Hz–40 kHz ±0.5 dB / –1 dB at 96 kHz sampling

Power and Physical

• Power supply: 2 AA batteries (alkaline, NiMH, lithium-ion) or power via compatible camera accessory shoe
• Power consumption: Max 2 W
• Dimensions (W×H×D): 88 mm × 119 mm × 110 mm (without protrusions)
• Weight: 331 g (CA-XLR2d-F model)
• Operating temperature: 0–40 °C
