Marshall CV504 is a Full HD mini camera with interchangeable M12 lenses, versatile image settings, and 3G-SDI output for professional video applications.
Marshall CV504
Product ID: 60999
SKU: 60999
Ean: 0801813230918
Condition: New product
Manufacturer: Marshall
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Video kameras |
| CMOS Sensor | 1080p (1920 x 1080) FHD |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details
Camera Overview

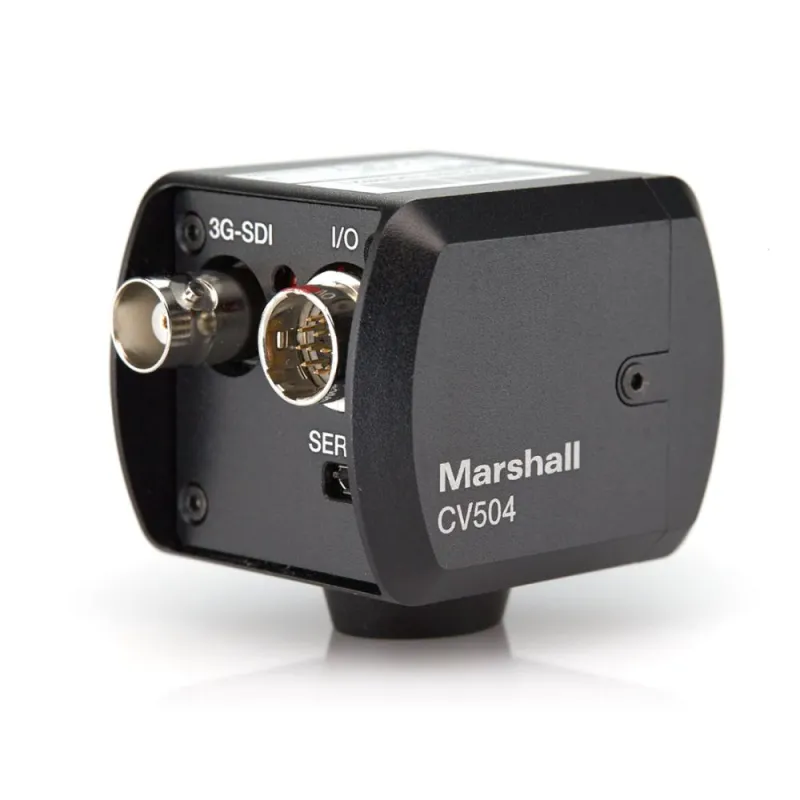

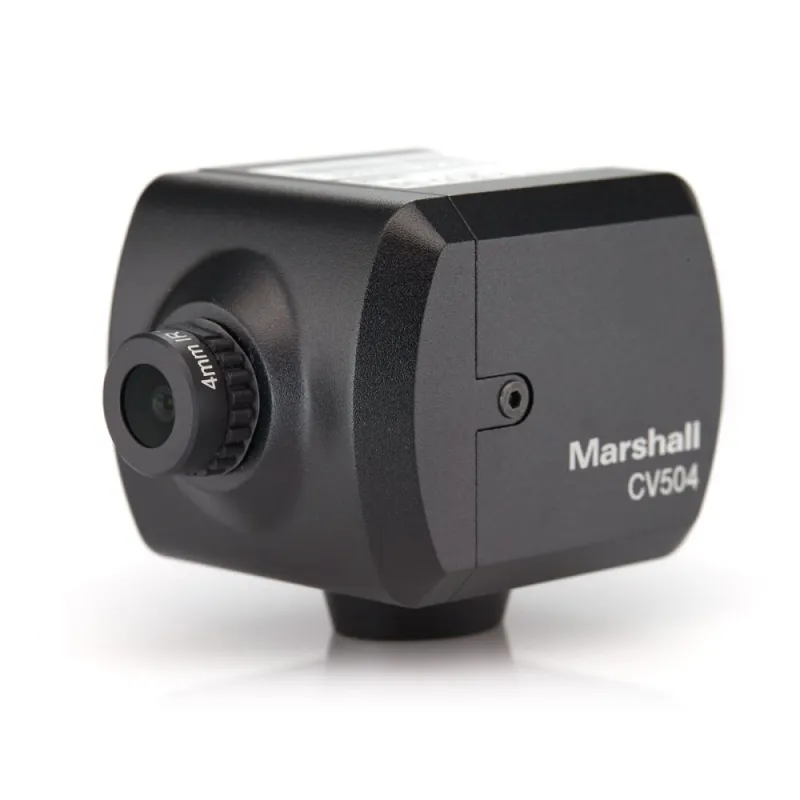

The Marshall CV504 is a Full HD mini camera featuring an interchangeable lens system. It is the successor to the CV503 model, maintaining essential features while incorporating a sensor with larger pixels for improved image quality.
Image Settings and Modes
- Versatile image adjustments including Red/Blue balance, White Balance, Gain Control, Pedestal (Blacks), Shutter, White Clip, Exposure, Gamma, Resolution, and Frame Rates
- Day/Night mode with both automatic and manual selection options
- On-Screen Menu adjustment via joystick on cable
- Live mode adjustment through an external control panel using RS-485 (VISCA protocol)
Design and Build
- Compact and robust housing suitable for various environments
- 1/4" (6.35mm) female thread mount on the bottom for flexible installation
Delivery Contents
- Marshall CV504 Camera
- 4.0mm lens (85° horizontal angle of view)

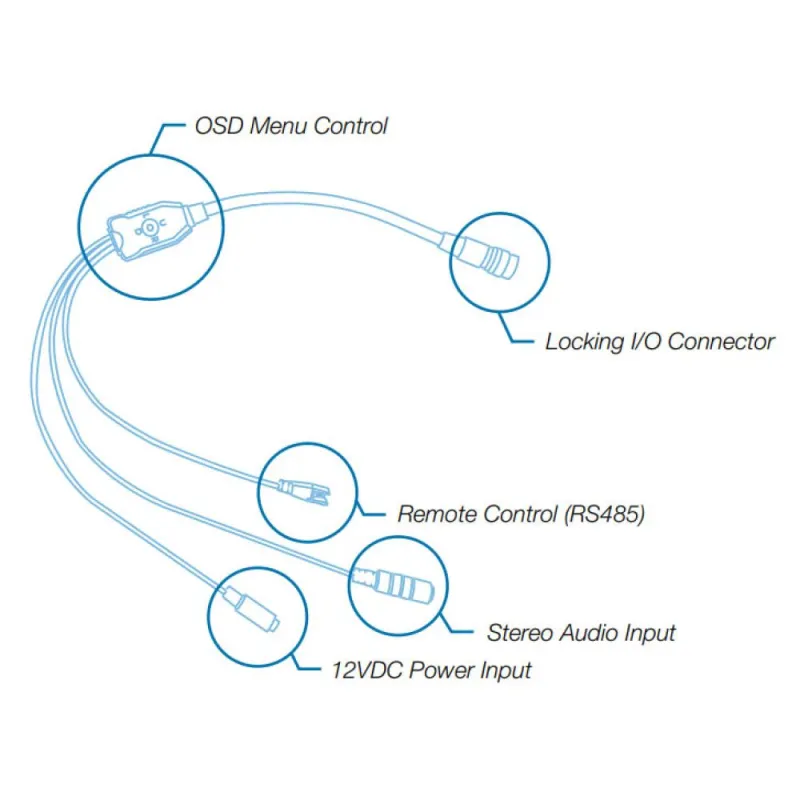

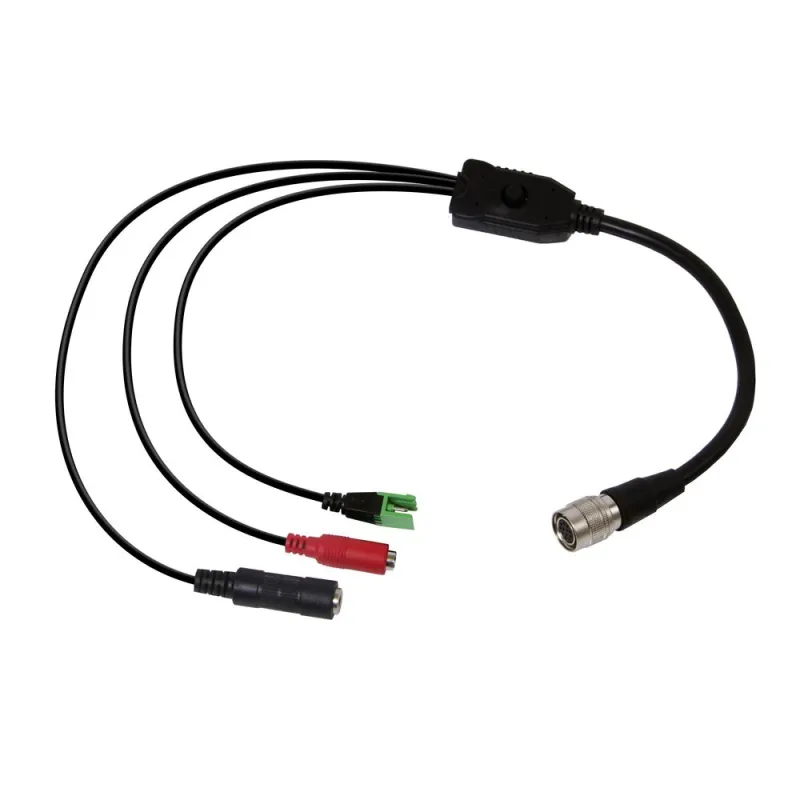

- Breakout cable
- Power supply unit
Technical Specifications
Sensor and Lens
- 2.5 Megapixel sensor (1/2.8" size, 2.9μm pixel size, 4:2:2 color sampling)
- Included 4.0mm lens with 85° horizontal angle of view
- Interchangeable M12 lens mount compatible with various focal lengths
Resolution and Frame Rates
- 1920 x 1080p and 1920 x 1080i resolutions at frame rates of 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98 fps
- 1280 x 720p resolution at the same frame rates as above

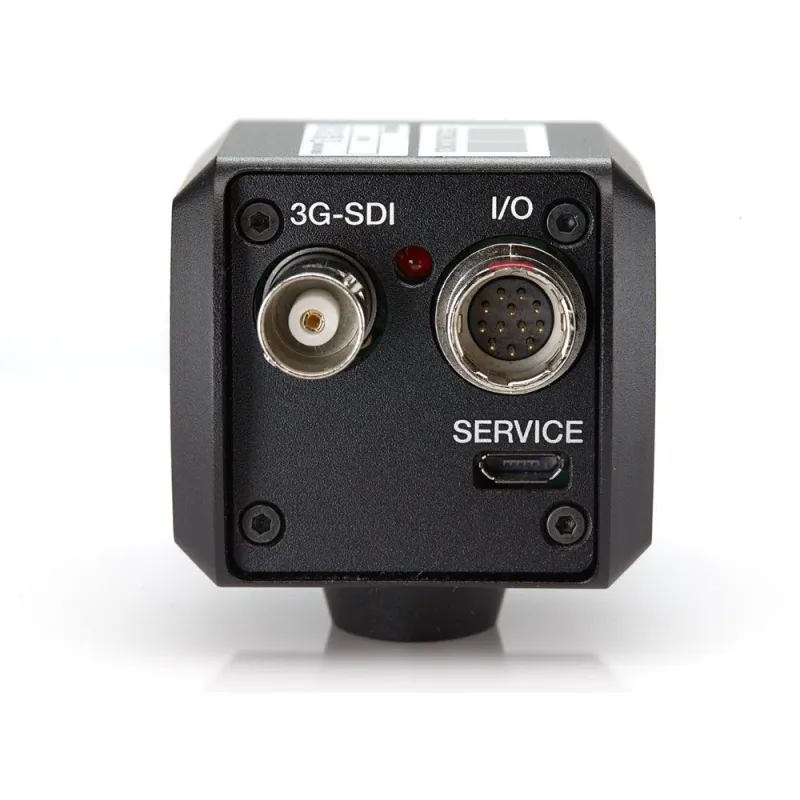

Connections
- 3G-SDI video output
- RS-485 interface with terminal connection for 2-pole cabling (supports VISCA control)
- USB port for firmware updates
- 3.5mm stereo audio input
- 12V DC power input
Power Consumption
- 6 Watts (12V DC / 500mA)
Dimensions and Weight
- Height: 47 mm
- Width: 44 mm
- Depth: 56 mm
- Weight: 110 grams
Lens Options
- M12-mount interchangeable lenses available in various focal lengths
Video Outputs
- 3G-SDI output for high-definition video transmission
