Marshall CV366 Full HD camera outputs via 3G-SDI and HDMI simultaneously with genlock for frame-accurate multi-camera sync.

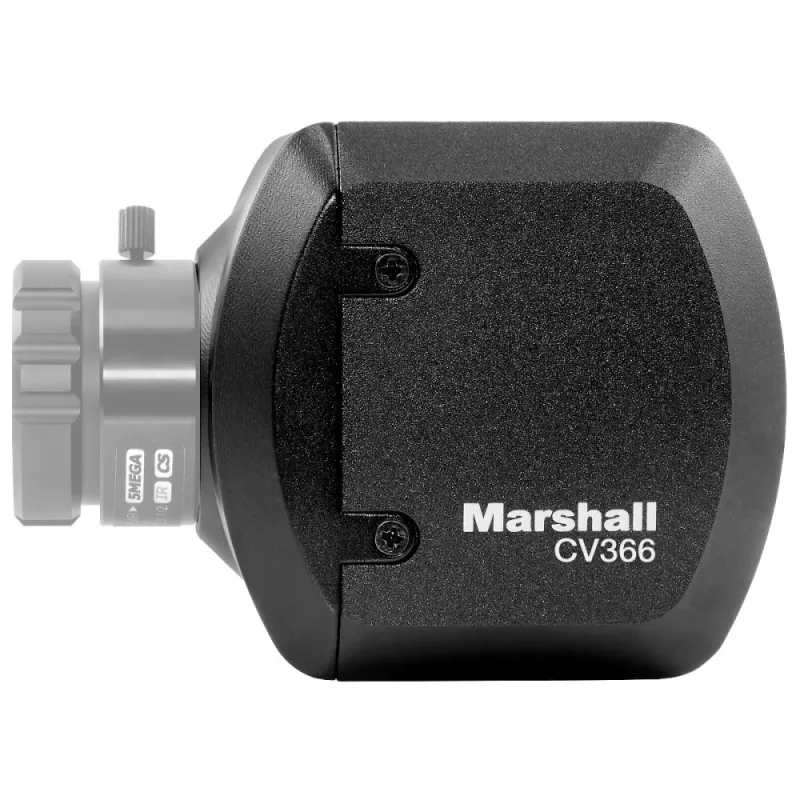

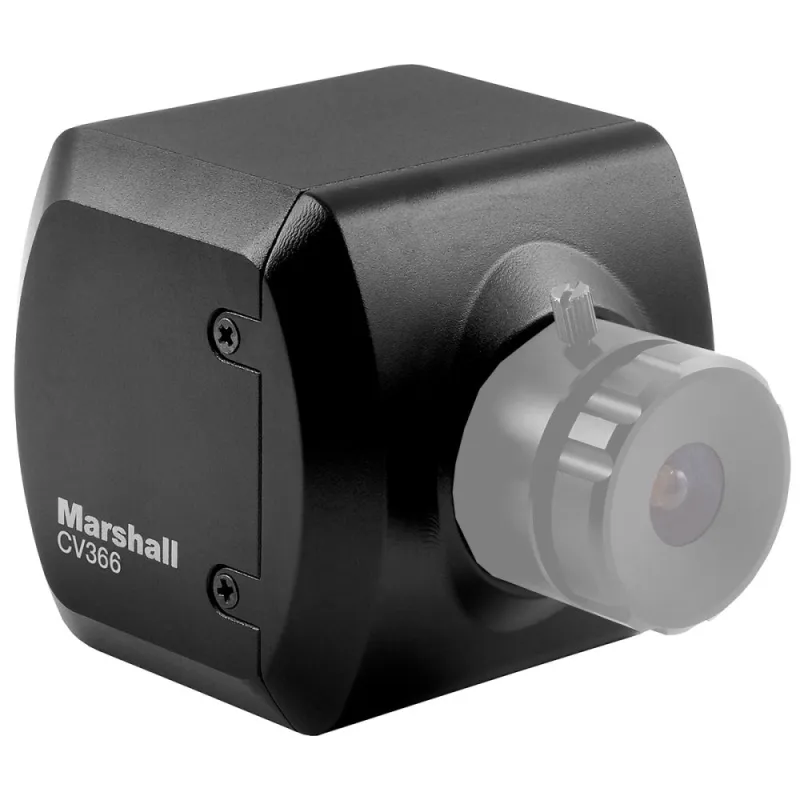

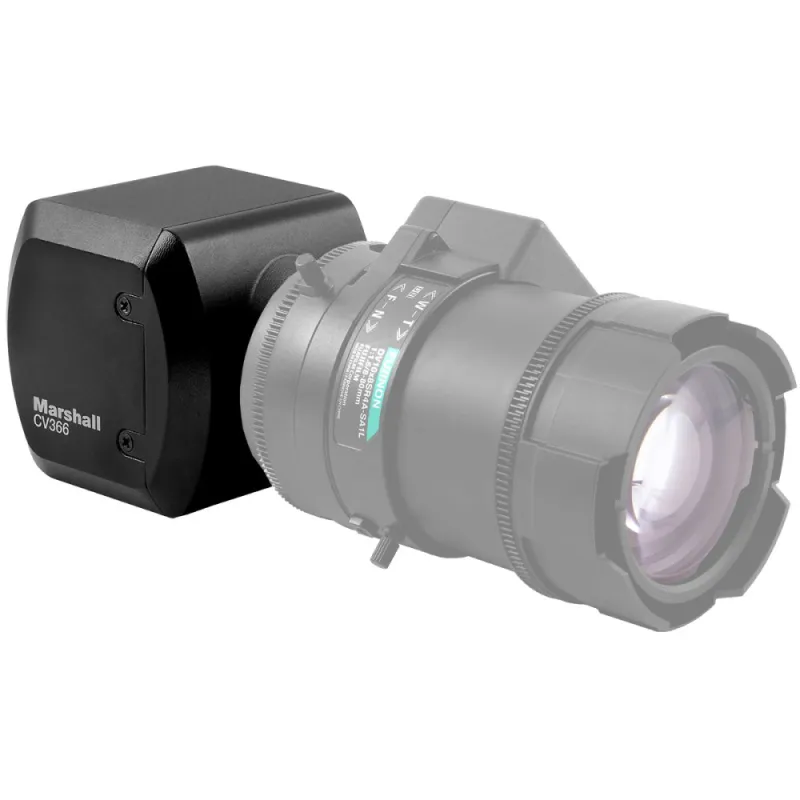

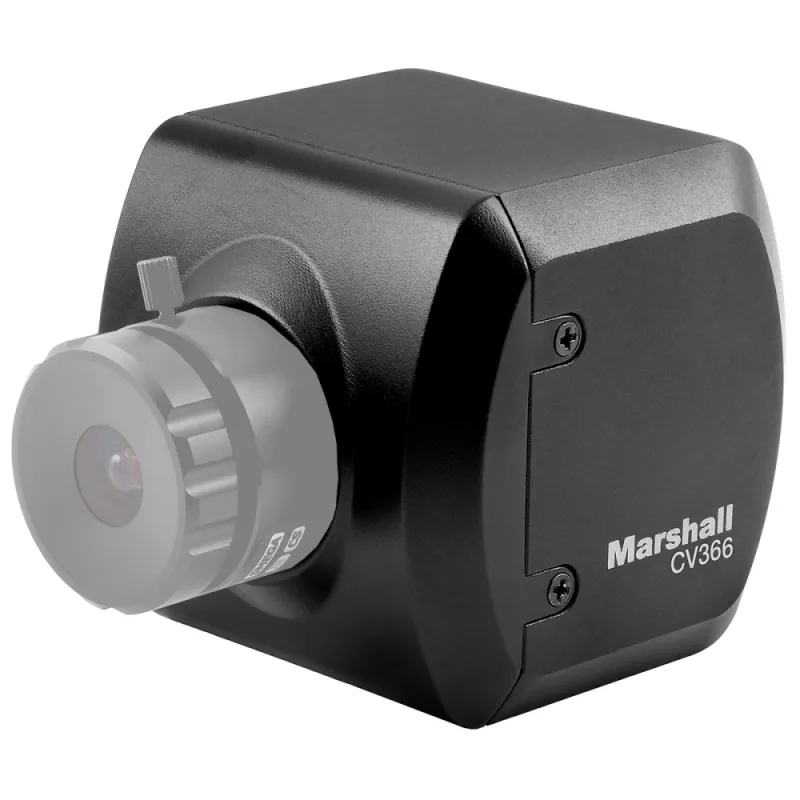

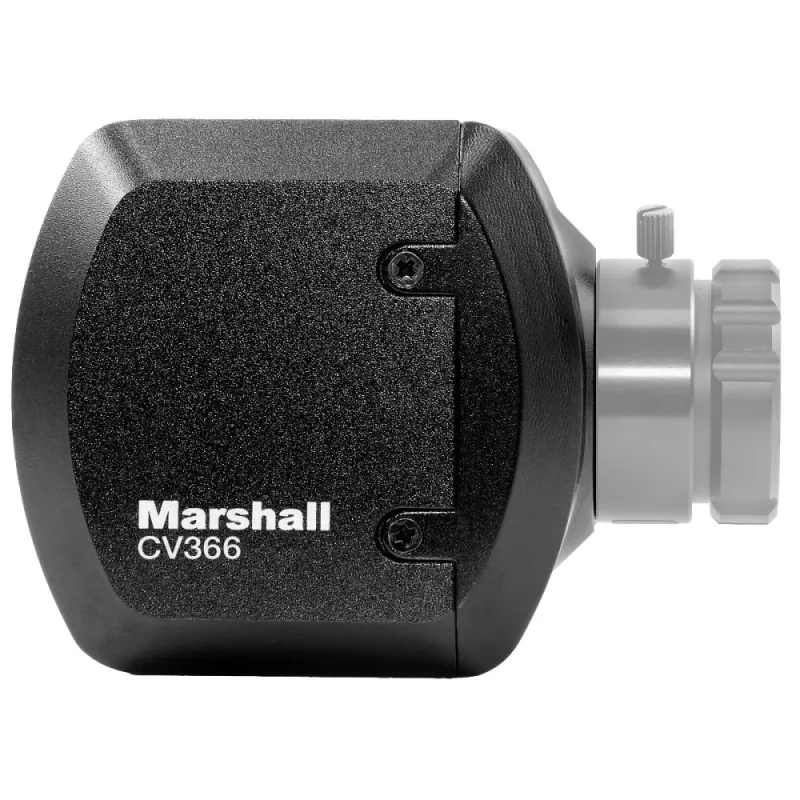

Marshall CV366

Product ID: 61004
€ 852,70 tax incl.

Delivery in 13 - 24 business days

SKU: 61004
Ean: 0801813228632
Condition: New product
Manufacturer: Marshall
852.7
Leasing calculator
Leasing calculator
Payment period
3
6
12
24
36
Monthly, €
no
Discover related products
Discover related products

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductVideo kameras
Lens mountC mount
CMOS Sensor1080p (1920 x 1080) FHD
How to buy goods on lease?

  • 1. Evaluate your options.
  • 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
  • 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
    We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
    Manager will check the availability of the items in the cart and send the loan application link.
  • 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
  • 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
  • 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
  • 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
  • *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
    **The sequence of leasing steps is the same for leases offered by InCredit Group.
    ***In case of doubt, contact our consultants!

    When using leasing services, carefully evaluate your options to repay the loan!
    • Lease
send a message

Quick order


Available from warehouse

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Marshall CV366

Marshall CV366

Marshall CV366 Full HD camera outputs via 3G-SDI and HDMI simultaneously with genlock for frame-accurate multi-camera sync.

Write a review

Product details

Camera Sensor and Image Quality

  • 2.2 megapixel Sony sensor (1/2.8") delivering Full HD resolution
  • Low light sensitivity down to 0.01 lux; in night mode with IR wavelengths, sensitivity improves to 0.005 lux

Lens Compatibility

  • Supports CS- and C-Mount lenses (lenses sold separately in various focal lengths)

Video Output and Synchronization

  • Simultaneous video output via 3G-SDI and HDMI interfaces
  • Genlock Tri-level Sync enables frame-accurate synchronization of multiple cameras

Image Settings and Controls

  • Extensive image adjustments including Red/Blue balance, White Balance, Gain Control, Pedestal (Blacks), Shutter, White Clip, Exposure, Gamma, Resolution, and Frame Rates
  • On-screen menu adjustment via joystick on the cable
  • Live operation adjustment possible with external control panel through RS-485 (VISCA protocol)

Connectivity

  • 3G-SDI output
  • HDMI output
  • RS-485 port with clamp connection for 2-pole cabling
  • USB port for firmware updates
  • 3.5mm stereo audio input
  • DC port for lenses with automatic iris control
  • 12V DC power input

Power and Environmental Specifications

  • Power consumption: 6W (12V DC / 500mA)
  • Power supply included
  • Supports alternative power sources with voltage tolerance from 7 to 15V (e.g., rechargeable batteries)
  • Operating temperature range: -10 °C to +50 °C

Physical Dimensions and Build

  • Compact and robust housing
  • Dimensions: 56mm (H) x 56mm (W) x 59mm (D) without lens
  • Weight: 160g
  • 1/4" internal thread on the bottom for mounting

Included in Delivery

  • Marshall CV366 camera
  • Breakout cable including genlock, RS-485 port, stereo audio, and 12V power connections
  • Power adapter

Supported Resolutions and Frame Rates

  • 1920 x 1080p and 1920 x 1080i at 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps
  • 1280 x 720p at 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps
