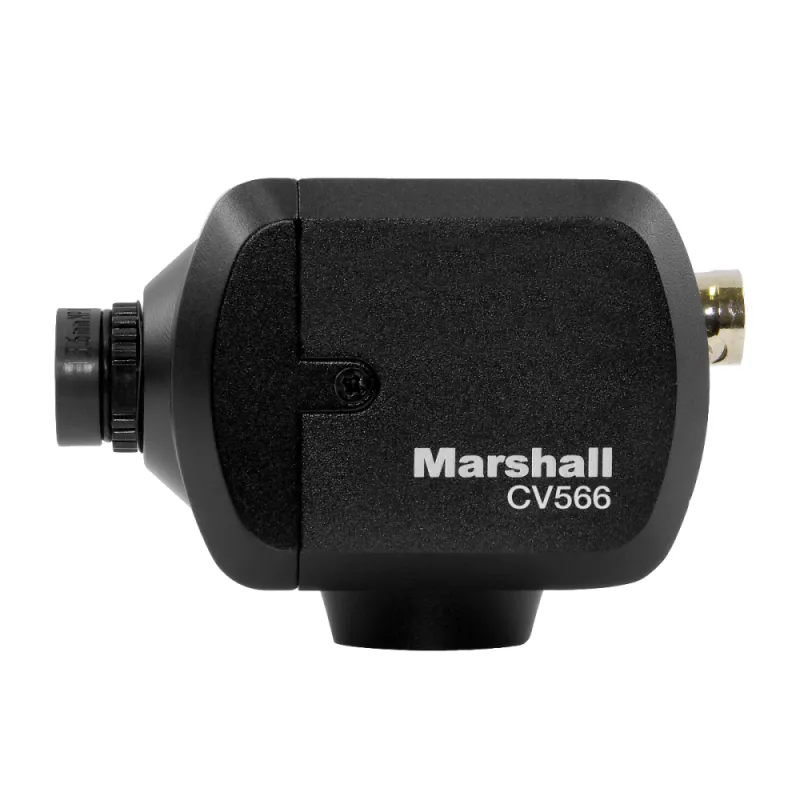

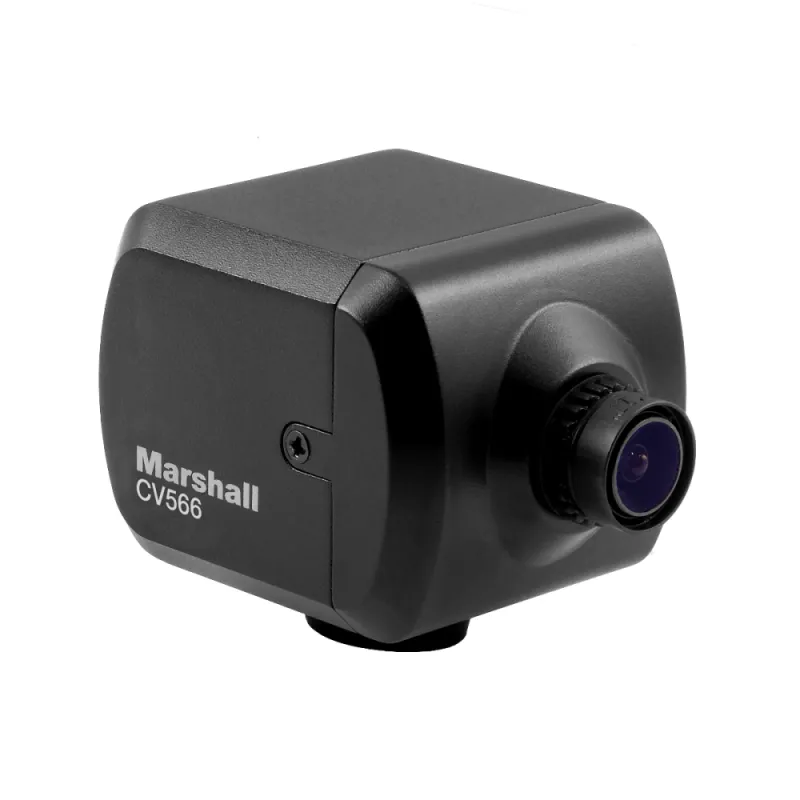

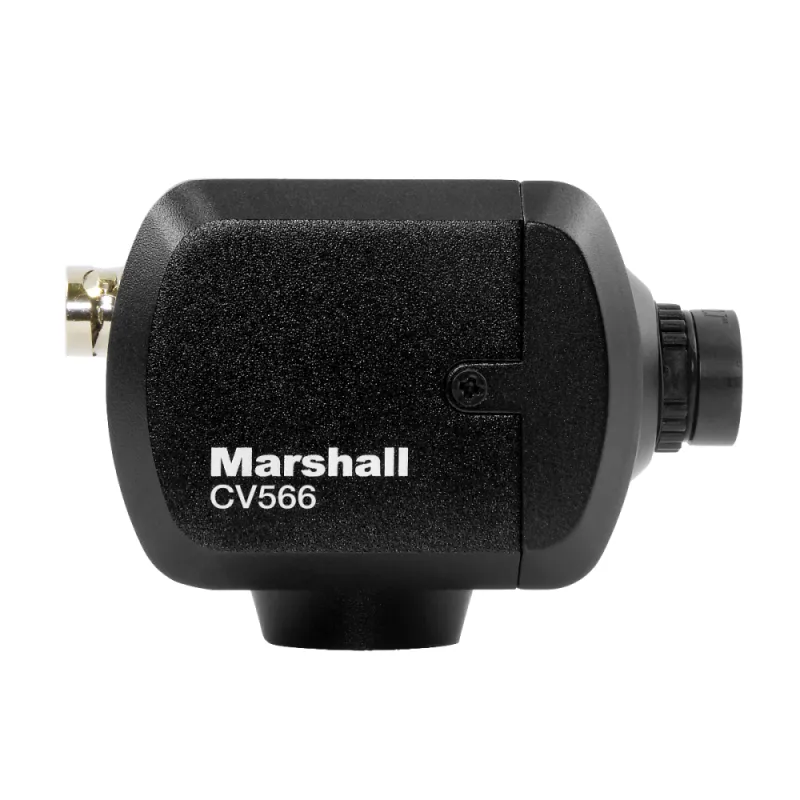

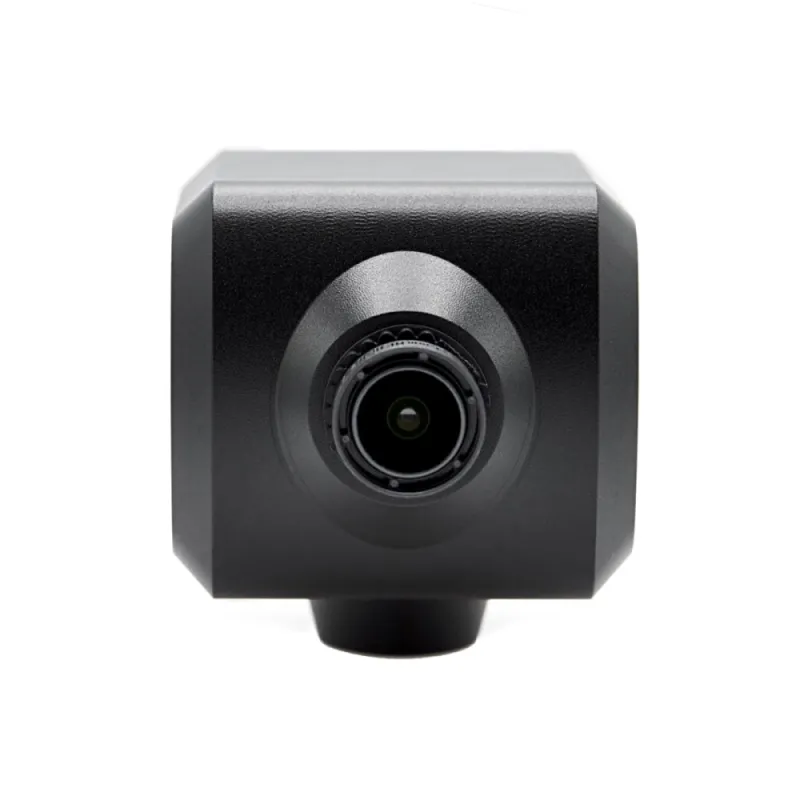

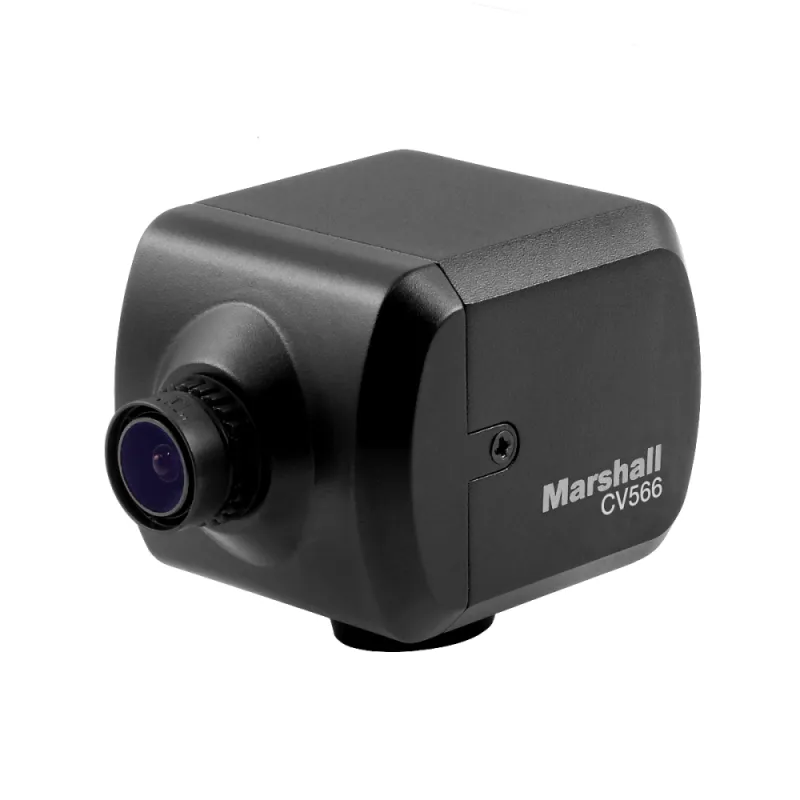

Marshall CV566 Full HD camera with 3G-SDI and HDMI outputs, genlock synchronization, 2.2MP Sony sensor, and interchangeable 3.6mm lens.
Marshall CV566
Product ID: 61005
SKU: 61005
Ean: 0801813228649
Condition: New product
Manufacturer: Marshall
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Video kameras |
| Camera set | with lens (kit) |
| CMOS Sensor | 1080p (1920 x 1080) FHD |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details
Camera Sensor and Image Quality
- 2.2 megapixel Sony sensor (1/2.8") delivering Full HD resolution
- Low light capability with clear images and precise colors down to 0.01 lux; in night mode, IR sensitivity extends to 0.005 lux
Lens and Field of View
- Includes a 3.6mm lens with 72° horizontal angle of view
- M12 mount allows lens replacement with various focal lengths
Video Output and Synchronization
- Video output via 3G-SDI and HDMI interfaces
- Genlock support with Tri-Level Sync enables frame-accurate synchronization of multiple cameras
Image Settings and Controls
- Extensive image adjustments including Red/Blue balance, White Balance, Gain Control, Pedestal (Blacks), Shutter speed, White Clip, Exposure, Gamma, Resolution, and Frame Rates
- Day/night mode with integrated IR filter that can be activated automatically or manually
- On-screen menu adjustment via joystick on the cable
- Live operation adjustment possible through external control panel using RS-485 (VISCA protocol)
Resolution and Frame Rates
- 1920 x 1080p and 1920 x 1080i at multiple frame rates: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps
- 1280 x 720p at 60 / 59.94 / 50 fps

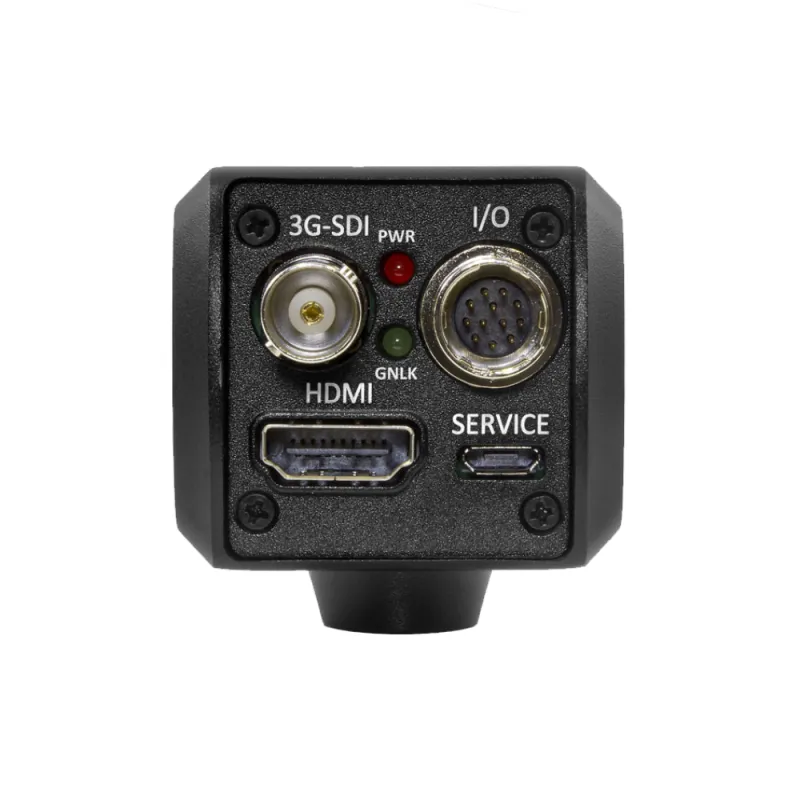

Connectivity
- 3G-SDI output
- HDMI output
- RS-485 port with clamp connection for 2-pole cabling
- USB port for firmware updates
- 3.5mm stereo audio input
- 12V DC power input
Power and Environmental Specifications
- Power consumption: 6W (12V DC / 500mA)
- Power supply included
- Supports alternative power sources with voltage range 7 to 15V (e.g., rechargeable batteries)
- Operating temperature range: -10 °C to +50 °C
Physical Dimensions and Build
- Compact and robust housing
- Dimensions (without lens): 47mm (H) x 44mm (W) x 56mm (D)
- Weight: 115g
- 1/4" internal thread on the bottom for mounting
Included Accessories
- Marshall CV566 camera
- 3.6mm lens
- Breakout cable bundling genlock, RS-485 port, stereo audio input, and 12V power
- Power adapter
