DATAVIDEO CAP-2 HDMI TO USB (UVC) CAPTURE (INPUT) DEVICE CAP-2

DATAVIDEO CAP-2 HDMI TO USB (UVC) CAPTURE (INPUT) DEVICE CAP-2

Write a review

Product details

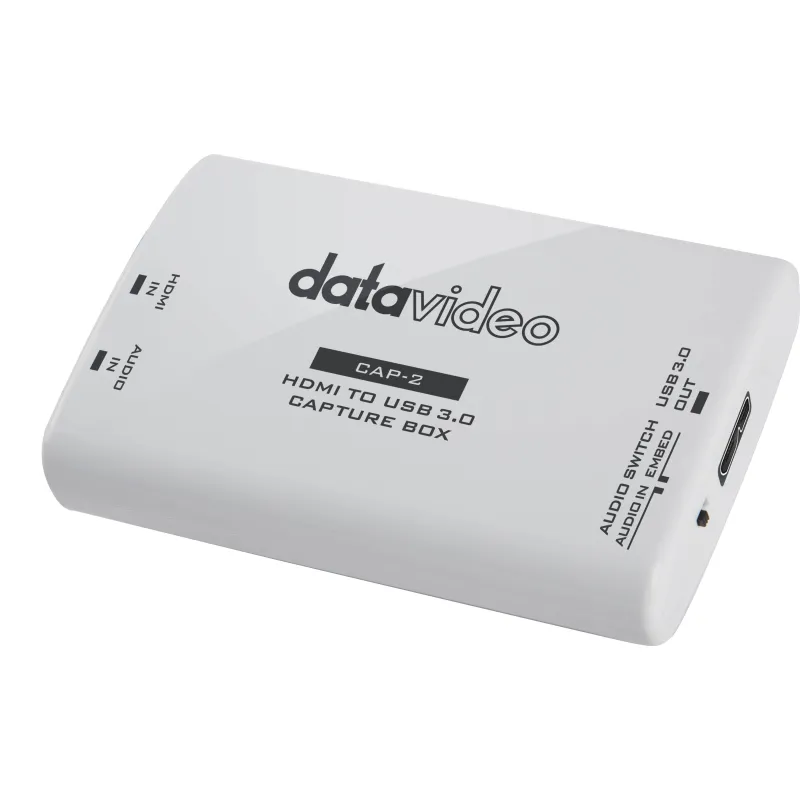

CAP-2 HDMI to USB 3.0 Capture Box is an HDMI-USB Capturing device, which supports up to 1080p50/60. Plug and play in the various operating system. It features a stereo line in external audio, which can be switched as HDMI embedded audio or external line-in audio. There are more flexible and powerful settings for capturing.

  • USB 3.0 Interface - No external power is needed.
  • Plug-and-Play - Support UVC. Operations with video format (resolution and frame rate) auto-detection capability
  • Compatible with various operating systems: Support Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us. Linux: VLC, OBS. Mac OS X: OBS, Quicktime player, VLC, Facetime
  • Stereo line in external audio - Switched as HDMI embedded audio or external line-in audio.

CAP-2 HDMI to USB 3.0 Capture Box

Input

1x HDMI

Output

1x USB 3.0 (Micro B)

Input Video Bandwidth

150MHz (pixel clock rate)

Output Video Bandwidth

Up to 350Mbps (USB)

Supported Input Video Formats

1920 x 1080p 60/59.94/50/30/29.97/25/24/23.976
1920 x 1080i 60/59.94/50 (de-interlaced out)
1680 x 1050p 60
1600 x 1200p 60
1440 x 900p 75/60
1400 x 1050p 60
1366 x 768p 60
1360 x 768p 60
1280 x 1024p 75/60
1280 x 720p 60/59.94/50
1024 x 768p 75/60
800 x 600p 75/60
720 x 576p 50
720 x 480p 60
720 x 480p 60
640 x 480p 60

Supported Output Video Formats

1920 x 1080p 60/50/30/25/24
1680 x 1068p 60
1440 x 1080p 60
1440 x 896p 60
1360 x 768p 60
1280 x 768p 60
1280 x 720p 60/50
1024 x 768p 60
960 x 536p 60
848 x 480p 60
768 x 576p 60
720 x 480p 60/50
640 x 480p 60
640 x 360p 60

Audio Input

HDMI Embedded Audio & 3.5 mm stereo in

Audio Support

2-Channel, 44.1KHz and 48KHz sample rate embedded in, up to 24-bit PCM, fixed 48KHz output

Capture Video Format

YUY2 (USB3.0), MJPG (USB2.0/3.0)

Firmware Update

Via USB

Firmware update

USB Port

Power Consumption

2W

Operation Temperature

0~40°C

Storage Temperature

-20~60°C

Humidity

20~90% RH

Minimum System Requirement

  • Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64)
    Note: The driver is required for Windows 7 OS
  • OS X (10.10 or above)
  • Linux Ubuntu 14.04
  • PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher
  • Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher 4GB RAM or higher"

Dimension (LxDxH)

105 x 68 x 23 mm

Weight

70g

What's in the Box

1 x CAP-2
1 x Thank You Card
1 x USB 3.0 Cable
