Compact Thunderbolt 4 capture and playback device with multi-rate 12G-SDI, supporting HD and Ultra HD up to 2160p60 for broadcast and live replay.
Blackmagic Design UltraStudio Mini Replay 12G
Product ID: 61322
SKU: 61322
Ean: 9338716010435
Condition: New product
Manufacturer: Blackmagic Design
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Blackmagic Design |
| Accessories for video cameras | iekārtas |
| Connector | SDI |
| Connector | Thunderbolt |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details

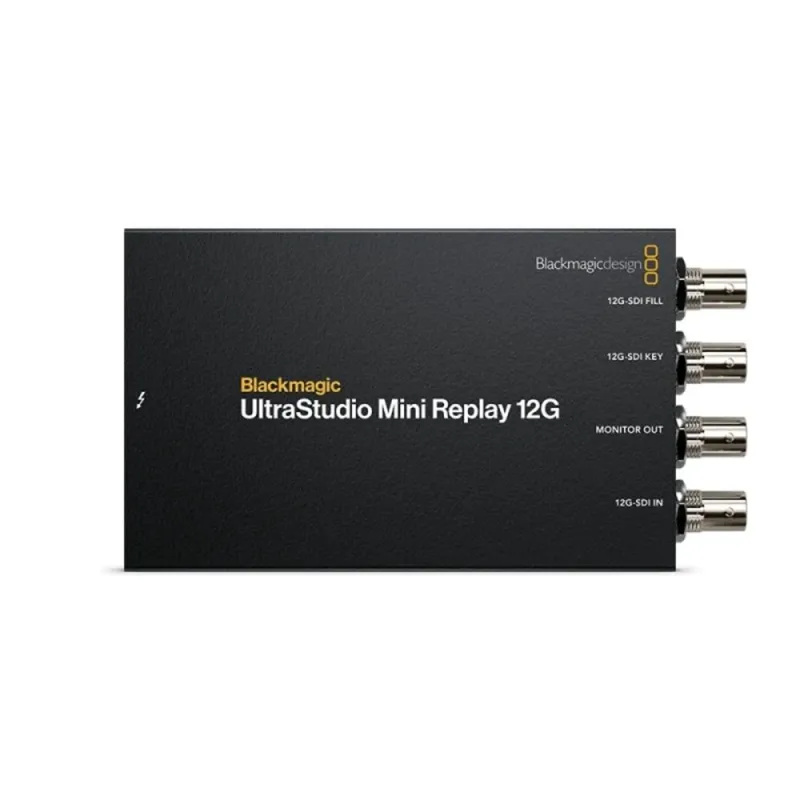

Compact Capture and Playback Solution
The Blackmagic Design UltraStudio Mini Replay 12G is a compact device designed for Thunderbolt™ computers, ideal for broadcast graphics, AI image processing, and live action replay applications. It connects via a single Thunderbolt cable and supports both video capture and playback.

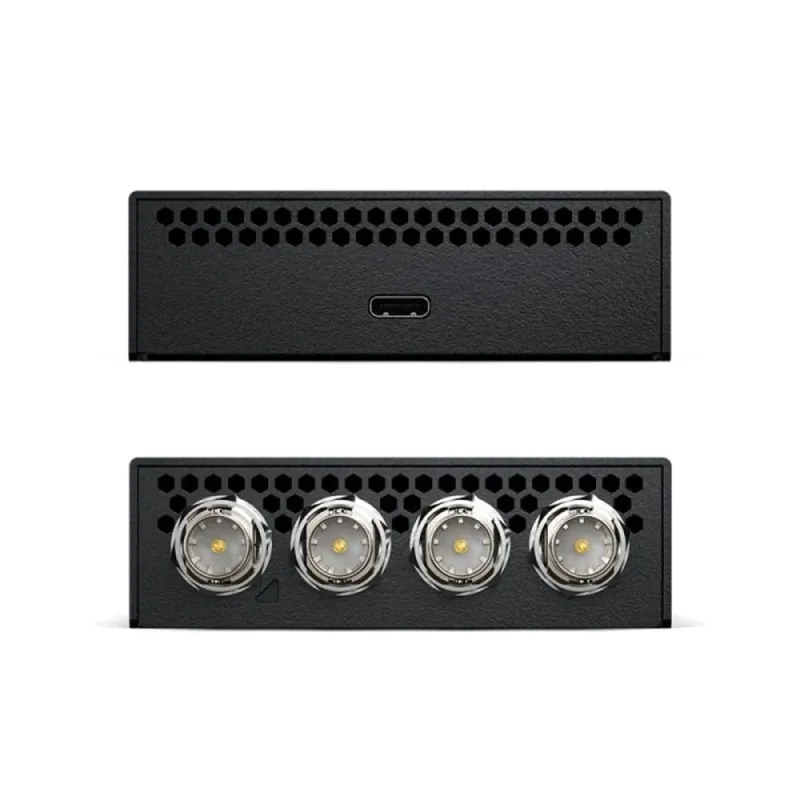

Video and Audio Connections
- SDI Video Inputs: 1
- SDI Video Outputs: 2
- SDI Fill Outputs: 1 (for keying graphics in switchers)
- SDI Key Outputs: 1 (for keying graphics in switchers)
- SDI Monitor Outputs: 1 (separate output for monitoring)
- SDI Rates Supported: 270 Mb/s, 1.5 Gbps, 3 Gbps, 6 Gbps, 12 Gbps
- SDI Audio Inputs: 16 channels of embedded audio on SDI input
- SDI Audio Outputs: 16 channels of embedded audio on SDI output
- Computer Interface: Thunderbolt 4 compatible with Mac OS Apple Silicon Macs, Windows, and Linux
Video Format Support
UltraStudio Mini Replay 12G supports multi-rate 12G-SDI connections, enabling compatibility with HD broadcast video as well as Ultra HD video standards up to 2160p60.
Supported Codecs
- AVC-Intra
- AVCHD
- Canon XF MPEG2
- Digital SLR
- DV-NTSC
- DV-PAL
- DVCPRO50
- DVCPROHD
- DPX
- HDV
- HEVC
- XDCAM EX
- XDCAM HD
- XDCAM HD422
- DNxHR & DNxHD
- Apple ProRes 4444, 422 HQ, 422, 422 LT, 422 Proxy
- Uncompressed 8-bit 4:2:2
- Uncompressed 10-bit 4:2:2
- Uncompressed 10-bit 4:4:4
Included in the Box
- UltraStudio Mini Replay 12G device
- Welcome wallet with QR code for software download
