Feelworld L3 PRO Video Switcher is a compact multi-cam mixer with 9+1 inputs, T Bar control, live streaming, recording, and PTZ camera control.

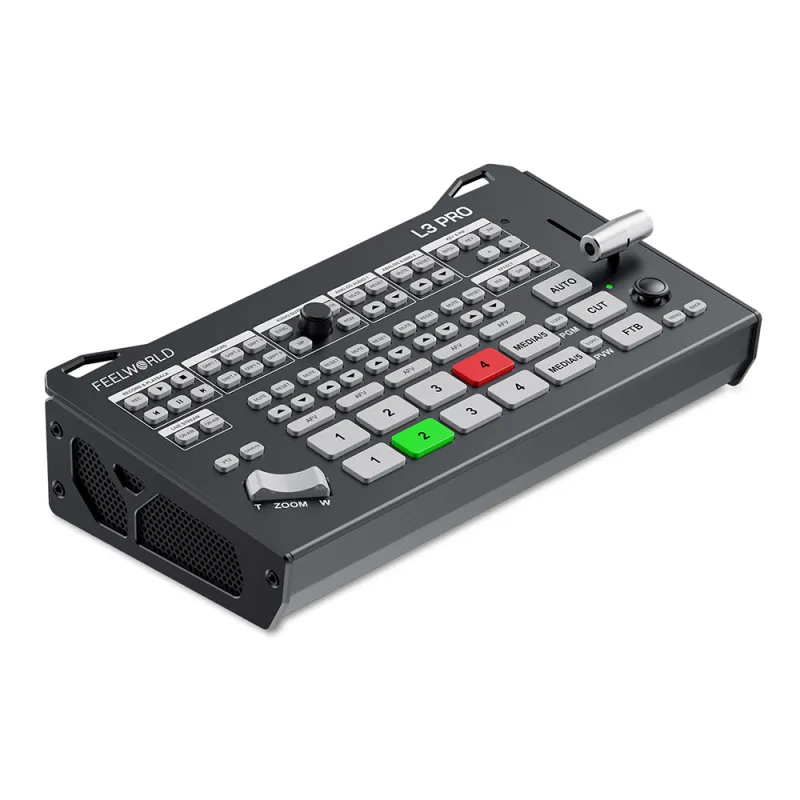

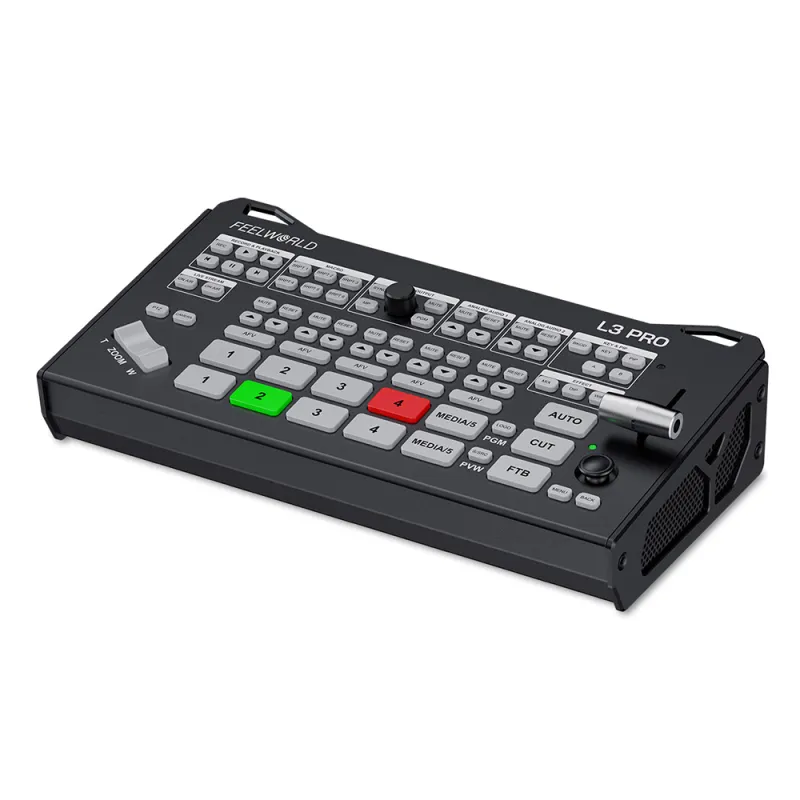

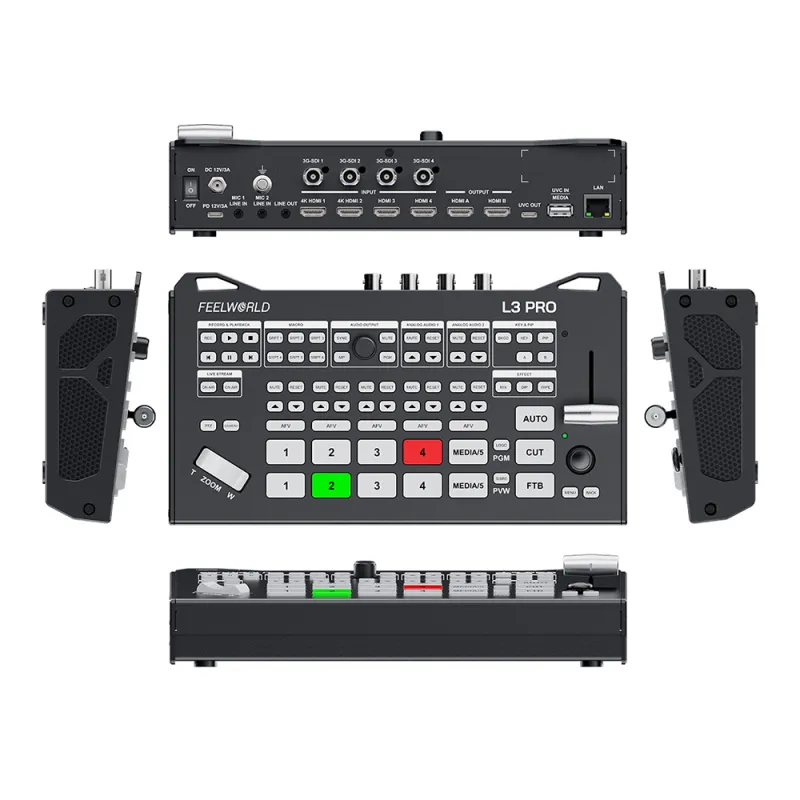

Feelworld L3 PRO Video Switcher
Product ID: 24989
SKU: 24989
Model: L3 PRO
Ean: 6971863815640
Condition: New product
Manufacturer: Feelworld
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Video Mixer |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details

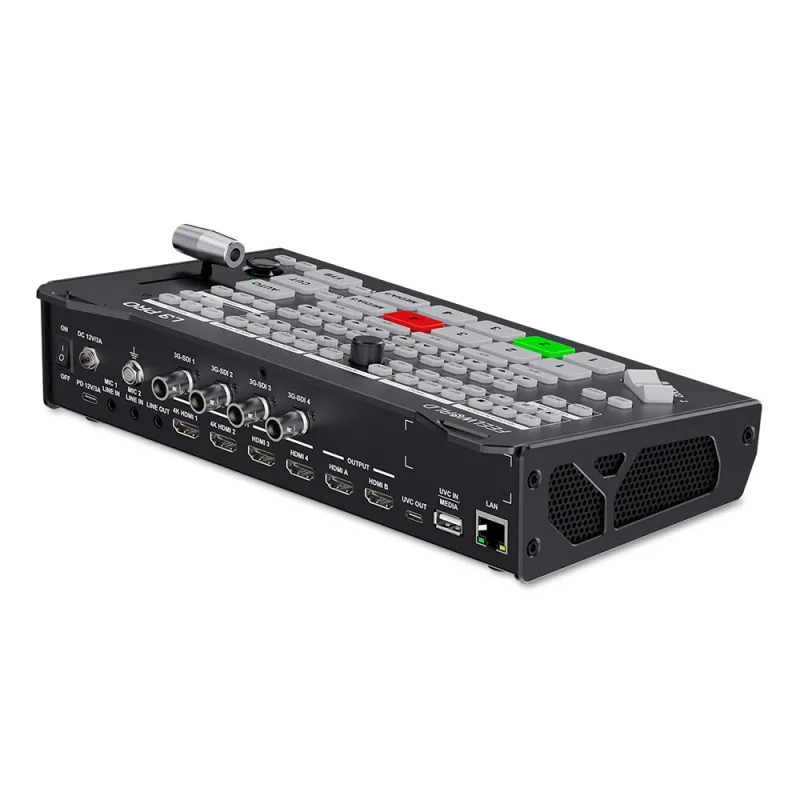

Input and Output Sources
- 9+1 input sources: 4x 3G SDI, 4x HDMI (2x 4K and 2x 2K), and 1x USB for UVC camera and media library
- 2x HDMI outputs for Program (PGM) and Preview (PVW) monitoring

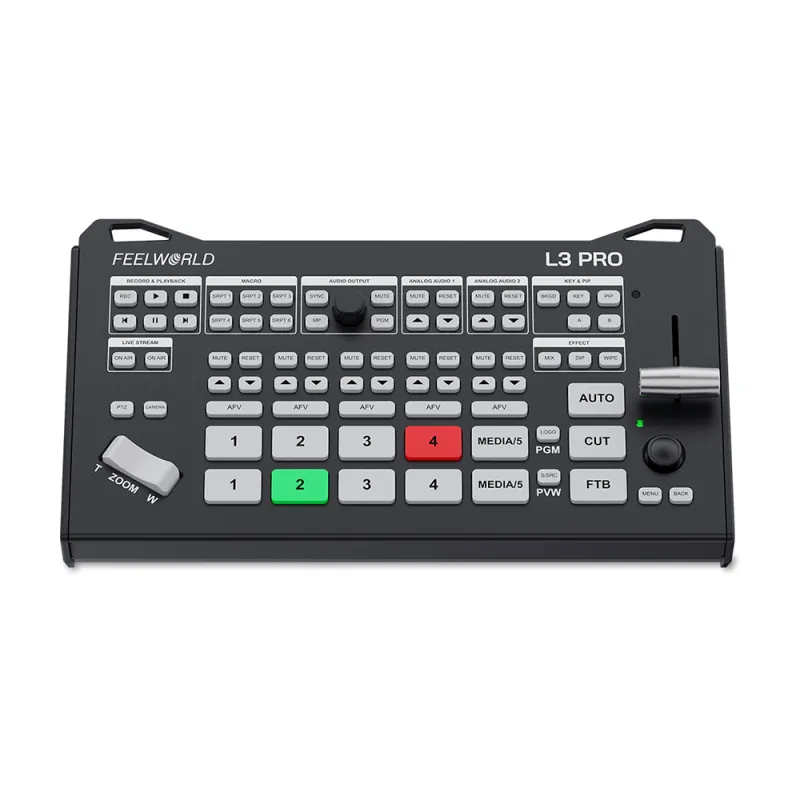

Control and Effects
- T Bar control for smooth switching between sources and transitions
- Up to 16 transition effects available
- 8 Picture-in-Picture (PIP) modes with adjustable size, position, scale, and crop
- Chroma key support for green or blue backgrounds
- Real-time saved views for quick recall
Streaming, Recording, and PTZ Control
- Live streaming via UVC or RTMP(S) protocols
- Supports streaming of up to 4 channels simultaneously at constant bit rate (CBR) 16 Mbps
- Optional NDI support available
- Real-time recording and playback in MP4 format
- Joystick and zoom key control for up to 4 PTZ cameras with video latency under 3 frames
Audio and Processing
- Audio inputs: 2x 3.5mm mini jacks for microphone or line sources
- Audio output: 1x 3.5mm mini jack line out for monitoring
- Supports embedded and insert audio with synchronization
- Up to 7 channel audio mixing
- Image processing in 10-bit with RGB 4:4:4 or YUV 4:4:4/4:2:2/4:2:0 sampling
Technical Specifications
- Model: L3 PRO
- Type: Multi-cam video mixer/switcher
- Inputs: 4x SDI, 2x 4K HDMI, 2x 2K HDMI
- Outputs: 2x HDMI, 1x UVC (streaming)
- Communication: LAN 1x RJ45 (PTZ control, RTMP(S) streaming, NDI optional)
- Other interfaces: USB 2.0
- Transition effects: Up to 16
- PIP modes: 8 (size/position adjustable, scale and crop)
- Chroma key: Green or blue background
- Audio mixing: Up to 7 channels
- PTZ control: Up to 4 cameras
- Network streaming: 4 channels simultaneously (CBR 16 Mbps)
- Video latency: Less than 3 frames
- Recording format: MP4
- USB disk format: FAT32 (up to 64 GB), exFAT (64 GB to 2 TB)
- Playback video formats: MP4, AVI
- Playback picture formats: BMP, PNG
- Supported standards: HDMI 2.0/1.3, USB 3.X, H.265
- Power supply: DC 12V/3A or USB PD 3.0 12V/3A
- Maximum power consumption: 30W
- Operating temperature: 0°C to 45°C
- Humidity: 10% to 85%
- Dimensions: 261 x 144 x 70.69 mm
- Weight: Approximately 1 kg
- Warranty: 2 years
Included in the Package
- 1 x Feelworld L3 PRO Video Switcher
- 1 x Dual port USB/Type C cable
- 1 x Power adapter (12V/3A)
- 1 x User manual
