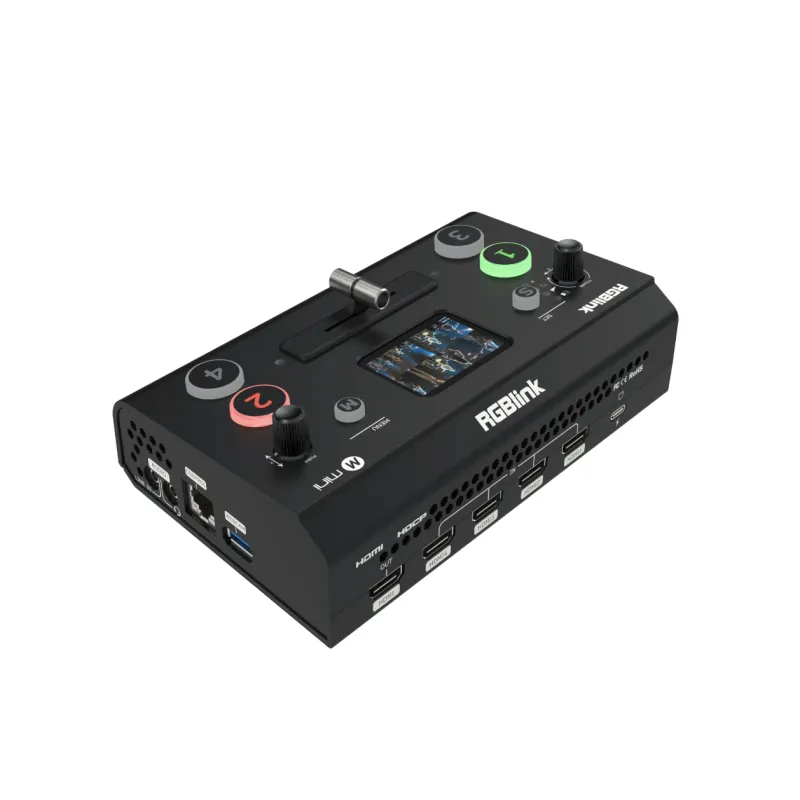

The RGBlink mini 2022 is a compact and portable live video switcher designed for small to mid-scale productions, offering four HDMI inputs, professional audio mixing, multi-view monitoring, and USB streaming. With its built-in 2.1-inch full-color screen, T-Bar switching, and support for PIP/PBP layouts, it delivers powerful production capabilities in an easy-to-carry integrated design.
The RGBlink mini 2022 live production switcher combines switching, monitoring, audio mixing, and streaming into a single compact unit. Equipped with four HDMI 1.3 inputs and one HDMI output, it supports a 6-image multiview, allowing operators to quickly toggle between preview and program outputs for confident live switching. The integrated 2.1-inch TFT full-color screen provides real-time signal monitoring and intuitive menu navigation.
Designed for flexibility, the mini 2022 supports MIC and LINE audio inputs with multi-channel audio mixing, ensuring clear and synchronized sound for live events. Video features such as image scaling, cropping, Picture-in-Picture (PIP), Picture-by-Picture (PBP), and logo overlay enhance creative control, while the T-Bar switch and six transition effects enable smooth, professional transitions.
For streaming and control, the mini 2022 includes a USB 3.0 output with H.265 encoding and LAN connectivity, supporting PC software and mobile app control. Optimized heat management ensures stable operation during extended use. Lightweight and portable, the RGBlink mini 2022 is ideal for live streaming, education, worship, corporate events, and content creation on the go.
Key Features
- 4 HDMI inputs, 1 HDMI output
- 6-image multiview with preview and program switching
- 2.1 TFT full-color built-in screen
- MIC and LINE audio input with multi-channel mixing
- Image scaling and cropping
- PIP and PBP layout support
- T-Bar switching control
- 6 transition effects
- LOGO overlay support
- USB 3.0 streaming with H.265 encoding
- PC and mobile APP control
- Optimized heat dissipation for stable performance
- Integrated, portable design
- RGBlink mini 2022 Video Switcher
- USB-C Power Adapter
- User Manual
- Video Input 4 HDMI 1.3 (HDMI-A)
- Video Output 1 HDMI 1.3 (HDMI-A)
- USB Interface 1 USB-A (USB 3.0)
- Audio Input 1 3.5 mm jack
- Audio Output 1 3.5 mm jack
- Network 1 RJ45 LAN
- Power Input 1 USB-C (PD)
- HDMI Input Resolutions (SMPTE) 720p50/60, 1080i50, 1080p23.98/24.97/50/59.94/60
- HDMI Input Resolutions (VESA) 1024x768 to 1920x1080
- HDMI Output Resolutions (SMPTE) 720p50/60, 1080p24/25/30/50/60
- HDMI Output Resolutions (VESA) 1024x768 to 1920x1080
- USB Output Resolution (H.265) Up to 1920x1080/30/50/60
- Color Space YPbPr
- Grayscale Processing 10-bit
- Video Sampling YUV 422
- Video Latency < 4 frames
- Audio Delay Up to 8 frames
- Input Voltage PD 12V / 1.5A
- Max Power Consumption 18 W
- Operating Temperature 0C to 60C
- Operating Humidity 10 to 85 RH

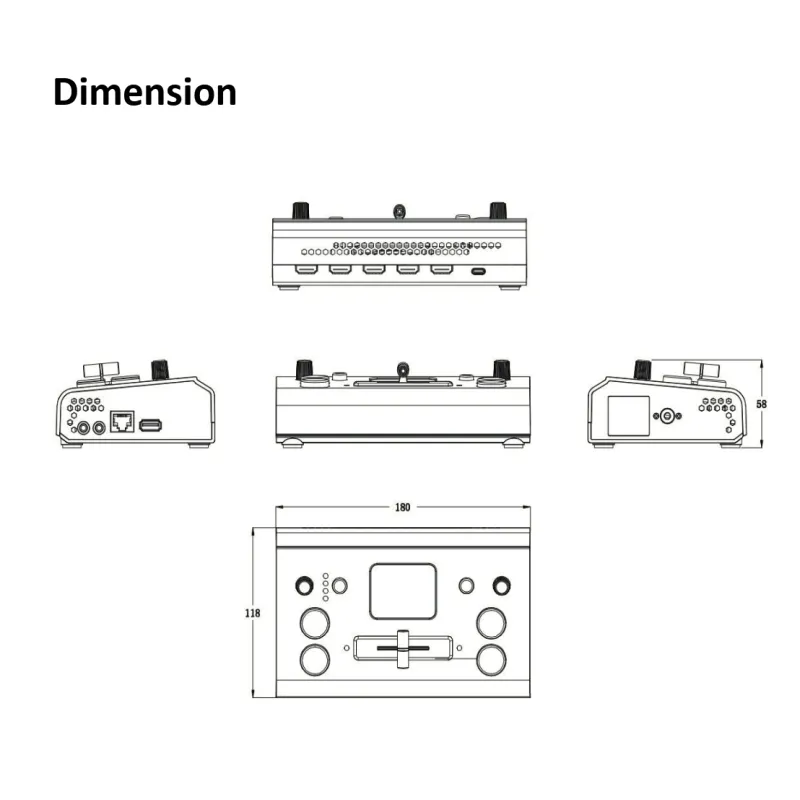

- Dimensions 180 x 118 x 58 mm
- Net Weight 0.5 kg
