The Blackmagic Design ATEM Television Studio 4K8 is a professional Ultra HD live production switcher with 8x 12G-SDI inputs, integrated control panel, streaming, and advanced keyers.
Blackmagic Design ATEM Television Studio 4K8
Product ID: 61284
SKU: 61284
Ean: 9338716010800
Condition: New product
Manufacturer: Blackmagic Design
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Video Mixer |
| Accessories for video cameras | iekārtas |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details

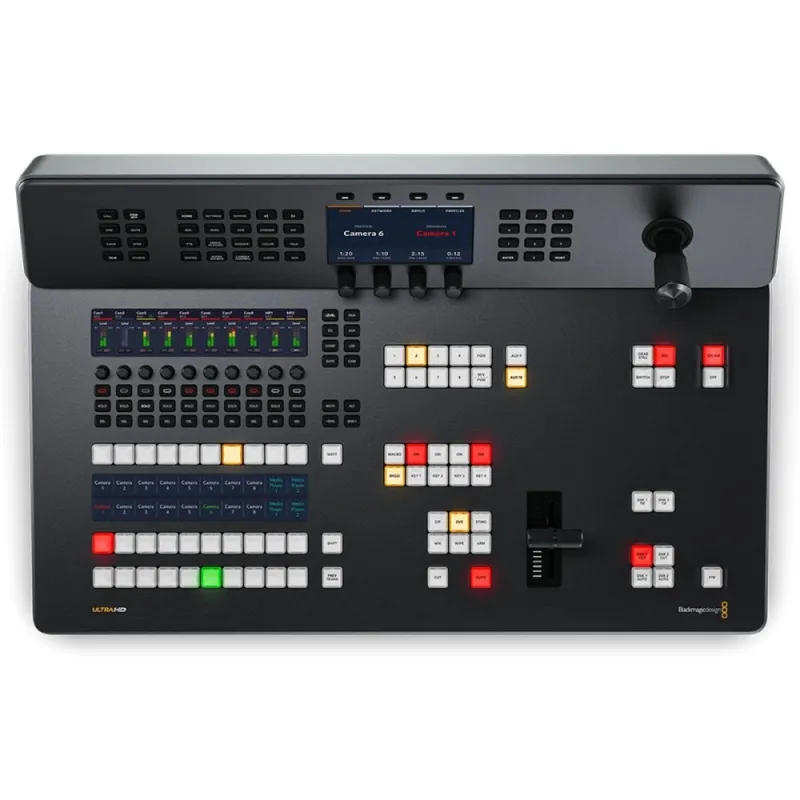

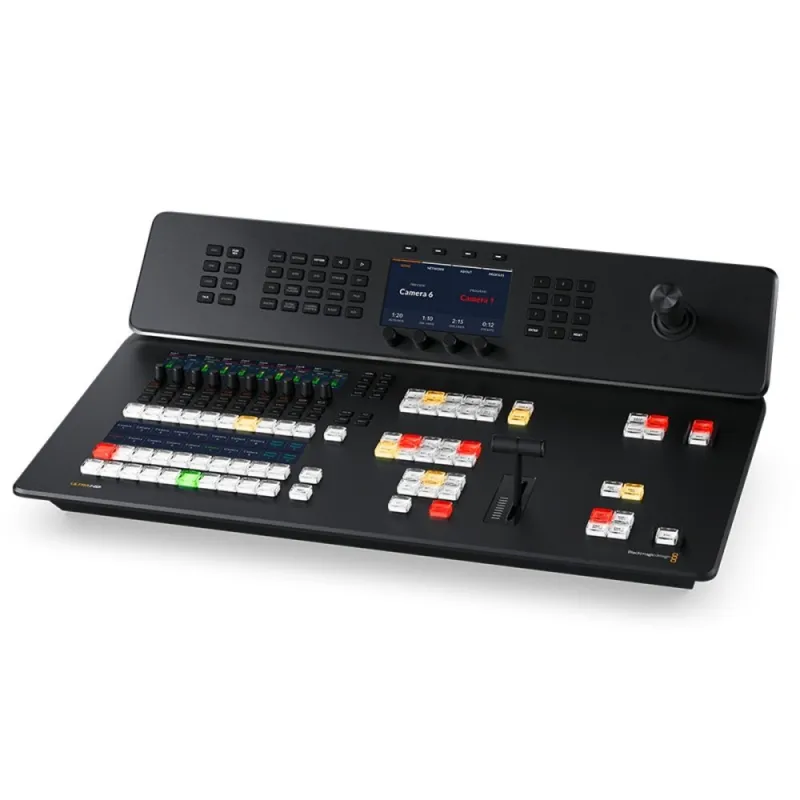

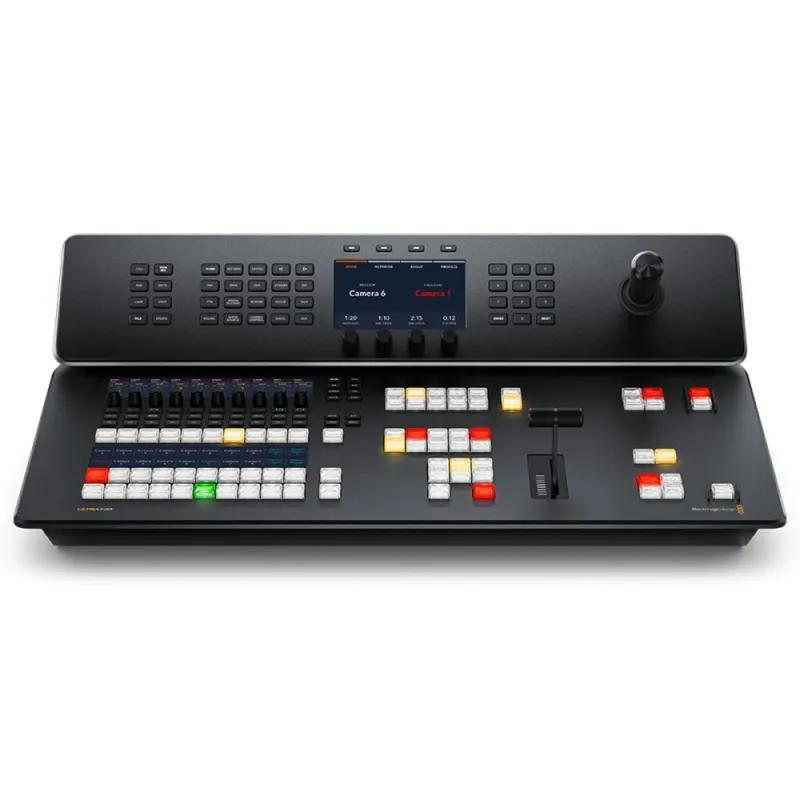

Blackmagic Design ATEM Television Studio 4K8
The ATEM Television Studio 4K8 by Blackmagic Design is a professional live production switcher designed for Ultra HD broadcasting with an integrated broadcast control panel. It provides a fully equipped broadcast-level live production studio featuring multiple advanced inputs, outputs, and processing capabilities.
Connections
- SDI Video Inputs: 8
- SDI Video Outputs: 12
- SDI Rates: 1.5G, 3G, 6G, 12G
- HDMI Video Outputs: 1
- Total Audio Inputs:
- 2 XLR for balanced analog audio
- 1 BNC for MADI digital audio with 32 channels
- 2 RCA for analog stereo audio
- 1x 5-pin XLR jack for talkback
- Total Audio Outputs:
- 4x 1/4-inch jacks for analog audio
- 1 BNC for MADI digital audio with 64 channels (up to 50 active)
- 1x 5-pin XLR jack for talkback
- SDI Audio Inputs: 4 embedded audio channels on all SDI inputs
- SDI Audio Outputs: 16 assignable channels
- Timecode Connections: 1 BNC input, 1 BNC output
- Reference Inputs: 1 BNC input and 1 BNC output for Tri-Sync or Black Burst
- Video Input Resync: Available on all 8 inputs
- Frame Rate and Format Converters: Available on all 8 inputs
- SDI Auxiliary Outputs: 10
- SDI Program Outputs: 1
- Webcam Output: 2 USB-C ports supporting 720p or 1080p at program frame rates
- Multiviews: 1x 12G-SDI and 1x HDMI 2.0
- Remote Control: RJ12 connection supporting RS-422
- Control Panel Connection: Ethernet, direct or network connection
- Internal Timecode Generator: Yes
- Talkback: RJ45 for external talkback systems
- Tally Output: Via Ethernet using Blackmagic Design GPI and Tally Interface device (not included)
- Ethernet: 4x RJ45 ports with integrated 10/100/1000/10GBase-T network switch
- Computer Interface: 2 USB-C ports supporting USB 2.0 for recording, webcam output, software control, updates, and switcher connection
Standards
- HD Video Input Standards: 720p (50, 59.94, 60 Hz), 1080i (50, 59.94, 60 Hz), 1080p (23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz)
- Ultra HD Video Input Standards: 2160p (23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz)
- SDI Compliance: SMPTE 292M, 296M, 424M, 425M Level A and B, 2081-1, 2081-10, 2082-1, 2082-10
- Video Sampling: 4:2:2
- Color Precision: 10-bit
- Color Space: REC 709, REC 2020
- Automatic SDI Switching: Automatic detection of 1.5G-SDI, Level A and B 3G-SDI, 6G-SDI, and 12G-SDI
Features
- Mix/Effect Lines: 1
- Direct Cuts: 10
- Transitional Cuts: 20
- Cut Button Type: Tri-color LED display
- Cut Button Label: LCD displaying 6 lines with 24 characters each
- Transition Preview: 1
- Source Selection Bus: 1
- Dedicated Macro Buttons: 10 plus 10 shifted
- Transition Type Buttons: 5
- Transition Rate: Preset via LCD menu
- Keyer Buttons: 8
- AUX Buttons: 12
- Fader Bar: 1
- Record Buttons: 2
- Stream Buttons: 2
- Selectors for DSK Transitions: 6
- Fade Buttons: 1
- System LCD Displays: 1
- Numeric Keypad: 1
- 3-Axis Joystick: 1
- Upstream Keyers: 4
- Downstream Keyers: 2
- Advanced Chroma Keyers: 4
- SuperSource Multilayer Processor: 1
- DVE Processors: 2
- Linear/Luma Keyers: 7
- Transition Keyers (Stinger/DVE): 1 Stinger, 1 DVE
- Total Number of Layers: 8
- Pattern Generators: 7
- Color Generators: 2
- Control Panel: Integrated control panel for all switcher functions and settings
- Routing Capable Windows: 16
- Source Label Windows: Yes
- Tally: Red light indicates program, green indicates preview
- Talkback Support: Yes
- n-1 Support: Yes
Note: This model does not include built-in SSD storage. All specifications are subject to change; please refer to the latest manufacturer information for details.
