SmallRig Heavy-Duty Fluid Head Tripod Kit AD-01S 4686 4686

Smooth Control

The SmallRig Heavy Duty Fluid Head Tripod Kit AD 01S 4686 simplifies video shooting with its adjustable legs, extending from 84 cm to 187 cm, and a compact folded length of 88 cm. The video head features a stepless damping system for TILT and a fixed counterweight system, supporting a load capacity of 6 kg. It allows for precise control of cameras or rigs weighing up to 4 kg when the center of gravity is set to 55 mm.

Highlights

• Adjustable stepless damping system on TILT
• Height adjustable from 84 cm to 187 cm
• Compatible with Manfrotto and DJI RS quick release plates
• Built-in hidden spike feet for various terrains

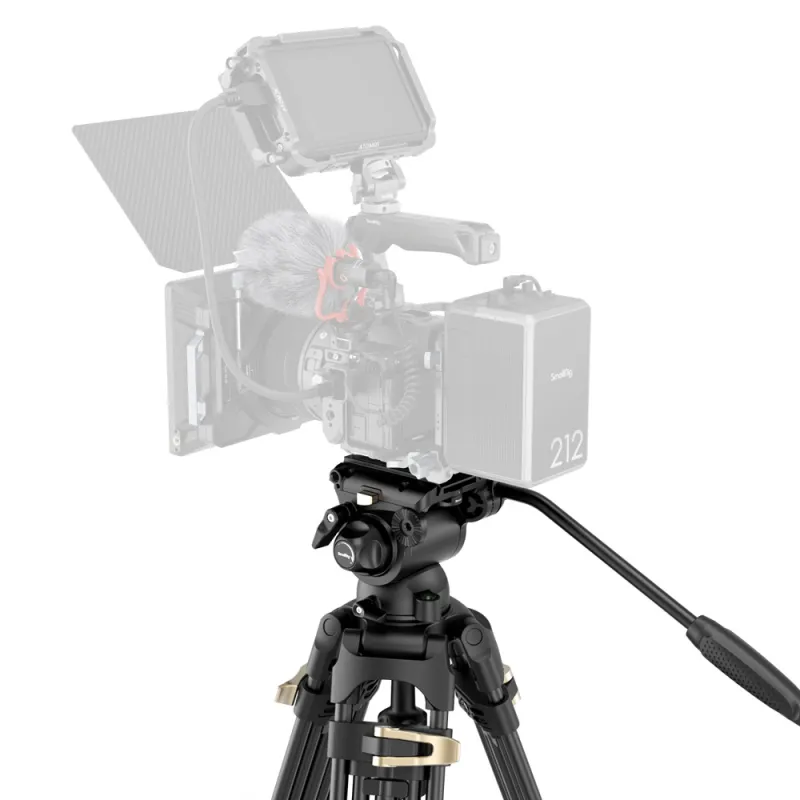

Quick Release Plate Mount

The newly designed snap-on quick release plate mount offers a more efficient solution than traditional slide-on types, allowing easy switching between stabilizer and tripod shooting. The pan bar accommodates both left and right-handed users.

Attachment Options

The video head includes two 1/4-20 threaded holes for accessories and a built-in spanner for camera installation. The tripod features anti-wear foot spikes, with adjustable foot pads for different scenarios. Constructed from aluminum alloy, it comes with a customized carrying case for storage and transport.

Specifications

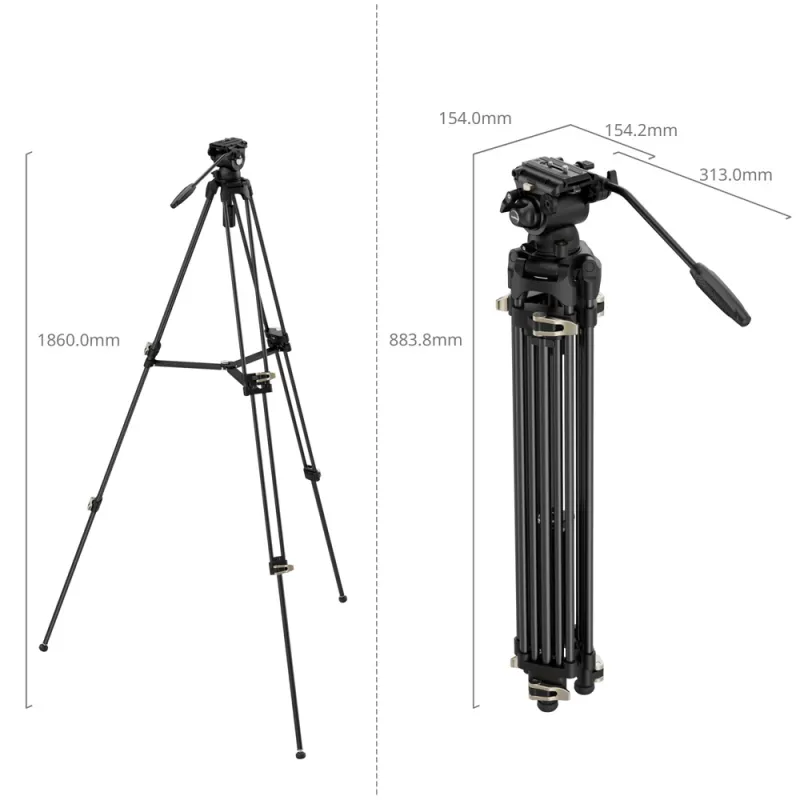

• Dimensions: 883.0 x 165.0 x 165.0 mm
• Weight: 4.1 kg
• Adjustable Height: 84 cm - 187 cm
• Closed Length: 88 cm
• Leg Diameter: 14 mm - 18 mm
• Bowl Adapter Diameter: 75 mm

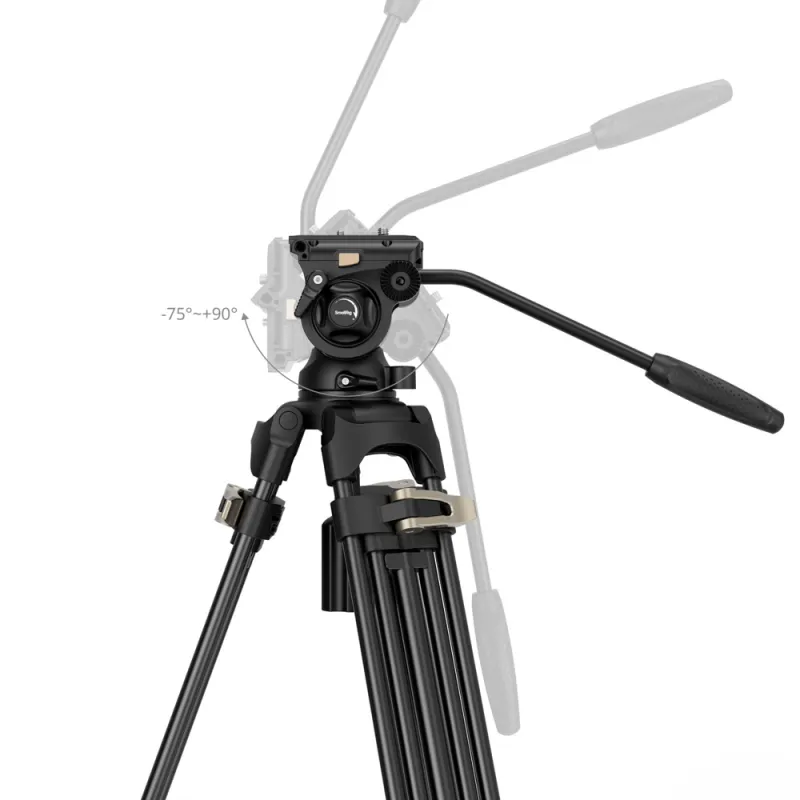

• Tilt Angle: +90 / -75
• Tilt Drag: Infinitely adjustable
• Pan Fixed: 4 kg
• Counterweight System: Fixed
• Pan Bar Length: 28 cm
• Quick Release Plate Length: 10 cm
• Material: Aluminum alloy, ABS, POM, Stainless steel, Silicone
• Warranty: 2 years

Included: 1 SmallRig Heavy Duty Fluid Head Tripod Kit AD 01S 4686, 1 Allen key, 1 Smartphone Holder, 1 Storage bag.
