Zoom ZPC-1

Matched Pencil Condenser Microphones for Stereo Recording

The Zoom ZPC-1 is a high-quality matched pair of small diaphragm pencil condenser microphones designed to deliver wide, immersive stereo sound. Ideal for capturing musical instruments and various recording applications, these microphones provide crystal clear sound whether used in the studio or on stage.

Key Features

• Matched pair at both 1 kHz and 100 Hz frequencies for consistent, high-quality sound
• Wide frequency range from 40 Hz to 20 kHz
• High sensitivity with low distortion
• Cardioid polar pattern for focused sound capture
• Solid metal body design for durability
• Includes foam windscreens, mic holders, screw adapters, and carrying pouches

Stereo Recording Flexibility

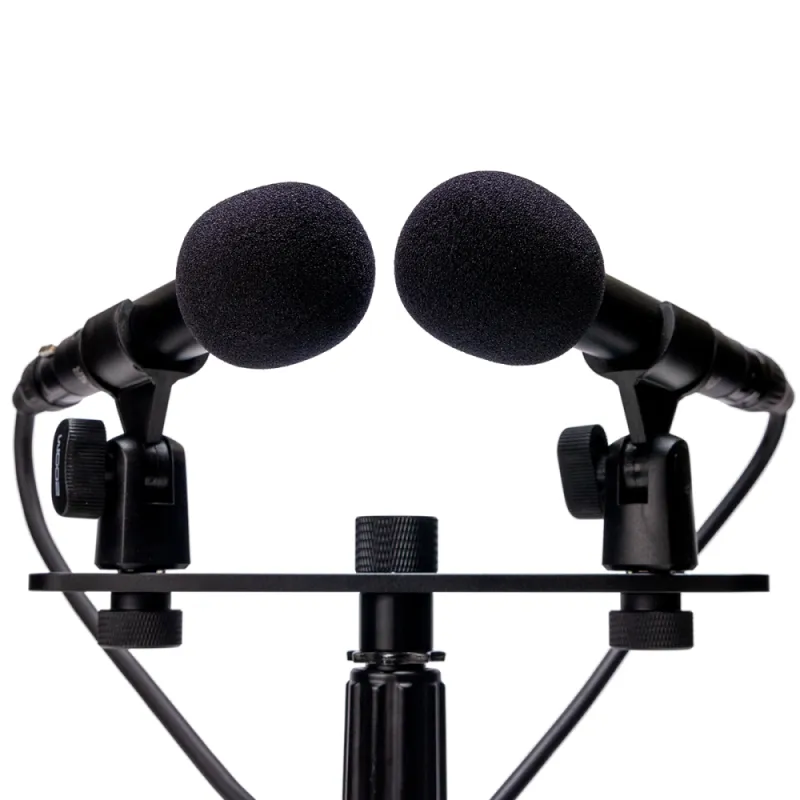

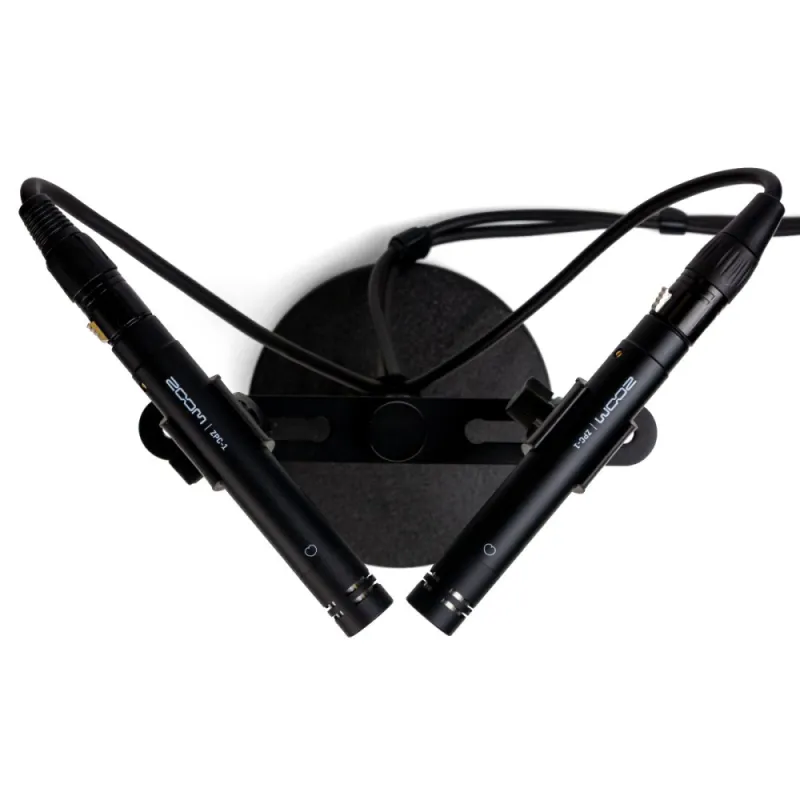

The ZPC-1 microphones can be configured in various stereo setups, such as X/Y for a tight stereo image or A/B for a wider sound field, making them versatile for different recording environments and instruments like drum overheads and acoustic guitars.

Field Ready Design

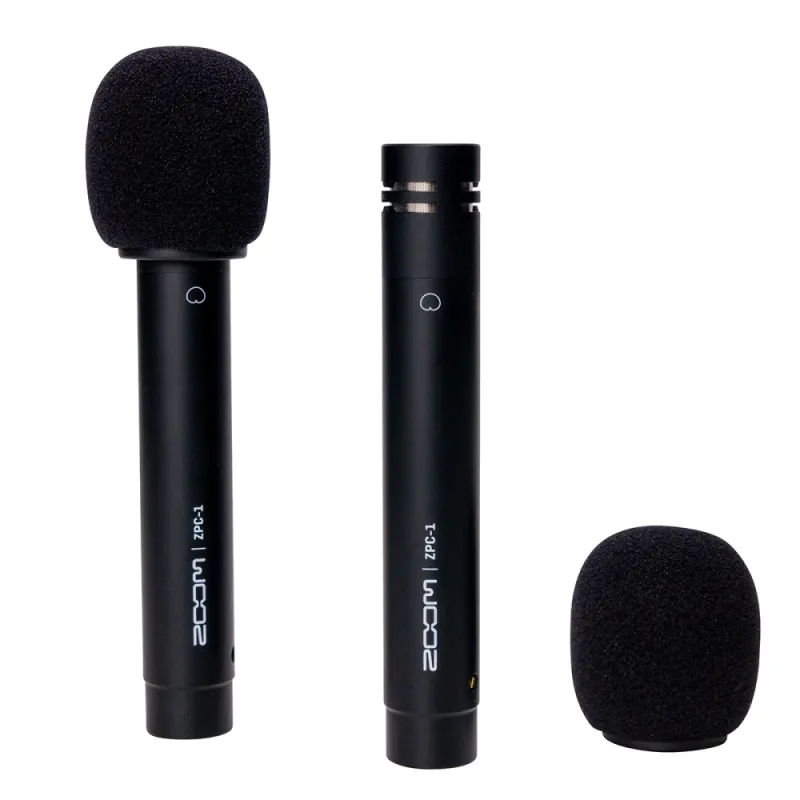

Constructed with a robust metal body and supplied with foam windscreens, these microphones are built to withstand field recording conditions. They are compatible with Zoom recorders, including the Zoom F3, enabling high-quality sound capture on location.

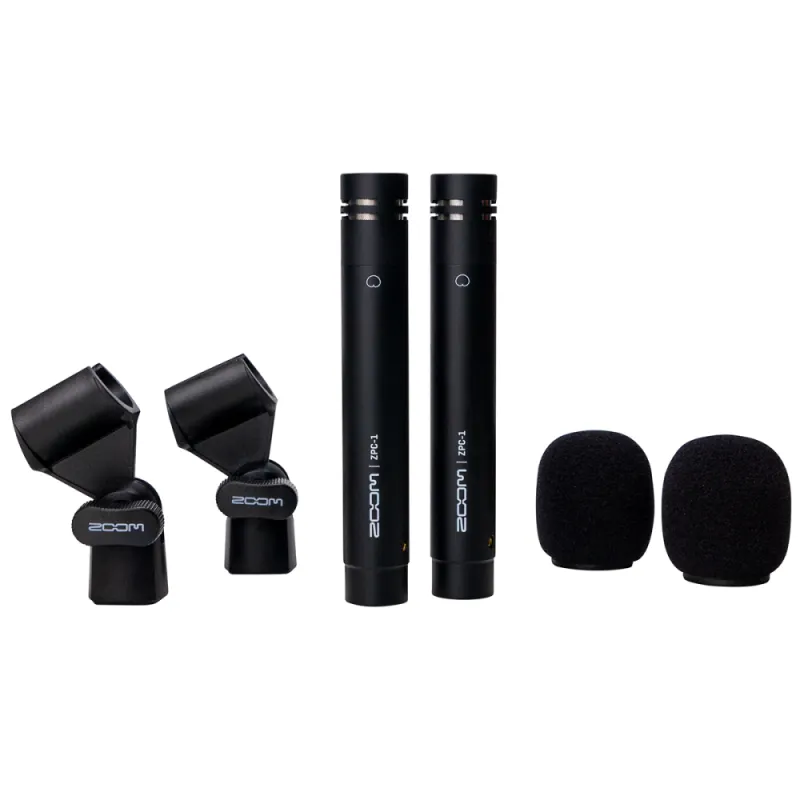

Included Accessories

• Two ZPC-1 Pencil Condenser Microphones
• Two Foam Windscreens
• Two 5/8" to 3/8" Screw Adapters
• Two Microphone Clips
• Two Carrying Pouches

Technical Specifications

• Type: Back electret condenser
• Polar Pattern: Cardioid
• Diaphragm Diameter: 16 mm
• Frequency Range: 40 Hz – 20 kHz
• Sensitivity: 38 ± 2 dBV/Pa
• Maximum Sound Pressure Level: 134 dB SPL (THD 1%, 1 kHz)
• Equivalent Input Noise (EIN): < 12 dB SPL (A-weighted)
• Signal-to-Noise Ratio: 82 dB
• Output Impedance: 200 Ω
• Connector: XLR-3
• Power Supply: +48 V phantom power, 3.5 mA
• Dimensions: 20 mm diameter × 127 mm length
• Weight: 109 g each (two microphones included)
