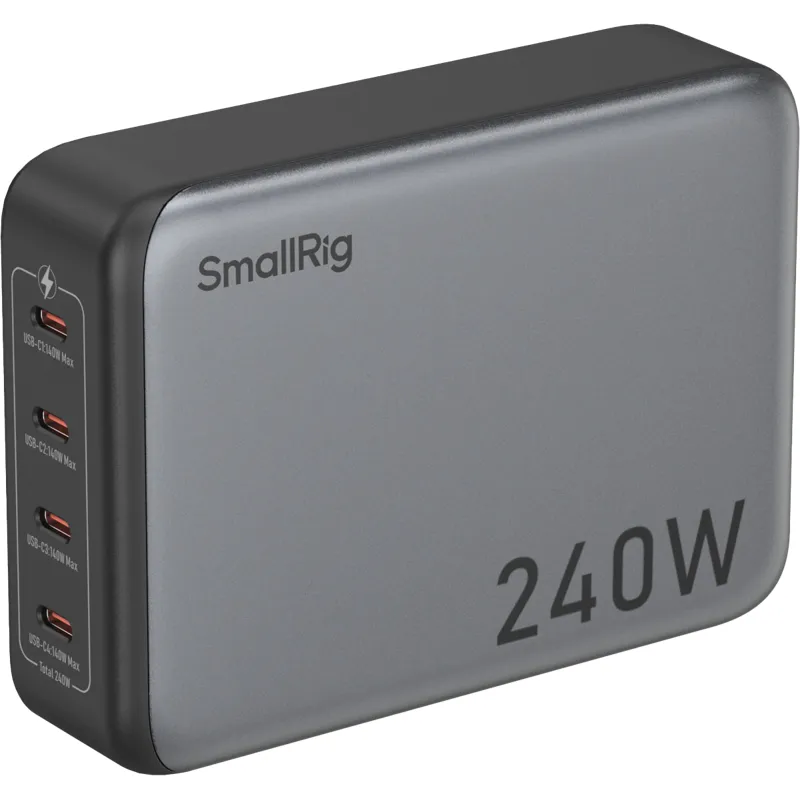

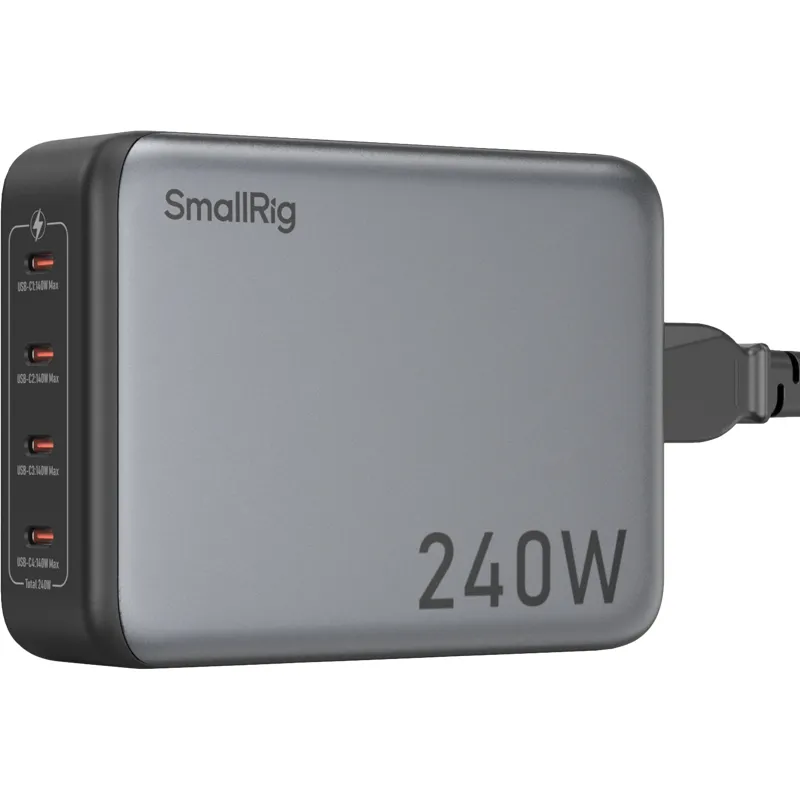

SmallRig 4752 240W 4-Port PD Power Adapter

Compact and Versatile Charging Solution

The SmallRig 4752 240W 4-Port PD Power Adapter (EU Standard) is a highly efficient and versatile charger designed for travel and everyday use. It features a compact design with dimensions of 122.0 x 88.0 x 35.0 mm and weighs 664 g including the cable, making it portable and convenient.

High Power Output and Fast Charging

This power adapter delivers a total output power of 240W across four USB-C ports, each supporting fast charging with up to 140W maximum output via PD3.1. This enables rapid charging of high-power devices, significantly improving charging efficiency.

Multi-Device Compatibility

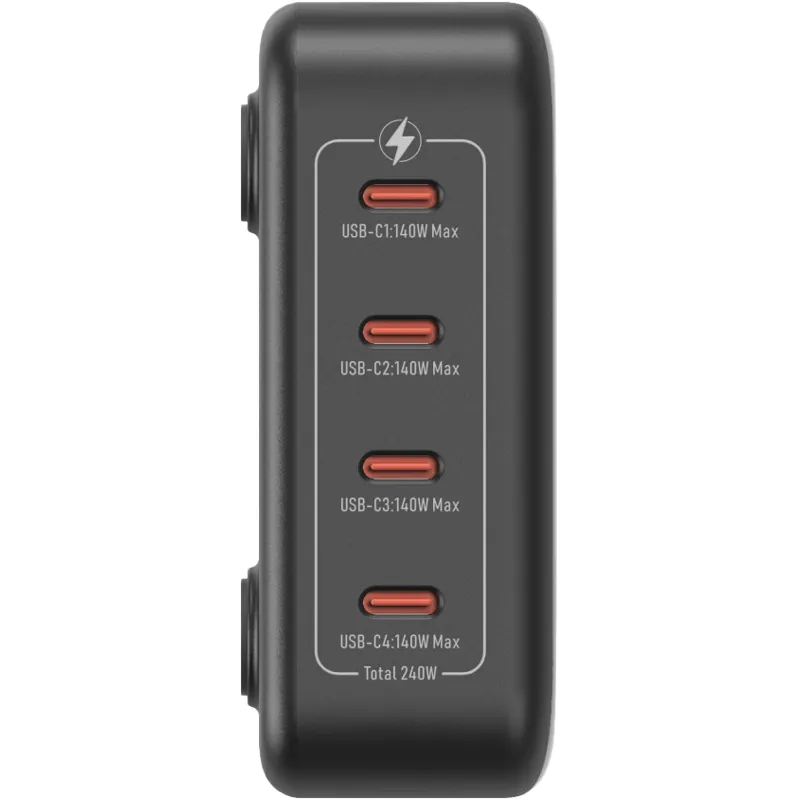

Equipped with four USB-C ports (C1, C2, C3, C4), the adapter supports simultaneous charging of various devices including V mount batteries, NP-F batteries, rechargeable camera batteries, smartphones, tablets, laptops, and cameras with direct charging batteries. This makes it suitable for diverse usage scenarios.

Power Output Modes

• Single Port Mode: Each USB-C port supports 5V/3A, 9V/3A, 5V/5A, 20V/5A, and 28V/5A with a maximum of 140W.
• Dual Port Mode: Combinations such as C1+C2 or C3+C4 can output 100W + 40W, 40W + 100W, or 70W + 70W (total 140W max). Other pairs like C1+C3, C1+C4, C2+C3, or C2+C4 can output 140W + 100W (total 240W max).
• Triple Port Mode: Various combinations support outputs like 70W + 70W + 100W, 100W + 40W + 100W, or 40W + 100W + 100W, totaling up to 240W max.
• Quadruple Port Mode: All four ports can output combinations such as 100W + 40W + 60W + 40W or 70W + 70W + 60W + 40W, with a total maximum output of 240W.

Safety Features

Each port includes short circuit and overcurrent protection to ensure safe operation during charging.

Technical Specifications

• Material: PC
• Input Voltage: 100-240VAC, 50/60Hz, 4.0A
• Total Output Power: 240W
• Certification: CE, RoHS

Package Contents

• 1 x SmallRig 4752 240W 4-Port PD Power Adapter (EU Standard)
• 1 x AC Power Cable (EU Standard)

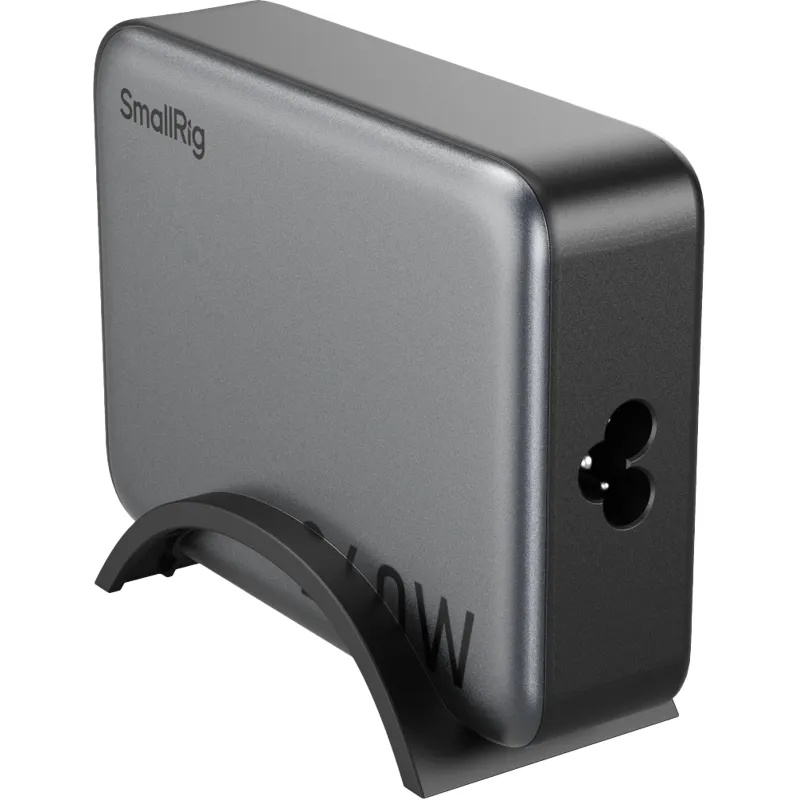

• 1 x Adapter Bracket
• 1 x Operating Instruction
• 1 x User Manual
• 1 x Guarantee Card
