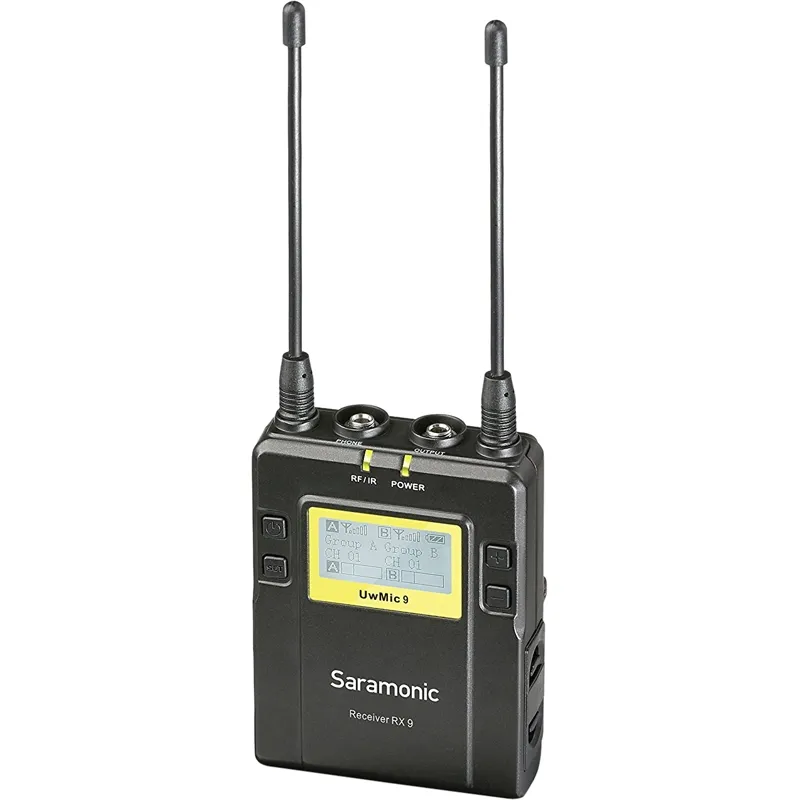

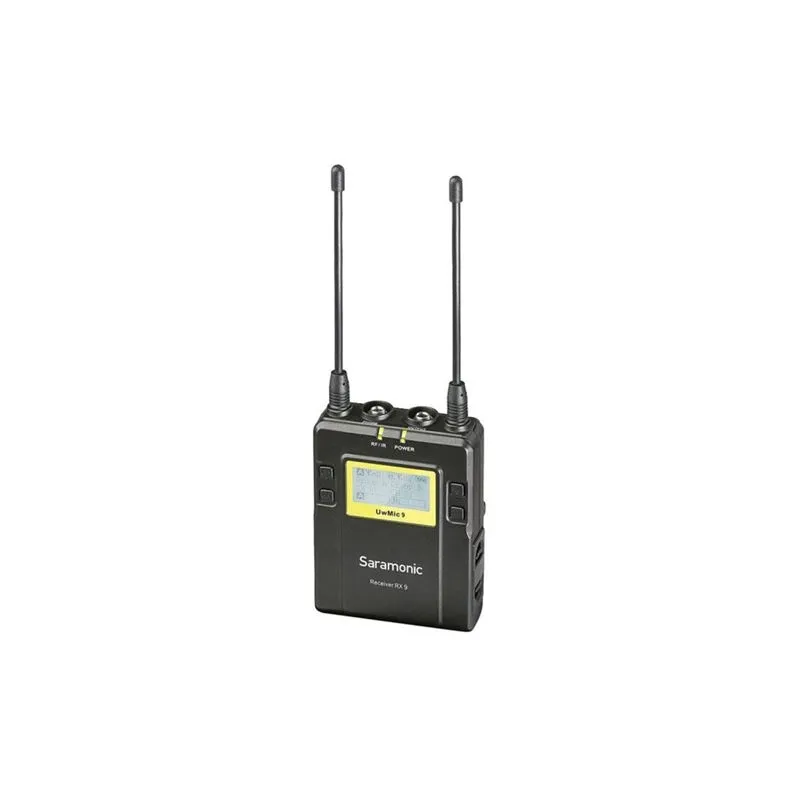

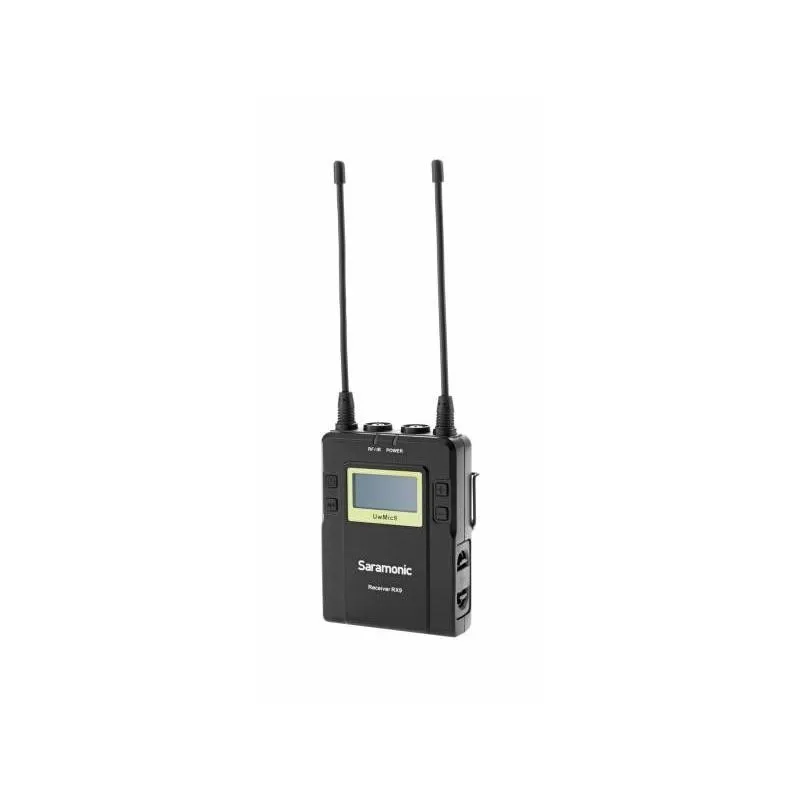

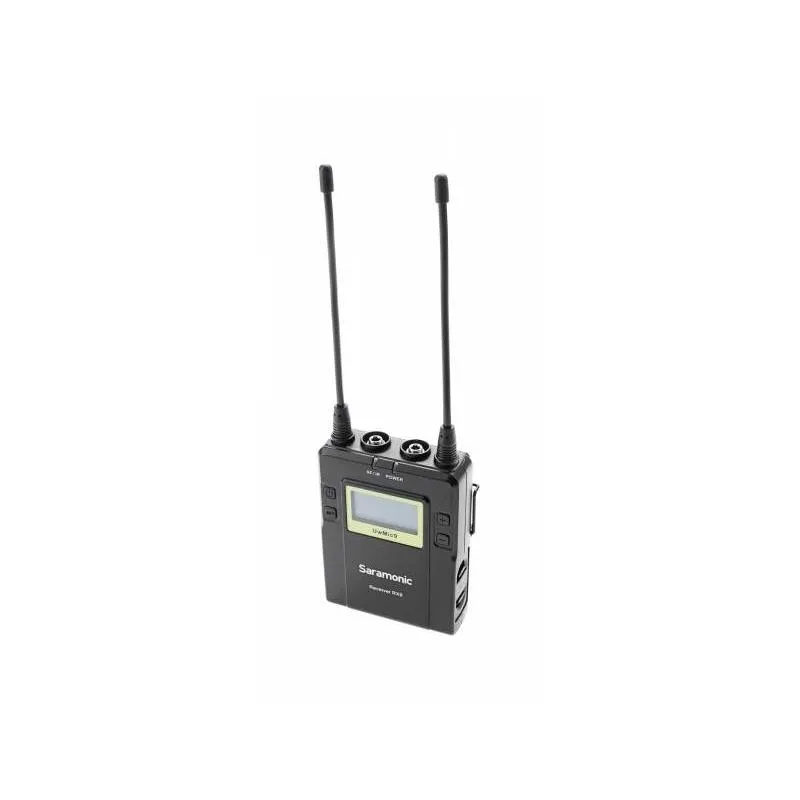

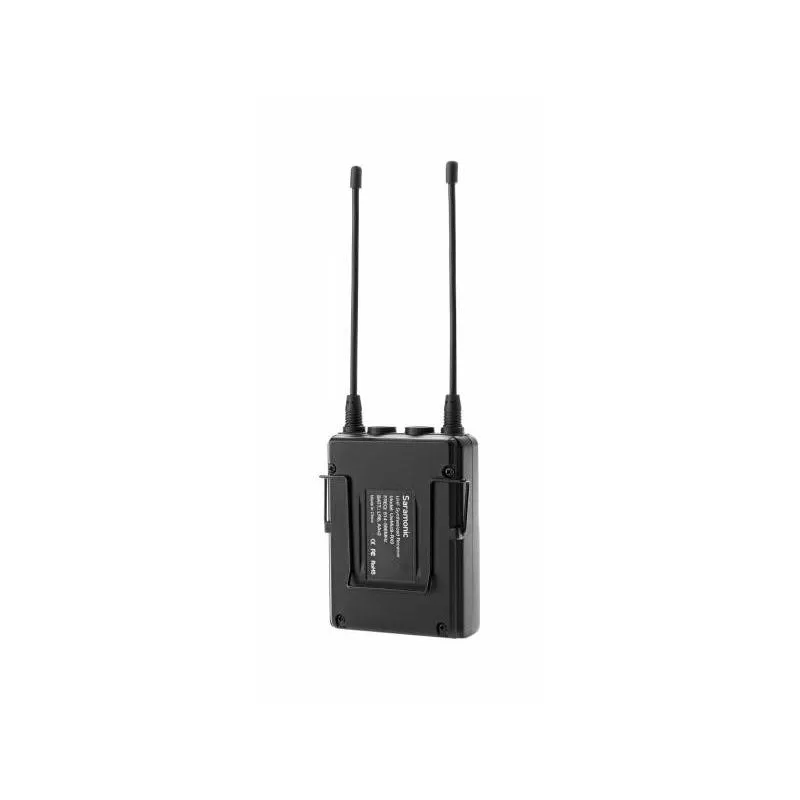

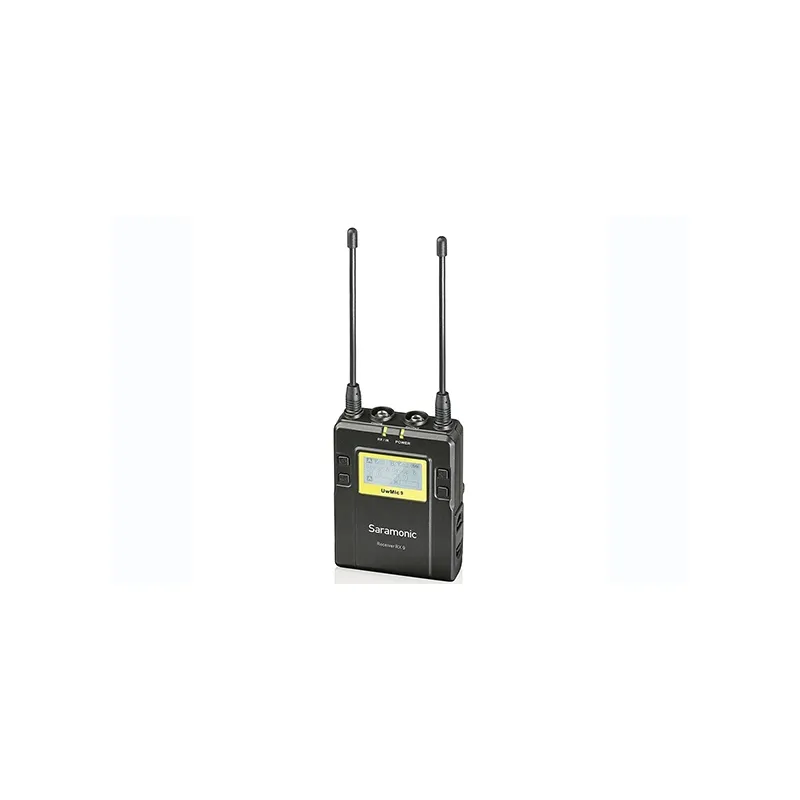

Receiver Saramonic RX9 for UwMic9 wireless audio system

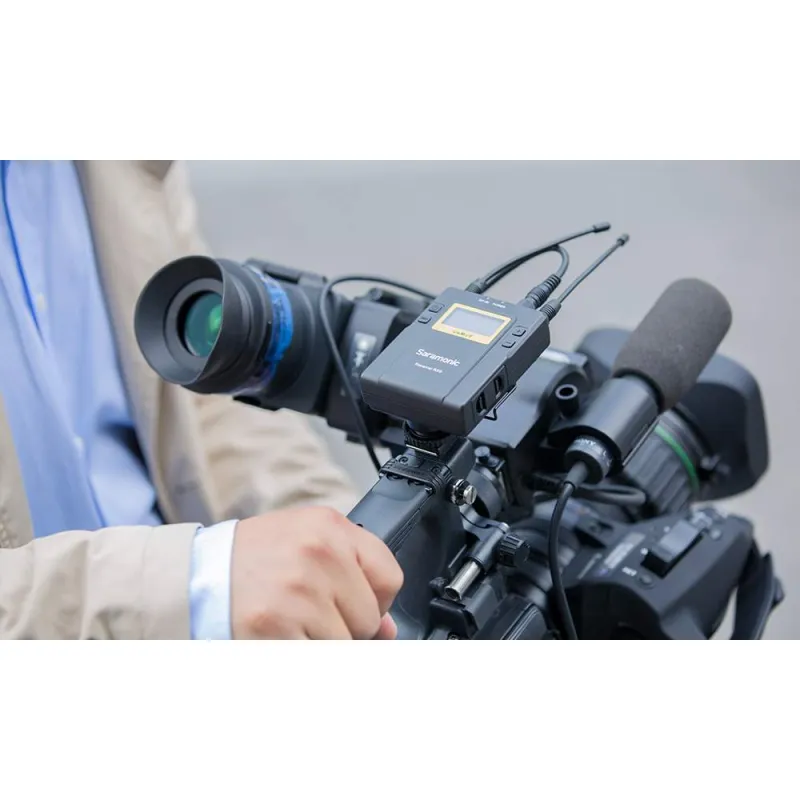

The Saramonic RX9 is a camera-mountable dual channel wireless receiver, suitable for DSLR or mirrorless system cameras and camcorders.

The RX9 is integrated in the Saramonic UwMic9 system that operates in the UHF band and has a range of up to 100 meters in open areas or 60 meters if the location has obstacles.

Support for dual channels means that several receiver units can be paired with one or two Saramonic TX9 transmitters for a multiple camera setup.

Quick setup
The RX9 is easy to use, thanks to infrared synchronization between transmitter and receiver, an auto-scan function that can automatically search for an available transmission frequency and a large and clear LCD display.

A selectable output mode allows you to choose the output signal to be mono or stereo. The RX9 also has a headphone jack that enables real-time monitoring via headphones, especially useful for cameras that lack a monitor output.

Tip: If you need a dual channel wireless microphone kit, look at the UwMic9 TX9 + TX9 + RX9 package (item no: 110334).

Key Features

• Wireless camera mounted receiver compatible with Saramonic TX9 transmitter
• Reliable, broadcast-quality audio
• Frequency 514 MHz – 596 MHz (UHF band)
• 96 selectable channels
• 3,5 mm headphone jacket for audio monitoring
• Easy to read LCD display

Specifications

• number of transmission channels: 96
• number of groups: A and B
• operating frequencies: 514 MHz – 596 MHz
• reference deviation: +/- 5 kHz
• signal-to-noise ratio (SNR): 70 dB or more
• power supply: 2 AA batteries
• weight: 260 g
• dimensions: 6.4 x 8.7 (+ antenna 10.5 cm) x 2.5 cm

Compatibility

• The UwMic9 system:
  • Saramonic TX9
  • Saramonic HU-9
  • Saramonic TX-XLR9

Contents of the kit

• RX9 receiver
• belt clip
• XLR cable/mini Jack 3.5 mm TRS cable
• mini Jack 3.5 mm TRS cable

The Saramonic RX9 is a receiver for the UwMic9 wireless sound transmission system. The UwMic9 system is characterised by its versatility and reliability. The ability to transmit audio wirelessly between a wide range of devices will be appreciated by camera operators, reporters and vloggers. The system allows devices to work in two groups, on 96 transmission frequencies. The receiver has two mini Jack (3.5 millimetre) TRS inputs for connection to a signal recording device and headphone listening. The signal input is equipped with a lock to prevent accidental cable disconnection. The receiver housing is made of high-quality aluminium. The easy-to-read LCD display and control buttons allow comfortable use of the device even when wearing gloves. Intuitive menus and synchronisation functions simplify use and speed up the system. The device is powered by two AA batteries. The common elements of the system can be transmitters in various configurations (not included in the receiver itself), allowing tracks to be sent simultaneously to two audio channels. In addition to the receiver, the kit includes a clip for attaching it to a belt and cables: XLR/mini Jack 3.5 mm TRS and mini Jack 3.5 mm TRS/ mini Jack 3.5 mm TRS Specifications number of transmission channels: 96 number of groups: A and B operating frequencies: 514 MHz - 596 MHz reference deviation: +/- 5 kHz signal-to-noise ratio (SNR): 70 dB or more power supply: 2 AA batteries weight: 260 g dimensions: 6.4 x 8.7 (+ antenna 10.5 cm) x 2.5 cm Compatibility The UwMic9 system: Saramonic TX9 Saramonic HU-9 Saramonic TX-XLR9 Contents of the kit RX9 receiver belt clip XLR cable/mini Jack 3.5 mm TRS cable mini Jack 3.5 mm TRS cable
