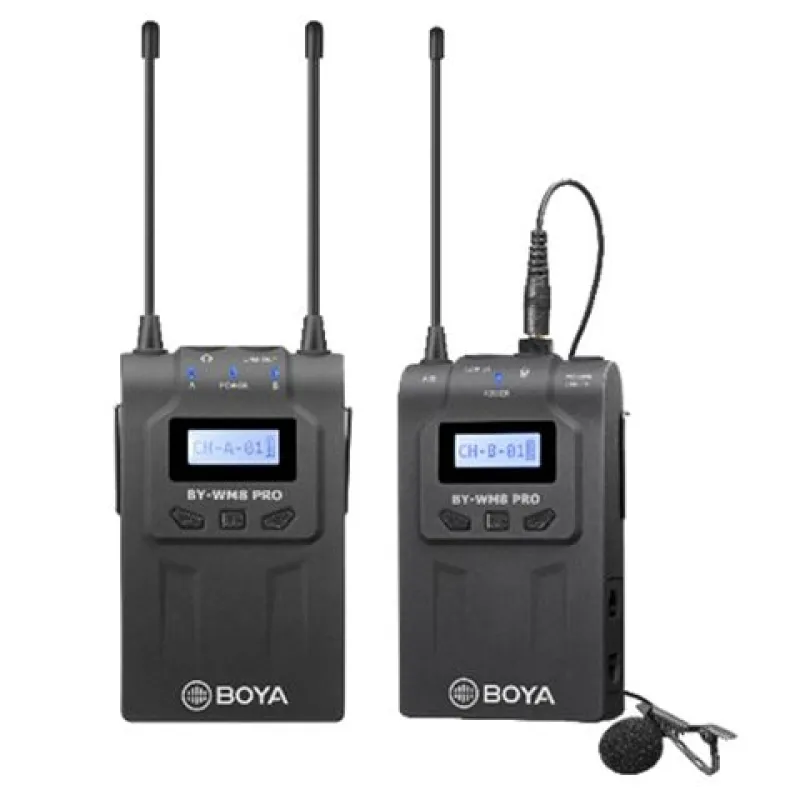

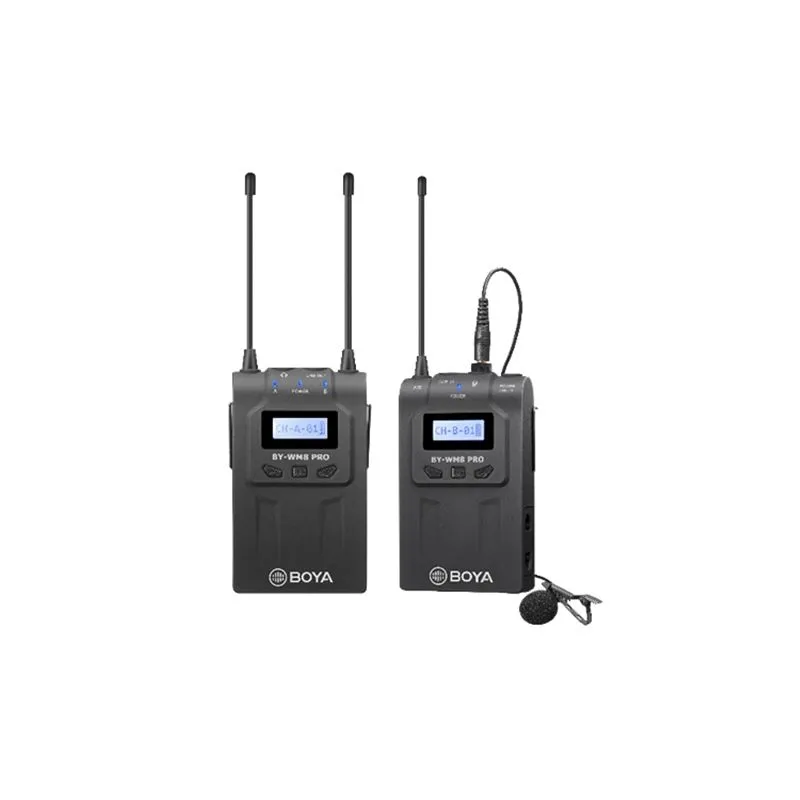

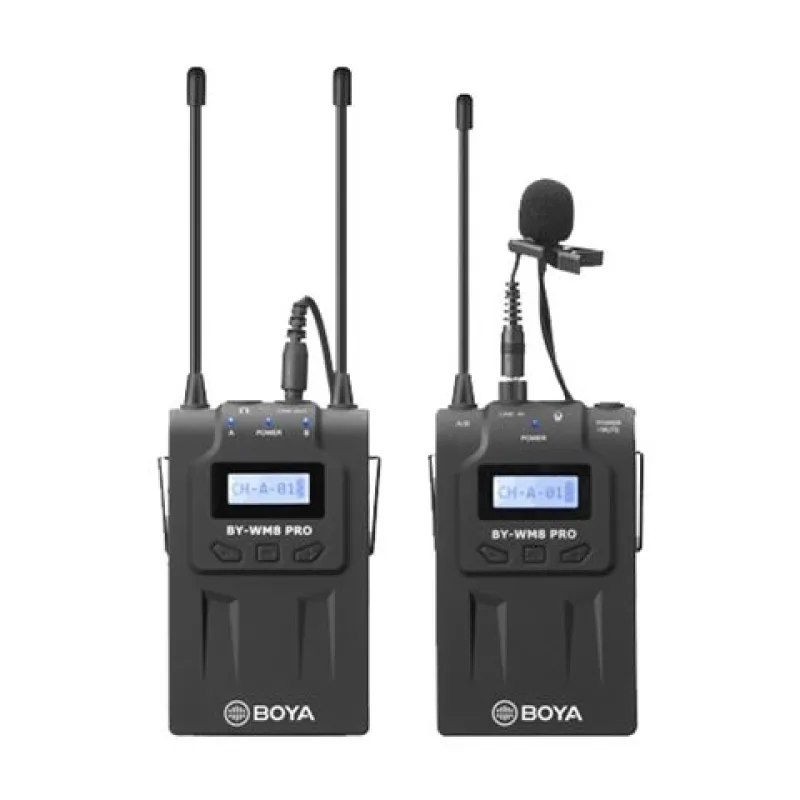

Boya UHF Dual Lavalier Wireless Microphone BY-WM8 Pro-K1

Wireless Lavalier Microphone System

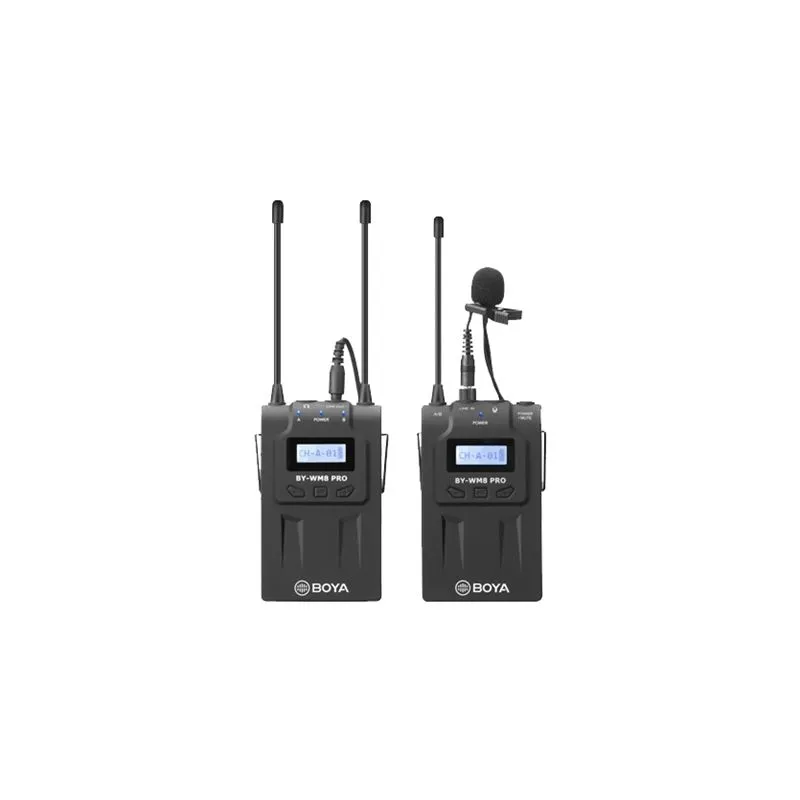

The Boya UHF Dual Lavalier Microphone Wireless BY-WM8 Pro-K1 is a professional wireless microphone set designed for interviews, ENG/EFP, movie productions, and similar applications. It is an upgraded version of the BY-WM6 and BY-WM8 models, featuring significantly improved sound quality due to a much lower distortion rate and a lighter weight design.

Power and Range

Both the transmitter and receiver are powered by two AA batteries each (not included), providing up to 6 hours of continuous use. The system offers a maximum operating range of up to 100 meters in open environments without obstacles. It supports the addition of a second transmitter for dual-microphone setups.

Compatibility

The BY-WM8 Pro-K1 is compatible with DSLR cameras, camcorders, and audio recorders. An optional smartphone adapter allows connection to mobile phones for versatile recording options.

Usage

The interviewee wears the lavalier microphone connected to the transmitter, which can be clipped to a belt. The receiver connects to the camera via cable and mounts on the camera's hotshoe. The receiver also includes a 1/4" female thread for tripod mounting and a headphone output for real-time audio monitoring.

System Specifications

• Channels: 48
• Frequency response: 40 Hz – 18 kHz (±3 dB)
• Maximum range: up to 100 meters (line of sight)
• Operating temperature: -10 to 50 °C

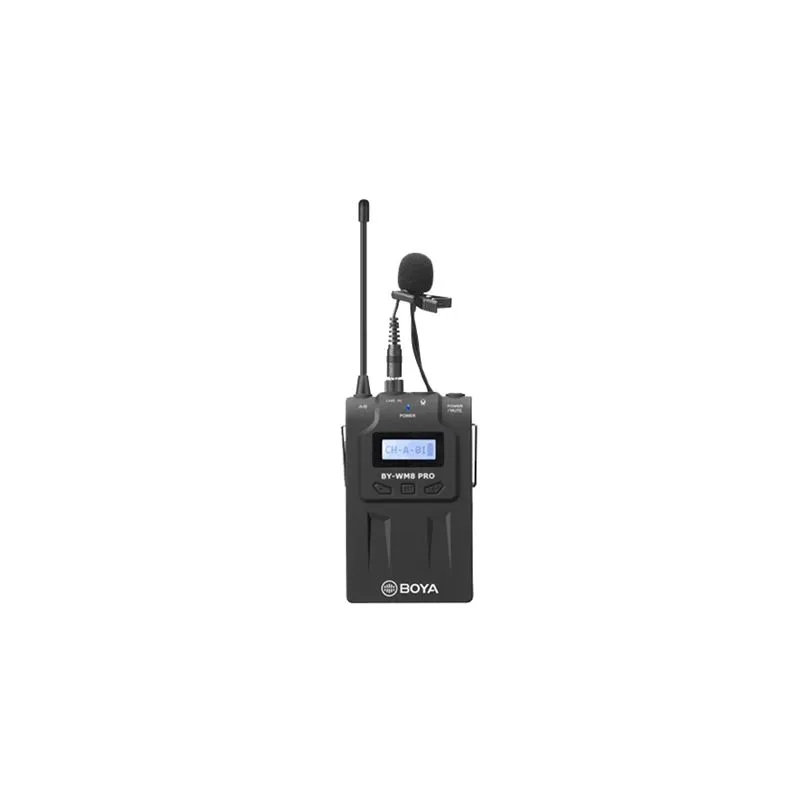

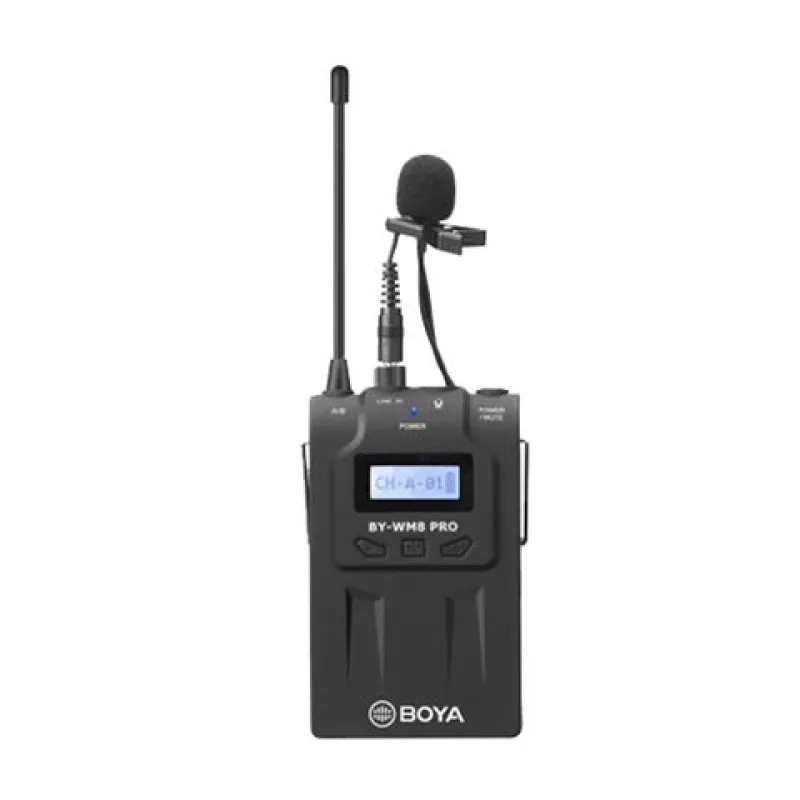

Transmitter Specifications

• RF output power: 10 mW
• Audio input connector: 3.5 mm jack plug
• Reference audio input level: -60 dBV
• Input frequency range: 20 Hz – 20 kHz
• Distortion: ≤ 0.5%
• Power supply: 2× AA batteries (not included)
• Maximum continuous operation: 6 hours
• Dimensions (H×W×L): 208×67×29 mm
• Weight (without batteries): 80 g

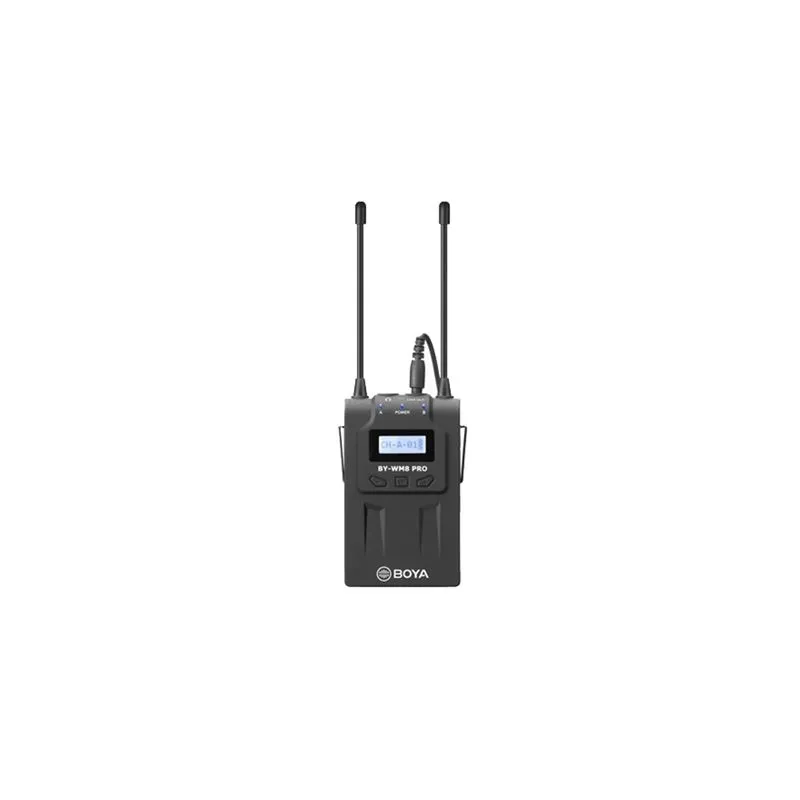

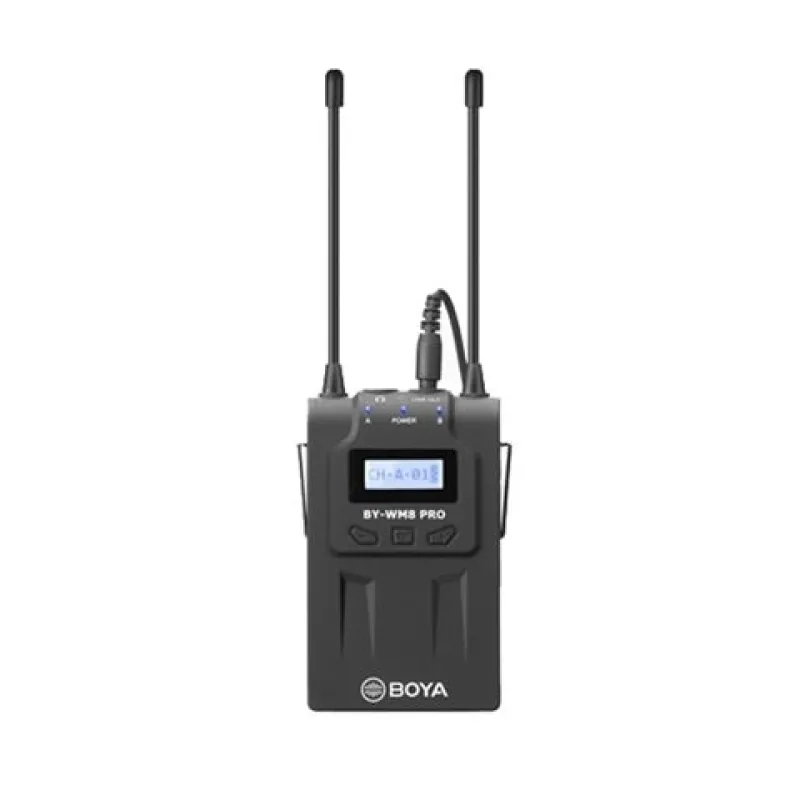

Receiver Specifications

• Audio output connector: 3.5 mm jack plug
• Signal-to-noise ratio: ≥ 70 dB
• Distortion: ≤ 0.5%
• Headphone output power: 30 mW
• Audio output level: -60 dBV
• Power supply: 2× AA batteries (not included)
• Maximum continuous operation: 4 hours
• Dimensions (H×W×L): 208×67×29 mm
• Weight (without batteries): 90 g

Lavalier Microphone Specifications

• Type: Condenser microphone
• Polar pattern: Omnidirectional
• Frequency range: 35 Hz – 18 kHz
• Signal-to-noise ratio: 74 dB
• Sensitivity: -30 dB ± 3 dB (0 dB = 1 V/Pa, 1 kHz)
• Connector: 3.5 mm mini plug
• Cable length: 1.2 m

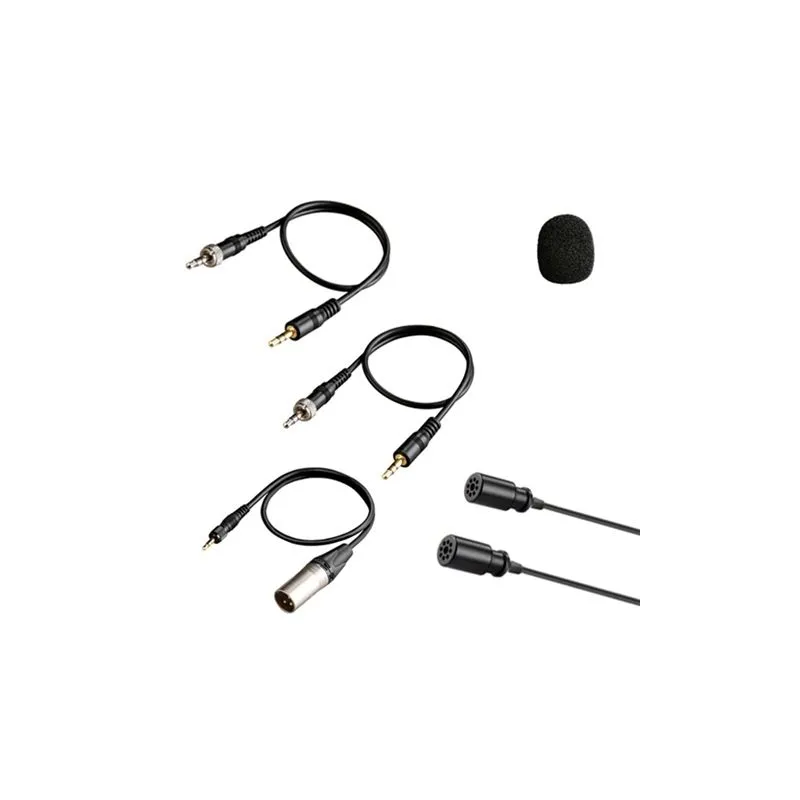

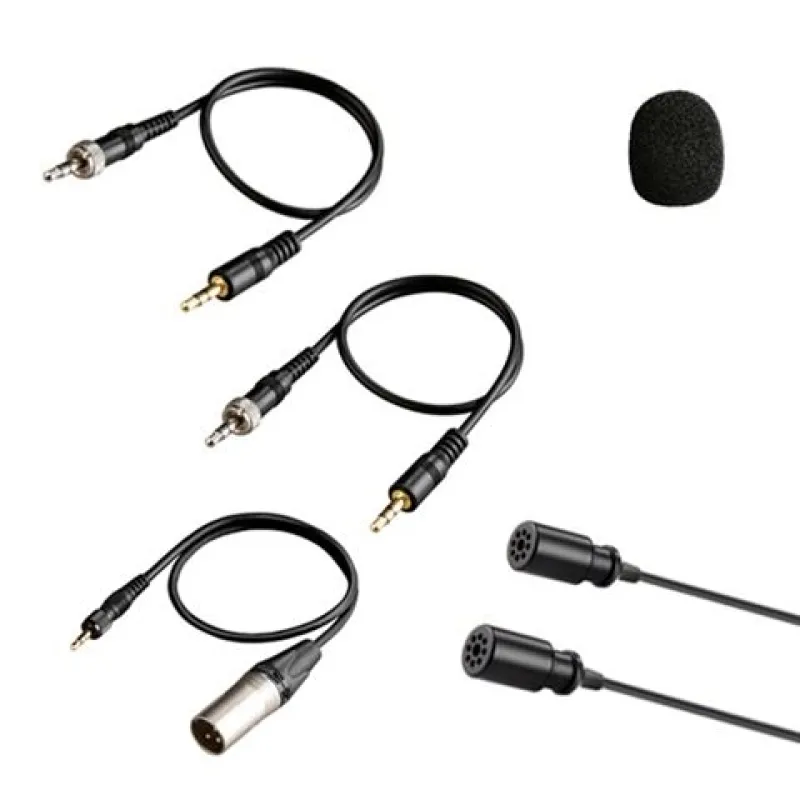

Included in the Package

• 1× Transmitter
• 1× Receiver
• 1× Omnidirectional Lavalier Microphone
• 1× 3.5 mm Stereo Mini Jack Plug Cable (40 cm)
• 1× XLR Output Cable, 3-pin (45 cm)
• 1× Belt Clip
• 1× Microphone Clip
• 1× Foam Windscreen

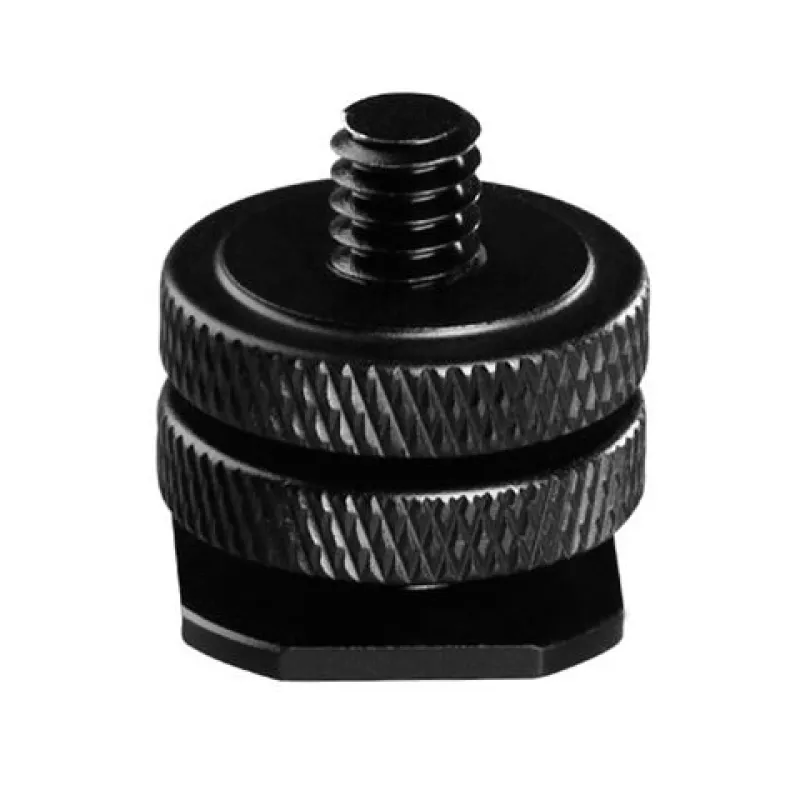

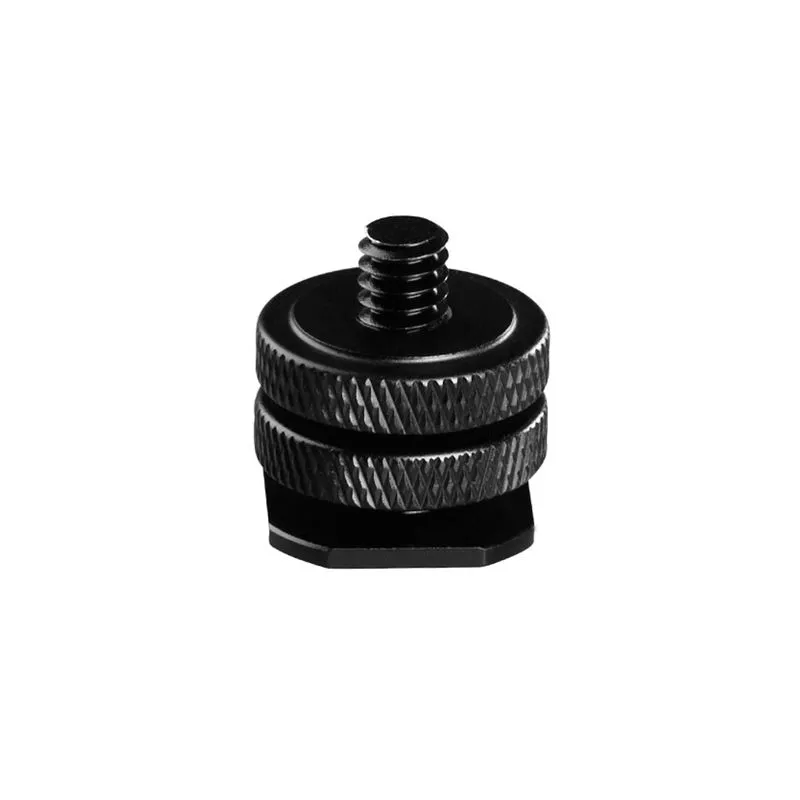

• 1× Shoe Mount Adapter
• 1× Storage Case
• 1× User Manual
• 1× Warranty Card
• 1× Full-Color Packaging
