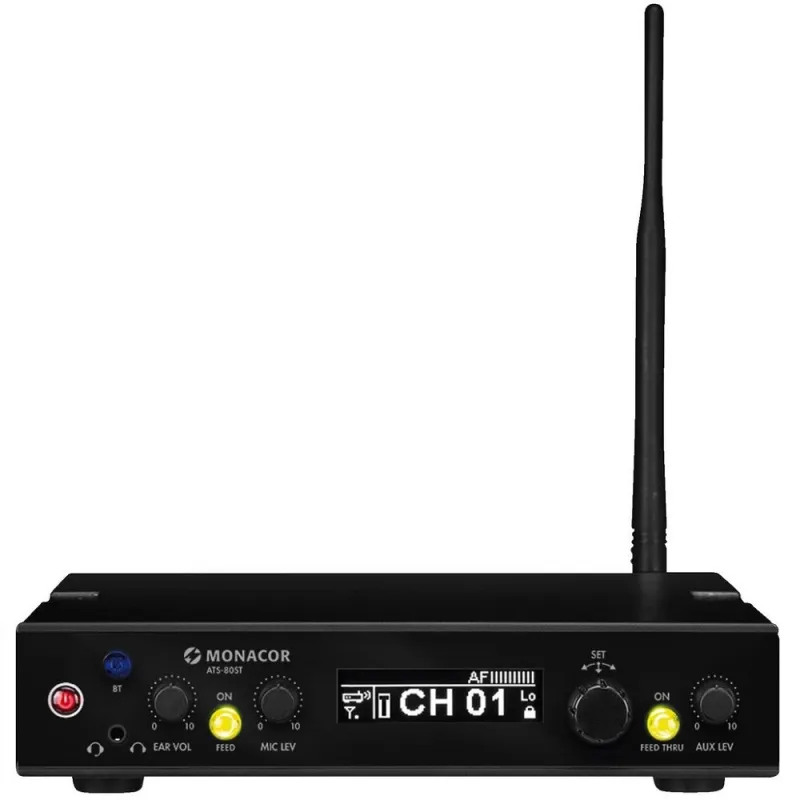

Monacor ATS-80ST

42-channel digital PLL voice transmission system, 823-832 MHz and 863-865 MHz.

  • As a tour guide system also suitable for any other application in which a two-way communication is required, e.g. training sessions, lectures with questions and answers and group tours or factory tours
  • High resistance to interference due to digital transmission
  • High operating range
  • Frequency range optimised for voice transmissions
  • Interference-free parallel operation of up to 42 different channels possible
42-channel stationary PLL transmitter, for microphone operation and audio line signals. In combination with ATS-80R, also suitable for interpretation systems.

  • Stereo audio line input via RCA L/R
  • Microphone input via comb. jack (XLR/6.3 mm jack)
  • Mono audio line output via RCA
  • Loop input and loop output via 6.3 mm jack
  • Adjustable headphone output for monitoring
  • Removable antenna (TNC)
  • Supports Bluetooth
  • USB audio programming interface
  • High-contrast OLED display
  • Channel name and ID can be edited
  • Adjustable transmitting power (high: ≤ 20 mW/low: ≤ 10 mW)
  • Operating range: approx. 100 m
  • Power is provided via encl. plug-in power supply
  • Dimensions: 215 x 51 x 210 mm
  • Weight: 1.25 kg



Technical Specifications

Description42-channel digital PLL transmitting unit
Carrier frequency range823-832 MHz, 863-865 MHz
Channels1
Admiss. ambient temp.0-40 °C
Transmitting power≤ 20 mW/≤ 10 mW
Operating range100 m
Power supply transmittervia encl. power supply
Width transmitter215 mm
Height transmitter51 mm
Depth transmitter210 mm
Weight transmitter1.25 kg
Connections transmitter1 x XLR/6.3 mm jack (mic in),

1 x RCA L/R (line in),

1 x RCA L/R (line out)

1 x 6.3 mm jack (loop in),

1 x 6.3 mm jack (loop out),

3.5 mm jack (headphones)

Connection typeWireless
Connector3,5mm
ConnectorXLR
ConnectorUSB-C
Connectorother
Connector6.35mm
Headphone typeIntercom
