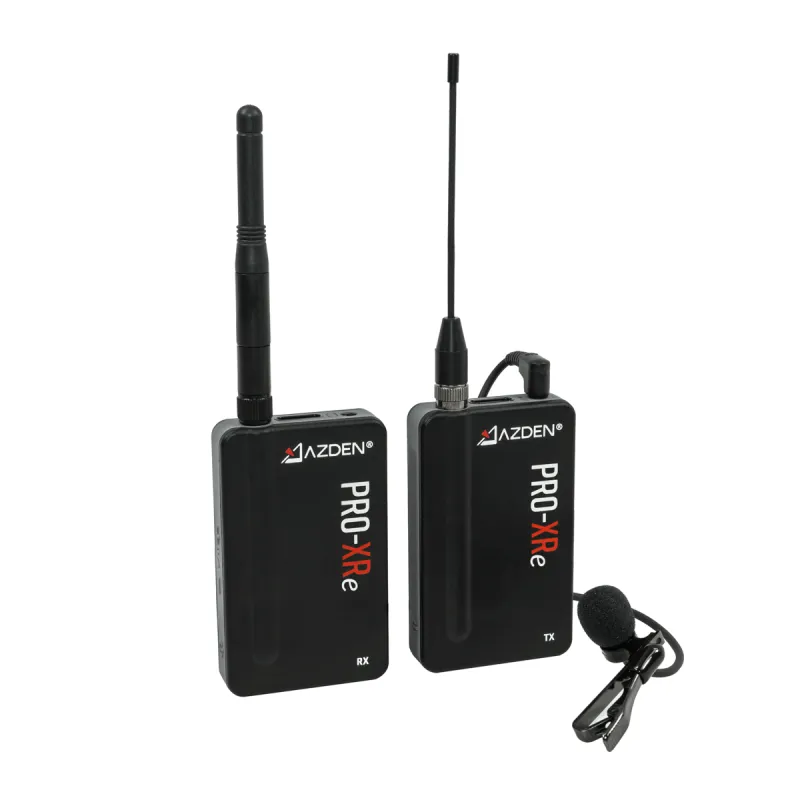

Azden PRO-XRe 2.4GHz Digital Wireless Microphone System PRO-XRE

Azden PRO-XRe is a 2.4GHz digital wireless microphone system featuring signal redundancy technology, a range of up to 350 feet in optimal conditions, and a 20-hour battery life. It includes TRRS and 3.5mm-to-Lightning cables, a phone mount, and a dual-mini-USB charger.

Frequency Spectrum Auto-Scan

The PRO-XRe automatically scans the 2.4 GHz frequency spectrum upon powering on, selecting the best frequencies to avoid interference.

Automatic Interference Avoidance

This system continuously monitors the 2.4 GHz range and seamlessly switches frequencies to prevent interference.

Signal Redundancy Technology

Azdens proprietary technology sends three copies of the signal on different frequencies, allowing instant switching to avoid interruptions if interference is detected.

• Transmitter (TX)
• Receiver (RX)
• Smartphone Mount
• AC Adapter
• USB Charge Cable
• EX-507XR Lav Mic
• Audio Output Cable
• TRRS Adapter
• Lightning Cable
• High-Gain Antenna (x2)
• TX Flexible Antenna

SYSTEM

• Operating Frequency 2.4 GHz ISM Band
• Signal-To-Noise 86 dB
• Dynamic Range Mic 90dB, Line 87dB
• Operating Range Up to 50 m
• Frequency Response Mic 60 Hz - 20 kHz, Aux 30 Hz - 20 kHz
• Bit Rate 384 kbps
• System Latency 6.8 ms
• Battery Type Lithium-ion polymer, 3.7 V, 1200 mAh
• Power Supply USB 5V

RECEIVER

• Max Output Level 1.5 dBV
• Mic Output 3.5 mm dual-mono TRS
• Battery Life 21 hrs
• Charge Time 2.5 hours
• Weight 76 g

TRANSMITTER

• RF Output Power 10 mW
• Mic Input 3.5 mm dual-mono TRS
• Battery Life 15 hrs
• Charge Time 2.5 hours
• Weight 65 g

MICROPHONE

• Mic Element Electret Condenser
• Polar Pattern Omni-Directional
• Frequency Response 20 Hz - 20 kHz
• Sensitivity -38 dB
• Impedance 2.2 k at 1 kHz
• Connector Type 3.5 mm TRS
• Cord Length 1.2 m
