The Azden WLX-PRO is a complete wireless system with a belt-pack transmitter and receiver, ideal for professional audio applications.
Azden WLX-PRO
Product ID: 30099
SKU: 30099
Model: AZDENWLXPRO
Ean: 4965157002191
Condition: New product
Manufacturer: AZDEN
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Microphone |
Product details
A complete system

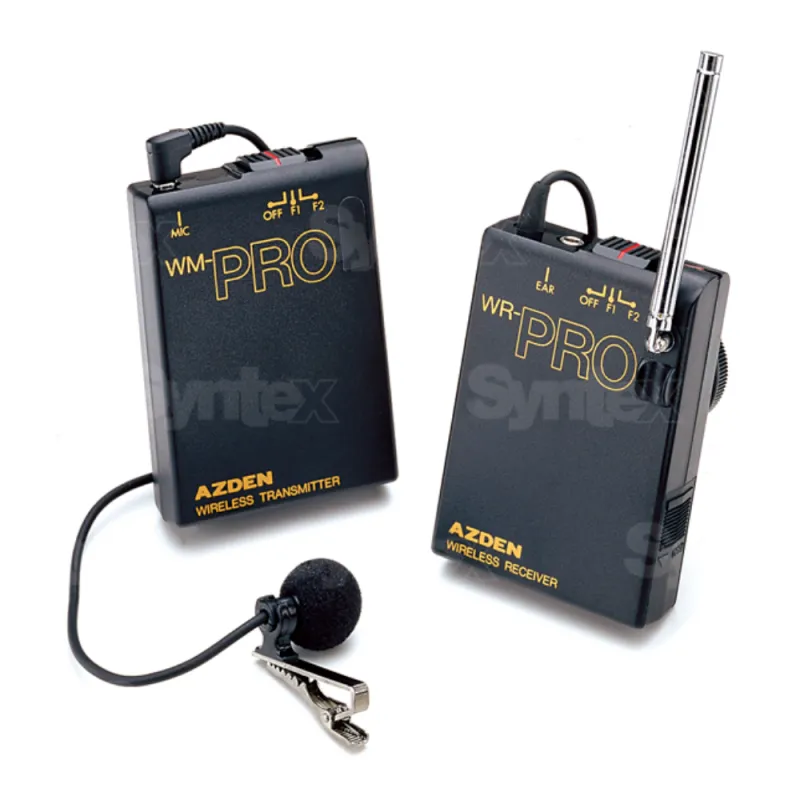

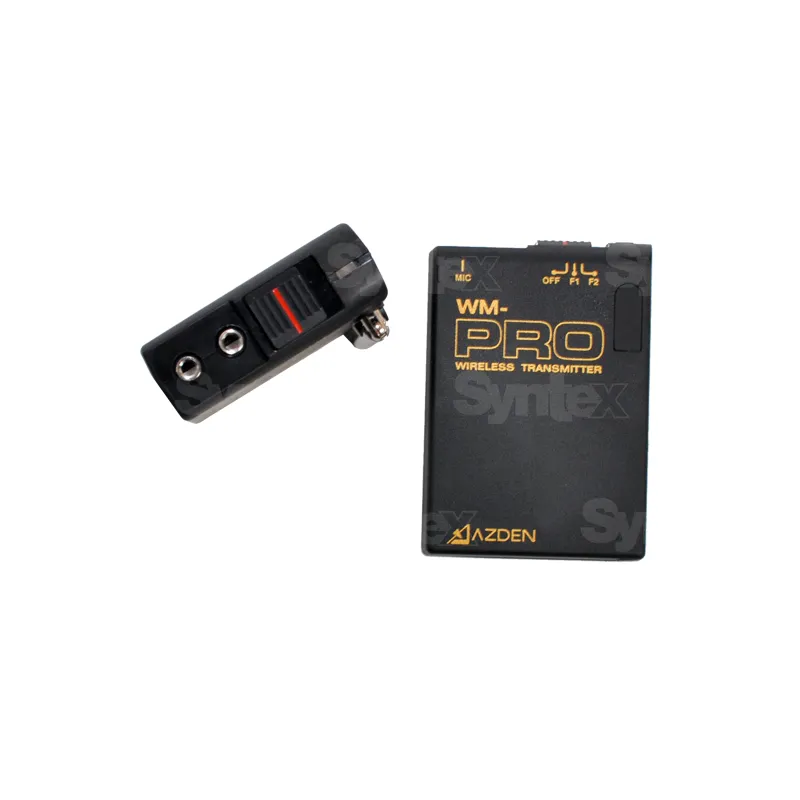

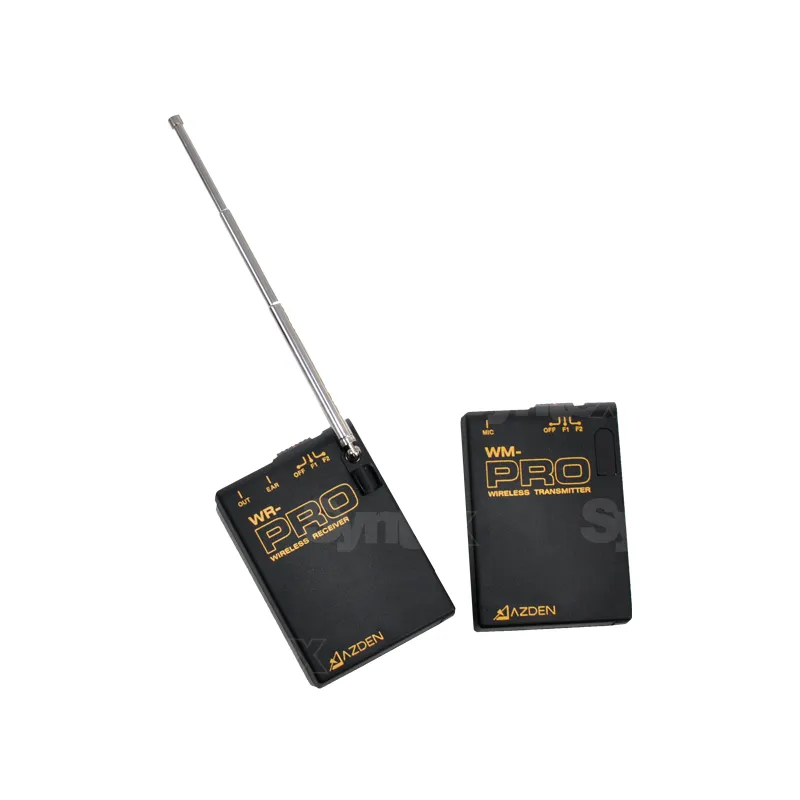

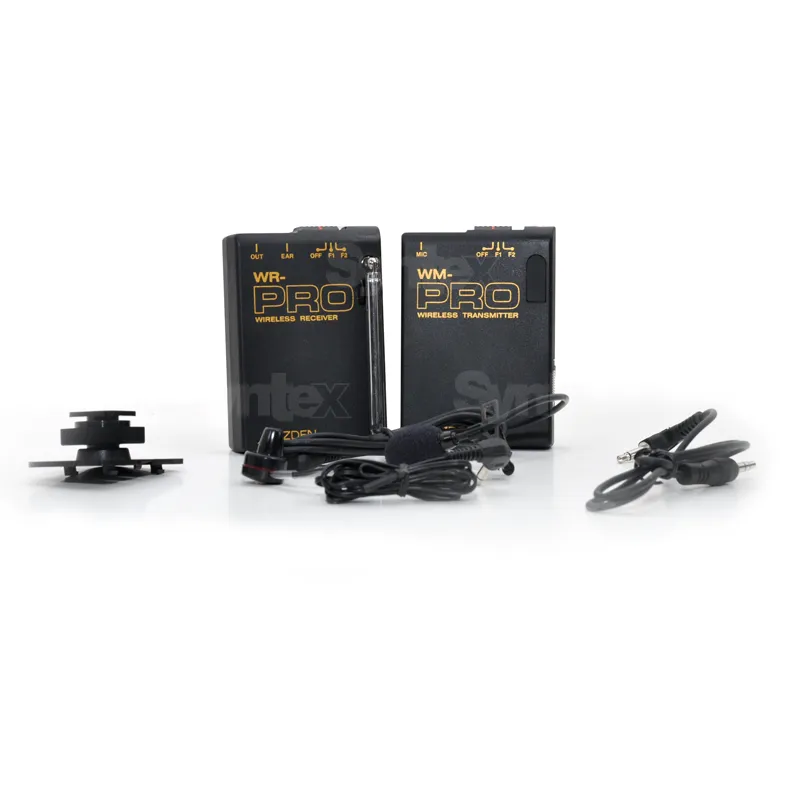

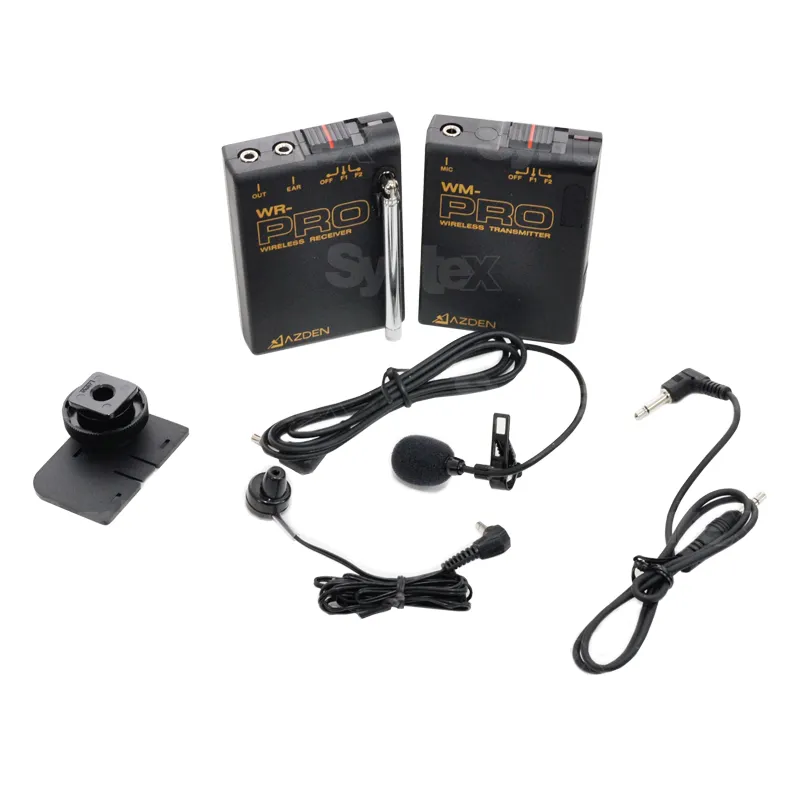

Includes the WL/T-PRO belt-pack transmitter (WM-PRO) with electret condenser lavalier microphone (EX-503) and the WR-PRO receiver, which comes with both shoe-mount and hook and loop fastener. All receivers and transmitters in the “PRO” Series operate on the same 2 frequencies (169.445MHz and 170.245MHz).
Receiver Technical Specs:
- Receiver type: Double superheterodyne
- Sensitivity: 2mV @ S/N of 40dB
- Battery: 1-9V Alkaline
- Power consumption: 25mA
- Monitor output: 1V @ 30W, Modulation frequency: 1kHz, Deviation: +/-7kHz
- Mic output: 8mV w/10KW load, Modulation frequency: 1kHz, Deviation: +/-7kHz
- Mic output impedance: 300W
- Dimensions: 86(h) x 60(w) x 21.5(d) mm (3.3” x 2.4” x 0.85”)
- Weight w/battery: 128g (4.5oz)
Transmitter Technical Specs:
- Modulation system: FM
- Sensitivity: 94dB SPL @ +/- 2.5KHz deviation
- Battery: 1-9V
- Power consumption: 30mA
- Dimensions: 86(h) x 60(w) x 21.5(d) mm (3.3” x 2.4” x 0.85”)
- Weight: 98g (3.4oz)
