Saramonic BLINK 500 B6 TX+TX+RX UC 2 to 1 Wireless System USB-C Android

Compact Wireless Microphone System for Mobile Devices

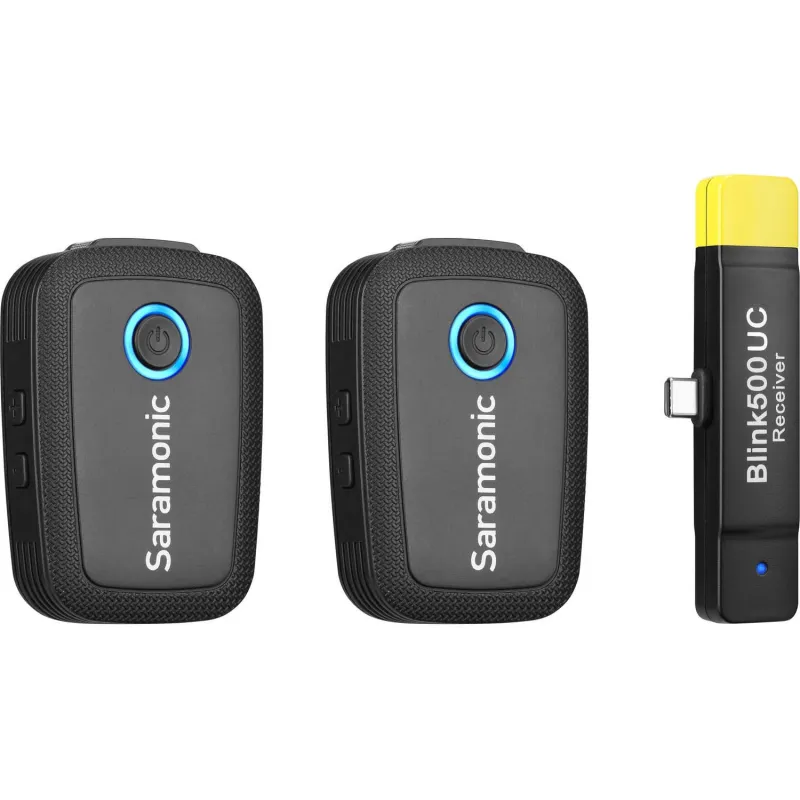

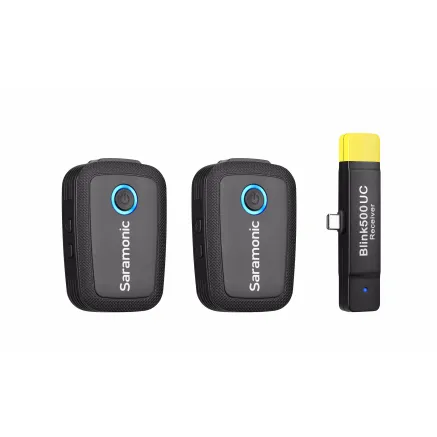

The Saramonic BLINK 500 B6 is a sub-compact wireless microphone system designed for professional audio capture with mobile devices featuring USB-C ports, such as Android smartphones, tablets, and computers. It includes two transmitters and one dual-receiver, providing high-quality sound in a lightweight and portable form factor.

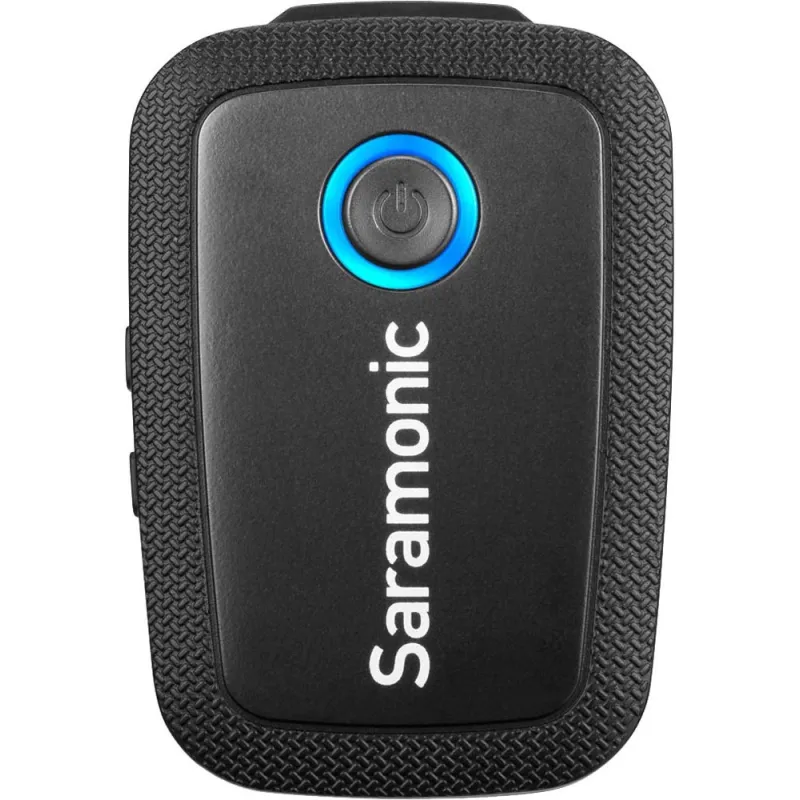

Transmitters

• Each transmitter features a built-in omnidirectional microphone that captures clear voice audio.
• Transmitters are small enough to clip onto a shirt collar, slide into a pocket, or be handheld.

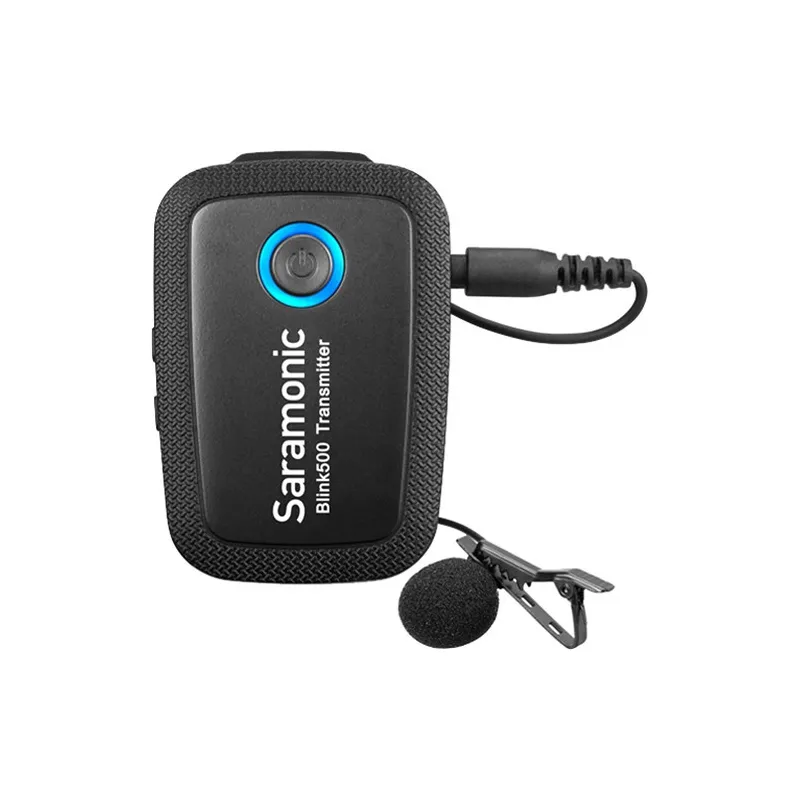

• They can also be used as traditional bodypack transmitters with the included SR-M1 omnidirectional lavalier microphones for a more discreet setup.
• Transmitters operate on the interference-free 2.4 GHz spectrum with automatic channel hopping to avoid static and dropouts.
• Easy-to-use gain control buttons allow adjustment of audio levels with an intelligent LED display indicating settings.
• Internal rechargeable lithium-ion batteries provide approximately 5 hours of operation per charge.
• USB-C charging ports enable recharging or powering via portable USB battery packs.
• Transmitters have a maximum output power of 10 mW, offering a range of up to 30 meters (98 feet) with obstacles and 50 meters (164 feet) in open areas.

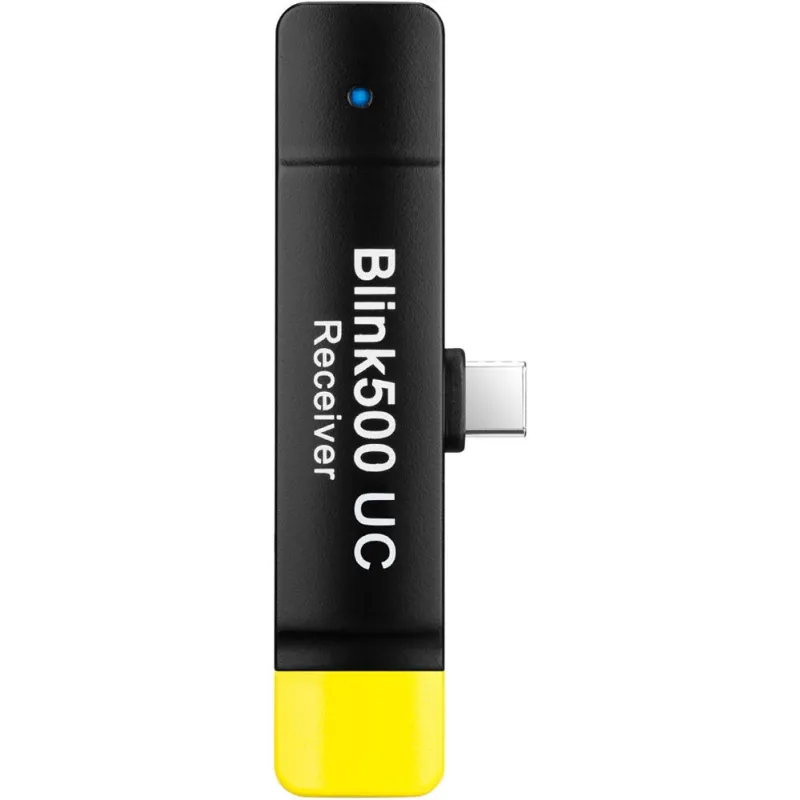

Receiver (RXUC)

• The RXUC dual-receiver plugs directly into the USB-C port of your device and requires no batteries or charging.
• It is compact and lightweight, suitable for mounting on handheld gimbals without affecting balance or motor function.
• Simple plug-and-play operation with no controls to adjust.
• Supports pairing with up to 18 simultaneous systems (up to 36 microphones).

Technical Specifications

Transmitters

• Frequency: 2.4 GHz (2400 to 2483.5 MHz)
• Oscillator Type: Gaussian Frequency-Shift Keying (GFSK)
• RF Output Power: 10 mW
• Signal to Noise Ratio: ≥70 dB
• Voice Delay: ≤6 ms
• Audio Gain Control: 11 dB, 18 dB, 25 dB
• Distortion: ≤0.1%
• Digital Resolution: 24-bit / 48 kHz
• Frequency Response: 20 Hz to 16 kHz
• Max Operating Range: 30 m with obstacles, 50 m open area
• Battery: Built-in Li-ion 3.7 V / 400 mAh, approx. 5 hours life
• Charging: USB Type-C, 1.5 hours full charge
• Microphone Input: 3.5 mm (1/8") jack
• Microphone Pickup Pattern: Omnidirectional (built-in and external lavalier)
• Dimensions: 63 x 43 x 16.5 mm
• Weight: 34 g

Receiver

• Frequency: 2.4 GHz (2400 to 2483.5 MHz)
• Oscillator Type: Gaussian Frequency-Shift Keying (GFSK)
• Signal to Noise Ratio: ≥70 dB
• Voice Delay: ≤6 ms
• Distortion: ≤0.1%
• Digital Resolution: 24-bit / 48 kHz
• Frequency Response: 20 Hz to 16 kHz
• Max Operating Range: 30 m with obstacles, 50 m open area
• Connector: USB-C male
• Dimensions: 76 x 16.5 x 11 mm
• Weight: 10 g

Included Accessories

• 2 x Blink 500 TX transmitters with built-in microphones and clips
• 1 x Blink 500 RXUC dual-receiver with USB-C connector

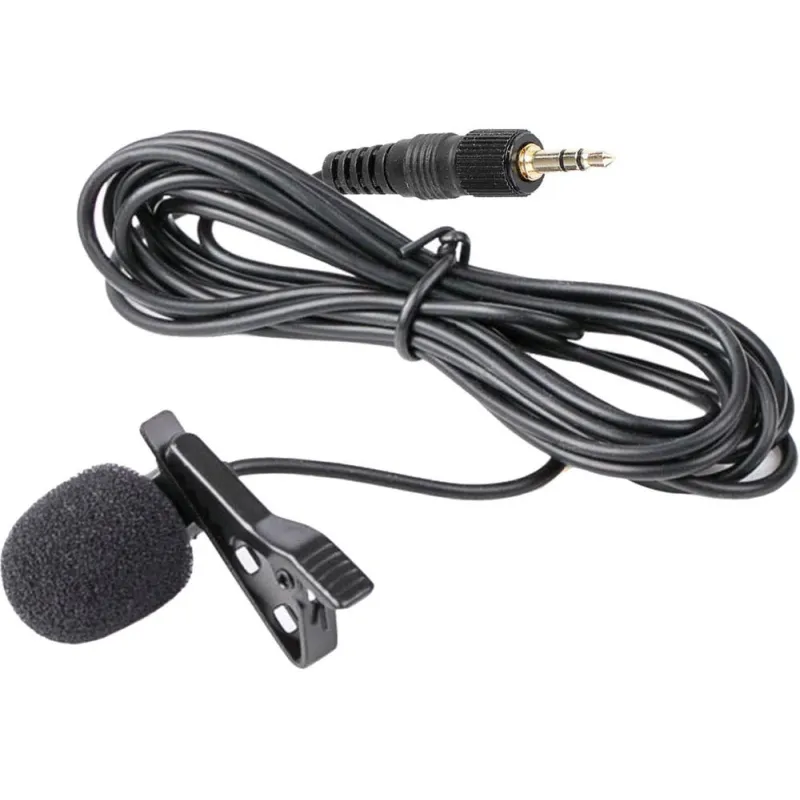

• 2 x SR-M1 omnidirectional lavalier microphones
• 2 x Alligator-style lavalier microphone clips
• 2 x Foam lavalier windscreens
• 2 x 30.5 cm gold-plated USB-C to USB-A charging cables
• 1 x Pairing pin

Usage and Applications

The BLINK 500 B6 system is ideal for filmmakers, journalists, vloggers, YouTube creators, corporate video producers, and content creators who require a simple, professional wireless audio solution for mobile devices. Its compact size and lightweight design make it perfect for use with handheld gimbals, enabling smooth video footage with high-quality wireless audio from two separate sources simultaneously. The system's ease of use and reliable performance allow users to focus on storytelling and capturing great shots without technical distractions.
