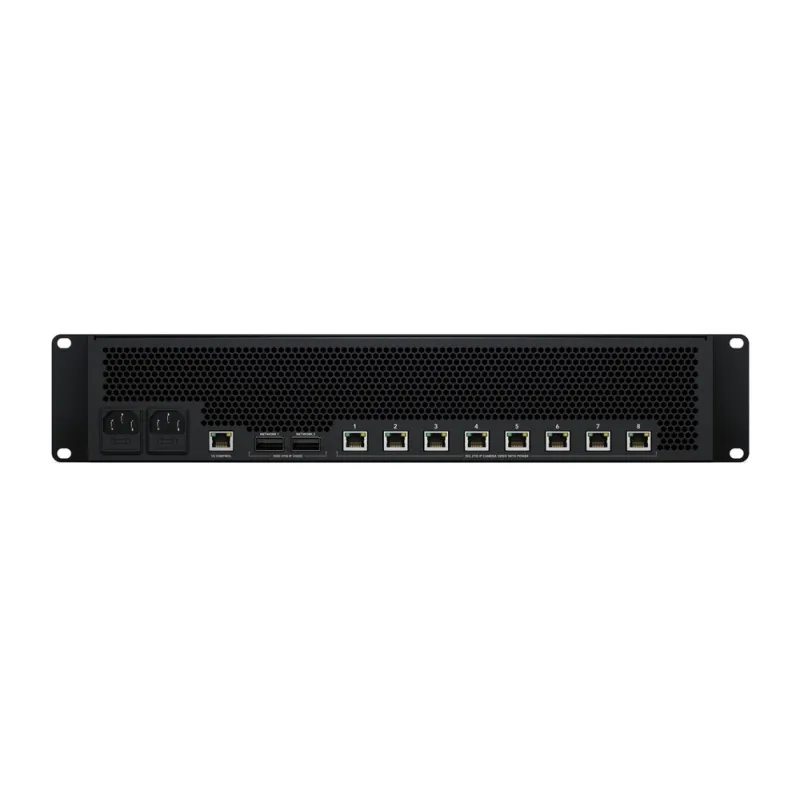

Blackmagic Design Blackmagic StudioBridge 10G PWR
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Blackmagic Design |
| Type of Product | Microphone accessory |
| Accessories for video cameras | pārveidotāji |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
The Blackmagic StudioBridge 10G PWR allows customers to connect 8 separate 10G Ethernet SMPTE-2110 connections to modern 100G systems with SMPTE-2022-7 redundancy. This means that up to 8 separate cameras or converters can be integrated into an IP video system via 100G Ethernet.
If devices with 10G Ethernet use a single connection, the Blackmagic StudioBridge 10G PWR also connects them into two 100G Ethernet links for a redundant broadcast system. In addition, this converter features four separate internal power supplies, allowing it to provide 90W of PoE++ power to each 10G Ethernet port.
The Blackmagic StudioBridge 10G PWR is designed to connect lower-cost single-port 10G Ethernet SMPTE-2110 devices into high-end redundant 100G Ethernet systems. It converts and aggregates 8 channels of 10G Ethernet into a redundant pair of 100G Ethernet connections. This means customers can connect 8 separate 10G Ethernet Ultra HD devices. Each 10G Ethernet port provides up to 90W of PoE++ power, allowing devices such as converters or cameras to be powered directly over Ethernet.
Blackmagic 2110 IP products comply with the SMPTE-2110 standard, which defines the transmission, synchronization, and description of 10-bit video, audio, and auxiliary data over managed IP broadcast networks. They can synchronize SDI inputs to a common PTP clock, or external devices can be controlled by a reference signal generated from the PTP clock.
All Blackmagic SMPTE-2110 products with 100G Ethernet, as well as some 10G models, feature two separate Ethernet ports to support redundancy. SMPTE-2110 redundancy sends two identical copies of video and audio over two separate network paths. This works even better when the redundant ports are connected to two different switches. This technology is called SMPTE 2022-7 Seamless Protection Switching. It compares incoming RTP packets on both links based on sequence numbers and then reconstructs a perfect video frame from the packet that arrives first. Switching occurs in real time and completely seamlessly, so there are no frame drops or audio errors.
Blackmagic StudioBridge 10G PWR Features
- Connects 8 10G Ethernet connections to redundant 100G Ethernet systems
- Redundant 100G Ethernet for full SMPTE-2022-7 compatibility
- Supports 90W PoE++ power delivery on every 10G Ethernet port
- Dedicated NMOS connection for routing IP sources
- 2RU rack-mount design with front-to-back cooling
- Front-panel LCD for monitoring video inputs and outputs
- Front-panel speaker and headphone output for audio monitoring
- Two redundant AC power supplies for broadcast-grade reliability
- Localization in 13 popular languages for international use
