Accsoon Cineview Quad WIT04-QS
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Wireless Video Transmission Systems |
| Connector | HDMI |
| Connector | SDI |
| Color | Black |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease

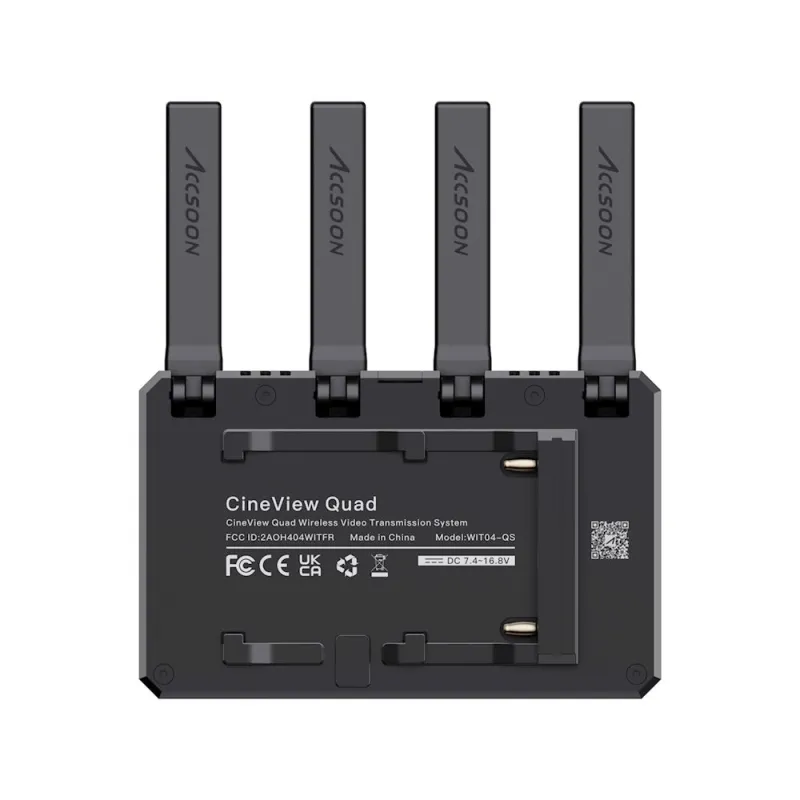

Accsoon CineView Quad Overview
Accsoon CineView Quad is a SDI & HDMI Dual-Band (2.4GHz & 5GHz) wireless camera video transmitter and receiver system featuring a unique foldable antenna design. It transmits and receives HD video and HQ audio through Accsoon's patented Dual-Band transmission technology. With this technology, CineView Quad can stream data over a range of 150m (500ft) with near-zero latency.
Reliable Dual-Band Transmission
Equipped with Accsoon's patented Dual-Band transmission technology, CineView Quad streams signals via 2.4GHz and 5GHz WiFi simultaneously. The receiver intelligently identifies interference and combines the two streams to form a complete audio and video stream, greatly improving stability and anti-interference ability. CineView Quad provides a stable and glitch-free stream, even in challenging environments.
Ultra-Low Latency
With an average latency of under 60ms, CineView Quad has nearly undetectable lag while maintaining high-quality images. It can reach a transmission range of up to 500ft line-of-sight, allowing for complete control over the situation even from a distance.
Multiple Video Input and Output Options
CineView Quad allows you to connect up to 4 receivers to any HDMI/SDI input devices such as professional monitors, HD televisions, and projectors. It also transmits a WiFi signal directly to dedicated receivers and allows video signals to be sent to iOS or Android devices.
High-Quality Video and Audio Support
CineView Quad supports video input of up to 1080p 60fps and audio input of 44.1KHz/48KHz 16bit/24bit. The transmitter adjusts the bitrate and video quality of the outgoing signal to maximize connection and framerate.
Flexible Power Options
Power CineView Quad using any NP-F battery or connect it to ground power via the built-in DC input on both the transmitter and receiver, ensuring long shooting sessions.
Easy Pairing
CineView Quad features a group setting knob on each transmitter and receiver for easy pairing. Simply turn the knobs to the same number to connect.
Durable Design
CineView Quad is lightweight at 225g and features a rounded aerospace-grade aluminum alloy frame that is firm and corrosion-resistant.
Specifications
- Video Input: SDI/HDMI
- SDI Input Format: 1080p 23.98/24/25/29.97/30/50/59.94/60fps Level A/B
- HDMI Input Format: 1080p 23.98/24/25/29.97/30/50/59.94/60fps
- DC Port: 5.5mm x 2.1mm center positive
- DC Voltage: 7.4-16.8V
- Audio: 44.1KHz/48KHz 16bit/24bit PCM
- Latency: < 0.06s (Camera latency not included)
- OLED Display: 1.3 inch
- Transmission Power: 17-20dBm
- Transmission Range: 500ft (No obstacles, no interference)
- Power Consumption: 4.5W (Typical)
- Operating Environment Temperature: -10 to 40°C
- Dimensions: 105mm x 66mm x 31mm (Antennas not included)
- Weight: 225g (Antennas included)
