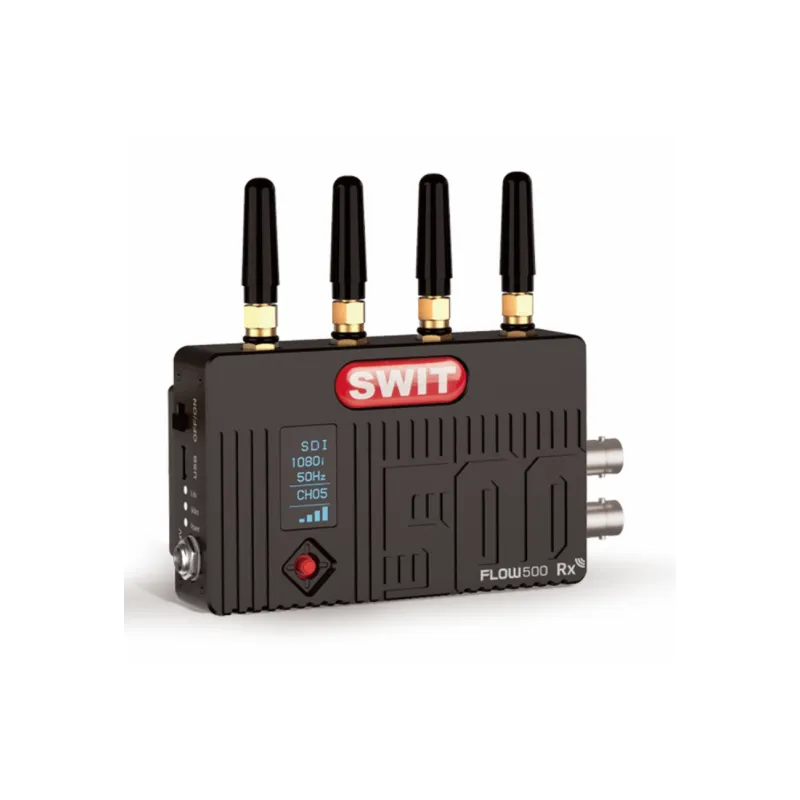

Swit FLOW500 Rx Wireless FHD Video Receiver
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Wireless Video Transmission Systems |
| Connector | SDI |
| Connector | SMA |
| Connector | HDMI |
| Connector | microUSB power |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Overview
The SWIT FLOW500 Rx is a 500ft (150m) line-of-sight wireless FHD video receiver featuring KUWI 5.15.9 GHz technology, dual 3G-SDI and HDMI outputs, OLED status display, strong cross-wall performance, multicast support (1 Tx to 4 Rx), and AES128 double encryption for secure, high-quality video transmission.
The SWIT FLOW500 Wireless FHD Video Receiver (Rx) is part of the next-generation FLOW500 system, designed for professional monitoring and remote video transmission. Utilizing license-free 5.15.9 GHz KUWI technology, the FLOW500 supports 3G/HD-SDI and HDMI (max 1080p60) video transmission up to 500 feet (150 meters) line-of-sight, with superior wall penetration and minimal signal loss.
The system is plug-and-play and ideal for directors monitors, drones, cable car cameras, steadicams, and other field production setups. The receiver features 4 omnidirectional antennas, providing reliable signal reception and accurate color reproduction with signal resynchronization. Embedded audio is supported on two channels, allowing HDMI or SDI audio transmission simultaneously.
Key features include OLED displays on both transmitter and receiver showing signal format, channel, and strength, DFS-compliant automatic channel switching, and manual selection of non-DFS channels. The FLOW500 also supports multicast mode, enabling 1 transmitter to connect to up to 4 receivers, with AES128 double encryption ensuring secure transmission. Firmware updates are supported via Micro USB.
Both transmitter and receiver are powered via NP-F DV battery plate or 734V DC input, with power consumption under 8W, making it highly energy-efficient for extended use. Units are factory-paired but can be re-paired for multiple setups or multicast configurations.
Key Features
- 500ft / 150m wireless FHD video transmission (line-of-sight)
- KUWI 5.15.9 GHz wireless technology, DFS-compliant
- 3G/HD-SDI input/output, HDMI 1.3 input/output
- 2-channel SDI/HDMI embedded audio
- Strong wall-cross performance for indoor/outdoor use
- OLED display for channel, signal, and format
- Multicast support 1 Tx up to 4 Rx
- AES128 double encryption for secure transmission
- Reclocking and accurate color reproduction
- USB firmware update support
- Plug-and-play factory paired units
Included Items
- 1 SWIT FLOW500 Rx Wireless FHD Video Receiver
- (Additional items such as antennas, power plate, cables may be included per manufacturer)
Transmitter (Tx)
- Antennas: 2 omnidirectional
- Inputs: 1 3G/HD-SDI, 1 HDMI 1.3
- Output: 1 3G/HD-SDI loop
- Video Formats: 1080p/1080i/720p/480i/576i, 23.9860fps
Receiver (Rx)
- Antennas: 4 omnidirectional
- Outputs: 1 3G/HD-SDI, 1 HDMI 1.3
- Video Formats: same as transmitter
- Embedded Audio: 2-channel SDI/HDMI
- Line-of-sight range: 150m / 500ft
General
- Wireless Band: 5.15.9 GHz, license-free
- Power: NP-F DV battery plate or 734V DC input
- Power Consumption: <8W
- Encryption: AES128 double
- Dimensions & Weight: see manufacturer specs
- Applications: director monitoring, drones, cable car cameras, steadicams, field production
