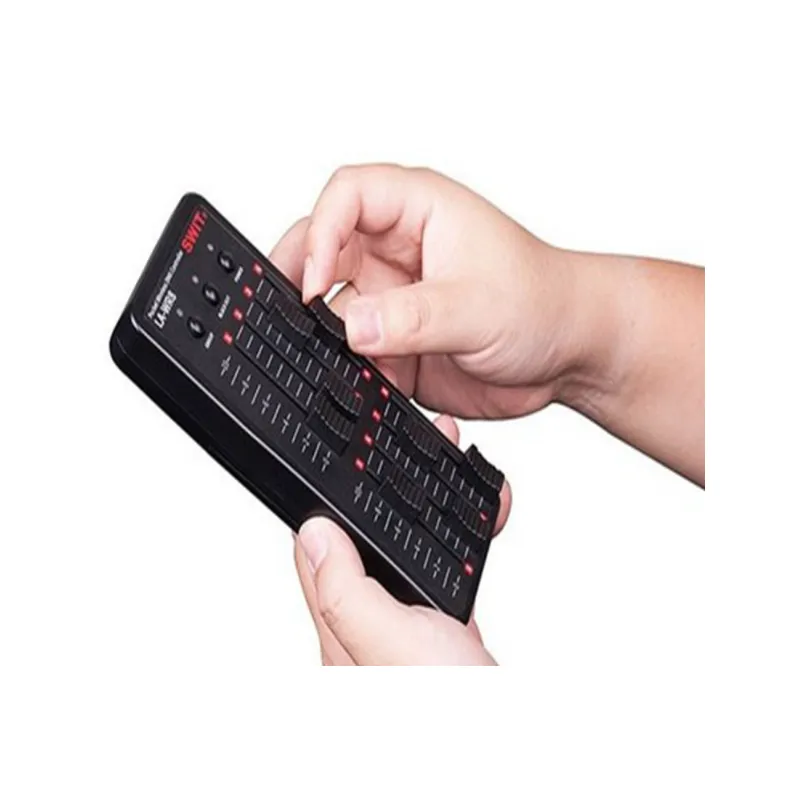

The SWIT LA-WR8 Tx+3Rx Kit is a pocket-sized wireless DMX controller bundle including 1 transmitter and 3 receivers, offering 2.4G wireless control up to 400m (LOS). Compatible with all standard DMX512 lights, it eliminates complex cabling and enables fast, plug-and-play lighting control for field and studio productions.
The SWIT LA-WR8 Tx+3Rx Wireless DMX Bundle is a portable and efficient lighting control solution designed for broadcast, studio, and field productions. The kit includes 1 LA-WR8 transmitter (Tx) and 3 LA-WR8-R receivers (Rx), allowing wireless control of multiple DMX lighting fixtures without the need for complex DMX cables or bulky lighting consoles.
Using 2.4G wireless transmission, the system ensures fast pairing, strong anti-interference performance, and a transmission distance of up to 400 meters line-of-sight. The controller supports the standard DMX512 protocol and features 8 faders with 7 group switching (56 DMX channels total), indicated by 7-color group LEDs for easy identification and synchronization with receivers.
Each receiver provides a standard 5-pin DMX connector, ensuring compatibility with professional DMX lighting fixtures. The transmitter operates on 2 AA batteries (up to 4 hours runtime) or via 5V Micro USB power, while receivers are USB-powered with only 0.5W consumption. The controller also supports automatic sleep mode after one minute of inactivity to conserve power.
This compact and lightweight bundle is ideal for mobile lighting kits, live events, interviews, and studio setups, providing streamlined and reliable wireless DMX control.
Key Features

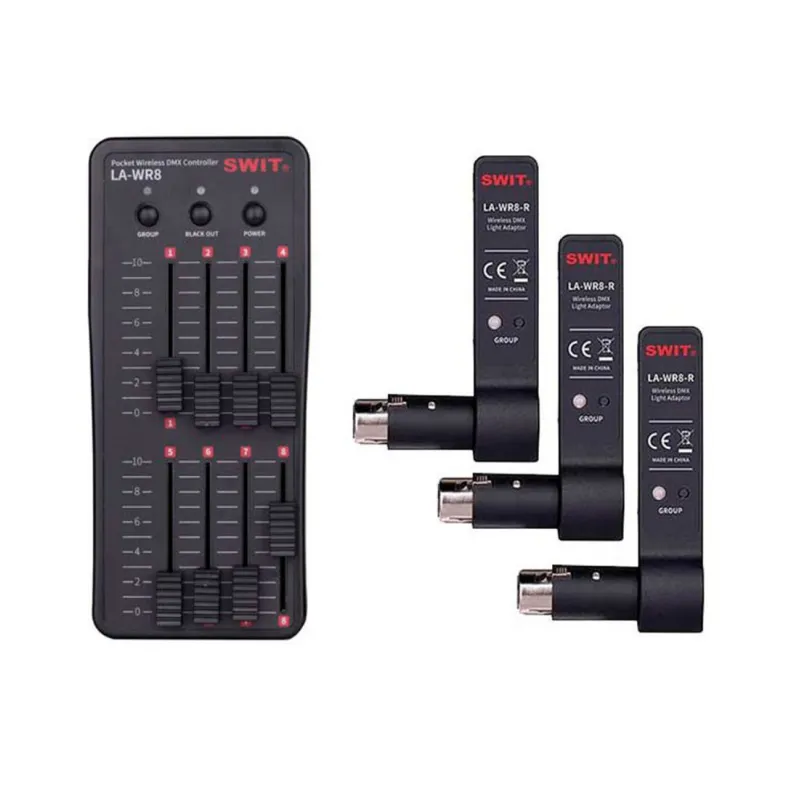

- Complete kit 1 Transmitter + 3 Receivers
- 2.4G wireless transmission, up to 400m (LOS)
- Standard DMX512 protocol compatibility
- 8 faders, 7 groups, 56 DMX channels
- Plug-and-play, fast pairing, anti-interference
- 5-pin DMX connector on receivers
- Color-coded group indicators
- Powered by AA batteries or Micro USB (Tx)
- USB-powered receivers (low 0.5W consumption)
- Compact and lightweight design
- 1 LA-WR8 Transmitter (with USB cable)
- 3 LA-WR8-R Receivers (each with USB cable)
Model
- Transmitter LA-WR8
- Receiver LA-WR8-R
Wireless 2.4G transmission
Transmission Distance 400m (line of sight)
Power Input
- Tx 2 AA batteries or 5V Micro USB
- Rx 5V Micro USB
Power Consumption
- Tx 1W
- Rx 0.5W
Weight
- Tx Approx. 274 g
- Rx Approx. 47 g
Dimensions
- Tx 18.4 x 8.4 x 2.2 cm
- Rx 11 x 7 x 1.2 cm
