CVW Beamlink Quad Plus is a wireless HD video transmission system supporting 4 transmitters to 1 receiver with up to 800m range and H.265 encoding.
CVW Beamlink Quad Plus
Product ID: 60839
SKU: 60839
Ean: 0764595789329
Condition: New product
Manufacturer: CVW
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Wireless Video Transmission Systems |
| Connector | HDMI |
| Connector | SDI |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details
Wireless HD Video Transmission System

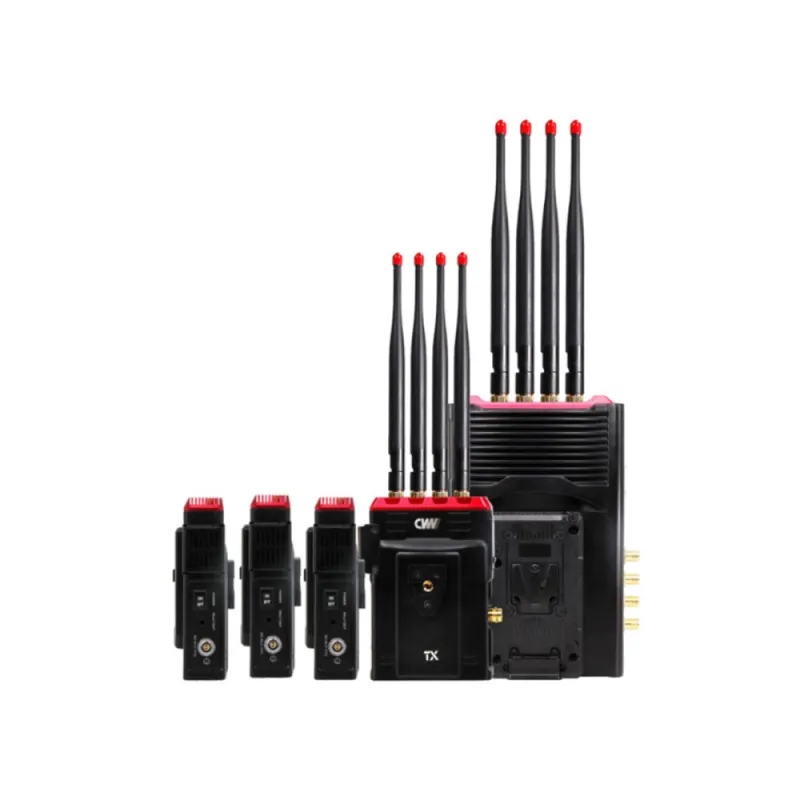

The CVW Beamlink Quad Plus is a 4 transmitters to 1 receiver wireless HD video transmission system, redeveloped from the Beamlink Duo with significant improvements.
Key Features
- Wireless HD transmission with a long-distance range of up to 800 meters
- Channel scanning capability
- Display shows signal strength for easy monitoring
- Encoding and decoding using H.265 for efficient video compression
- Combination interface supporting PTZ (Pan-Tilt-Zoom) control
- Supports 2 transmitters to 1 receiver with Tally function, enabling 2 channels of HD video transmission
- Seamless connection between receiver and video switcher within a single RF channel
- Supports both SDI and HDMI video inputs
- Simple installation and convenient operation
- Flexible application scenarios
- Eliminates the need for running wires in multi-position setups

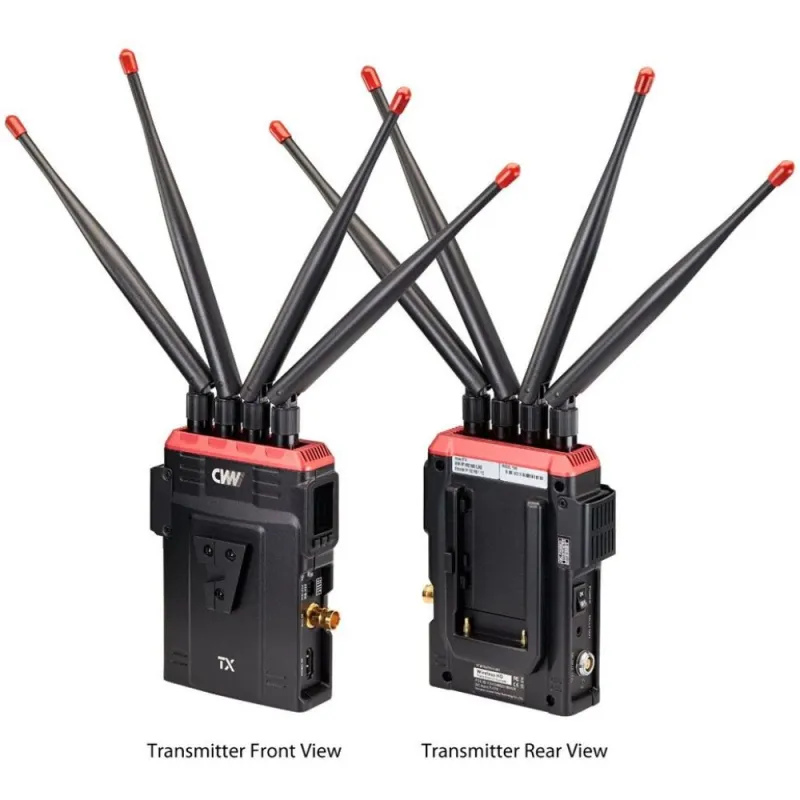

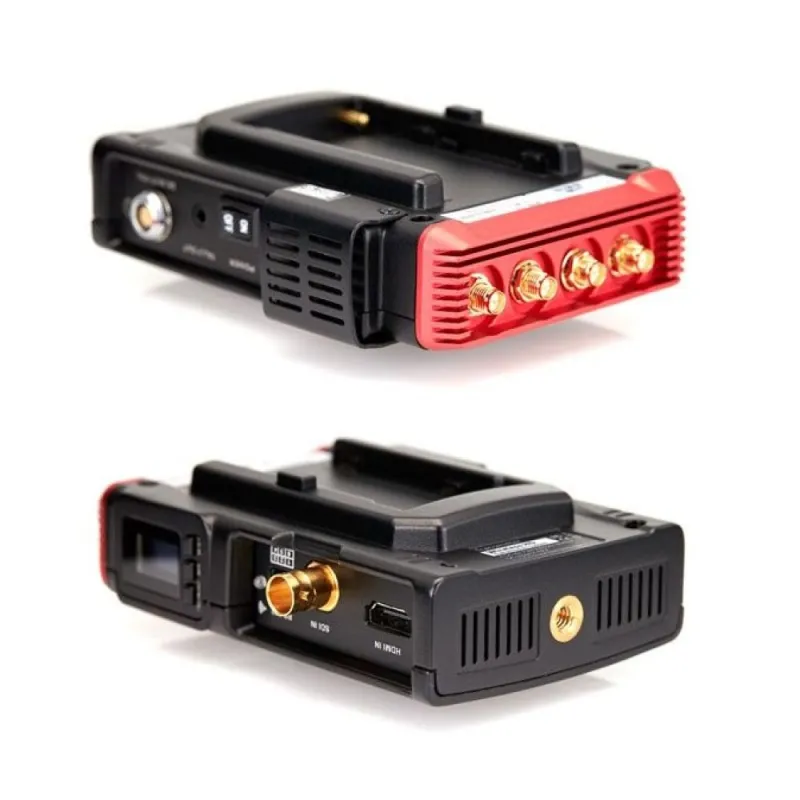

Transmitter Specifications
- Antenna Mode: 4×4 MIMO with 5 dBi external antennas
- Frequency Range: 5.1 to 5.8 GHz
- Transmission Power: 17 dBm
- Audio Format: PCM, MP2
- Receiving Sensitivity: -70 dBm
- Bandwidth: 40 MHz
- Power Consumption: 10 W
- Transmission Range: Up to 800 meters (video code rate: 8 Mbps per channel)
- Operating Temperature: 0 to 40 °C (working), -20 to 80 °C (storage)
- Overvoltage Protection: 7 V to 17 V
- Product Dimensions: 96 mm (L) × 46 mm (W) × 127 mm (H)

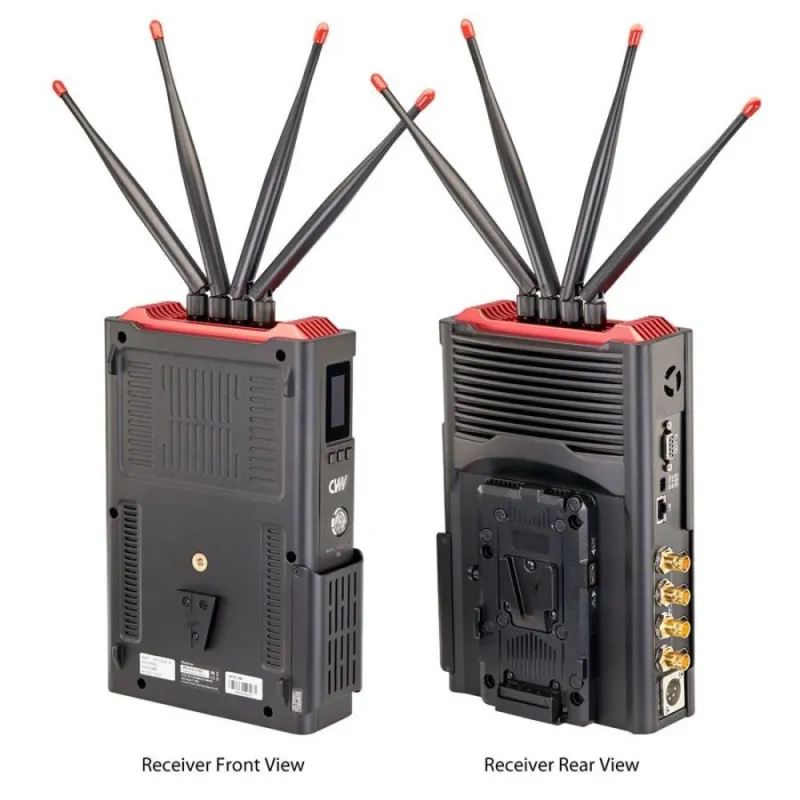

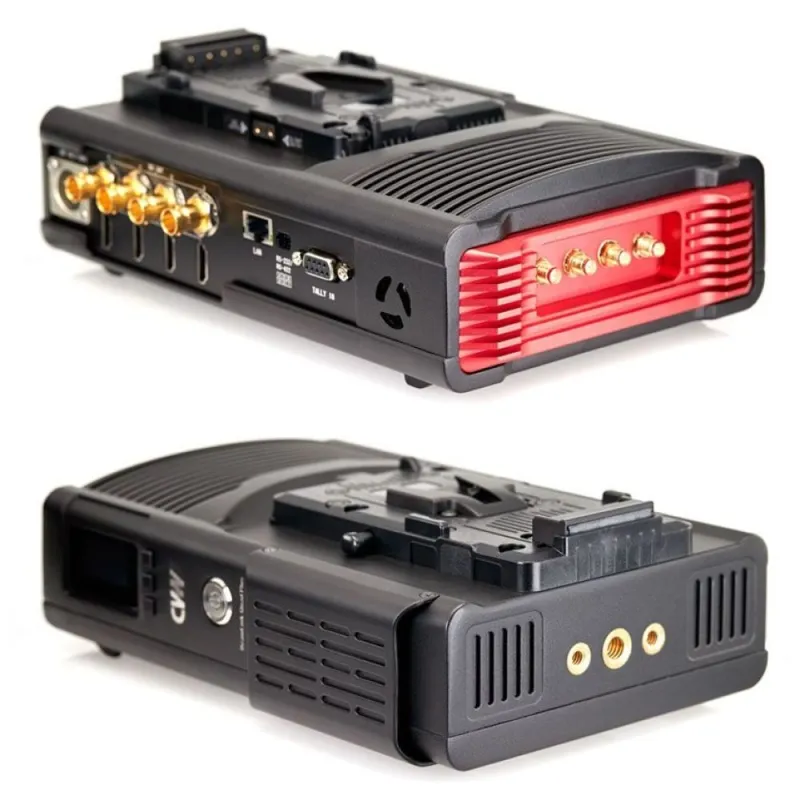

Receiver Specifications (RX: BEAMLINK-Quad)
- Antenna Mode: 4×4 MIMO with 5 dBi external antennas
- Frequency Range: 5.1 to 5.8 GHz
- Receiving Sensitivity: -70 dBm
- Bandwidth: 40 MHz
- Audio Format: PCM, MP2
- SDI Protocol: SMPTE 424M 3G-SDI
- Power Consumption: 20 W
- Transmission Range: Up to 500 meters (video code rate: 8 Mbps per channel)
- Product Dimensions: 176 mm (L) × 81 mm (W) × 235 mm (H)
- Operating Voltage: 7 to 17 V
