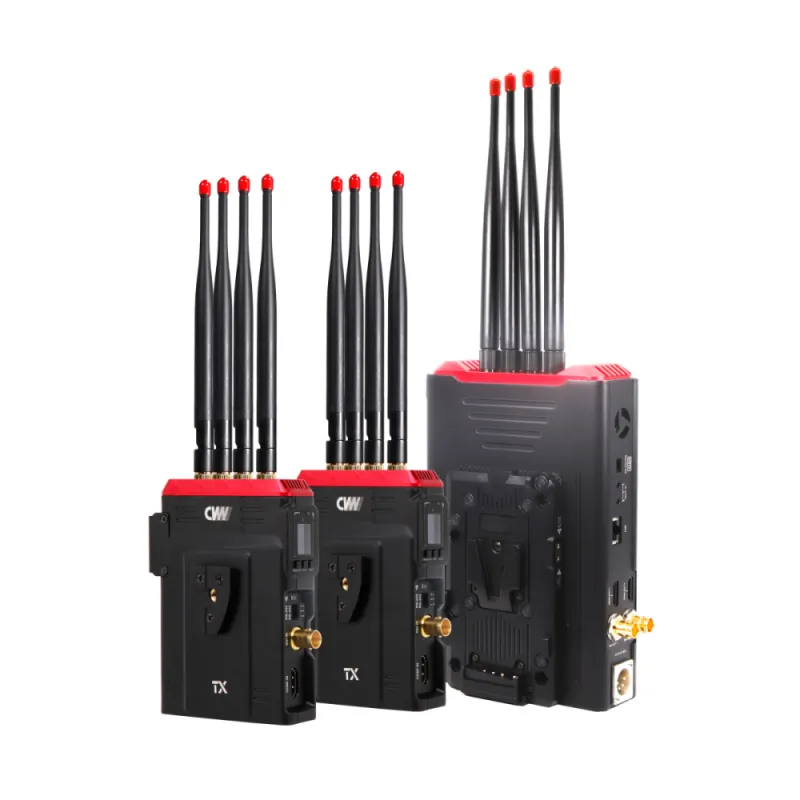

Wireless HD video transmission system with 2 transmitters to 1 receiver, supporting up to 1000m range and both SDI and HDMI inputs.
CVW BeamLink Duo Plus
Product ID: 60840
SKU: 60840
Ean: 0764595789312
Condition: New product
Manufacturer: CVW
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Wireless Video Transmission Systems |
| Connector | HDMI |
| Connector | SDI |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details
Wireless HD Video Transmission System
The CVW BeamLink Duo Plus is an advanced wireless HD video transmission system designed to support two transmitters to one receiver (2TX-to-1RX) configuration. It enables seamless HD video transmission over long distances, eliminating the need for cumbersome wiring in multi-position setups.
Key Features
- Wireless HD transmission with a range of up to 1000 meters
- Channel scanning capability for optimal frequency selection
- Display shows signal strength for easy monitoring
- Combination interface supporting PTZ (Pan-Tilt-Zoom) control
- Tally function included
- Supports transmission of 2 channels of HD video simultaneously
- Operates within a single RF channel to provide seamless connection between receiver and video switcher
- Compatible with both SDI and HDMI video inputs
- Simple installation and convenient operation
- Flexible application scenarios
- Eliminates the hassle of running wires for multi-position video setups
Technical Specifications - Transmitter (TX)
- Antenna Mode: 4×4 MIMO and Beamforming with 5dBi external antenna
- Frequency Range: 5.1 to 5.8 GHz
- Transmission Power: 17 dBm
- Audio Format: PCM, MP2
- Receiving Sensitivity: -70 dBm
- Bandwidth: 40 MHz
- Power Consumption: 10 W
- Transmission Range: 700 meters (video code rate: 8 Mbps per channel)
- Operating Temperature: -10 to 50 °C
- Storage Temperature: -20 to 80 °C
- Overvoltage Protection: 7 V to 17 V
- Product Dimensions (L×W×H): 96 × 46 × 127 mm
Technical Specifications - Receiver (RX)
- Antenna Mode: 4×4 MIMO and Beamforming with 5dBi external antenna
- Frequency Range: 5.1 to 5.8 GHz
- Receiving Sensitivity: -70 dBm
- Bandwidth: 40 MHz
- Audio Format: PCM, MP2
- SDI Protocol: SMPTE 424M 3G-SDI
- Power Consumption: 13 W
- Transmission Range: 700 meters (video code rate: 8 Mbps per channel)
- Operating Voltage: 7 to 17 V
- Product Dimensions (L×W×H): 176 × 81 × 235 mm
