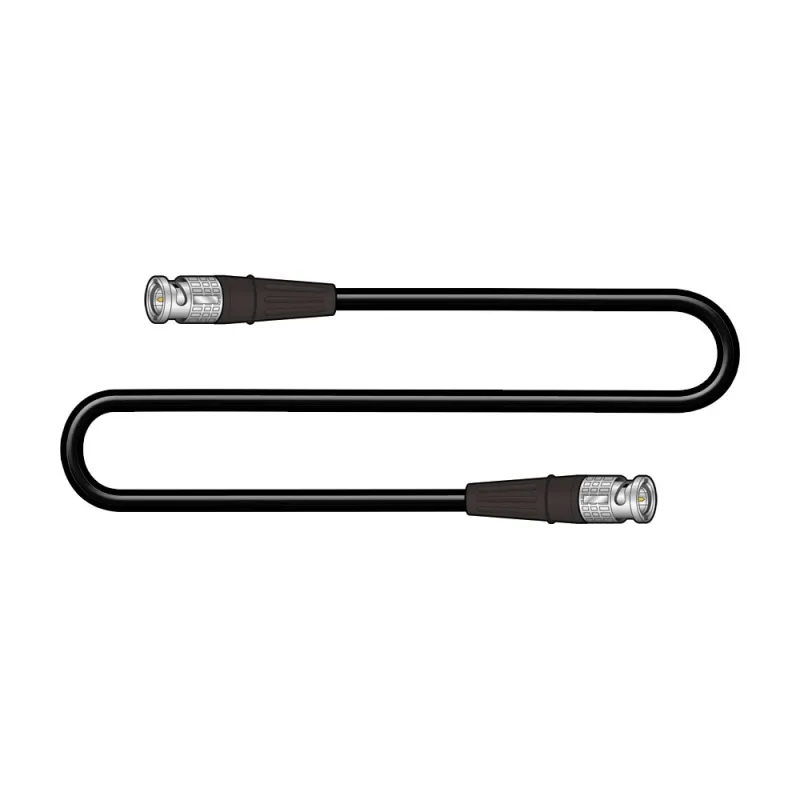

Canare L-4.5CHWS Flexible 3G-SDI Cable, BNC-BNC 70m CV-45W-M/M-BLK-70
Produkta kods: 29590
SKU: 29590
Model: CV-45W-M/M-BLK-70
Ean: 0000000000000
Manufacturer: Canare
Condition: New product
Goods are not available at the moment
We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.
MasterFoto.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.
315.45
Leasing calculator
Payment period
3
6
12
24
36
Monthly, €
no
Artificial Intelligence assistant
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers?
Discover related products
Discover related products
Canare L-4.5CHWS flexible and durable 75 ohm 7,2 mm Low Loss koaxial SD/HD/3G-SDI cable, ideal for mobile applications.
Use of flexible 12G/3G/HD-SDI cable Canare L-4.5CHWS:
- compliant with SMPTE 424M and SMPTE 292M, SMPTE ST 344M and SMPTE ST 2082-1 specifications
- HDTV
- 4K/HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Test equipment
Specifications:
- Standard manufactured lengths: 100/200m
- Sheath diameter (overall diameter) in mm:7.2
- Cable weight in kg/100m: 6.6
- Central conductor - number and diameter of stranded wire in mm: 7/0,34
- Total diameter of central conductor in mm: 1.02
- Foam dielectric - diameter in mm: 4,57
- Resistance of central conductor in /100m:3,3
- Resistance of outer conductor in /100m:0,8
- Temperature range: -30C ~ +60C
- Static capacitance in pF/m:53
- Attenuation in dB/100m:22.8
Maximum transmission distance depending on video format:
| Maximum transmission distance of Canare L-4.5CHWS depending on video format | |||||||
| Data transfer rate: | 143 Mbps | 177 Mbps | 270 Mbps | 360 Mbps | 540 Mbps | 1.5 Gb/s | 3 Gb/s |
| Specification: | SMPTE 259M | SMPTE 259M | SMPTE 259M | SMPTE 259M | SMPTE ST 344M | SMPTE ST 292M | SMPTE ST 424M |
| Application: | nTSC composite | pAL composite | components 4:2:2 | 4:2:2 16x9 components | SDI | HD-SDI 1080i | 3G-SDI 1080p |
| Maximum cable length: | 447m | 405m | 322m | 280m | 225m | 87m | 90m |
| Type of Product | Wires, cables for video |
| LCD monitors | HDMI adapter |
| Connections | BNC to BNC |
