The Canare HBCP-D25HW is a 12G Micro BNC crimp connector designed for Canare L-2.5CHWS cable, suitable for various video applications.

Canare HBCP-D25HW crimp MICRO-BNC connector CNRHBCPD25HW

Product ID: 7528
12,95 tax incl.

Delivery in 5 - 7 business days

Available from supplier: 119 Items

SKU: 7528
Model: CNRHBCPD25HW
Ean: 0000000000000
Condition: New product
Manufacturer: Canare

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductVideo Connectors
ConnectionsBNC to BNC
Lenght, m0.11
send a message

Quick order


Available from warehouse

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Canare HBCP-D25HW crimp MICRO-BNC connector CNRHBCPD25HW

Canare HBCP-D25HW crimp MICRO-BNC connector CNRHBCPD25HW

The Canare HBCP-D25HW is a 12G Micro BNC crimp connector designed for Canare L-2.5CHWS cable, suitable for various video applications.

Write a review

Product details

Canare HBCP-D25HW

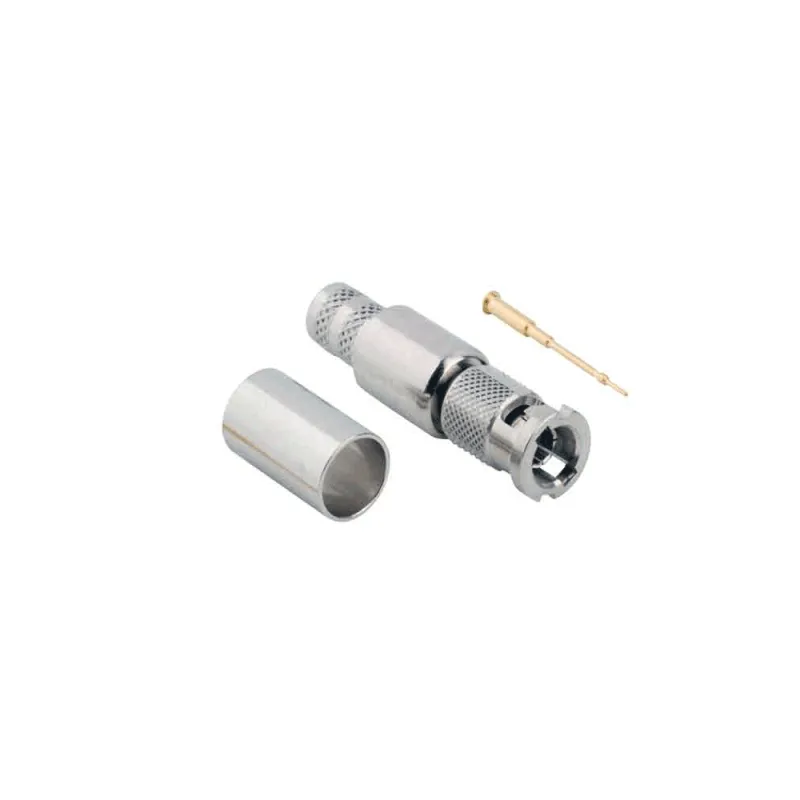

Canare HBCP-D25HW is a 12G, 75 ohm Micro BNC (M) crimp connector (straight type) designed for use with the Canare L-2.5CHWS cable.

Applications

  • In compliance with SMPTE 2082-1, 424M & 292M specifications
  • HDTV
  • 12G/3G/HD/SD-SDI video
  • PAL & NTSC analog video
  • Satellite applications
  • TELCO
  • Testing equipment

Features

  • True 75 ohm design with crimp pin and sleeve
  • 20dB attenuation at 3GHz, 8dB at 12GHz
  • Extended body for better handling
  • Position marker on the body allows for easy connector inspection
  • Excellent cable retention
  • Gold-plated center pin
  • Die-cast connector body for lower cost with high performance
  • Easy assembly using Canare crimping tool
