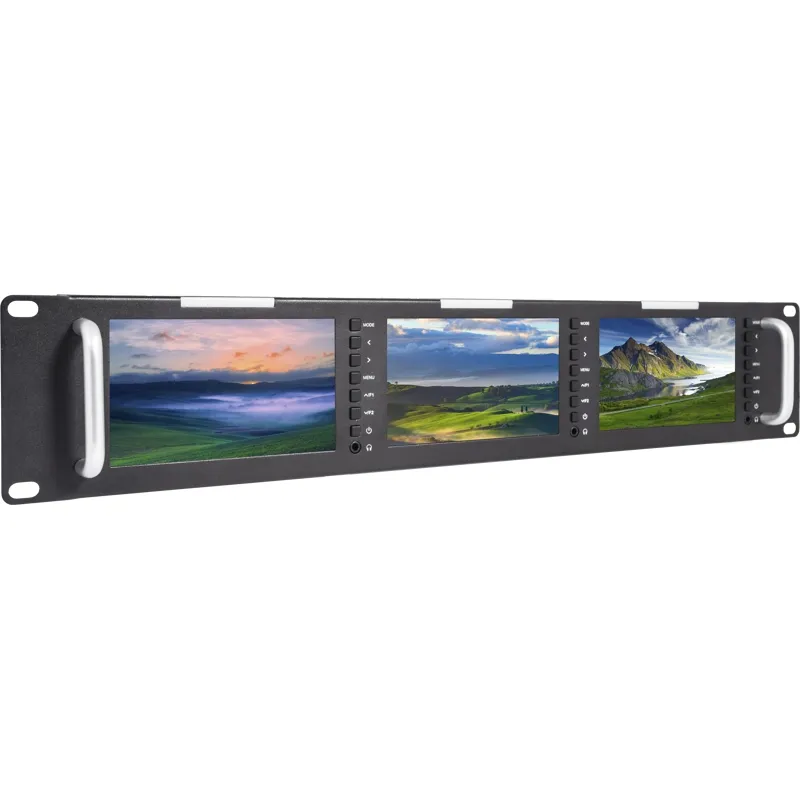

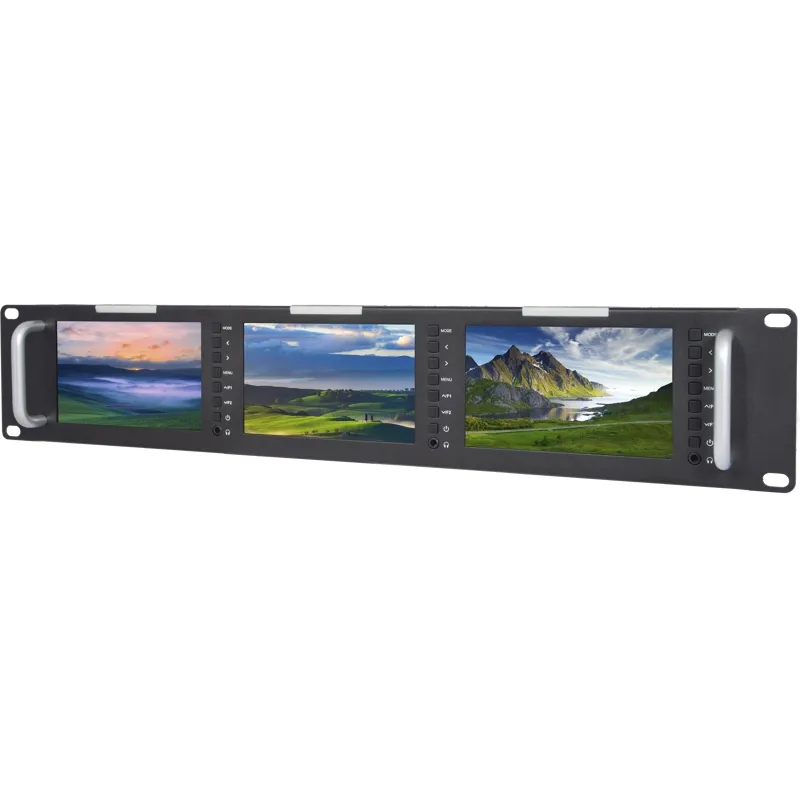

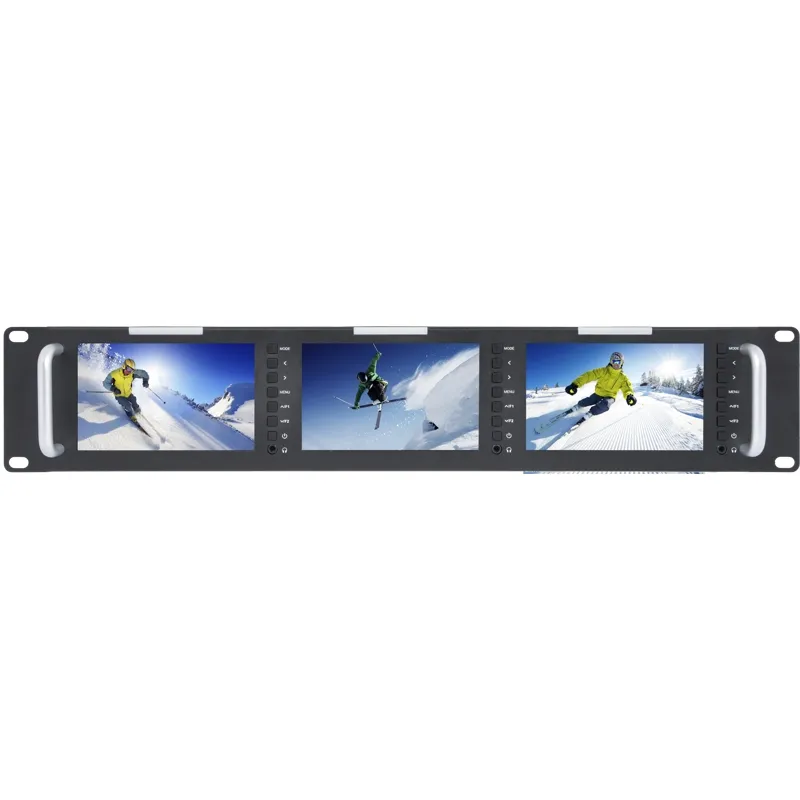

SEETEC MONITOR T51-H3 X 5 2RU3*5 INCH T51-H

Triple 5" 2RU Rack Monitors
T51 are extremely thin and lightweight. 5" 2RU Rack Monitors with triple 5” 800×480 screens, viewing SD, HD video on 2RU rack monitor. FEELWORLD Rack mount LCD monitor has been widely used in all levels of TV news production, post production, programme broadcasting and TV broadcasting trucks, special vehicles video surveillance and other fields. Since this series is working with other adjacent professional equipments, therefore, the high stability, high reliability and electromagnetic compatibility are very important conditions to make sure the whole system work smoothly.

5" 800×480 LCD
TFT Panel with LED backlight
The D51 is made of 3×5-inch TFT LCD panel, with 800×480 resolution and LED backlight, 500cd/m² brightness and 500:1 contrast. The viewing angle is Horizontal: 140° / Vertical: 120°.

Easy to operate, time-saving
Consistent design style, the same function and operation mode setting is one of the features of the products. Users only need to know one product operation mode, you can operate the full range products, time-saving and convenient.

Multiple Inputs and Outputs
HDMI / CVBS / Audio
Each LCD of T51 monitor supports:
Input: HDMI X 1, CVBS X 1, Auido (L/R) X 2
Output: HDMI X 1, CVBS X 1
Audio: Stereo Headphone

3-color Tally Light
DB-15 input signal
There are front TALLY lights for each screen, with 3 colors display (Red, Green, Yellow), and controlled via DB-15 ports on the rear panel.

Stablity and Reliability
As rack mount LCD monitors usually in a continuous working condition, all components including LCD panel must be accordance with industrial quality standard. Full Metal case not only makes the product more robust, and durable, but also is a good solution to the heat dissipation problem.

Key Features

• Peaking Focus Assist
• Pixel to Pixel
• Centre Marker
• Screen Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
• Image Flip (H, V, H/V)
• Check Field (Red, Green, Blue, Mono)
• Image Freeze
• Zoom All
• U/D & L/R Zoom
• Built-in LED tally indicators (Red, Green, Yellow)

In the box

• T51-H monitor
• 3A Power Adapter
• Tally Kit
• Operation Manual
