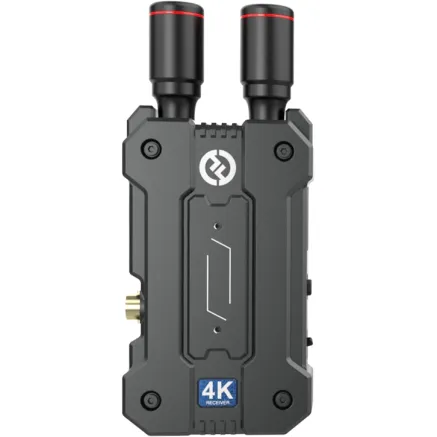

Hollyland MARS 4K Single Receiver for wireless 4K video transmission system

MARS 4K

150m 4K UHD wireless video transmission

4K UHD Video Transmission

The Mars 4K supports 4K UHD video transmission at 30fps for the discerning videographer looking for high-resolution production capability. The Mars 4K also supports FHD and HD formats at varying frame rates—24p, 30p, and 60p.

150m LOS Range and 0.06s Ultra-low Latency

The Mars 4K achieves an incredible LOS range of 150m and ultra-low latency of 0.06s. Its upgraded dual-core codec chip is capable of a 12 Mbps data transfer rate. *The LOS range of 150m is based on interference-free laboratory measurements.

HDMI & SDI Dual Interfaces

The Mars 4K supports HDMI and SDI input and output for expanded connectivity and compatibility. The SDI provides expanded frame rate flexibility for both broadcast and production frame rate (decimal-point frame rate) standards and compatibility through production and postproduction.

Flexible Monitoring Options

The Mars 4K transmitter is compatible with up to two receivers or four mobile devices with the app installed. Up to four mobile devices with the app installed allow a maximum of four parties (such as the director, producer, light control personnel, and audio personnel) on the site to monitor the shooting at the same time.

Operational Efficient Design Form Factor

The Mars 4K is featured with superior corrosion and wear resistance for outstanding durability. With disassembly-free, bullet-styled antennas attached, the well-thought-out design form factor optimizes operational functionality for fast configurations.

Smart Channel Scan and Selection

Channel assignment options allow for interference-free transmission. A stable connection is possible automatically upon startup. Smart channel scan helps determine which ones are occupied and selectable.

Color LCD with an Exclusive Rocker-Style Button

The Mars 4K features a color LCD with a user-friendly UI design that enables quick configurations and status checks. Its uniquely designed gamepad-styled button greatly improves the operational setup experience.

Multiple Power Supply Options

The Mars 4K supports a wide range of DC power options—6V to 16V, NP-F batteries, and USB Type-C chargers.

KEY FEATURES

• 4K UHD
• 150m LOS Range
• 0.06s Low Latency
• SDI & HDMI Support
• Broadcast & Production Frame Rate
• Flexible Monitoring Options
• Smart Channel Scan & Selection
• Multiple Power Supply Options

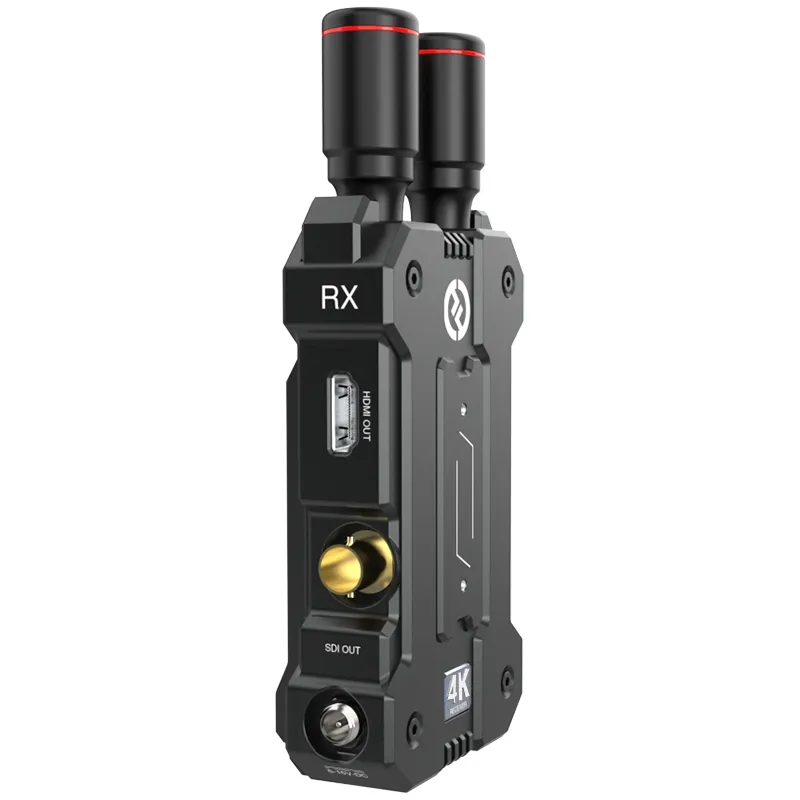

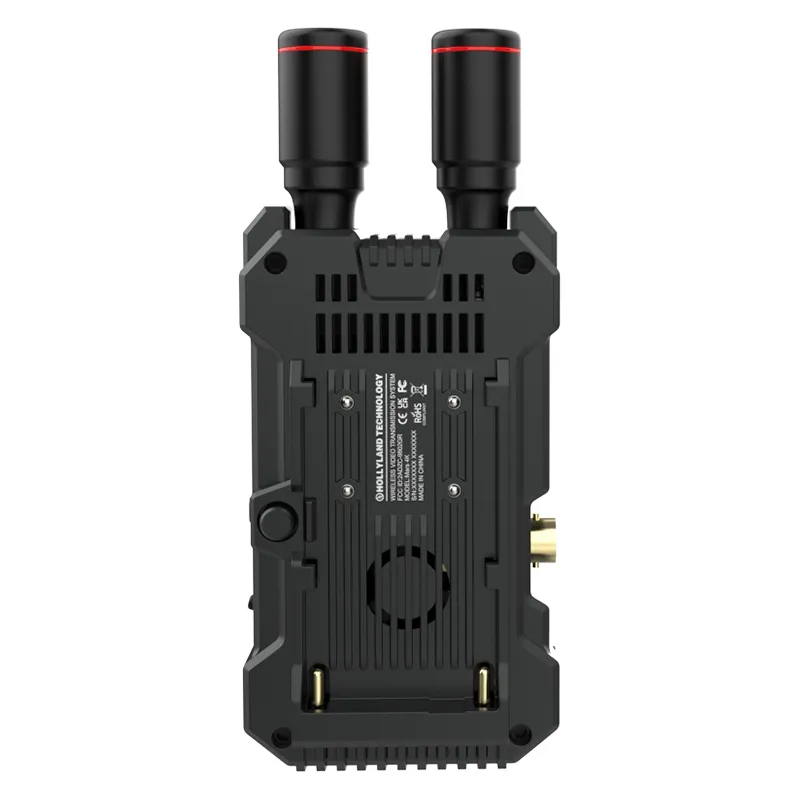

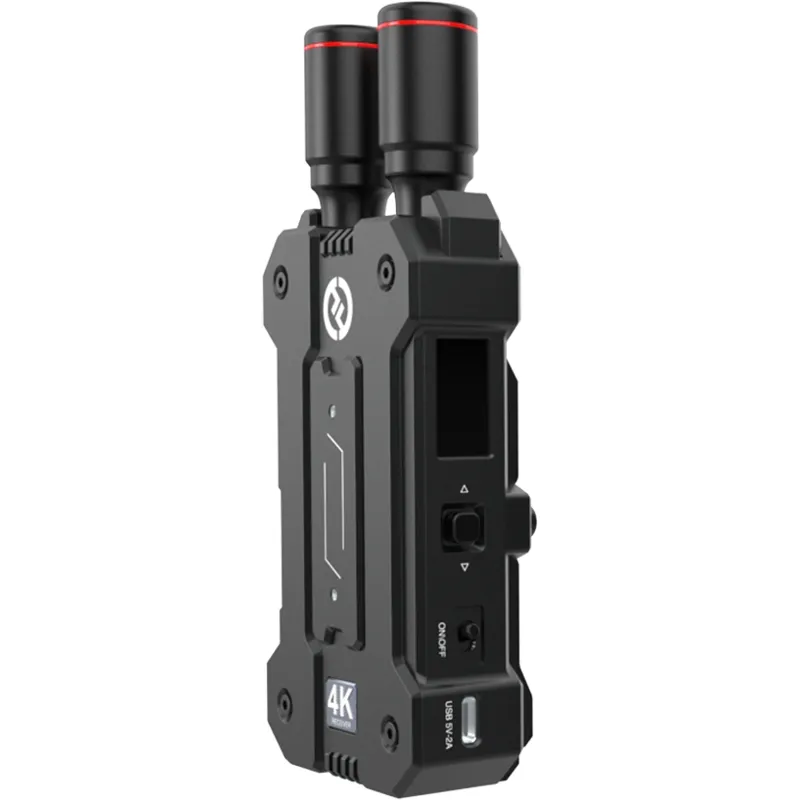

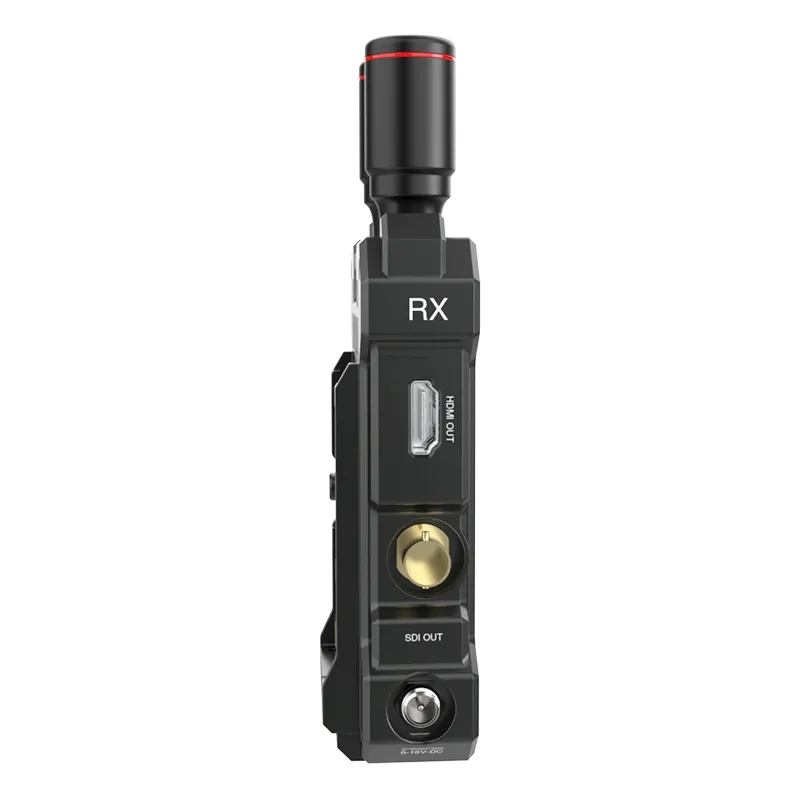

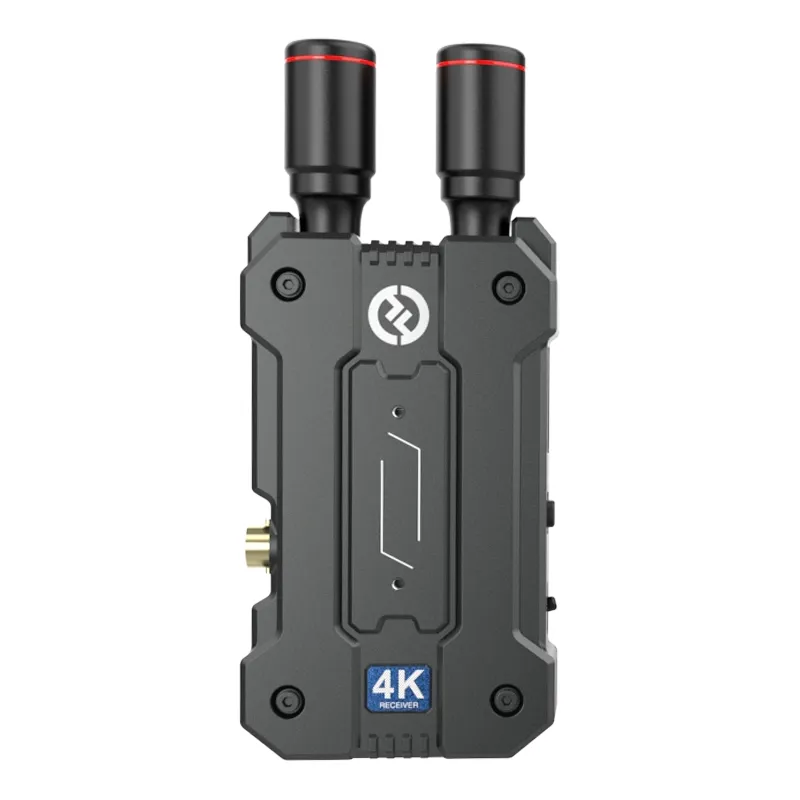

Add up to 4K30 wireless video transmission to your gimbal, mirrorless, or DSLR camera rig using the lightweight Mars 4K Wireless Video Receiver from Hollyland. The receiver provides HDMI and SDI outputs and features extremely low 66 ms latency with line-of-sight transmission up to 450' to an optional receiver.

The unit features a built-in frequency scanner to select the clearest frequency for your transmission. The Mars 4K receiver is compact in size, features a bright touchscreen LCD display for configuration, and is built with a corrosion-resistant housing. The unit can be powered using a USB-C source, the included locking DC power adapter, or by using a separately available L-series type battery using an optional battery plate.
