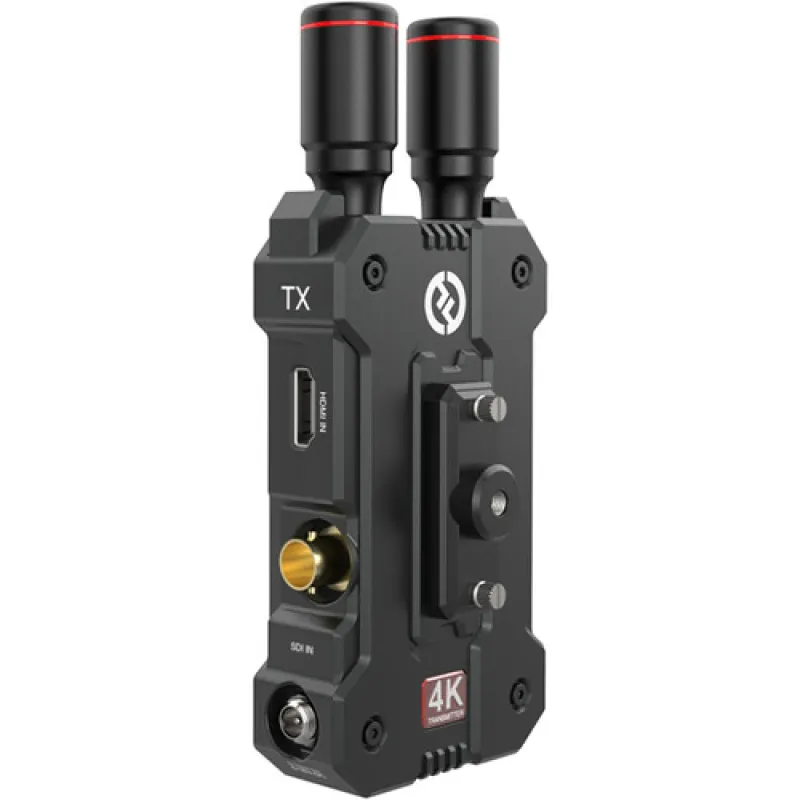

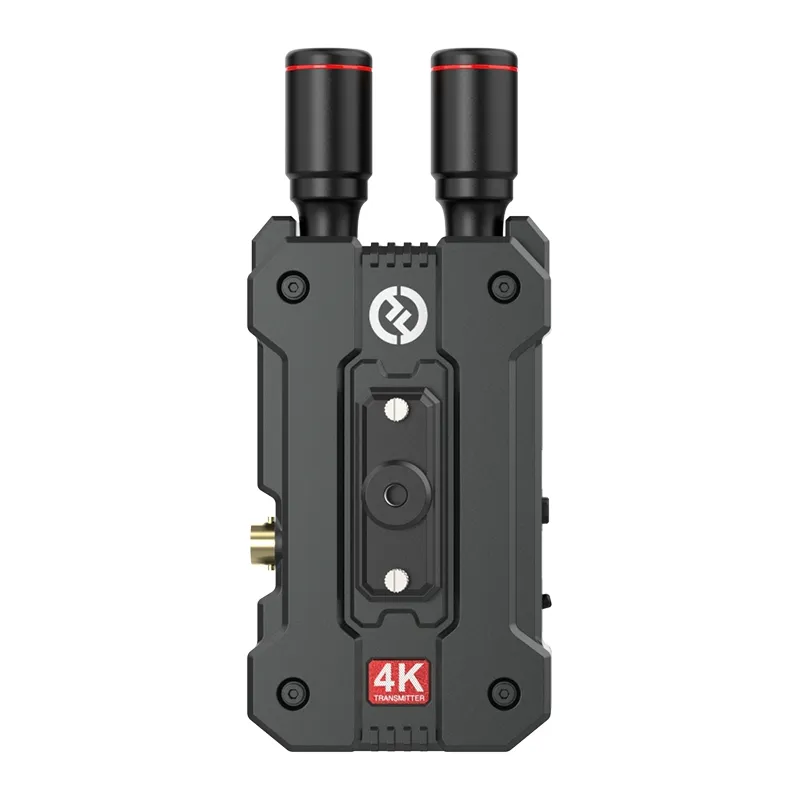

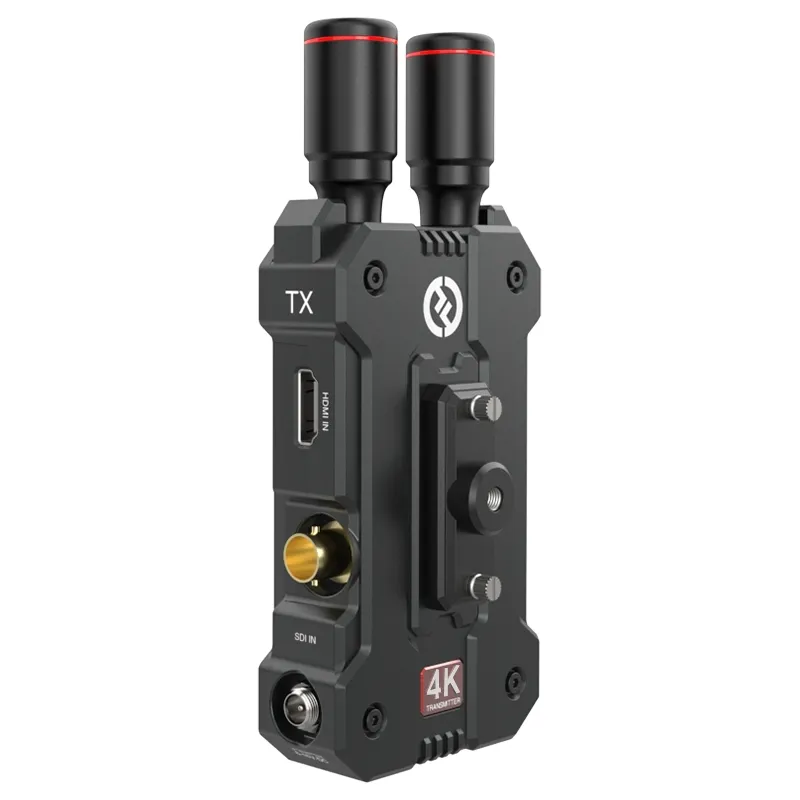

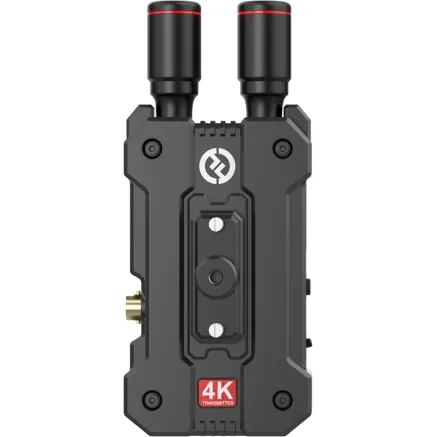

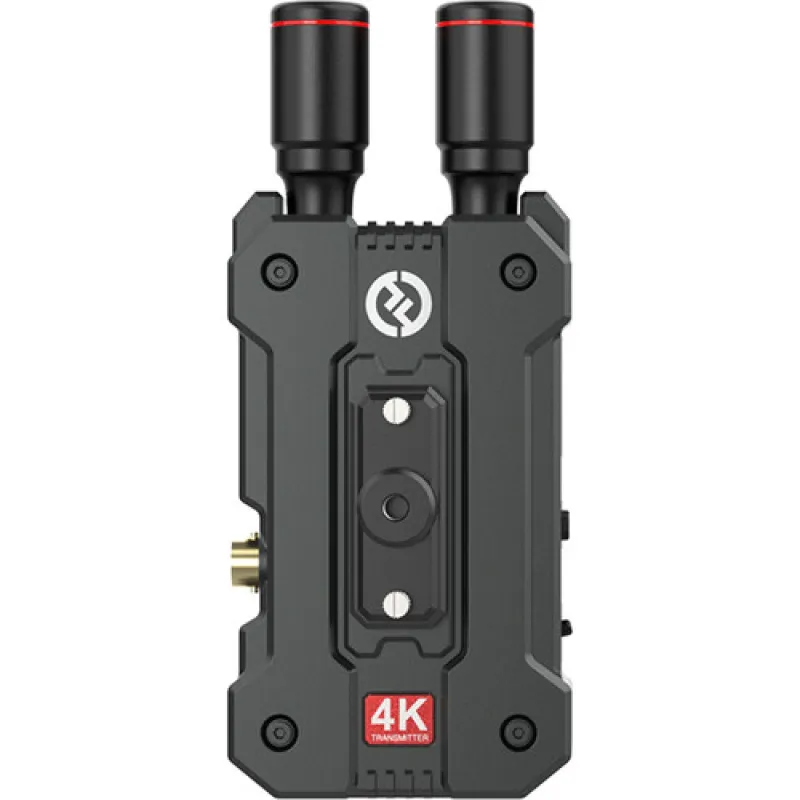

Hollyland MARS 4K Single Transmitter for wireless 4K video transmission system
Состояние New product
или спросите
MARS 4K
150m 4K UHD wireless video transmission
4K UHD Video Transmission
The Mars 4K supports 4K UHD video transmission at 30fps for the discerning videographer looking for high-resolution production capability. The Mars 4K also supports FHD and HD formats at varying frame rates—24p, 30p, and 60p.
150m LOS Range and 0.06s Ultra-low Latency
The Mars 4K achieves an incredible LOS range of 150m and ultra-low latency of 0.06s. Its upgraded dual-core codec chip is capable of a 12 Mbps data transfer rate. *The LOS range of 150m is based on interference-free laboratory measurements.

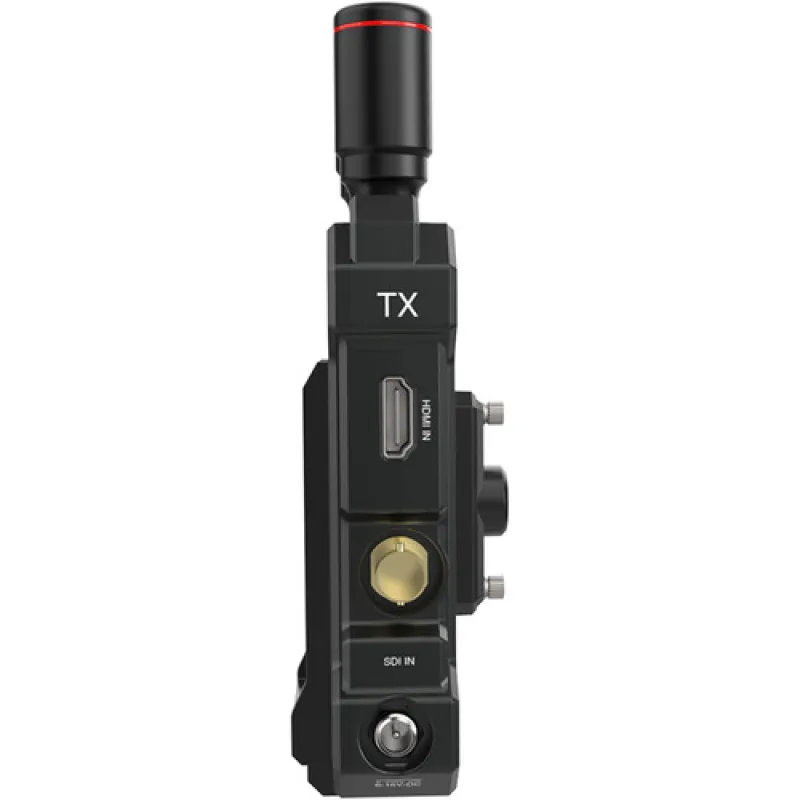

HDMI & SDI Dual Interfaces
The Mars 4K supports HDMI and SDI input and output for expanded connectivity and compatibility. The SDI provides expanded frame rate flexibility for both broadcast and production frame rate (decimal-point frame rate) standards and compatibility through production and postproduction.
Flexible Monitoring Options
The Mars 4K transmitter is compatible with up to two receivers or four mobile devices with the app installed. Up to four mobile devices with the app installed allow a maximum of four parties (such as the director, producer, light control personnel, and audio personnel) on the site to monitor the shooting at the same time.
Operational Efficient Design Form Factor
The Mars 4K is featured with superior corrosion and wear resistance for outstanding durability. With disassembly-free, bullet-styled antennas attached, the well-thought-out design form factor optimizes operational functionality for fast configurations.
Smart Channel Scan and Selection
Channel assignment options allow for interference-free transmission. A stable connection is possible automatically upon startup. Smart channel scan helps determine which ones are occupied and selectable.

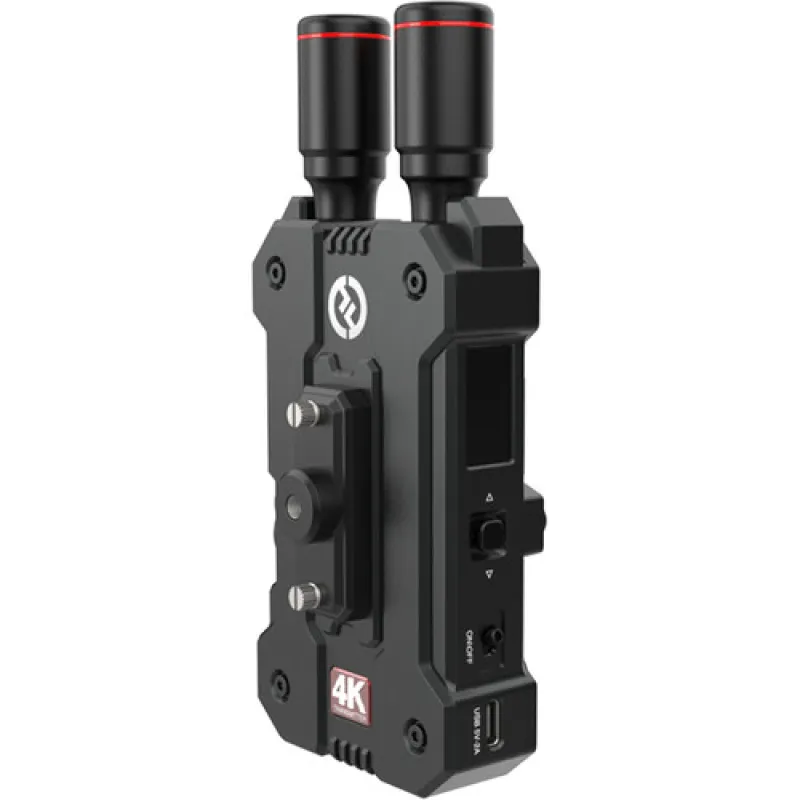

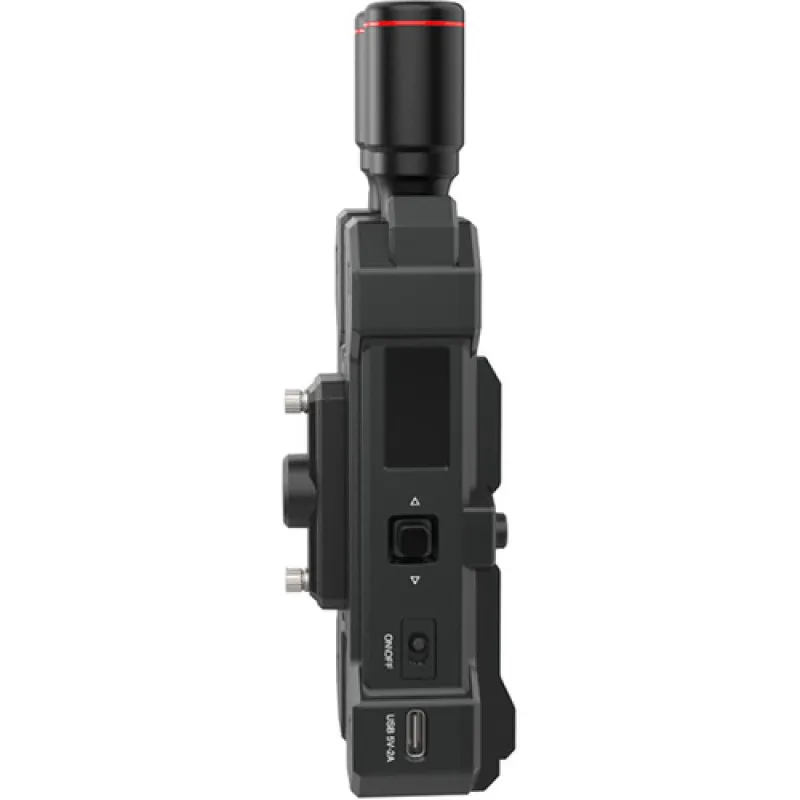

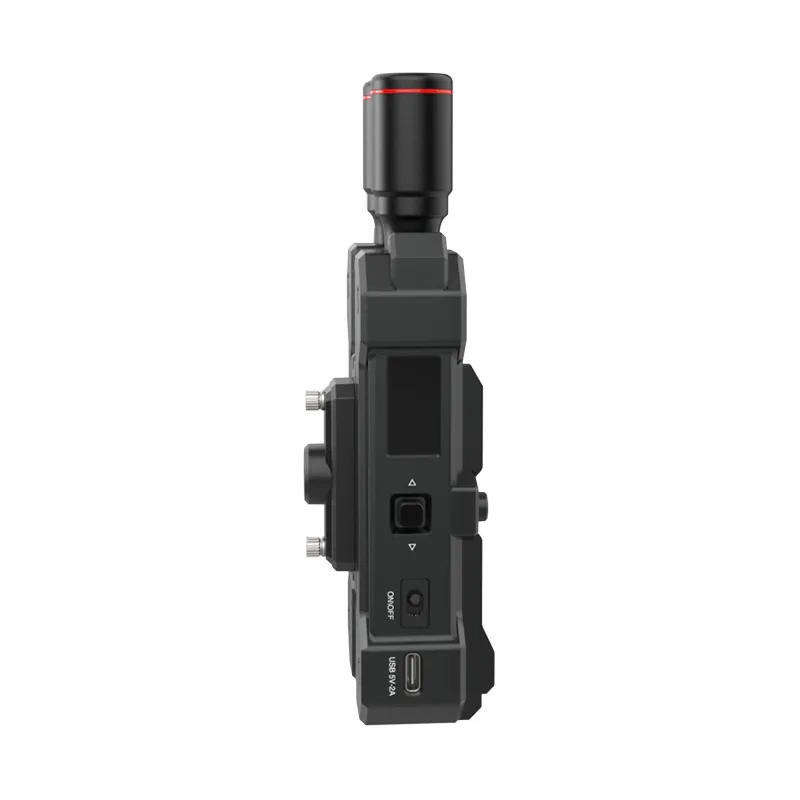

Color LCD with an Exclusive Rocker-Style Button
The Mars 4K features a color LCD with a user-friendly UI design that enables quick configurations and status checks. Its uniquely designed gamepad-styled button greatly improves the operational setup experience.

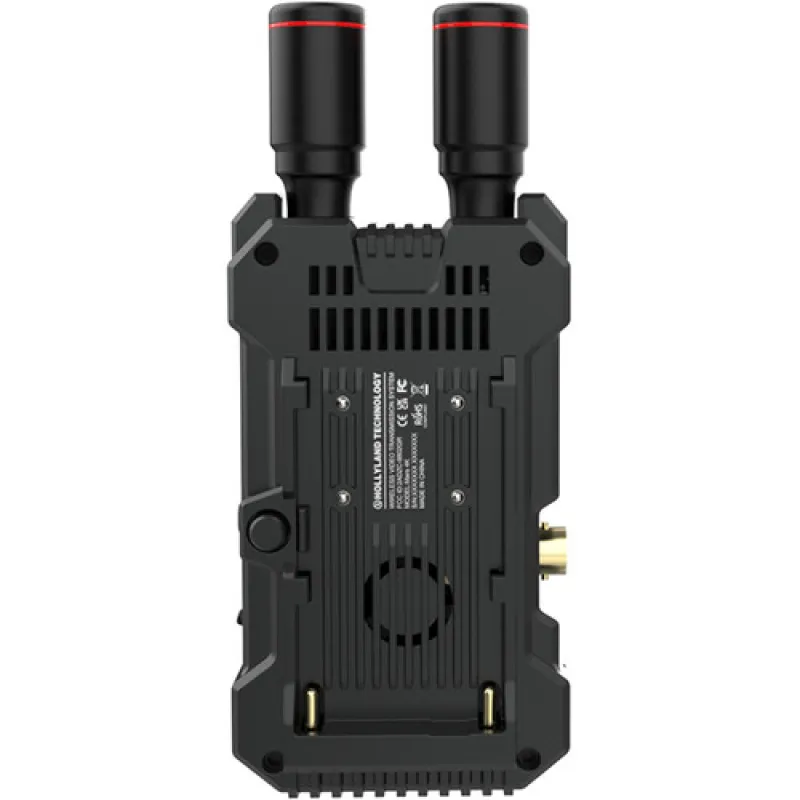

Multiple Power Supply Options
The Mars 4K supports a wide range of DC power options—6V to 16V, NP-F batteries, and USB Type-C chargers.
KEY FEATURES
- 4K UHD
- 150m LOS Range
- 0.06s Low Latency
- SDI & HDMI Support
- Broadcast & Production Frame Rate
- Flexible Monitoring Options
- Smart Channel Scan & Selection
- Multiple Power Supply Options
Hollyland MARS 4K Single Transmitter for wireless 4K video transmission system
The new Hollyland Mars 4K wireless video transmission system is capable of a 150m LOS range and ultra-low latency of 0.06s. The Mars 4K is designed to combine high performance and reliable quality at an affordable price.
- 4K UHD
- 450ft (150m) LOS Range
- 06s Low Latency (1080p60 Signal)
- SDI & HDMI Support
- Broadcast & Production Frame Rate
- Flexible Monitoring Options
- Smart Channel Scan & Selection
- Multiple Power Supply Options
Specifications:
| Transmitter (Only Transmitter in this set) | Receiver |
Interface | Antenna (RP-SMA male) | Antenna (RP-SMA male) |
HDMI 1.4 b input (Type-A female) | HDMI 1.4 b output (Type-A female) | |
3G-SDI input | 3G-SDI output | |
DC input (2.0mm core sccket) | DC input (2.0mm core sccket) | |
USB Type-C (USB 2.0 OTG) | USB Type-C (USB 2.0 OTG) | |
Power supply | DC input: 6V–16V | DC input: 6V–16V |
USB Type-C: 5V/2.5A | USB Type-C: 5V/2.5A | |
(not supporting the QC and PD | (not supporting the QC and PD | |
protocols) | protocols) | |
NP-F battery: 6.8V–8.4V | NP-F battery: 6.8V–8.4V | |
Power consumption | <8.5W (typical) | <5W (typical) |
Weight | 223g (7.9oz) (excluding the antennas) | 223g (7.9oz) (excluding the antennas) |
Dimension | (LxWxH): 115x65x32mm (4.5x2.5x1.3) | (LxWxH): 115x65x32mm (4.5x2.5x1.3) |
Operating frequency | 5.1GHz–5.8GHz | 5.1GHz–5.8GHz |
Modulation mode | 802.11n | 802.11n |
TX power | 21dBm (max.) | 21dBm (max.) |
RX sensitivity | N/A | –90dBm |
Bit rate | 8Mbps–20Mbps | |
Latency | 0.06s (test data when 1080p60 signals are transmitted in a laboratory) | |
Range | 450ft (150m) (test data in an open, interference-free outdoor environment) | |
Bandwidth | 20MHz | |
Audio format | 2 audio channels for the 3G-SDI and 8 audio channels for the HDMI 1.4b | |
Operating temperature | –10 to 60 | |
Storage temperature | –40 to 60 | |
ESD protection | Contact discharge: ±6kV; air discharge: ±8kV (test data) | |
HDMI Input Format | HDMI Output Format | SDI Output Format |
720p50/59.94/60 | 720p50/60 | 720p50/60 |
1080i50/59.94/60 | 1080i50/60 | 1080i50/60 |
1080p23.98/24/25/29.97/30 | 1080p24/25/30 | 1080p24/25/30 |
1080p50/59.94/60 | 1080p50/60 | 1080p50/60 |
3840*2160 p24/25/30 | 3840*2160 p24/25/30 | 1080p24/25/30 |
SDI Input Format | HDMI Output Format | SDI Output Format |
1080p50/59.94/60 (Level A) | 1080p50/59.94/60 | 1080p50/59.94/60 (Level A) |
1080p50/59.94/60 (Level B) | ||
1080i50/59.94/60 | 1080i50/59.94/60 | 1080i50/59.94/60 |
1080p23.98/24/25/29.97/30 | 1080p23.98/24/25/29.97/30 | 1080p23.98/24/25/29.97/30 |
1080psf23.98/24 | 1080p23.98/24 | 1080p23.98/24 |
1080psf25/29.97/30 | 1080i50/59.94/60 | 1080i50/59.94/60 |
720p50/59.94/60 | 720p50/59.94/60 | 720p50/59.94/60 |
Content of delivery:
1x Transmitter
2x Antenna
1x Self-locking DC Adapter
1x Expansion Accessory
