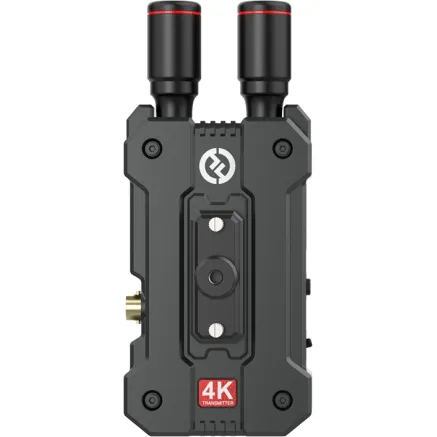

HOLLYLAND Mars 4K 450ft 4K UHD wireless video transmitter
Condition: New product
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Wireless Video Transmission Systems |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease

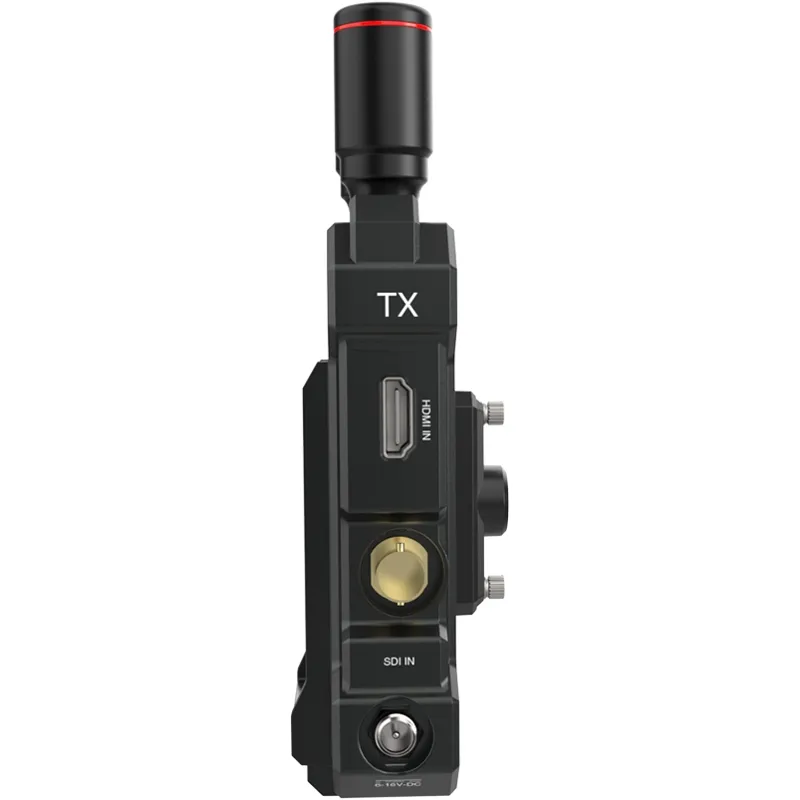

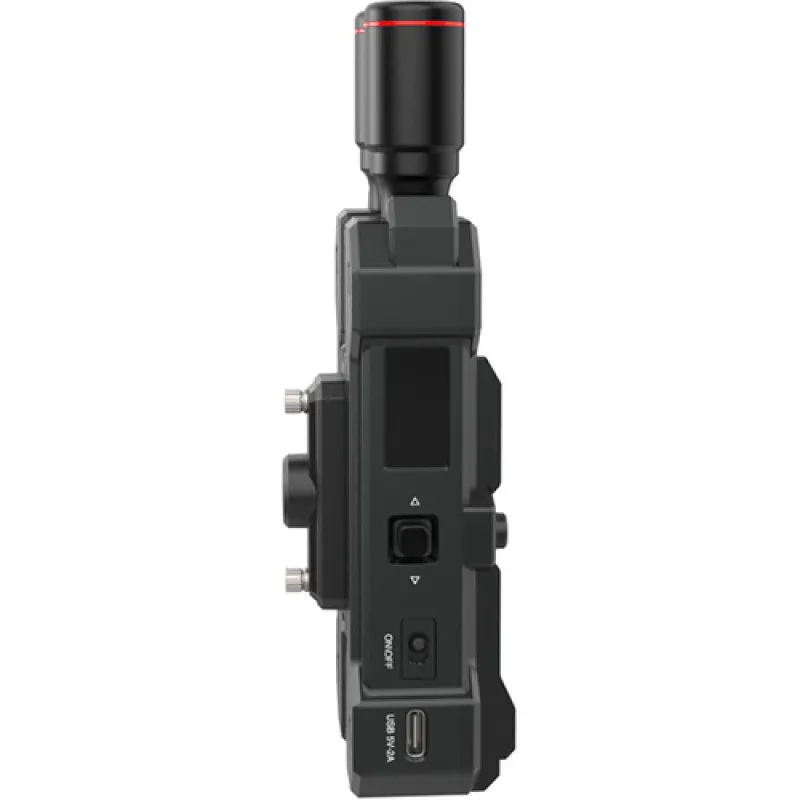

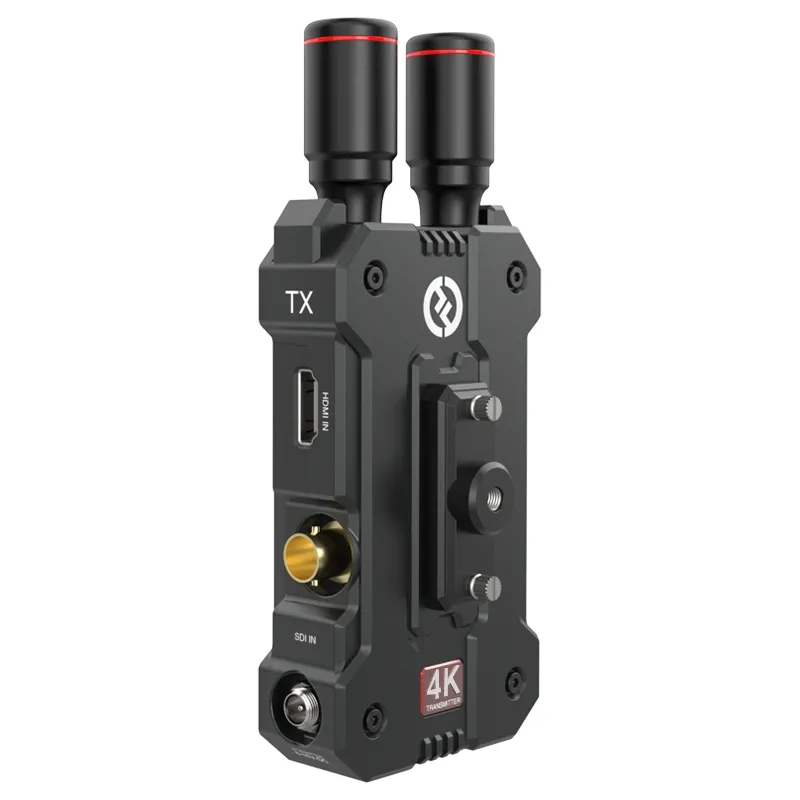

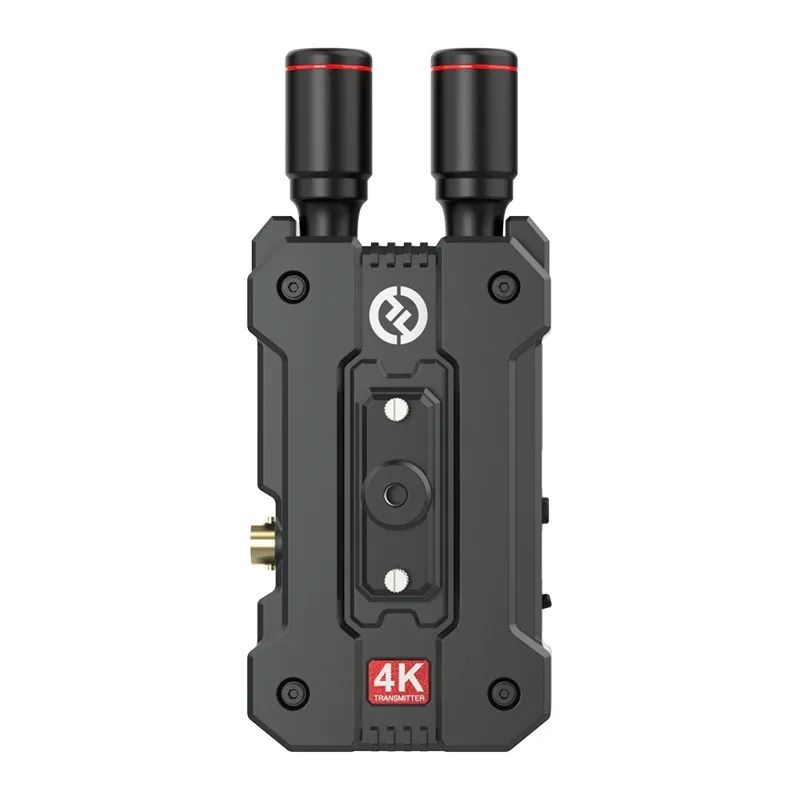

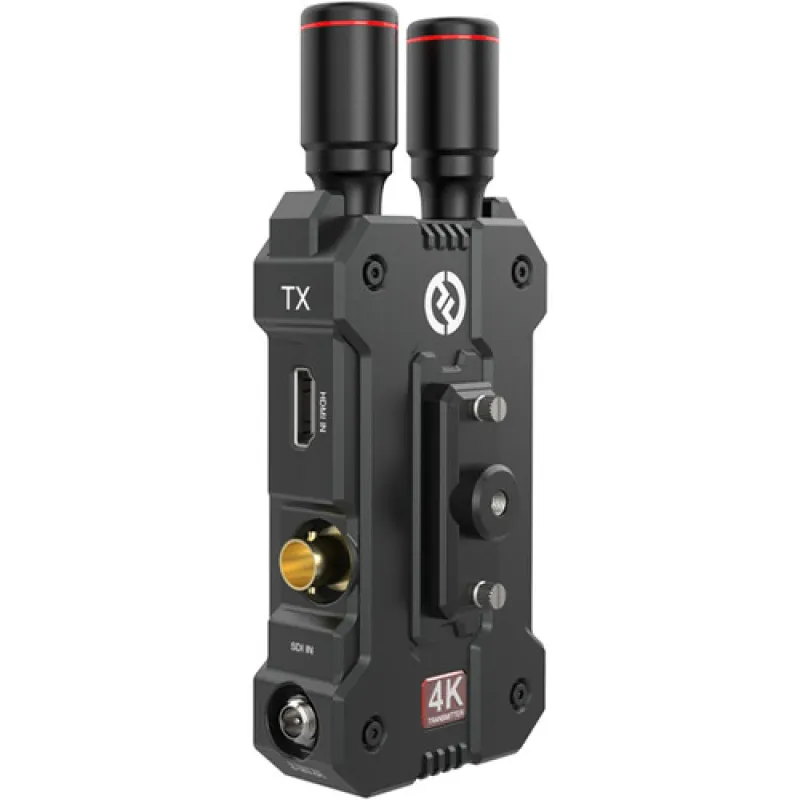

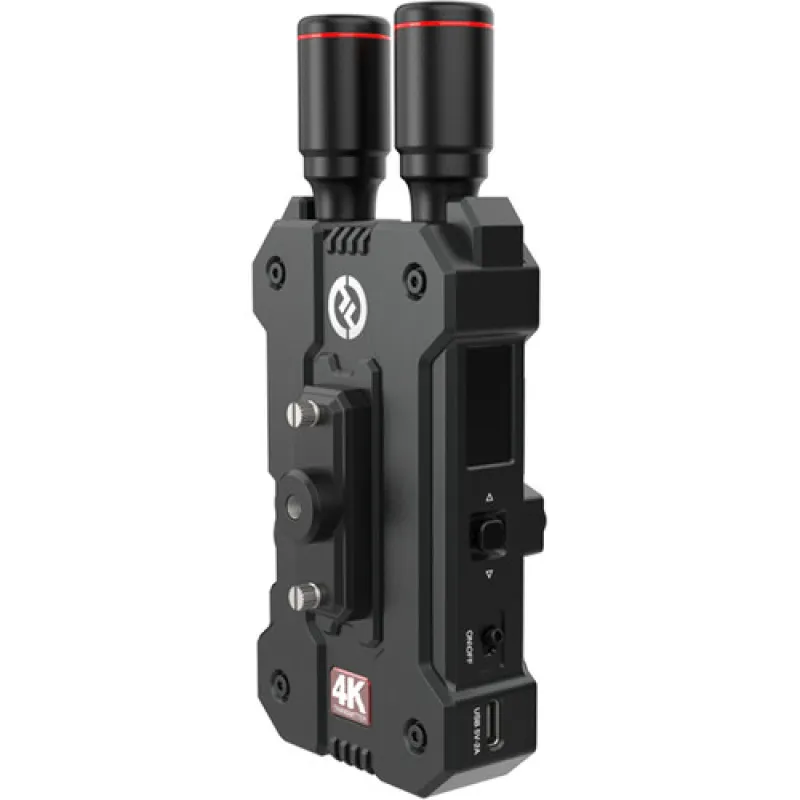

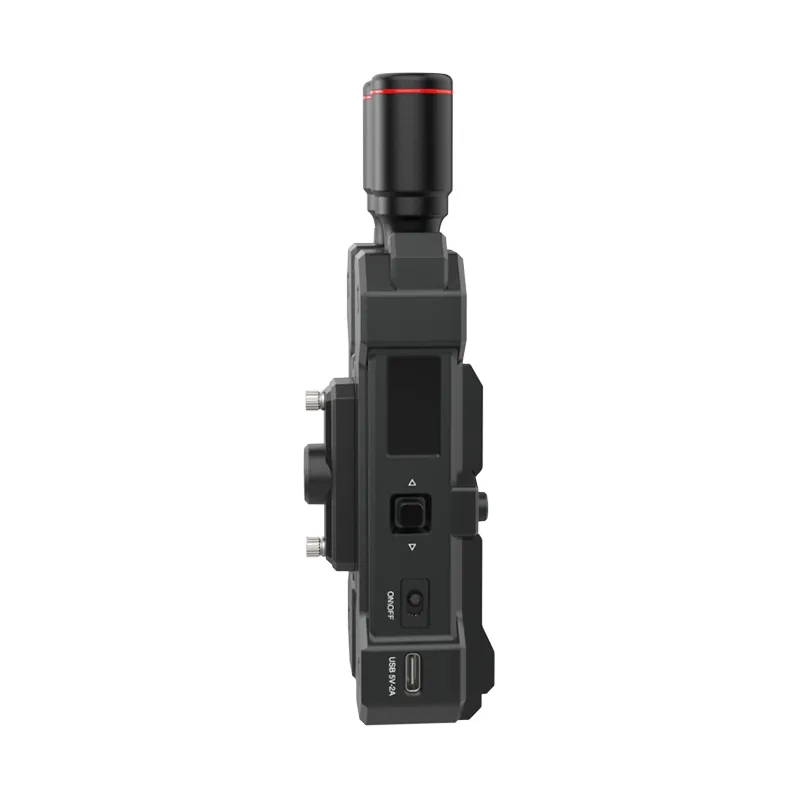

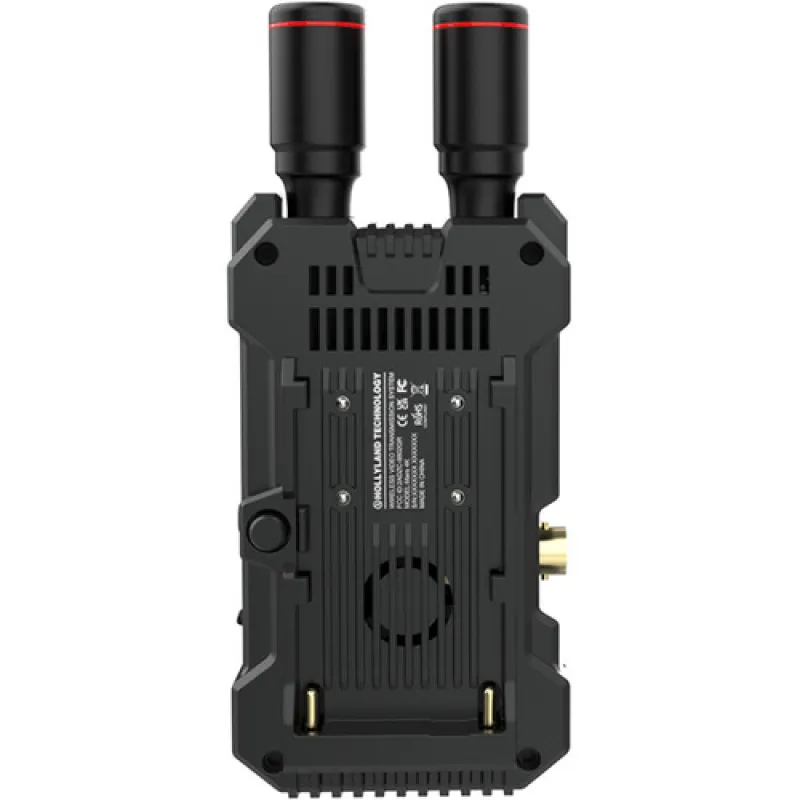

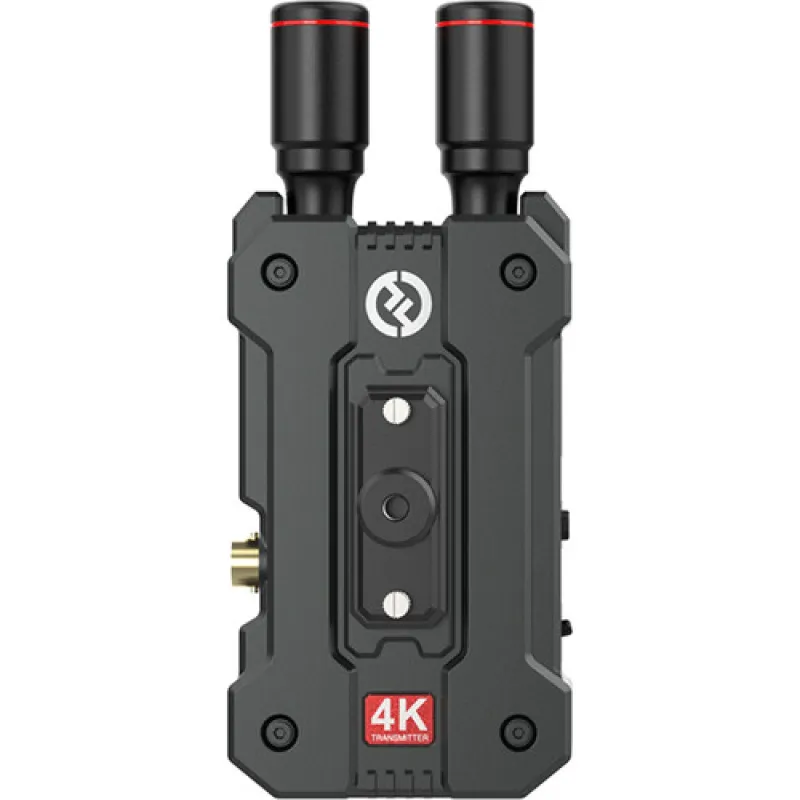

Hollyland MARS 4K Single Transmitter for wireless 4K video transmission system
The new Hollyland Mars 4K wireless video transmission system is capable of a 150m LOS range and ultra-low latency of 0.06s. The Mars 4K is designed to combine high performance and reliable quality at an affordable price.
- 4K UHD
- 450ft (150m) LOS Range
- 06s Low Latency (1080p60 Signal)
- SDI & HDMI Support
- Broadcast & Production Frame Rate
- Flexible Monitoring Options
- Smart Channel Scan & Selection
- Multiple Power Supply Options
Specifications:
| Transmitter (Only Transmitter in this set) | Receiver |
Interface | Antenna (RP-SMA male) | Antenna (RP-SMA male) |
HDMI 1.4 b input (Type-A female) | HDMI 1.4 b output (Type-A female) | |
3G-SDI input | 3G-SDI output | |
DC input (2.0mm core sccket) | DC input (2.0mm core sccket) | |
USB Type-C (USB 2.0 OTG) | USB Type-C (USB 2.0 OTG) | |
Power supply | DC input: 6V–16V | DC input: 6V–16V |
USB Type-C: 5V/2.5A | USB Type-C: 5V/2.5A | |
(not supporting the QC and PD | (not supporting the QC and PD | |
protocols) | protocols) | |
NP-F battery: 6.8V–8.4V | NP-F battery: 6.8V–8.4V | |
Power consumption | <8.5W (typical) | <5W (typical) |
Weight | 223g (7.9oz) (excluding the antennas) | 223g (7.9oz) (excluding the antennas) |
Dimension | (LxWxH): 115x65x32mm (4.5x2.5x1.3) | (LxWxH): 115x65x32mm (4.5x2.5x1.3) |
Operating frequency | 5.1GHz–5.8GHz | 5.1GHz–5.8GHz |
Modulation mode | 802.11n | 802.11n |
TX power | 21dBm (max.) | 21dBm (max.) |
RX sensitivity | N/A | –90dBm |
Bit rate | 8Mbps–20Mbps | |
Latency | 0.06s (test data when 1080p60 signals are transmitted in a laboratory) | |
Range | 450ft (150m) (test data in an open, interference-free outdoor environment) | |
Bandwidth | 20MHz | |
Audio format | 2 audio channels for the 3G-SDI and 8 audio channels for the HDMI 1.4b | |
Operating temperature | –10 to 60 | |
Storage temperature | –40 to 60 | |
ESD protection | Contact discharge: ±6kV; air discharge: ±8kV (test data) | |
HDMI Input Format | HDMI Output Format | SDI Output Format |
720p50/59.94/60 | 720p50/60 | 720p50/60 |
1080i50/59.94/60 | 1080i50/60 | 1080i50/60 |
1080p23.98/24/25/29.97/30 | 1080p24/25/30 | 1080p24/25/30 |
1080p50/59.94/60 | 1080p50/60 | 1080p50/60 |
3840*2160 p24/25/30 | 3840*2160 p24/25/30 | 1080p24/25/30 |
SDI Input Format | HDMI Output Format | SDI Output Format |
1080p50/59.94/60 (Level A) | 1080p50/59.94/60 | 1080p50/59.94/60 (Level A) |
1080p50/59.94/60 (Level B) | ||
1080i50/59.94/60 | 1080i50/59.94/60 | 1080i50/59.94/60 |
1080p23.98/24/25/29.97/30 | 1080p23.98/24/25/29.97/30 | 1080p23.98/24/25/29.97/30 |
1080psf23.98/24 | 1080p23.98/24 | 1080p23.98/24 |
1080psf25/29.97/30 | 1080i50/59.94/60 | 1080i50/59.94/60 |
720p50/59.94/60 | 720p50/59.94/60 | 720p50/59.94/60 |
Content of delivery:
1x Transmitter
2x Antenna
1x Self-locking DC Adapter
1x Expansion Accessory
