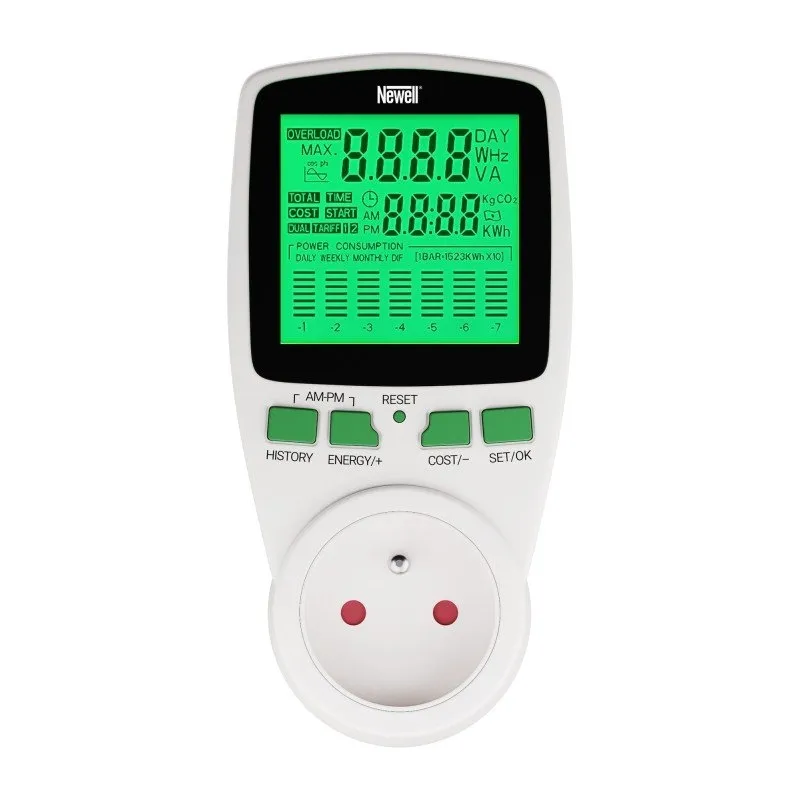

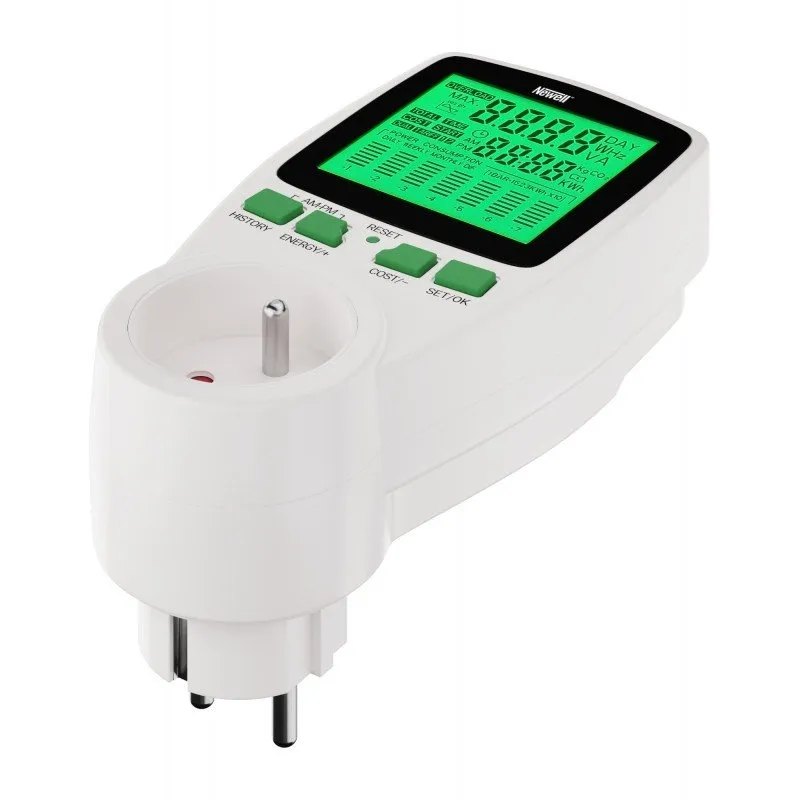

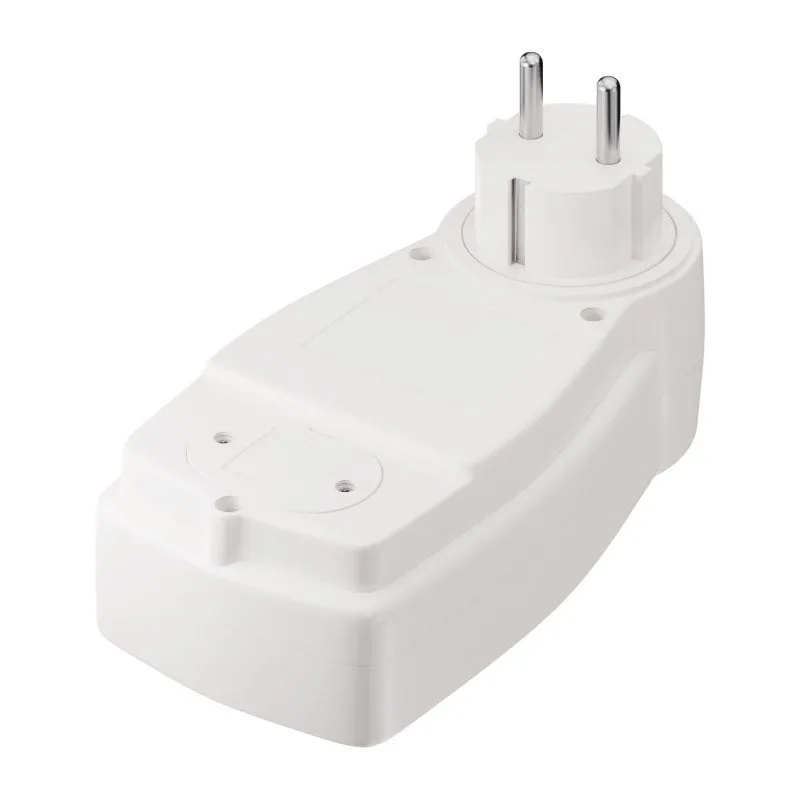

Newell Wattmeter with Graph Function

Accurate Energy Consumption Measurement

The Newell wattmeter is a compact device designed to precisely measure the electricity usage of your home's electrical appliances. It provides detailed information on current consumption, voltage, and power of connected devices via an illuminated display, enabling effective cost control and energy savings.

Key Features

• Advanced wattmeter for monitoring energy consumption of household appliances such as TVs, refrigerators, and microwaves.
• Suitable for use in homes, offices, allotments, or rented accommodations.
• Compact size ensures ease of use when plugged into a socket.
• Compatible with common Polish sockets, featuring an E type socket and F type plug.
• Operated via four function keys with an illuminated display for clear readings.
• Displays power consumption, voltage, and power of connected devices.
• Records total electricity consumption and total energy usage time.
• Calculates energy costs based on two different tariffs with customizable pricing and time periods.
• Monitors carbon dioxide emissions associated with energy consumption.
• Includes a graph function to visualize energy or power consumption history over days, weeks, or months.
• Built-in clock with selectable 12-hour or 24-hour time formats.

Energy Consumption Control

By plugging the Newell wattmeter into standard sockets, users can identify which devices consume the most electricity. Observing consumption data over several days helps modify usage habits to reduce electricity bills effectively.

Precision and Convenience

The device not only monitors power consumption but also displays voltage and power data of connected appliances. Users can input energy cost data for two tariffs, allowing the wattmeter to perform automatic cost calculations, saving time and ensuring measurement accuracy.

Clear Data Visualization

All information is presented on a large backlit screen. The graph function displays consumption as bars representing past days, weeks, or months, providing an immediate overview of energy usage trends and the impact of behavioral changes.

Data Storage and Reliability

The wattmeter includes a small LR44 battery compartment to retain all consumption and cost data in memory. This ensures that data is preserved during power outages or when the device is connected to different appliances, maintaining a continuous history unless manually reset.

Environmental Impact Awareness

Beyond cost savings, the Newell wattmeter tracks carbon dioxide emissions related to electricity consumption, encouraging eco-friendly energy use and environmental responsibility.

Technical Specifications

• Model: Newell wattmeter with chart function.
• Power supply: 230 V AC, 50 Hz.
• Maximum load: 16 A, 3680 W.
• Displayed time range: 0 seconds to 9999 days.
• Power display range: 0.000 to 9999 watts.
• Voltage display range: 0.00 to 9999 V.
• Current display range: 0.000 to 9999 A.
• Energy rate display range: 0.000 to 9999 (cost per kWh).
• Energy cost display range: 0.000 to 9999.
• Energy consumption display range: 0.000 to 9999 kWh.
• Batteries: 2x LR44 / AG13 for permanent data storage.
• Weight: 202 grams.
• Dimensions: 14 x 7 x 7.5 cm.
