Newell 1000W Modified Sine Wave Voltage Converter 12V to 230V

Power Conversion and Compatibility

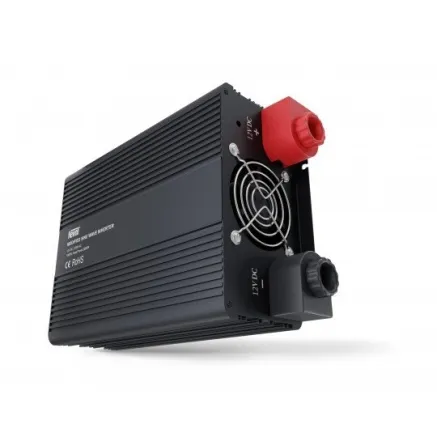

The Newell voltage converter with modified sine wave converts 12 V DC from a battery into 230 V AC, providing up to 1000 watts of continuous power. It features two standard European electrical outlets (E standard) and one USB-A port, allowing connection of various devices such as heaters, laptops, smartphones, tablets, grinders, and other electronic equipment.

Design and Usage

• Ideal for travelers, campers, and users needing power where traditional outlets are unavailable.
• Compact and lightweight design enhances portability.
• Includes battery cables with eyelet terminals for secure and reliable connection to 12 V batteries.

Modified Sine Wave Technology

This inverter produces a modified sine wave output, suitable for less demanding devices including laptops, chargers, heaters, and power tools with commutator motors. It offers a cost-effective and reliable solution with a simple design that reduces failure risk compared to pure sine wave inverters.

Note: For appliances with induction motors, compressors, LED bulbs, or Hi-Fi equipment, a pure sine wave inverter is recommended for optimal performance.

Power and Performance

• Continuous power output: 1000 W
• Peak power output: 2000 W
• Operating efficiency: 88% at full load
• Input voltage range: 10.0 to 15.5 V DC
• Output frequency: 50/60 Hz

Safety and Protection Features

• Protection against overvoltage, short circuit, overheating, and overcharging.
• CE and RoHS certified for safety and environmental compliance.
• Intelligent cooling system with temperature-controlled fans for quiet and efficient operation.
• LED indicator for proper operation status.

Physical Specifications

• Dimensions: 24 cm (length) x 15 cm (width) x 7.5 cm (height)
• Weight: 1690 g
• Operating temperature range: -10°C to 40°C
• Operating humidity range: 20% to 90% RH

Package Contents

• Newell voltage converter with modified sine wave - 12 V / 230 V, 1000 W
• Battery cables with eyelet terminals for secure connection
