Godox AI2C 2-Channel USB Audio Interface AI2C

Godox AI2C 2 Channel USB Audio Interface

The AI2C features USB B 2.0 connectivity for Windows computers. Housed in an attractive and durable silicone casing, the unit can record at 24 bit / 192 kHz, ensuring clear, high-quality sound for your streaming audience.

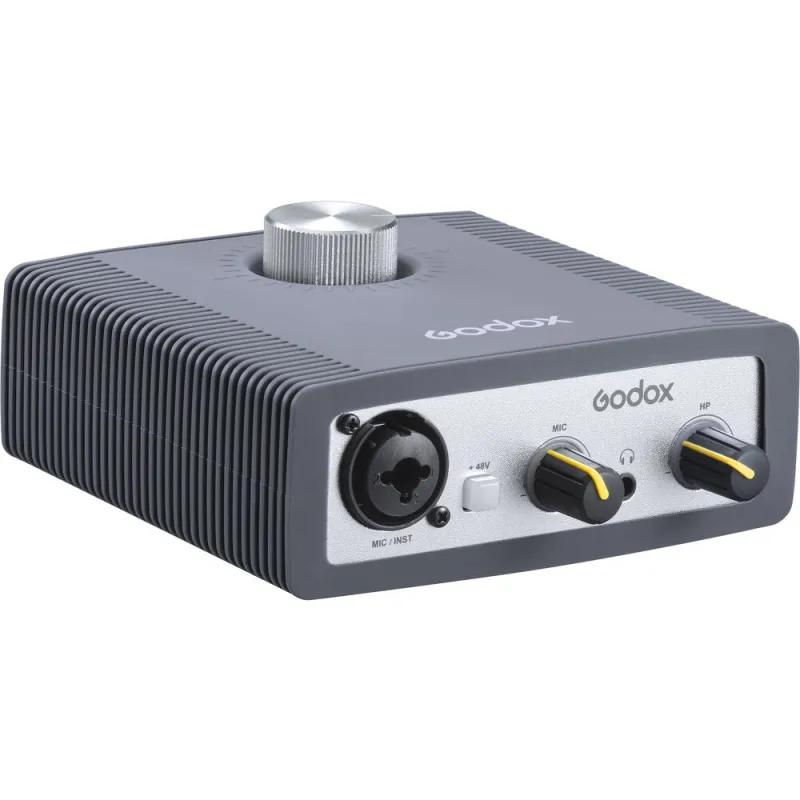

The AI2C has easily accessible connections and control buttons on the front. The front panel features a single XLR/TRS combo jack for connecting a microphone or instrument. Switch the phantom power on to send 48V phantom power to condenser microphones or leave it off when connecting dynamic microphones.

The accompanying control knob allows you to adjust the gain of the built-in preamp for the microphone signal, so you can get the right levels for your recordings. There is also a headphone output and volume control on the front of the AI2C, so you can monitor and adjust your recordings while you are recording.

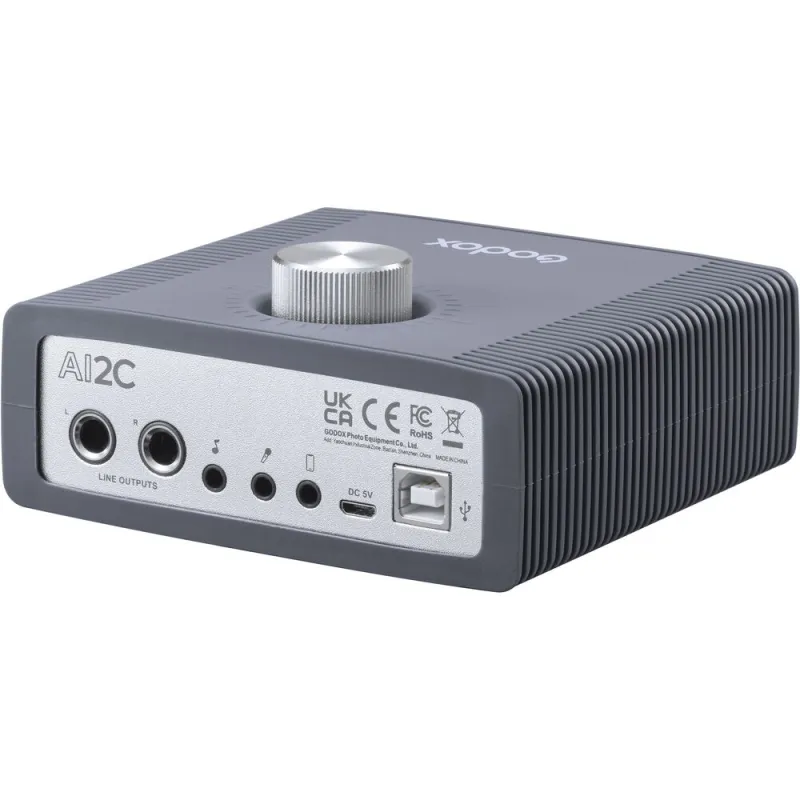

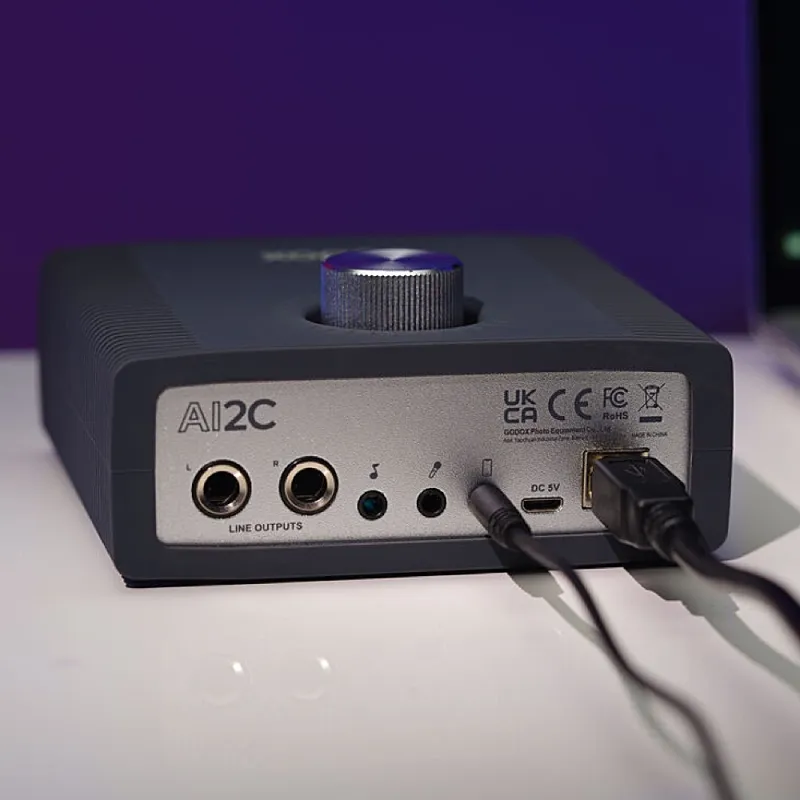

On the back of the AI2C, you'll find two 1/4 inch TRS jacks for connecting studio monitors or other speakers. There is also a USB B 2.0 connector for connecting the AI2C to your computer.

The AI2C is powered via the USB connection and no additional power supply is needed. This makes it an ideal solution for recording on the road or in a small studio where space and power supply may be limited.

Microphone Input

• Total harmonic distortion plus noise <0.0061 (90dB)
• Dynamic range: 101dB (A weighting)
• Signal to noise ratio: 94dB (A weighting)
• Frequency response: 22Hz to 22kHz (+/- 0.1dB)
• Adjustable gain range: +34dB
• Crosstalk: 87dB 1kHz
• Input impedance Mic in: 1.8K Ohms, typical
• Total gain range: +50dB

Line Output 1/2 (unbalanced)

• Rated output level Unbalanced: +4dBV, typical
• Load impedance: 600 Ohm minimum
• Dynamic range: >105dB (A weighting)
• Total harmonic distortion plus noise: <0.003 (90 dB)
• Large output level: +11dBV, typical
• Signal to noise ratio: 100dB (A weighting)
• Frequency response: 22Hz to 22kHz (+/- 0.1dB)
• Input impedance: 150 Ohm
• Crosstalk: 100dB 1kHz

Headphone Output

• Frequency response: 22Hz to 22kHz (+/- 0.1dB)
• Load impedance: 32 to 600 Ohms
• Signal to noise ratio: 90dB (A weighting)
• Total harmonic distortion plus noise: <0.03 (70dB)
• Input impedance: 75 Ohm

Included in the box:

• 1x AI2C
• 2x 3.5mm Audio cable
• 1x Micro USB Power Cable
• 1x USB Type A to Type B Cable
