Godox MoveLink Mini USB Type-C UC Kit 2 (Black)

Wireless Audio Transmission System

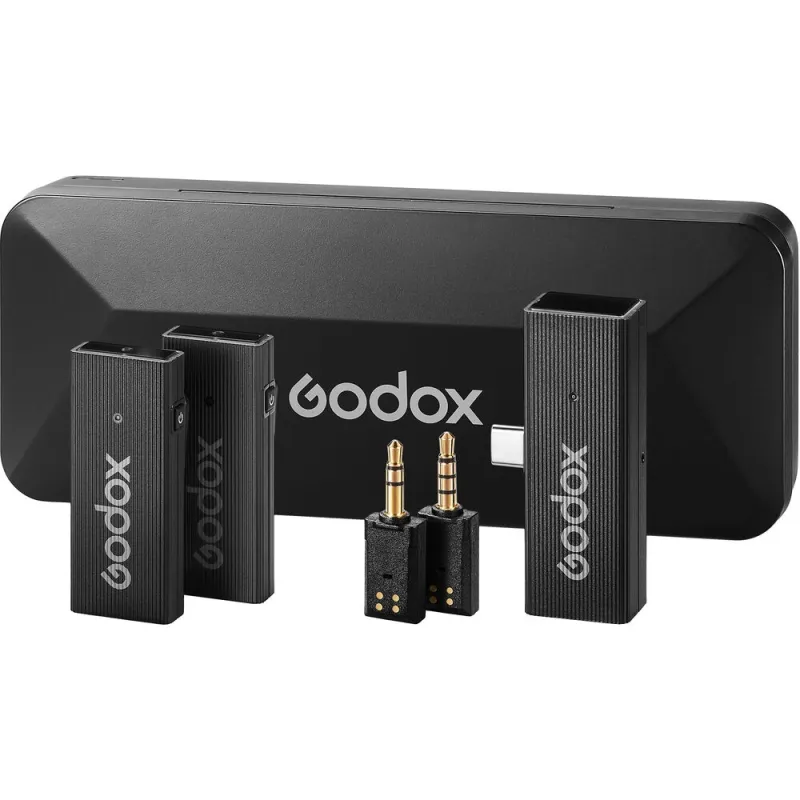

The Godox MoveLink Mini UC Kit 2 (Black) is a dual-channel wireless microphone system designed for versatile audio capture with DSLR cameras, audio recorders, and USB-C equipped smartphones. It features a modular output design on the receiver with multiple adapters for extensive connectivity options.

Wireless Technology and Range

• Operating frequency: 2.4 GHz wireless technology with diversity frequency
• Maximum operating range: 100 meters (328 feet)
• Maximum transmitters per band: 2
• Dynamic range: 90 dBA
• Signal-to-noise ratio (SNR): >65 dB
• Total harmonic distortion (THD): >5%

Receiver Features

• Internal antenna for stable reception
• Two audio channels for simultaneous input
• Audio inputs/outputs:
  • 1 x 3.5 mm TRS female balanced/unbalanced microphone input
  • 1 x 3.5 mm TRRS female balanced/unbalanced connection
• Gain range adjustable from 33 to 43 dB
• Frequency response: 50 Hz to 20 kHz
• Connectivity: USB Type-C male (adapter included)
• Power: Built-in rechargeable battery (150 mAh capacity)
• Battery life: Approximately 8 hours of continuous use
• Operating temperature range: 10 to 50 °C (14 to 122 °F)
• Receiver controls allow switching between first and second-level amplification

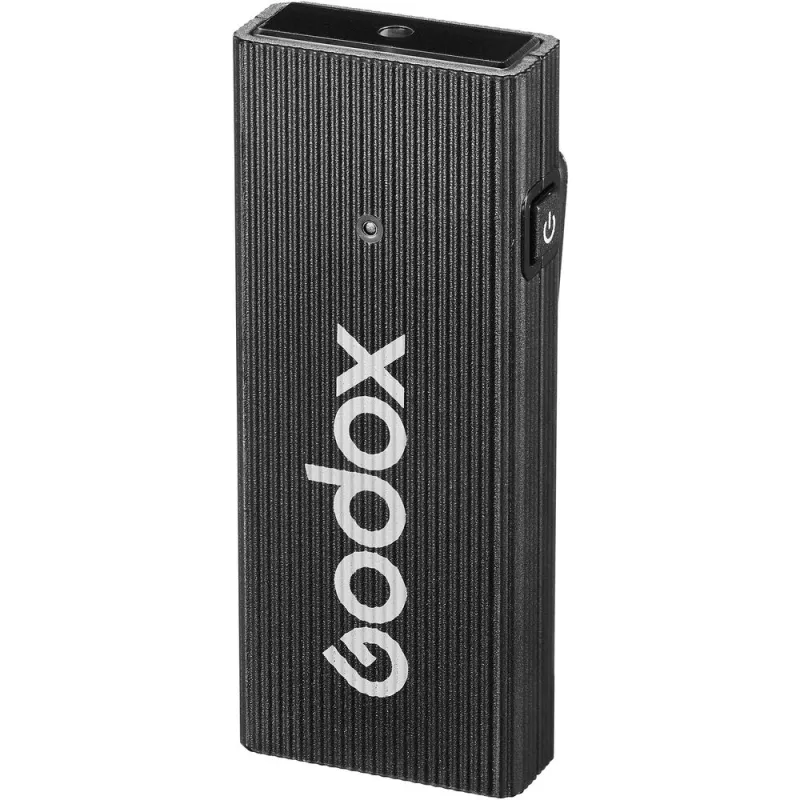

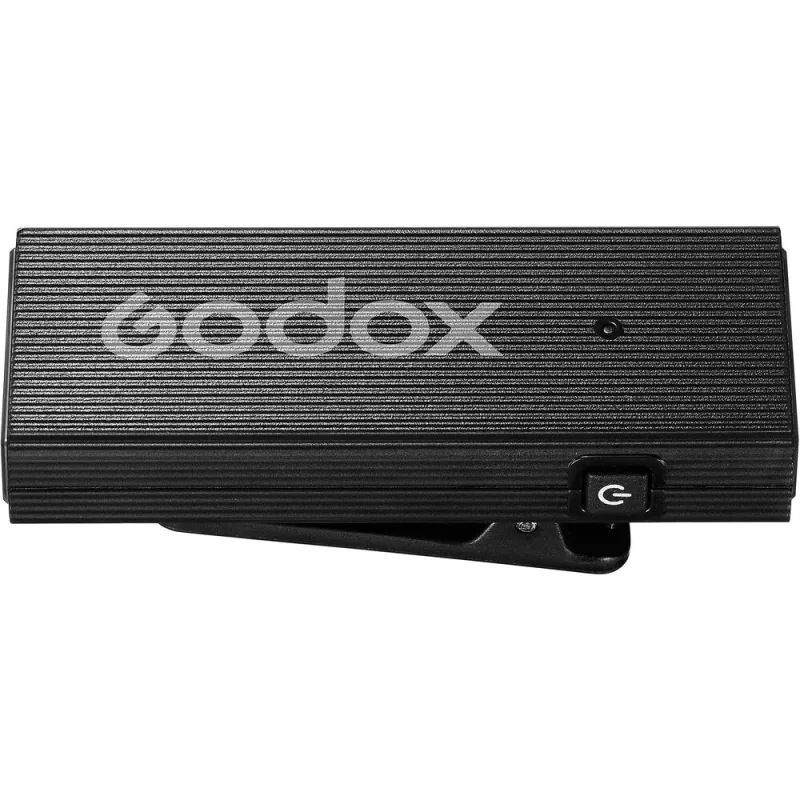

Transmitter Features

• Internal antenna for wireless transmission
• Frequency response: 50 Hz to 20 kHz
• Synchronization method: 2.4 GHz QPSK modulation
• Power: Built-in rechargeable battery (100 mAh capacity)
• Battery life: Approximately 6 hours of continuous use
• Charging via USB Type-C port
• Operating temperature range: 10 to 55 °C (14 to 131 °F)
• Transmitter controls enable toggling attenuation and noise reduction
• Includes foam windshields to reduce wind noise during outdoor recordings

Microphone Specifications

• Integrated omnidirectional microphone on each transmitter
• Frequency response: 50 Hz to 16 kHz
• Signal-to-noise ratio: 65 dB
• Maximum sound pressure level (SPL): 110 dB SPL
• Total harmonic distortion: >5%

Included Accessories

• 1 x MoveLink Mini RX receiver
• 2 x MoveLink Mini TX transmitters

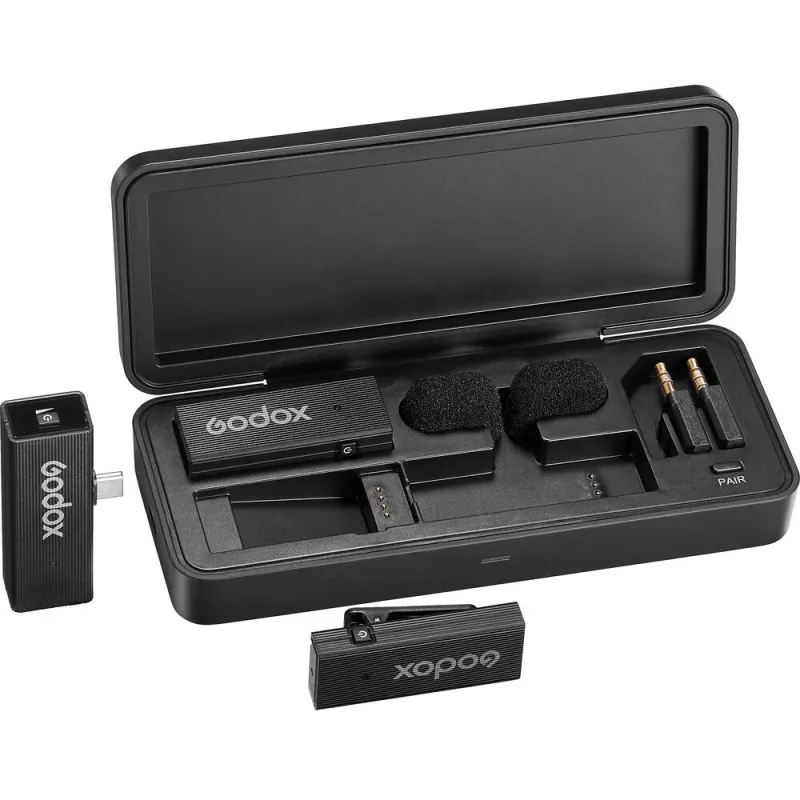

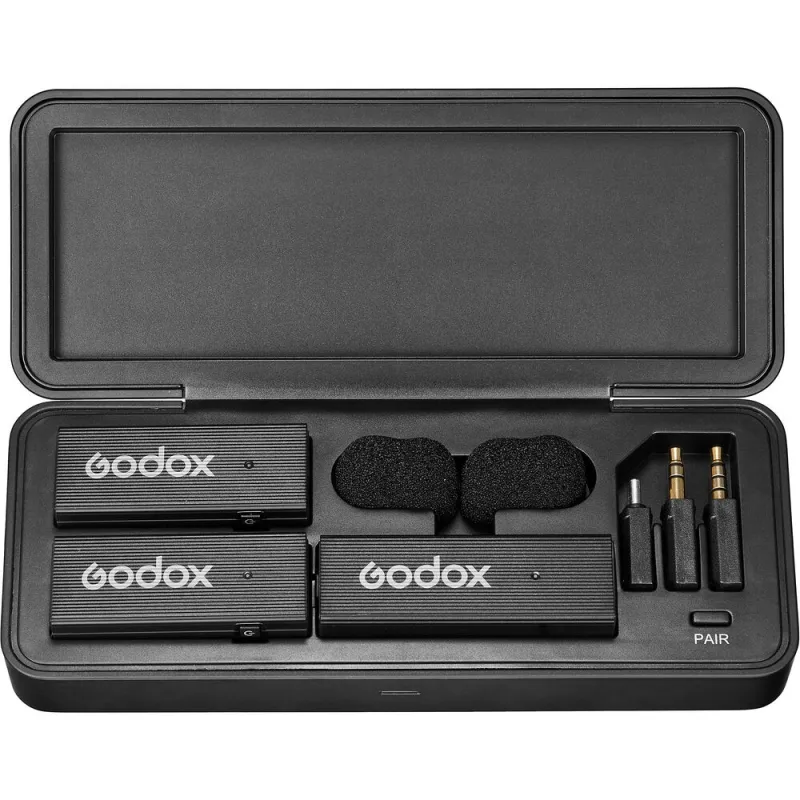

• 1 x Charging case for on-the-go battery recharging
• 1 x USB A to USB C data cable
• 1 x 3.5 mm TRS audio adapter
• 1 x 3.5 mm TRRS audio adapter
• 1 x USB C audio adapter
• 2 x Foam windshields
• 1 x Wrist strap
• 1 x Pin tool

The charging case allows recharging the entire system during travel, ensuring continuous operation. The system's modular design and extensive connectivity make it suitable for professional audio recording in various environments.
