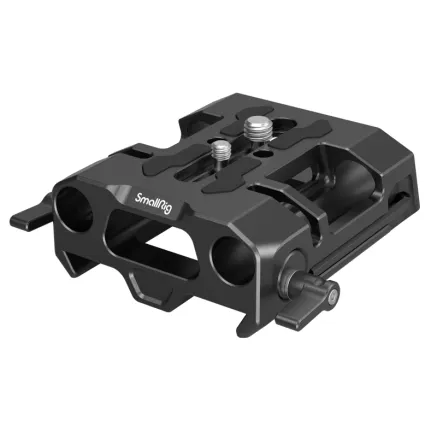

SmallRig 4002 15mm Dovetail Baseplate

SmallRig 15mm Dovetail Baseplate 4002

The SmallRig 4002 is a 15mm dovetail baseplate compatible with ARRI dovetail plates. It features a hollowed-out aluminum alloy structure that weighs just over 300 grams while supporting payloads up to 20 kilograms. This design ensures a lightweight yet robust platform for camera mounting.

Key Features

• Compatible with ARRI dovetail plates
• Hollowed-out design reduces weight without sacrificing strength
• Supports up to 20 kg payload
• Low center of gravity with a height of only 38 mm
• Camera sits 28 mm away from the dovetail plate, lowering overall camera height
• Includes a built-in wrench on the side for easy assembly and disassembly
• Equipped with one 1/4"-20 screw and one 3/8"-16 screw through top slots to lock the camera securely and prevent twisting
• Bottom features 1/4"-20 and 3/8"-16 threaded holes to support other quick-release plates beyond ARRI

Design and Compatibility

The baseplate's low profile design allows sufficient clearance for dual 15mm rods, with the rod center positioned 15 mm above the dovetail plate and 13 mm above the baseplate top. For cameras with a lower optical axis center, it is recommended to use a cage or height riser plate when pairing with this baseplate and dual rods to maintain optimal alignment.

Specifications

• Dimensions: 109.6 x 99.0 x 37.5 mm
• Weight: 318 g ± 5 g
• Material: Aluminum alloy and stainless steel
• Package dimensions: 132.0 x 124.0 x 51.0 mm
• Package weight: 677 g ± 5 g

Included in the Box

• 1 x SmallRig 4002 Baseplate
• 2 x 1/4"-20 screws
• 1 x 3/8"-16 screw
• 1 x Wrench
